Toyota RAV4 中央扶手箱和支架 — Figure 5855

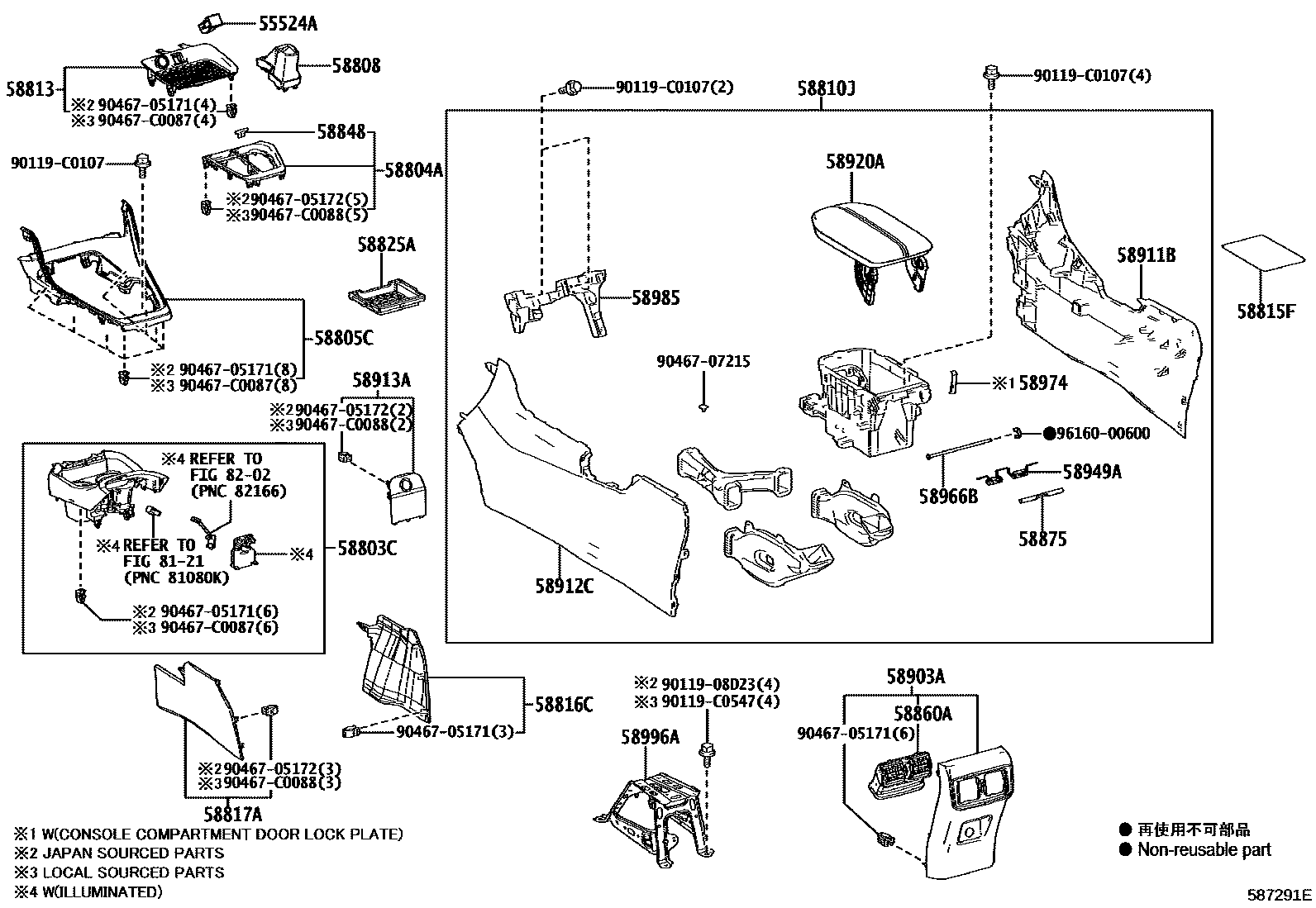

Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58804A | Armrest box upper panel sub-assembly | 58804-0R210 · 58804-YK060 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-0R090 |
| 58810J | Armrest box assembly | 58810-YK010 |
| 58815F | Armrest box felt pad | 58815-0R080 |
| 58825A | Armrest box groove | 58825-0R020 |
| 58848 | Shift lever hole cover | 58848-0R020 · 58848-YK010 |
| 58875 | Armrest box spacer | 58875-0R020 |
| 58913A | Armrest box panel No. 3 | 58913-0R020 · 58913-0R090 |
| 58920A | Rear armrest box armrest assembly | 58920-YK010 |
| 58949A | Armrest box mounting bracket spring | 58949-0R030 · 58949-0R060 |
| 58966B | Armrest box lid stopper lock pin | 58966-0R030 |
| 58974 | Armrest box lid lock plate | 58974-0R060 |
| 58985 | Armrest box fixing bracket | 58985-0R090 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R080 |
