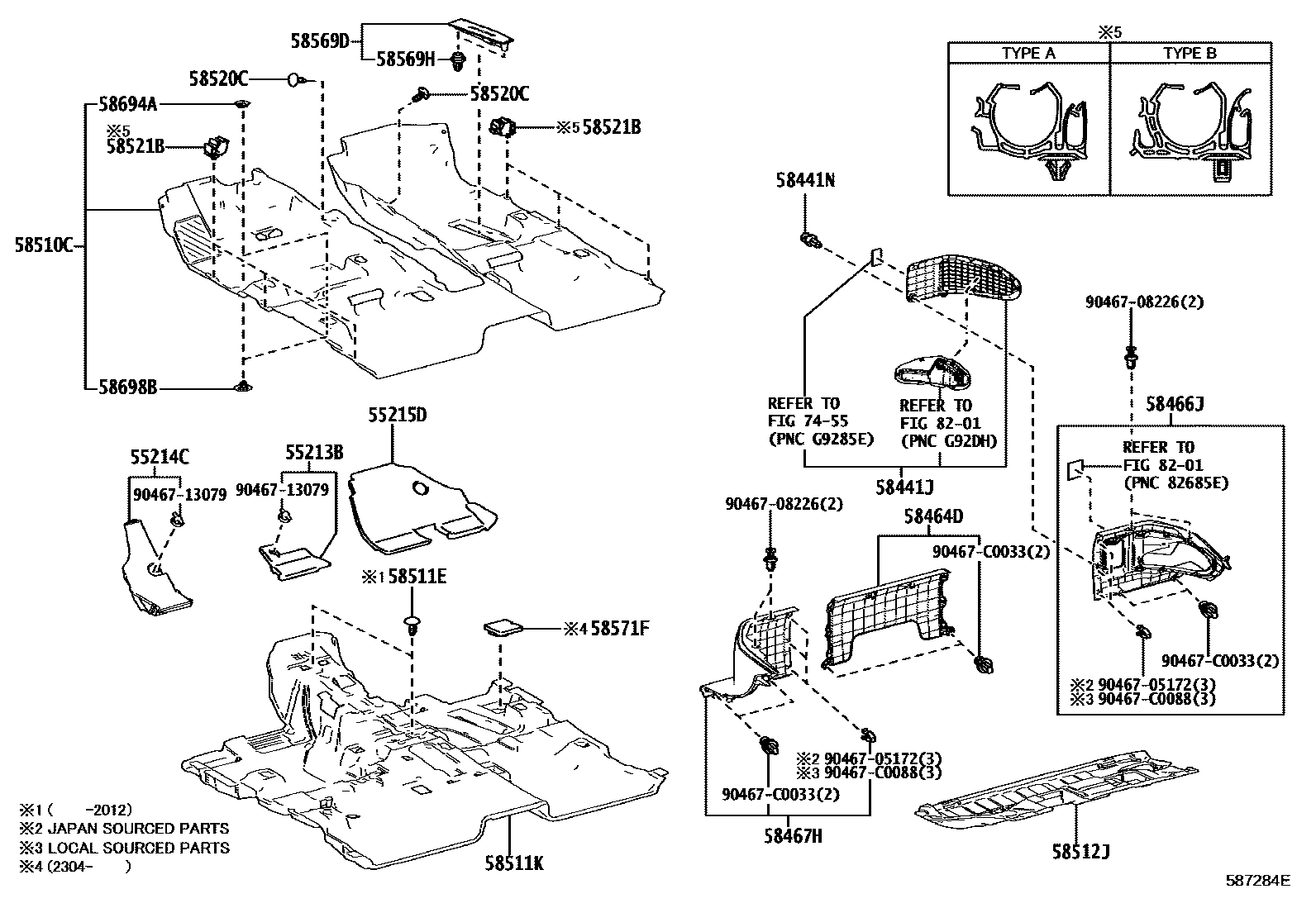

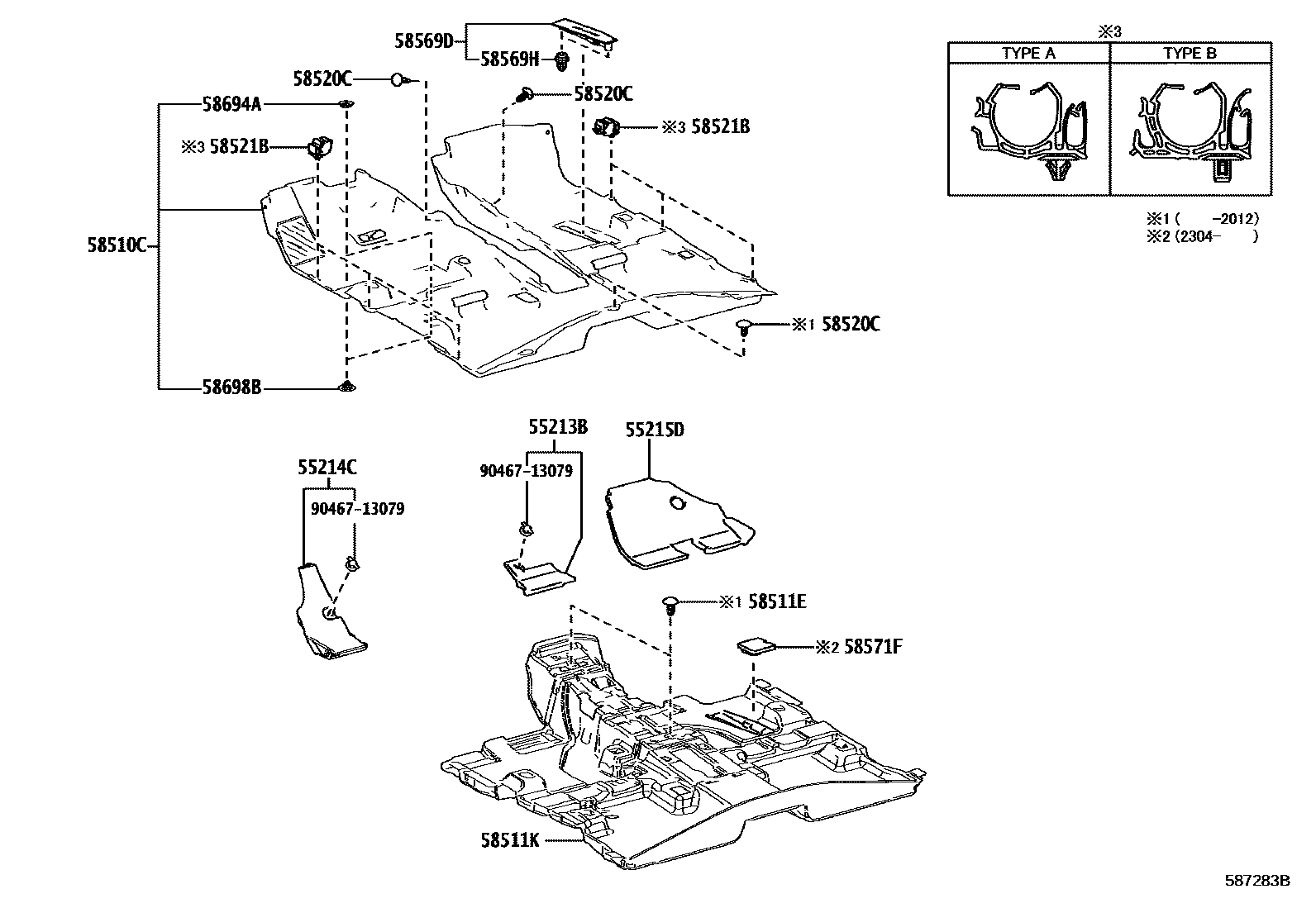

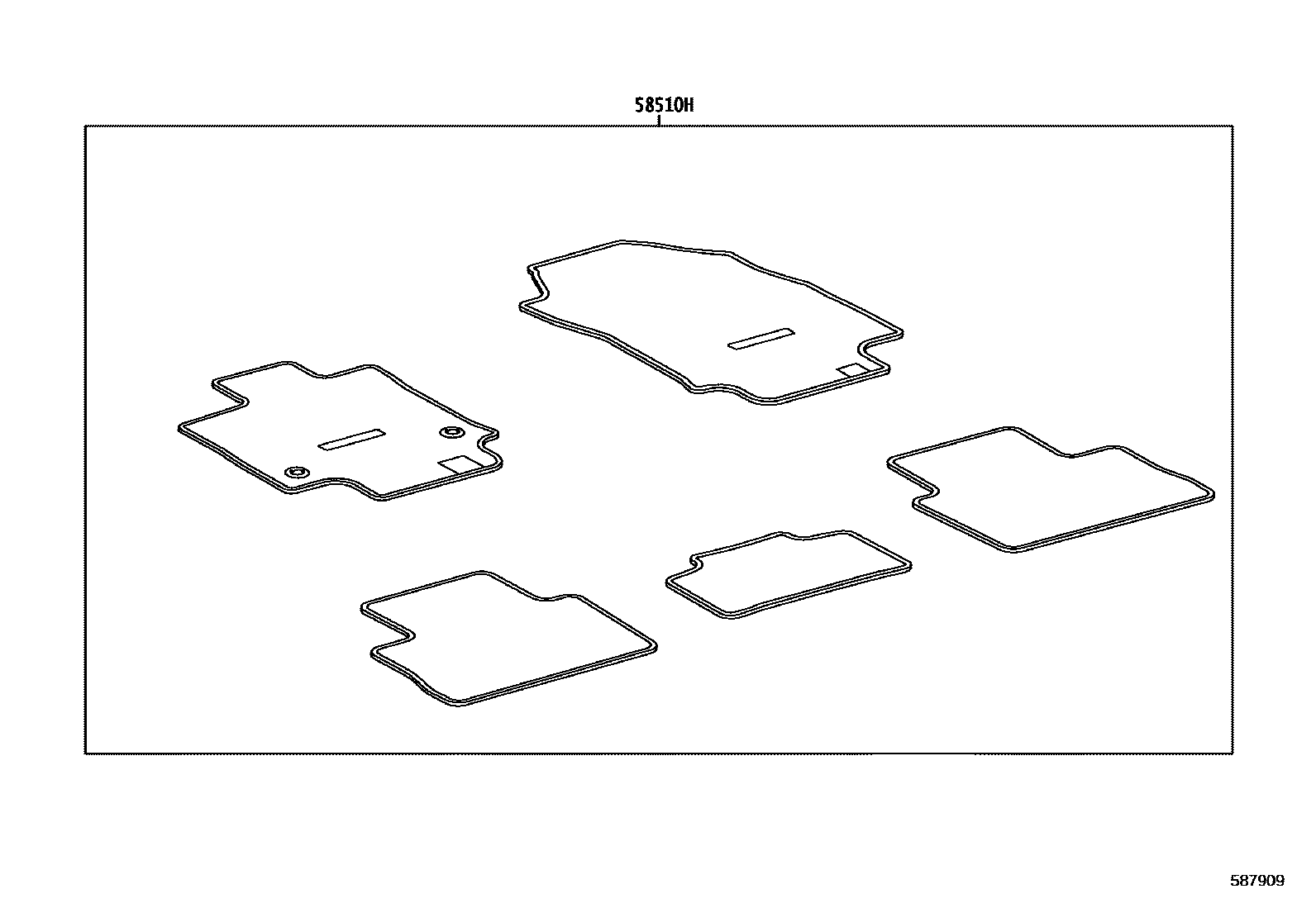

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-0R020 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-0R060 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-0R020 |
| 58511K | Floor Mat No. 1 | 58511-0R030 · 58511-0R031 · 58511-0R040 · 58511-0R041 |
| 58512J | Floor mat No. 2 | 58512-0R020 |
| 58521B | carpet hook | 58521-33060 · 58521-33070 |
| 58569H | Front floor warning nameplate cover No. 1 clip | 62217-13010 |
| 58571F | Front floor pad | 58571-0R080 |
| 58694A | Pad the fixing plate | 58694-33010 |
| 58698B | Fixing plate under the pad | 58698-33010 |
