Toyota RAV4 地板隔热垫 — Figure 5853

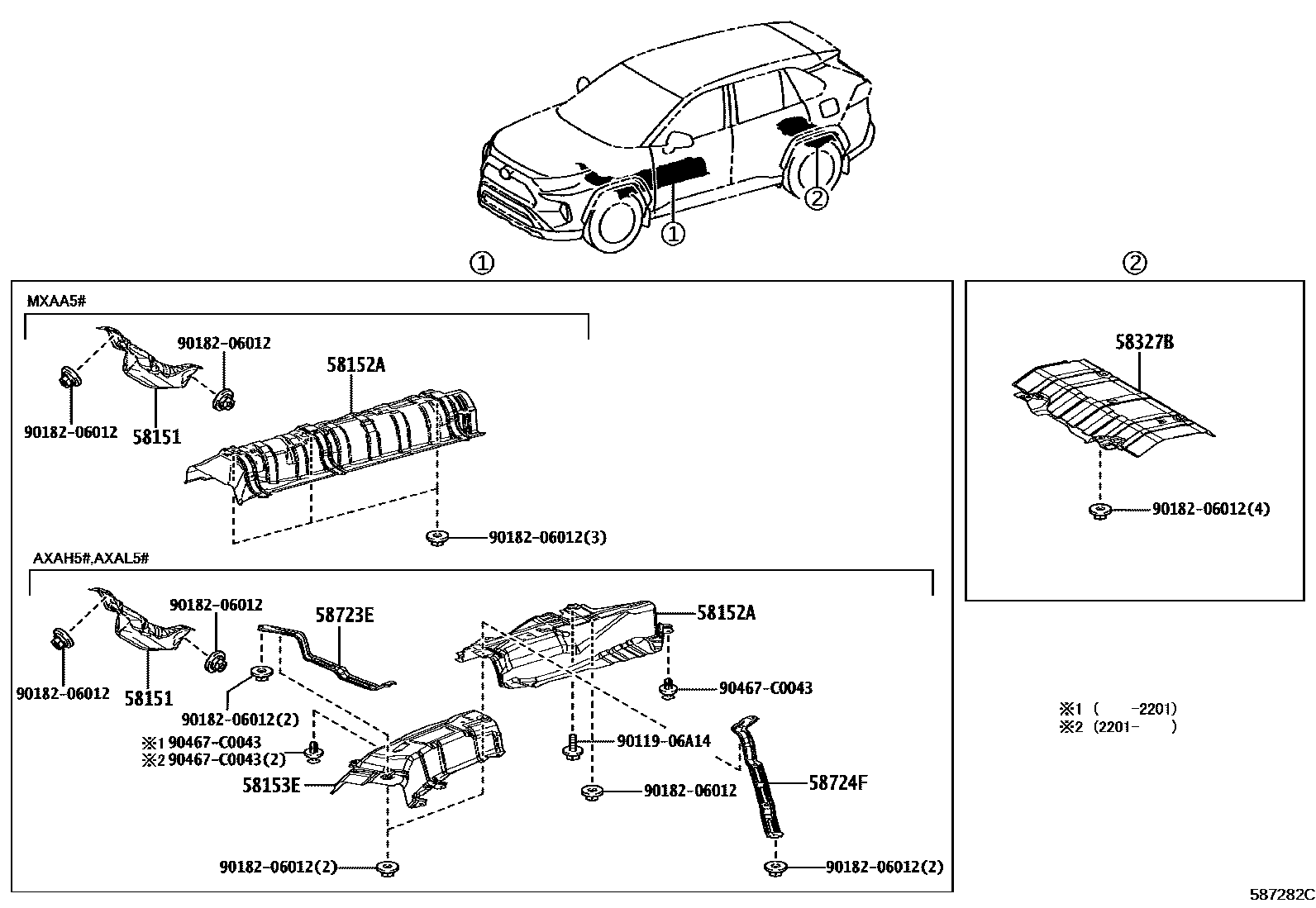

Toyota RAV4 EPC diagram 5853, 地板隔热垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-0R030 |
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-0R080 · 58720-0R030 · 58720-0R031 · 58720-0R032 |
| 58153E | Front floor insulation mat No. 2 | 58153-0R030 · 58153-0R031 |
| 58327B | Main muffler heat insulation pad | 58327-0R040 |
| 58723E | Engine access cover cushion | 58723-0R090 |
| 58724F | No. 2 engine access cover cushion | 58724-0R090 |
