Toyota RAV4 前地板和前地板梁 — Figure 5851

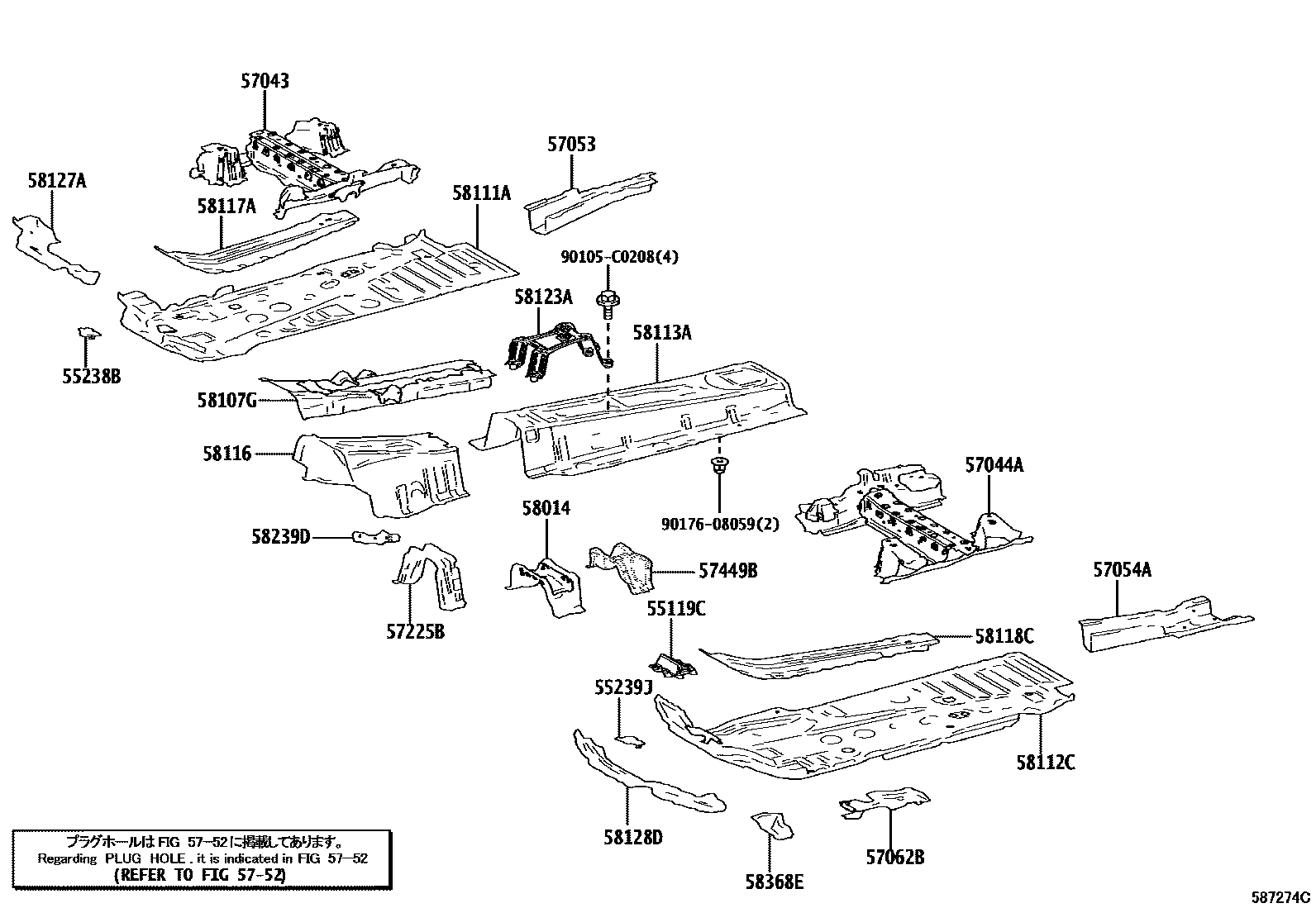

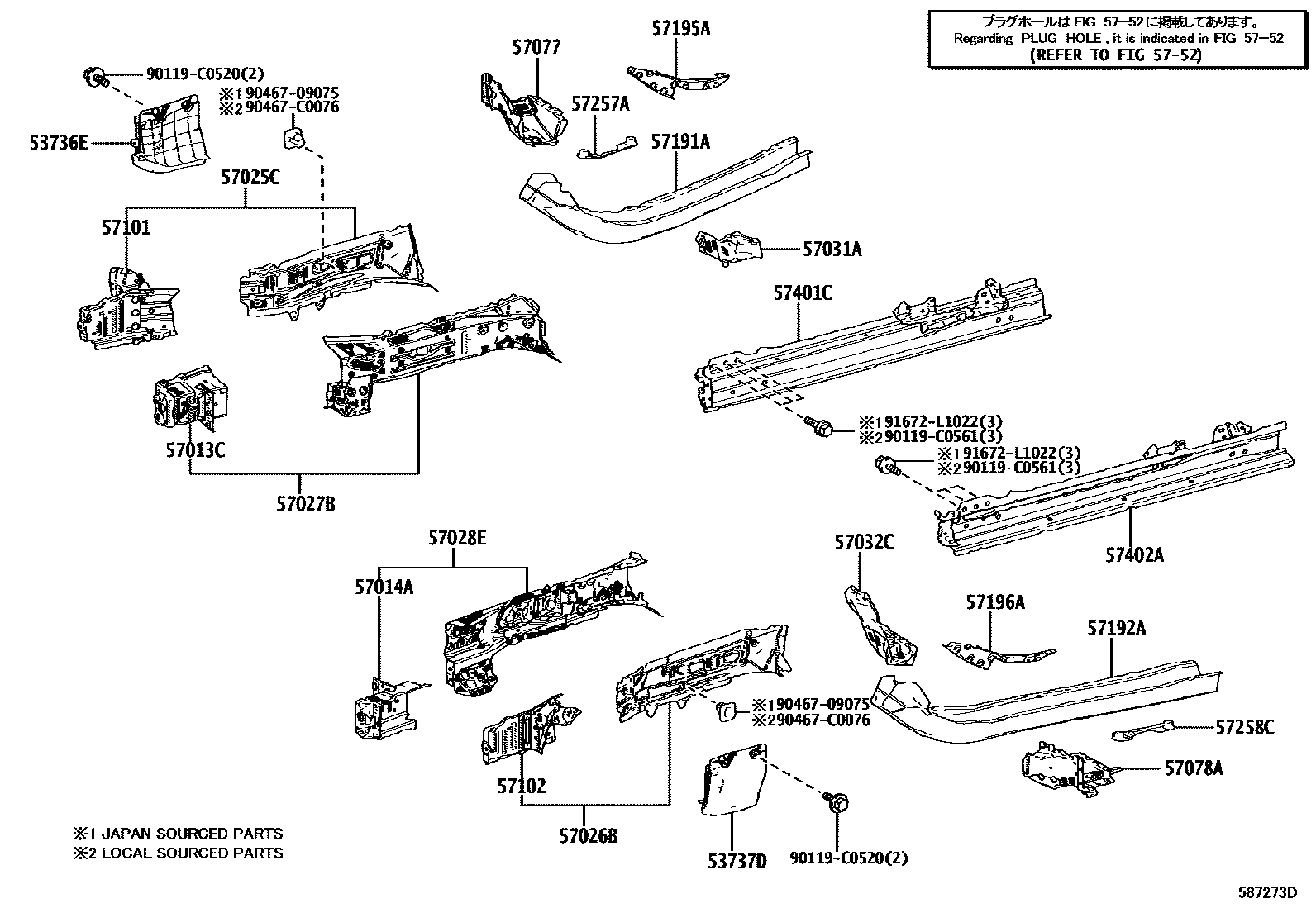

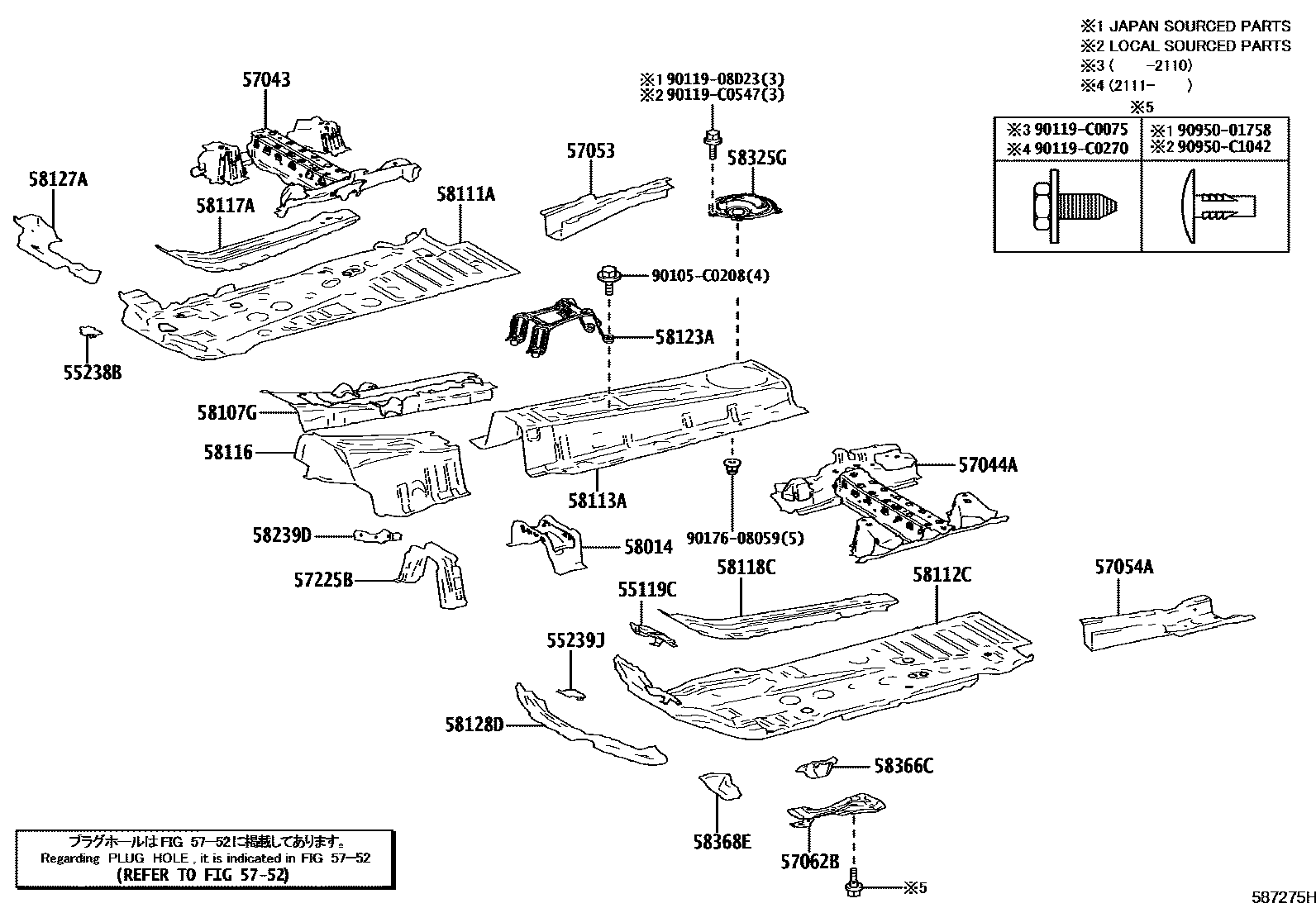

Toyota RAV4 EPC diagram 5851, 前地板和前地板梁, with 3 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53736E | Right front fender fender seal | 53736-0R050 |
| 53737D | Left front fender fender seal | 53737-0R020 |
| 55119C | clutch booster bracket | 55119-0R020 |
| 55238B | Heat insulation pad on the lower right side of the cowl | 55238-0R020 |
| 55239J | Heat insulation pad on the lower left side of the cowl | 55239-0R020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0R020 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0R020 |
| 57025C | Right front outer longitudinal beam sub-assembly | 57025-0R030 |
| 57026B | Left front outer longitudinal beam sub-assembly | 57026-0R030 |
| 57027B | Right front inner longitudinal beam sub-assembly | 57027-0R020 |
| 57028E | Converter bracket sub-assembly | 57028-0R020 |
| 57031A | No. 2 right front longitudinal beam reinforcement sub-assembly | 57031-0R020 |
| 57032C | No. 2 left front longitudinal beam reinforcement sub-assembly | 57032-0R040 |
| 57043 | Right front longitudinal beam rear reinforcement sub-assembly | 57043-0R050 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-0R050 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-0R040 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-0R050 · 57054-0R060 |
| 57062B | Fuel tank left bracket sub-assembly | 57062-0E090 · 57062-0R030 · 57062-0R040 |
| 57077 | Right front anti-torsion box-section sub-assembly | 57077-0R020 |
| 57078A | Left front anti-torsion box-section sub-assembly | 57078-0R040 |
| 57101 | Right front longitudinal beam sub-assembly | 57023-0R020 |
| 57102 | Left front longitudinal beam sub-assembly | 57024-0R020 |
| 57191A | Right rear longitudinal member inside front floor | 57191-0R050 · 57191-0R051 |
| 57192A | Left rear longitudinal member inside front floor | 57192-0R050 |
| 57195A | Right front longitudinal beam front reinforcement | 57195-0R030 |
| 57196A | Left front longitudinal beam front reinforcement | 57196-0R030 |
| 57225B | front mounting bracket | 57225-0R020 |
| 57257A | Engine rear suspension beam right bracket | 57257-0R020 |
| 57258C | Engine rear suspension beam left bracket | 57258-0R020 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-0R070 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-0R060 |
| 57449B | Center floor left crossmember fixing | 57449-0R020 |
| 58014 | Front floor and rear lower panel sub-assembly | 58014-0R030 |
| 58107G | Parking brake base reinforcement sub-assembly | 58107-0R030 · 58107-0R040 |
| 58111A | Front floor right bottom panel | 58111-0R060 |
| 58112C | Front floor left bottom panel | 58112-0R050 |
| 58113A | front floor center panel | 58113-0R060 · 58113-0R070 |
| 58116 | Shift cable mounting plate | 58116-0R020 |
| 58117A | Front floor right reinforcement | 58117-0R050 |
| 58118C | Front floor left reinforcement | 58118-0R040 |
| 58123A | shift lever bracket | 58123-0R060 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-0R020 · 58127-0R021 |
| 58128D | Front cross member to front panel beam left reinforcement | 58128-0R040 |
| 58239D | Cable clip bracket | 58239-0R020 |
| 58325G | Rear floor access hole cover | 58325-0R040 |
| 58366C | Fuel tank rear bracket reinforcement | 58366-0R020 |
| 58368E | No. 2 fuel pipe bracket | 58368-0R020 |
