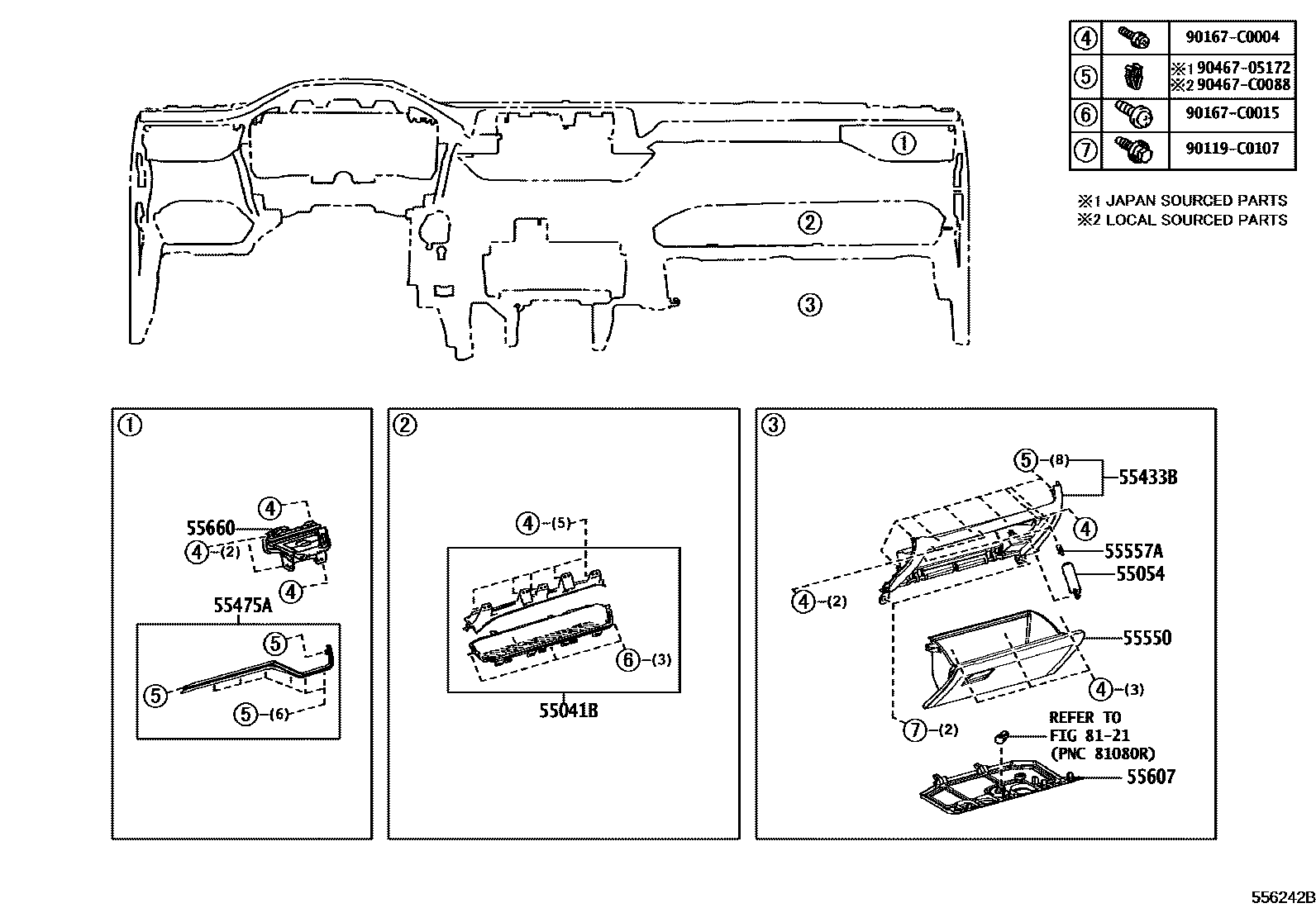

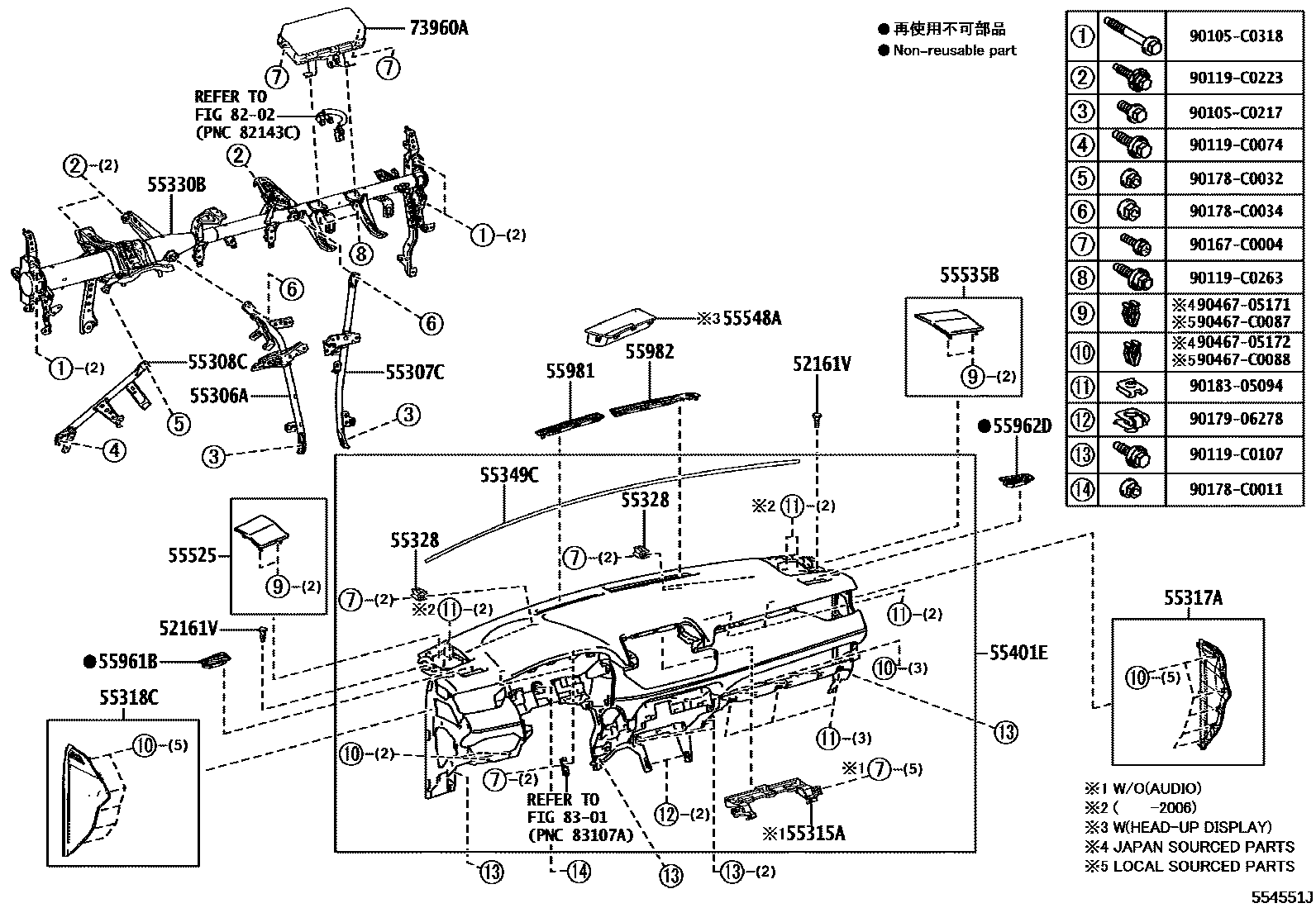

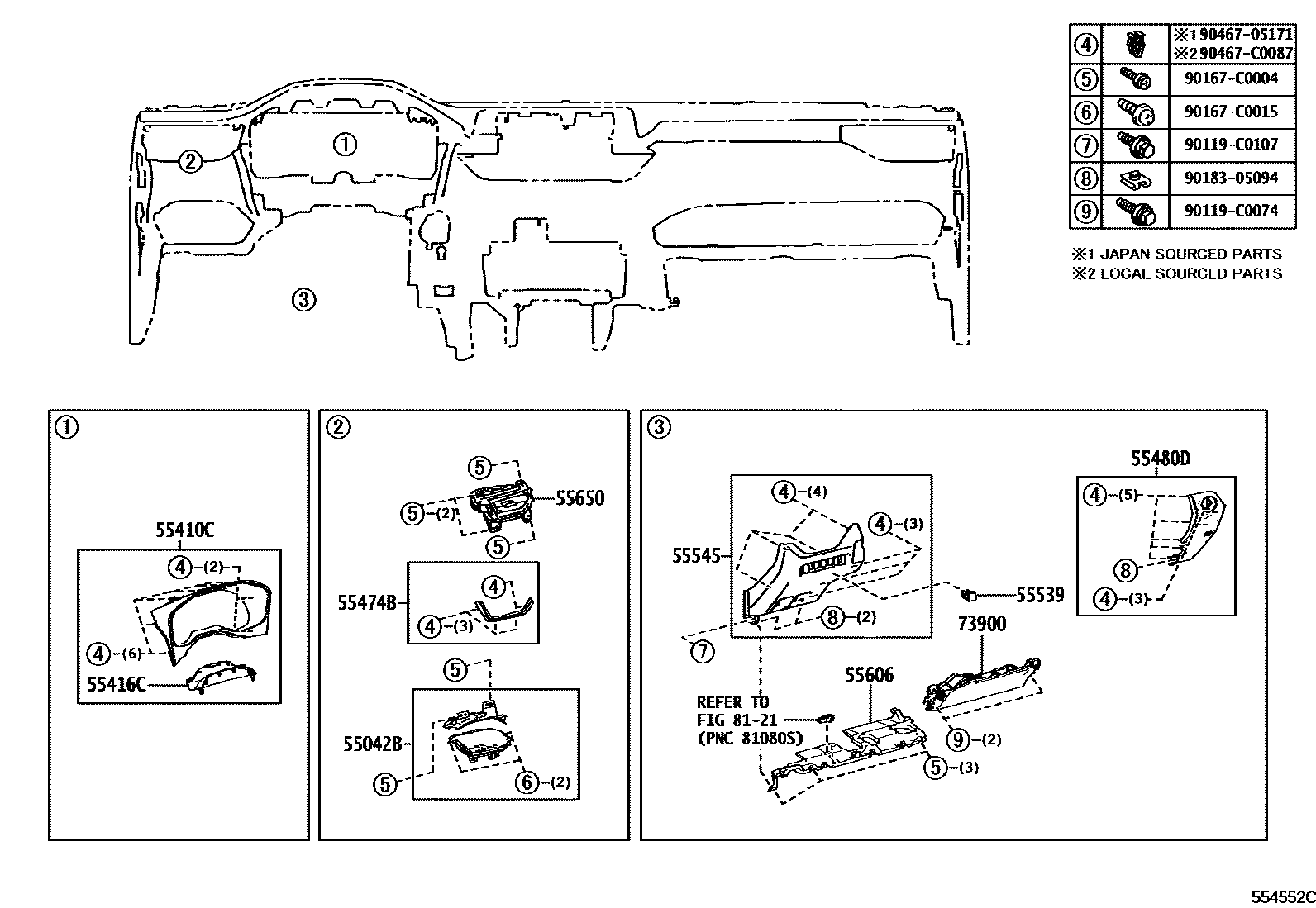

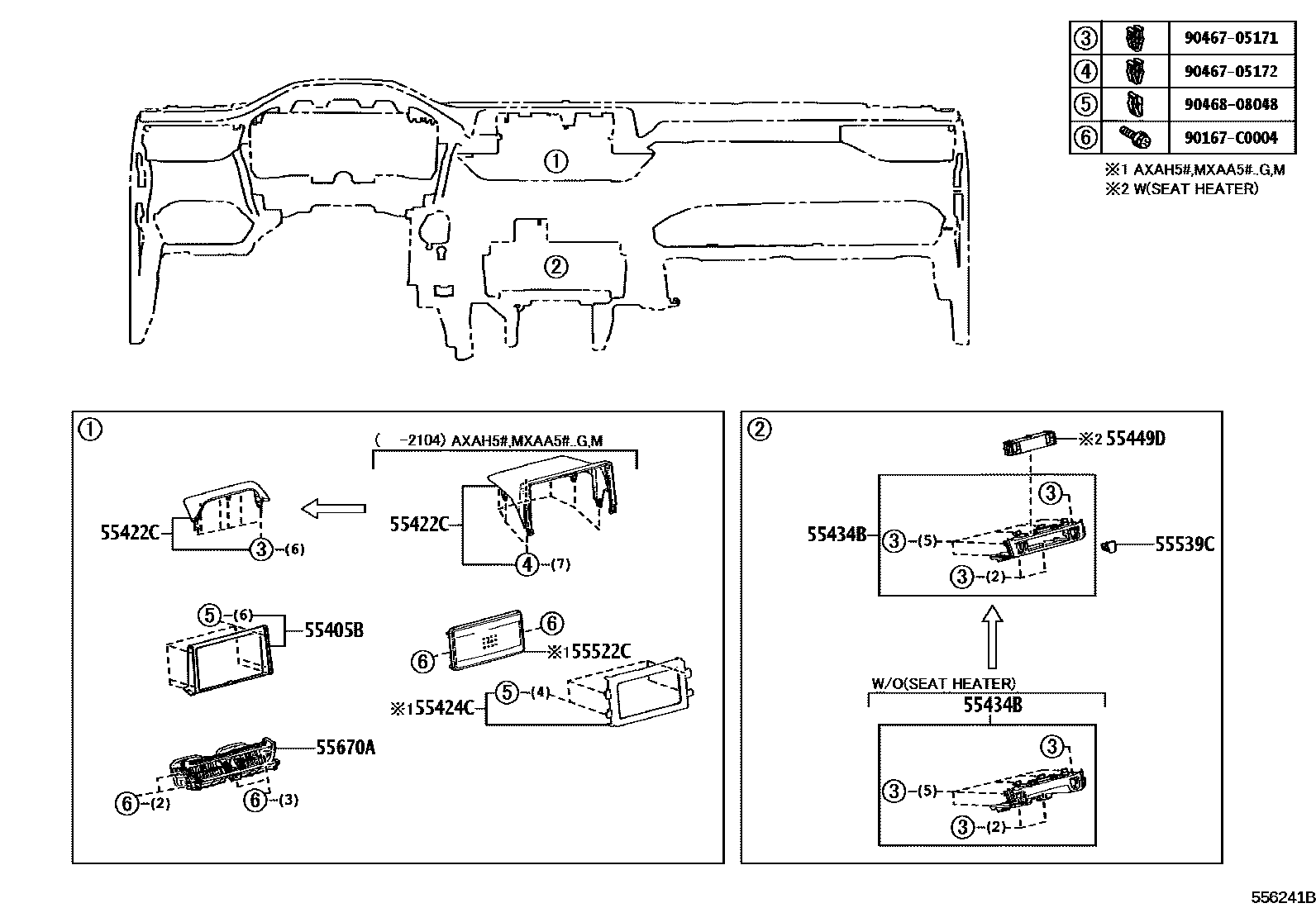

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | instrument panel insert | 52161-02040 |
| 55054 | Glove box cover stopper sub-assembly | 55054-02050 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0R080 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0R050 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-0R020 |
| 55315A | Instrument panel spacer No. 1 | 55315-0R060 |
| 55328 | Instrument panel pin 1 | 55328-07080 · 55328-0E100 · 55328-12430 · 55328-60090 |
| 55330B | Instrument panel reinforcement assembly | 55330-0R120 · 55330-0R121 · 55330-0R171 |
| 55349C | Dashboard cushion | 55349-0R040 |
| 55401E | Dashboard safety pad sub-assembly | 55401-YK010 · 55401-YK021 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-0R050 · 55405-42020 |
| 55410C | Instrument cluster decorative panel assembly | 55410-0R060 · 55410-0R080 |
| 55416C | Instrument cluster decorative panel fixings | 55416-0R060 |
| 55422C | Center instrument cluster upper decorative panel | 55422-0R030 · 55422-0R040 · 55422-0R120 · 55422-42040 |
| 55424C | radio tuner decorative panel | 55424-42020 |
| 55434B | Center dashboard lower trim panel | 55434-0R090 · 55434-0R110 · 55434-0R140 |
| 55449D | switch base | 83950-0R200 · 83950-0R260 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-0R070 |
| 55475A | Instrument cluster No. 2 decorative panel decorative parts | 55475-0R020 |
| 55522C | radio opening cover | 55522-52020 |
| 55539 | Spare switch hole cover | 55539-07020 |
| 55548A | Dashboard hole cover | 55548-0R050 |
| 55557A | Glove box cover limit pad | 55557-10040 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0R090 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0R070 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-0R080 · 55650-0R090 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-0R080 · 55660-0R090 |
| 55670A | Instrument panel central air register assembly | 55670-0R150 · 55670-0R160 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0R071 · 73960-0R072 |
