Toyota RAV4 radiator grille — Figure 5351

Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 5 PNC and OE references.

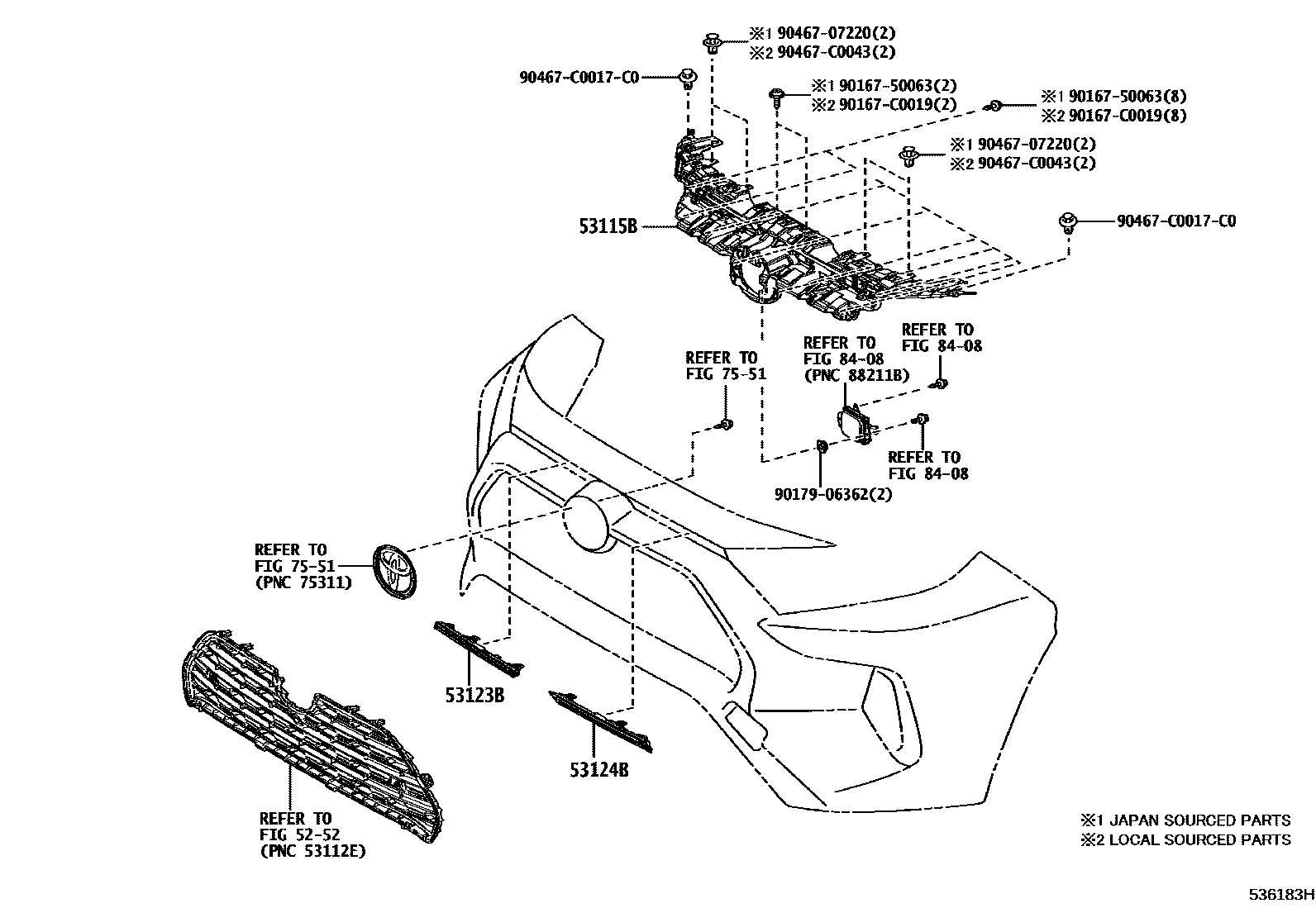

Toyota RAV4 radiator grille EPC diagram — 536183H
radiator grille — 536183H (201911 – 999999)

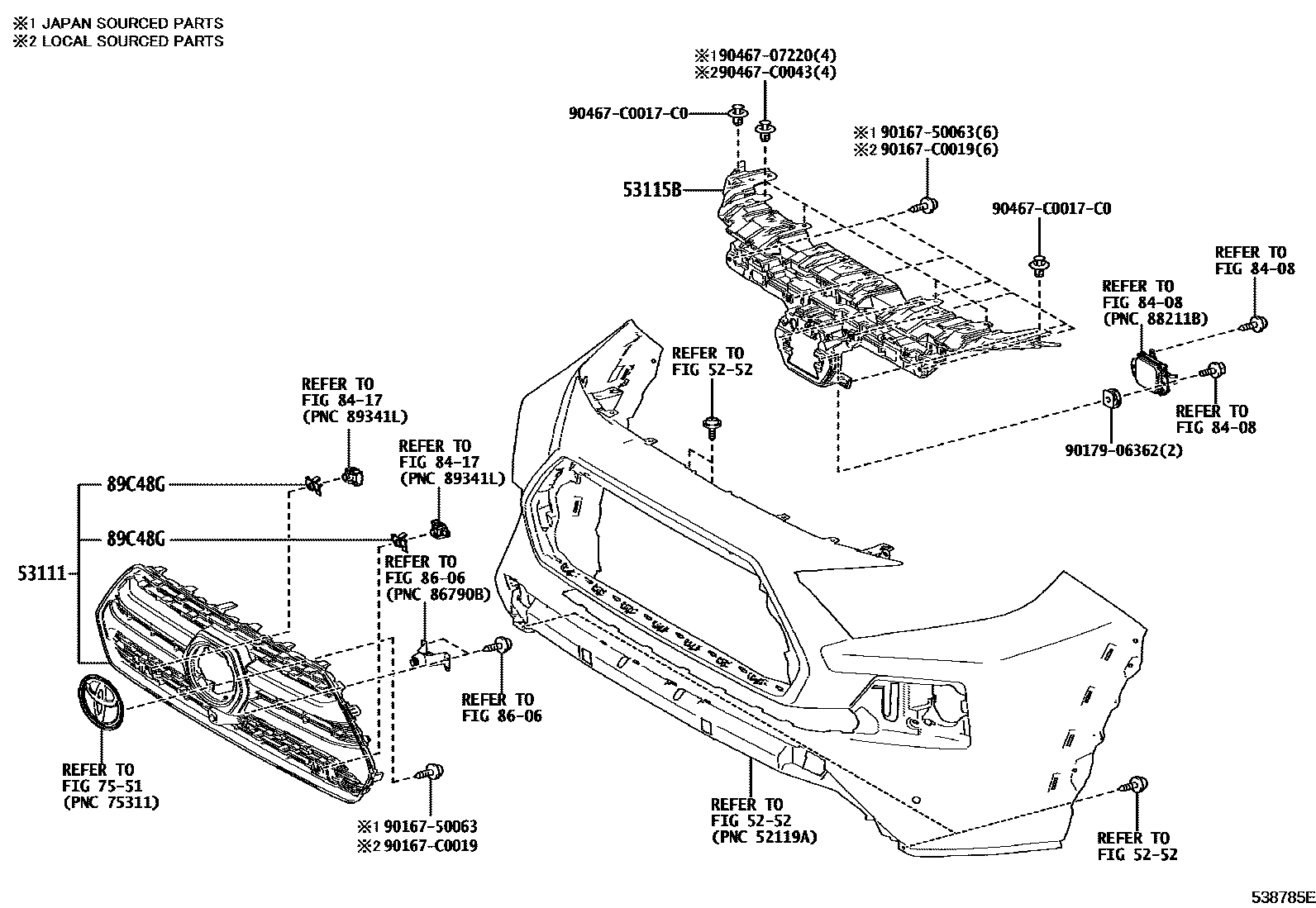

Toyota RAV4 radiator grille EPC diagram — 538785E
radiator grille — 538785E (202304 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-YK060 · 53111-YK070 · 53111-YK080
53115BRadiator grille bracket53115-0R030 · 53115-YK010
53123BProtective strip on the right side of the radiator grille53123-0R080
53124BRadiator grille left protective strip53124-0R070
89C48GFront central ultrasonic sensor holder89348-YK030 · 89348-YK040
