Toyota RAV4 前保险杠及附件 — Figure 5252

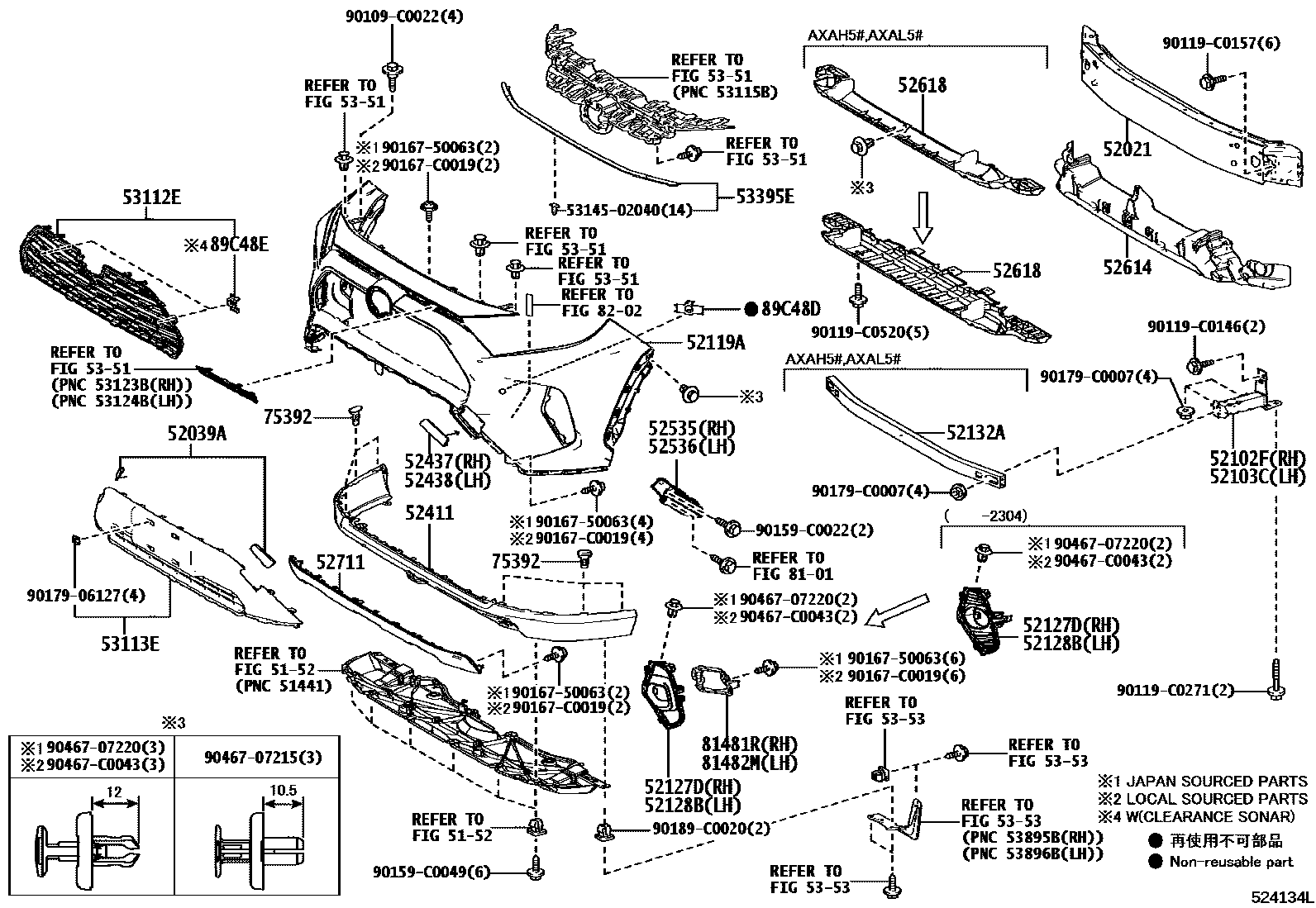

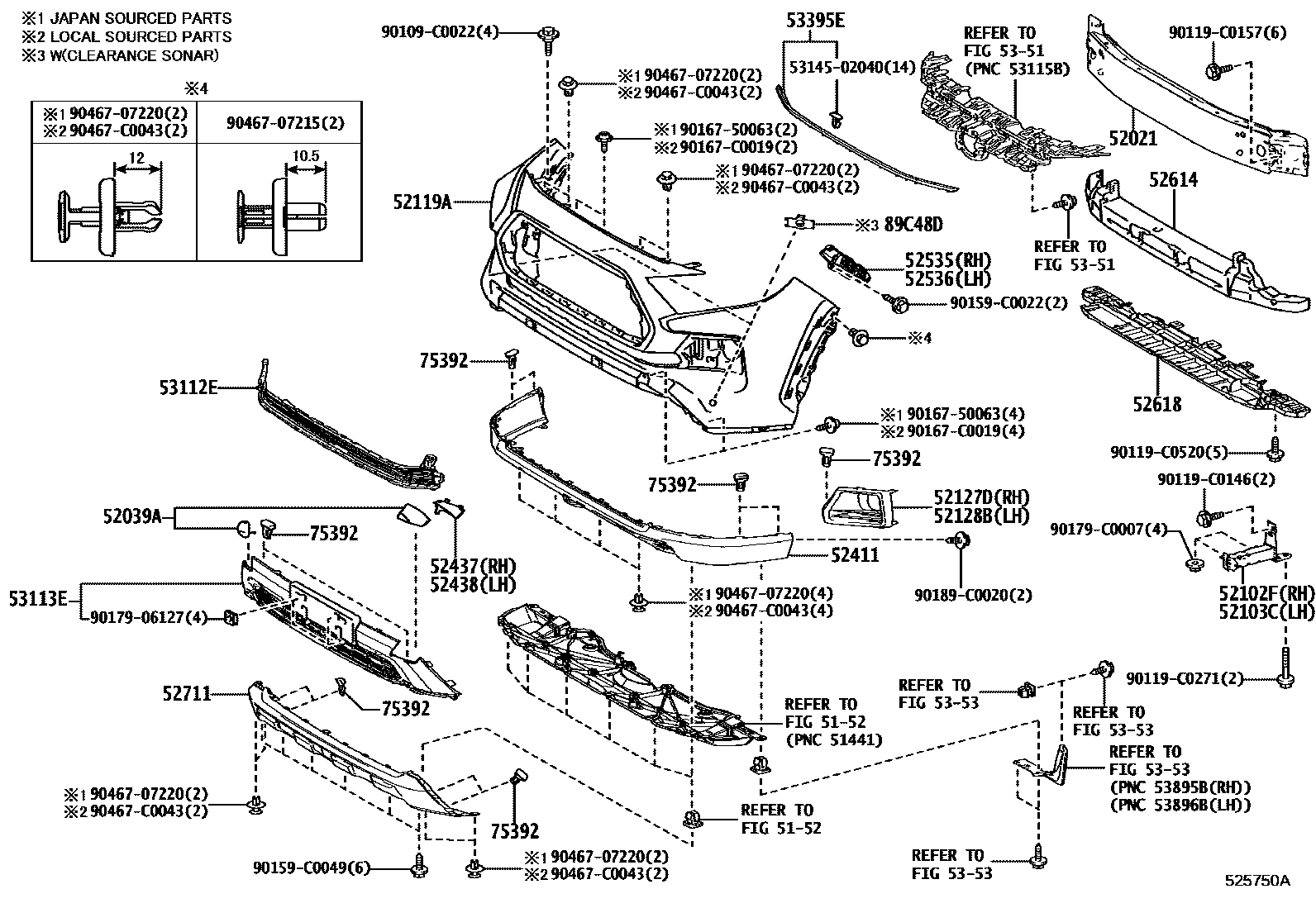

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-0R110 |
| 52039A | Front bumper hole cover assembly | 52039-0R010 · 52039-YK010 |
| 52102F | Front bumper right extension section sub-assembly | 52102-0R050 · 52102-0R060 |
| 52103C | Front bumper left extension section sub-assembly | 52103-0R050 · 52103-0R060 |
| 52119A | front bumper cover | 52119-0R927 · 52119-0R928 · 52119-0R946 · 52119-0R947 · 52119-YK903 · 52119-YK904 |
| 52127D | Front bumper right hole cover | 52127-0R190 · 52127-0R320 · 52127-YK050 |
| 52128B | Front bumper left hole cover | 52128-0R190 · 52128-0R320 · 52128-YK050 |
| 52132A | No. 2 front bumper reinforcement | 52132-0R080 |
| 52411 | Front bumper anti-collision bar | 52411-0R180 · 52411-0R230 · 52411-YK010 · 52411-YK020 |
| 52437 | Front bumper right side anti-collision bar cover | 52437-0R901 · 52437-0R903 |
| 52438 | Front bumper left anti-collision bar cover | 52438-0R901 · 52438-0R902 |
| 52535 | Front bumper right side fixing bracket | 52535-0R100 |
| 52536 | Front bumper left fixed bracket | 52536-0R080 |
| 52614 | No. 2 energy absorber for front bumper | 52614-0R110 · 52614-YK010 |
| 52618 | Front bumper lower shock absorber | 52618-0R070 · 52618-0R080 |
| 52711 | Front bumper protection strip | 52711-0R120 · 52711-0R903 · 52711-YK020 |
| 53112E | No. 1 radiator lower grille | 53112-0R210 · 53112-0R230 · 53112-0R250 · 53112-0R440 · 53112-0R490 · 53112-0R500 · 53112-YK090 |
| 53113E | No. 2 radiator lower grille | 53113-0R110 · 53113-0R111 · 53113-YK050 |
| 53395E | Engine cover to front end plate seal | 53395-0R090 |
| 75392 | External protective strip fixings | 75392-0R030 |
| 81481R | Right fog light bracket | 81481-0R030 |
| 81482M | Left fog light bracket | 81482-0R030 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-02100 · 89348-0R590 |
| 89C48E | Front central ultrasonic sensor holder | 89348-0R570 · 89348-0R580 |
