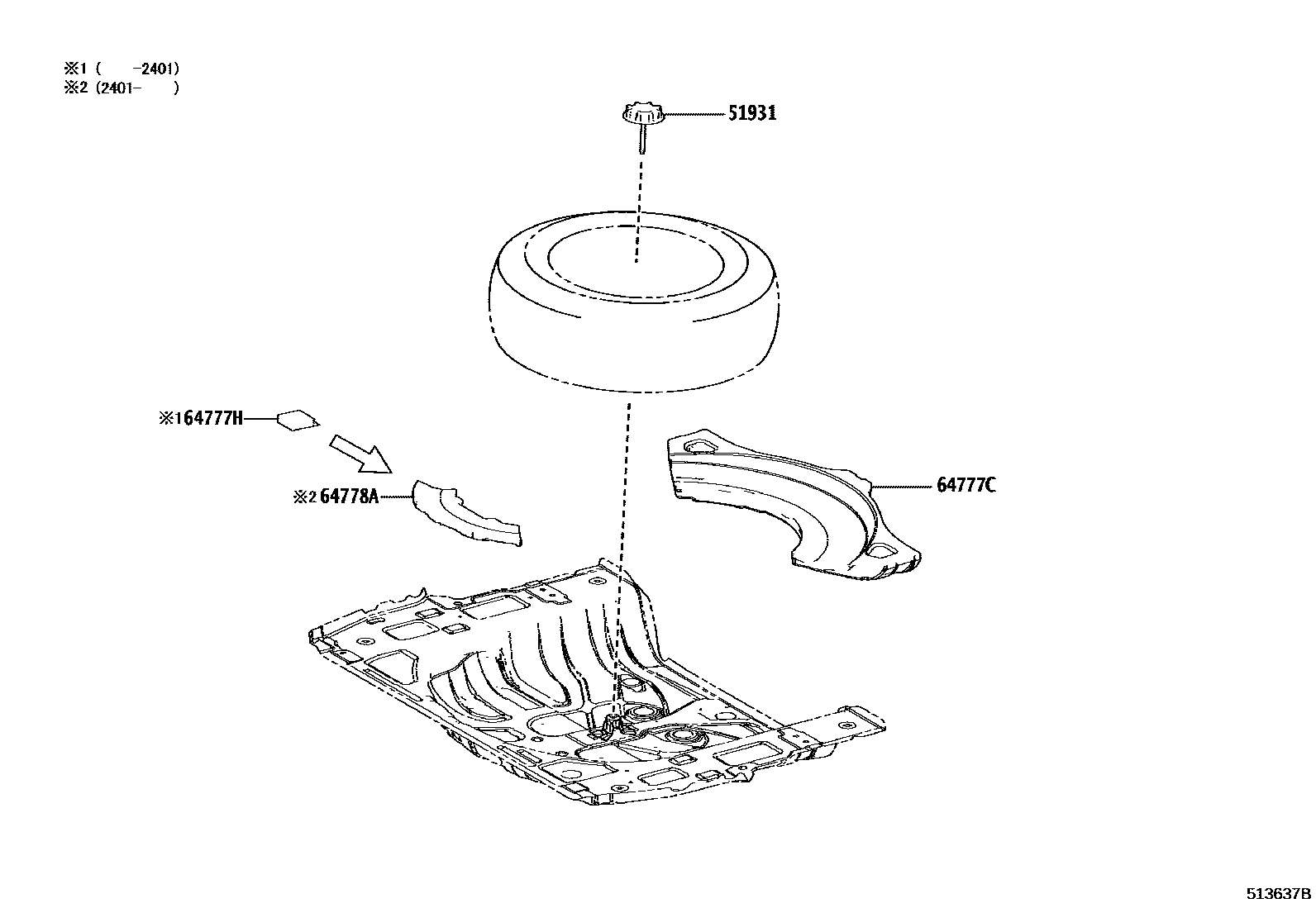

Toyota RAV4 Spare tire rack — Figure 5153
Toyota RAV4 EPC diagram 5153, Spare tire rack, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51931 | No. 1 spare tire rack | 51931-42030 |
| 64777C | Spare tire cushion | 64777-0R080 |
| 64777H | Spare tire cushion | 64768-0R030 |
| 64778A | Spare tire protection device | 64778-0R050 |
