Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152
Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

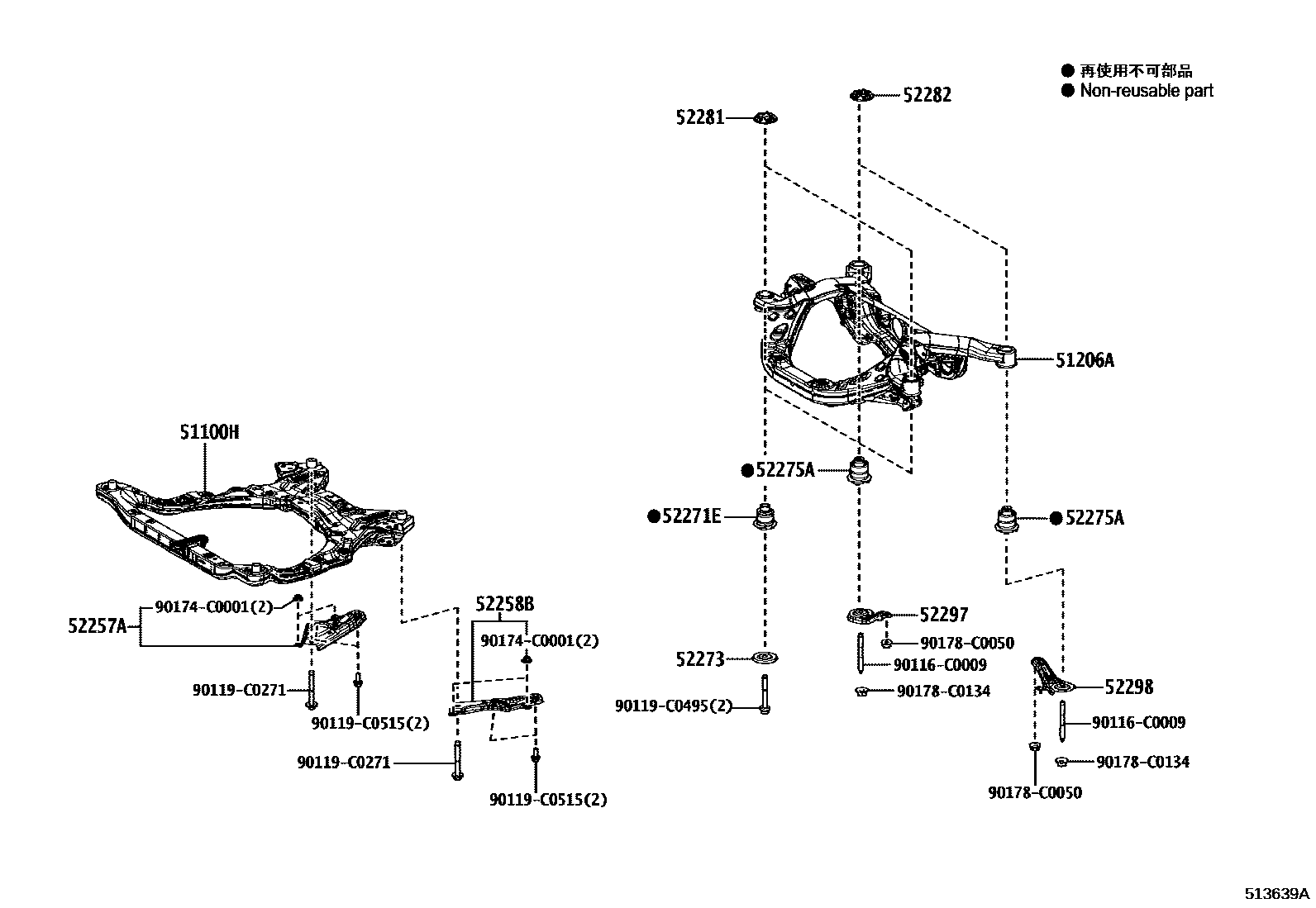

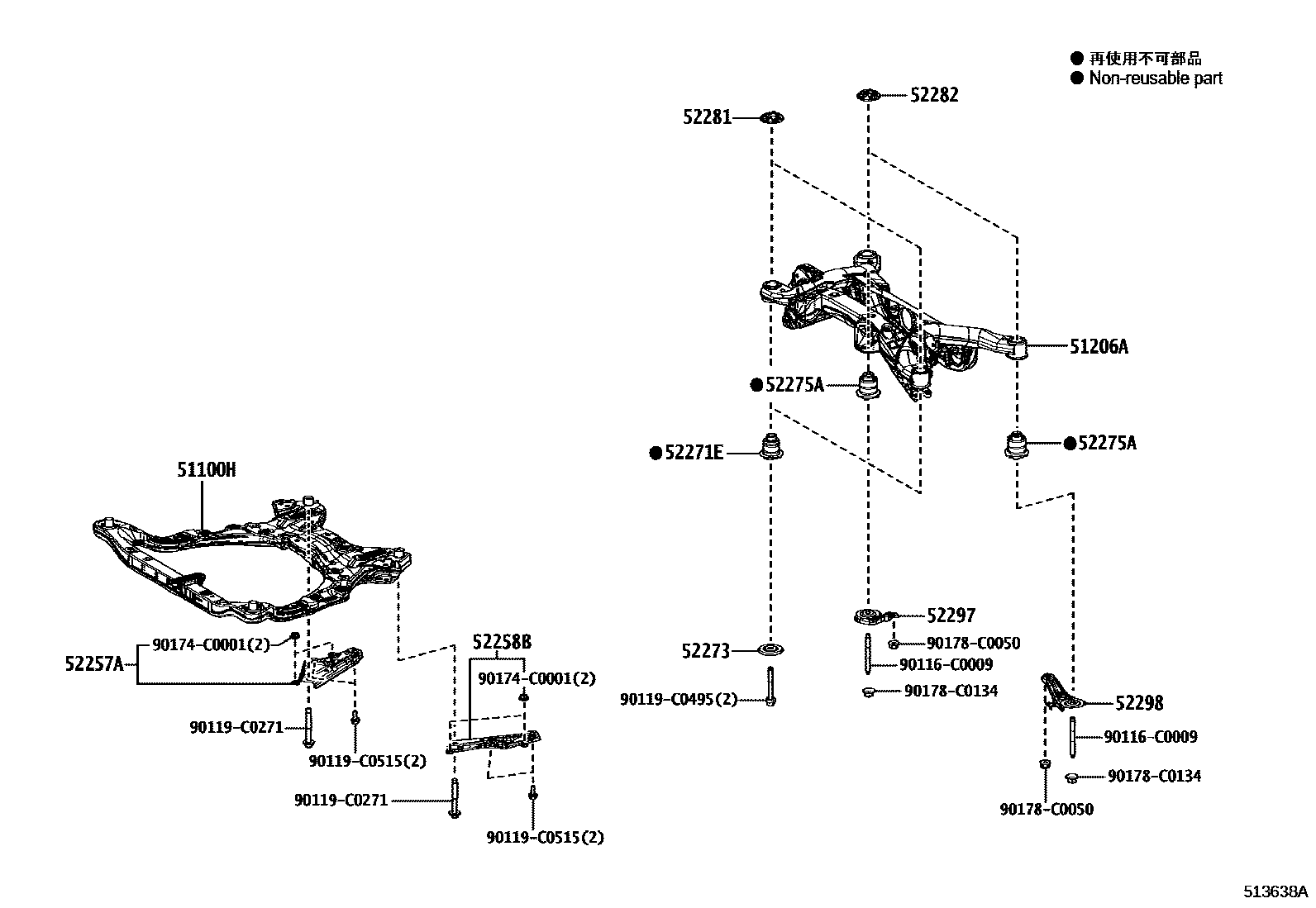

| 51100H | Front frame assembly | 51100-0R021 · 51100-0R022 |
| 51206A | Rear suspension cross member sub-assembly | 51206-0R070 · 51206-0R080 · 51206-0R120 |

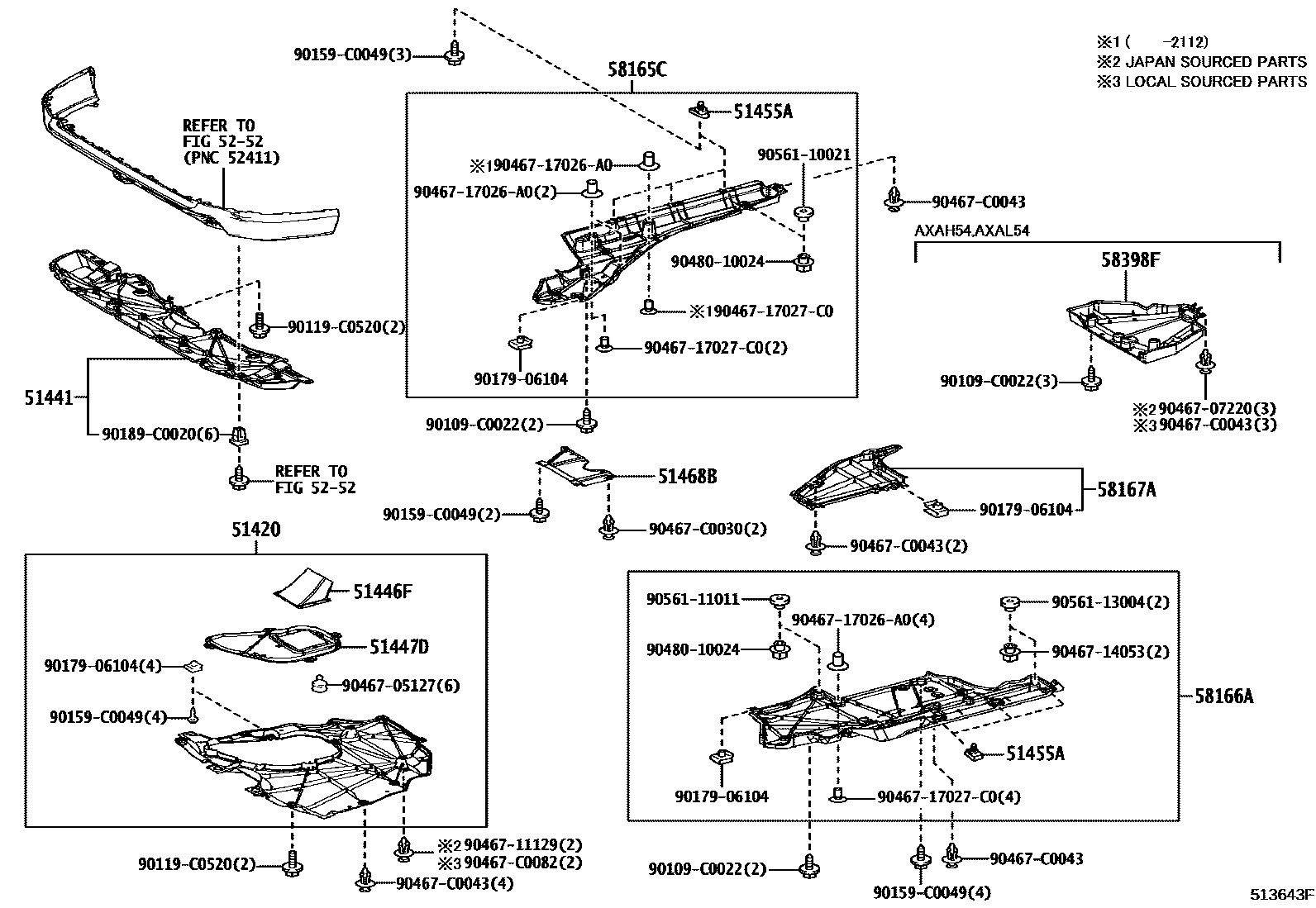

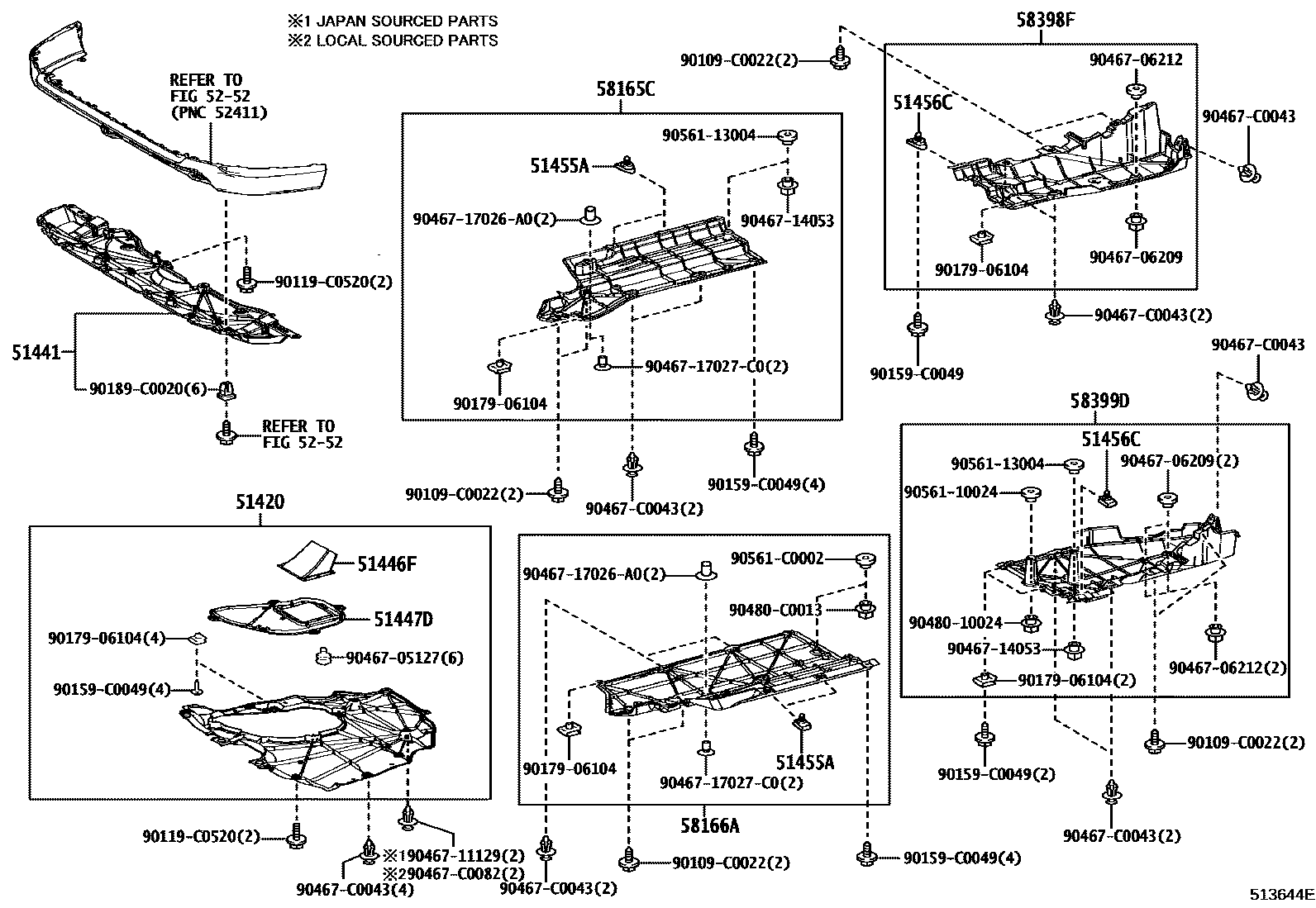

| 51420 | Engine No. 2 bottom cover assembly | 51420-0R021 |
| 51441 | No. 1 engine bottom cover | 51441-0R110 |
| 51446F | Engine underhood pipe | 51446-07010 |
| 51447D | No. 4 engine center bottom cover | 51447-0R050 |
| 51455A | Engine undercover seal No. 1 | 51455-48020 |
| 51456C | Engine undercover seal No. 2 | 51455-48030 |
| 51468B | Heated engine bottom cover vibration isolation pad | 51468-0R020 |
| 52257A | Right front suspension cross member rear bracket | 52257-0R050 |
| 52258B | Left front suspension cross member rear bracket | 52258-0R050 |
| 52271E | Rear suspension cross member right front body fixed cushion | 52271-0R020 |
| 52273 | Rear suspension cross member lower block | 52273-0R060 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-0R020 · 52276-0R020 |
| 52281 | Differential support beam cushion | 52281-0R020 |
| 52282 | Differential support beam upper stop | 52282-0R020 |
| 52297 | Right rear suspension cross member rear lower bracket | 52297-0R050 |
| 52298 | Left rear suspension cross member rear lower bracket | 52297-0R050 |
| 58165C | Front floor right cover | 58165-0R060 · 58165-0R061 · 58165-0R070 · 58165-0R071 |
| 58166A | Front floor left cover | 58166-0R030 · 58166-0R040 |
| 58167A | front floor center cover | 58167-0R020 |
| 58398F | No. 1 floor under cover | 58398-0R090 · 58398-0R100 · 58398-0R101 |
| 58399D | Floor No. 2 lower cover | 58399-0R030 |
