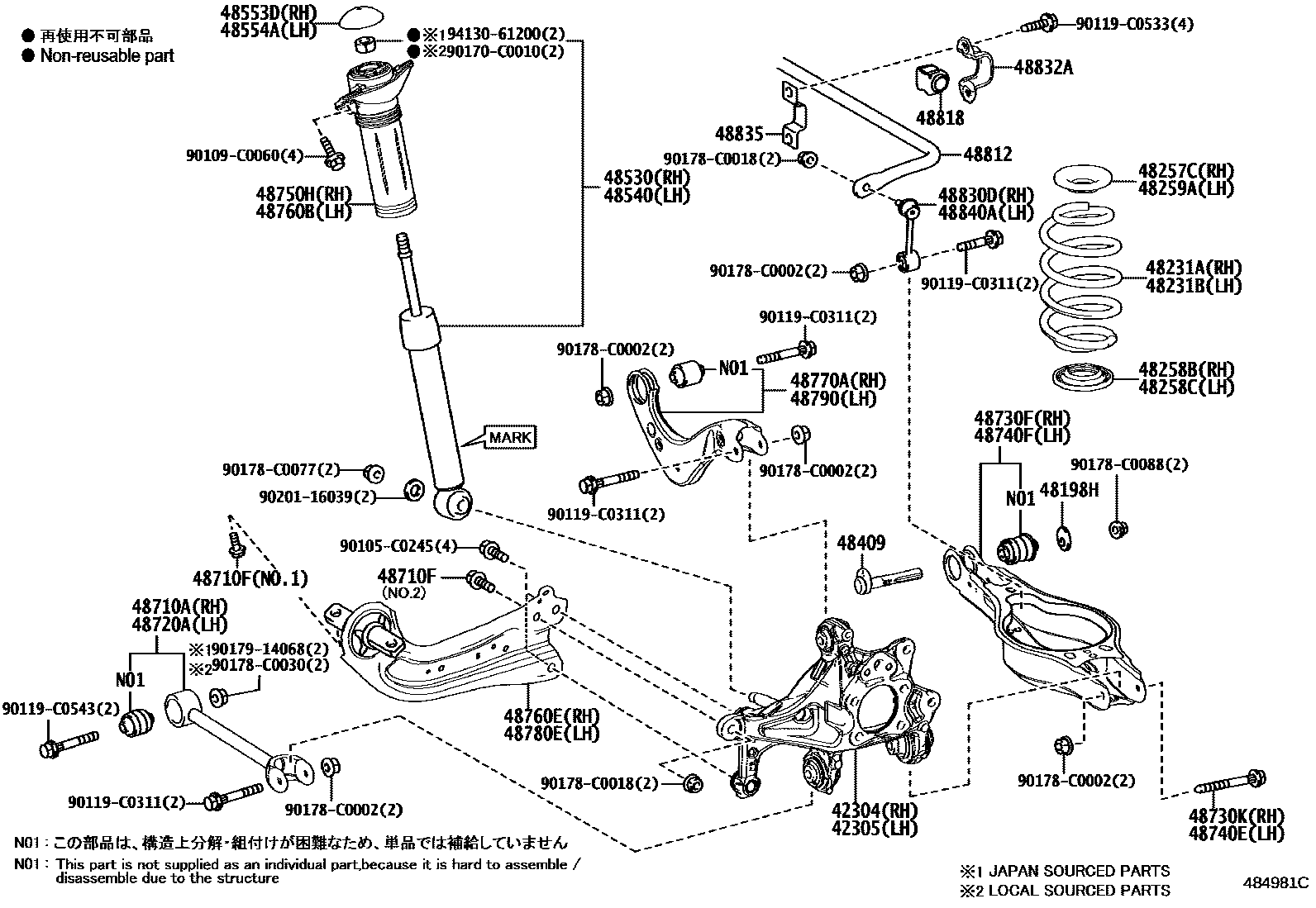

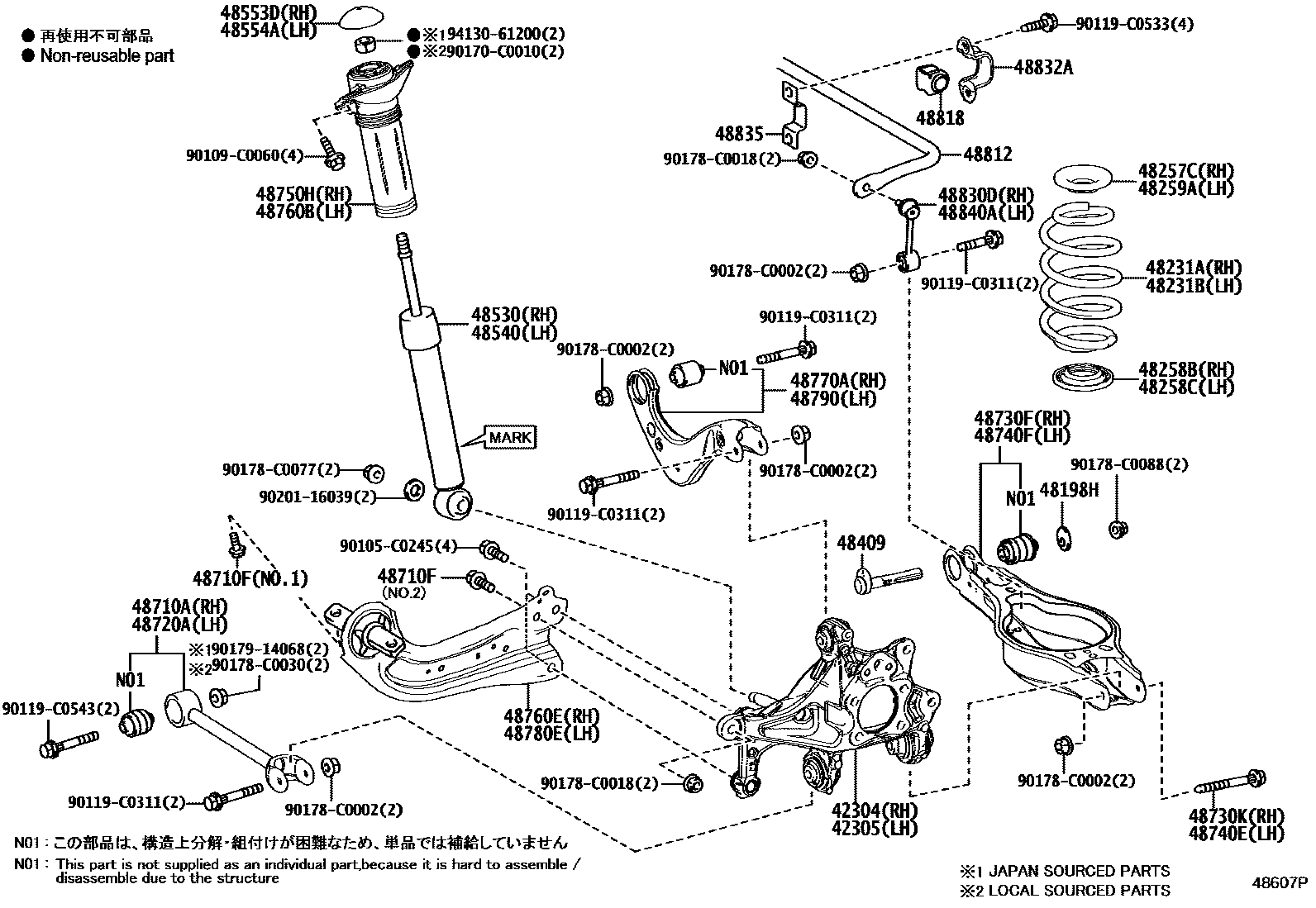

Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804
Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-0R110 · 42304-0R120 · 42304-F4070 |
| 42305 | Rear axle left bracket sub-assembly | 42305-0R110 · 42305-0R120 · 42305-F4070 |
| 48198H | No. 2 camber angle adjustment cam | 48198-02020 · 48198-47010 |
| 48231A | Right rear coil spring | 48231-0R350 · 48231-0R351 · 48231-0R370 · 48231-0R371 · 48231-0R430 · 48231-0R431 · 48231-0R450 · 48231-0R451 |
| 48231B | Left rear coil spring | 48231-0R350 · 48231-0R351 · 48231-0R370 · 48231-0R371 · 48231-0R430 · 48231-0R431 · 48231-0R450 · 48231-0R451 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-06040 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-06240 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-06240 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-06040 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-02010 · 48409-47011 |
| 48530 | Right rear shock absorber assembly | 48530-0R050 · 48530-0R090 · 48530-0R110 · 48530-0R140 · 48530-8Z145 · 48530-8Z146 · 48530-8Z147 · 48530-8Z148 |
| 48540 | Left rear shock absorber assembly | 48530-0R050 · 48530-0R090 · 48530-0R110 · 48530-0R140 · 48530-8Z145 · 48530-8Z146 · 48530-8Z147 · 48530-8Z148 |
| 48553D | Right rear shock absorber cover | 48553-F4020 |
| 48554A | Left rear shock absorber cover | 48553-F4020 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-0R070 |
| 48710F | Bolt (for rear trailing arm) | 90119-C0537 · 90119-C0551 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-0R070 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-0R060 |
| 48730K | Bolt (for right rear suspension arm No. 2) | 90119-C0310 |
| 48740E | Bolt (for left rear suspension arm No. 2) | 90119-C0310 |
| 48740F | Left rear suspension No. 2 arm assembly | 48730-0R060 |
| 48750H | Right rear suspension support assembly | 48750-0R020 |
| 48760B | Left rear suspension support assembly | 48750-0R020 |
| 48760E | Right rear trailing arm assembly | 48760-0R050 |
| 48770A | Right rear upper control arm assembly | 48770-0R030 |
| 48780E | Left rear trailing arm assembly | 48780-0R050 |
| 48790 | Left rear upper control arm assembly | 48790-0R030 |
| 48812 | rear stabilizer bar | 48812-0R070 · 48812-0R080 |
| 48818 | Rear stabilizer bar bushing | 48818-0R070 · 48818-0R080 |
| 48830D | Right rear stabilizer bar link assembly | 48830-0R040 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-0R040 |
| 48835 | Rear stabilizer bar lower bracket | 48835-0R020 |
| 48840A | Left rear stabilizer bar link assembly | 48830-0R040 |
