Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 6 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

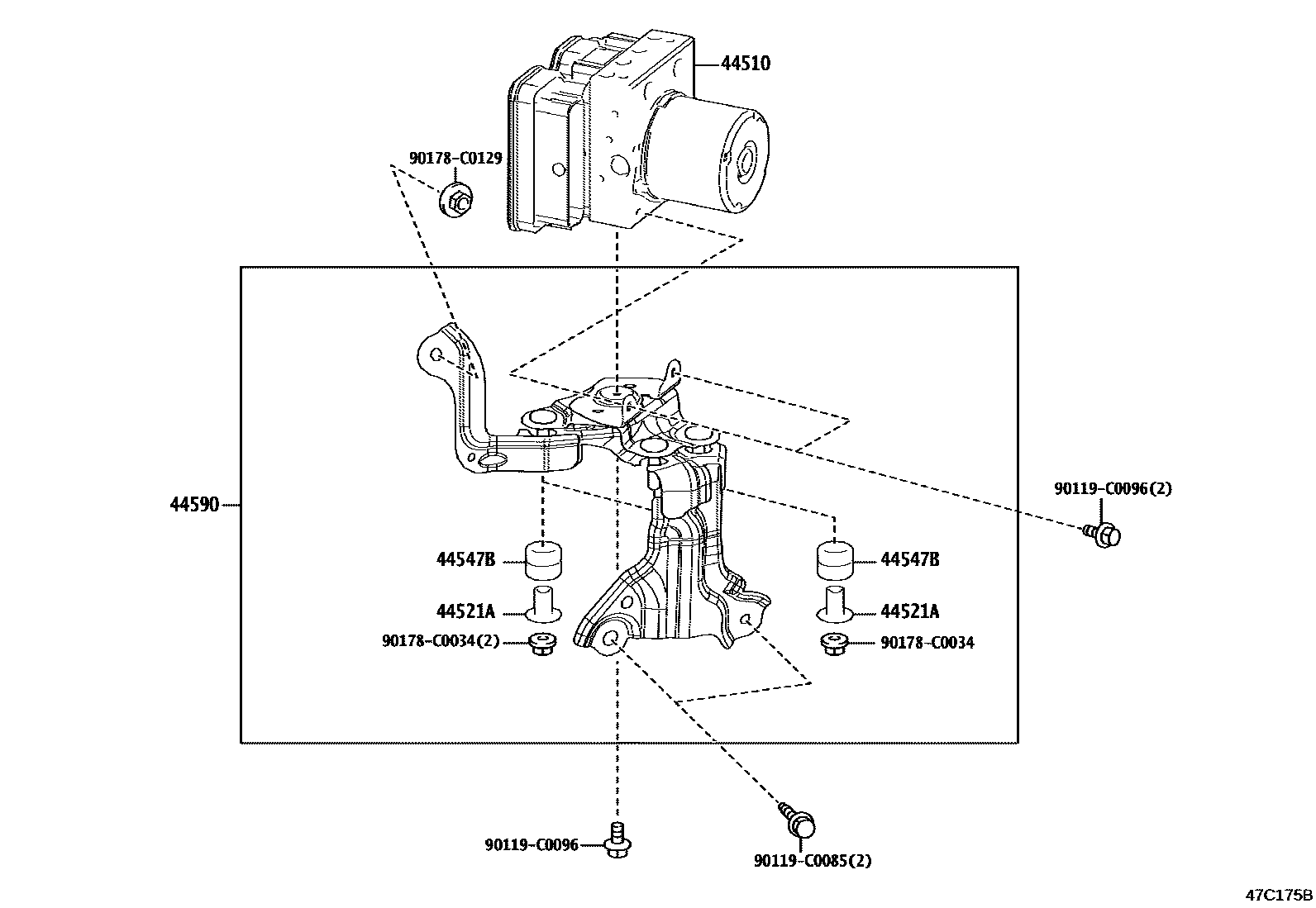

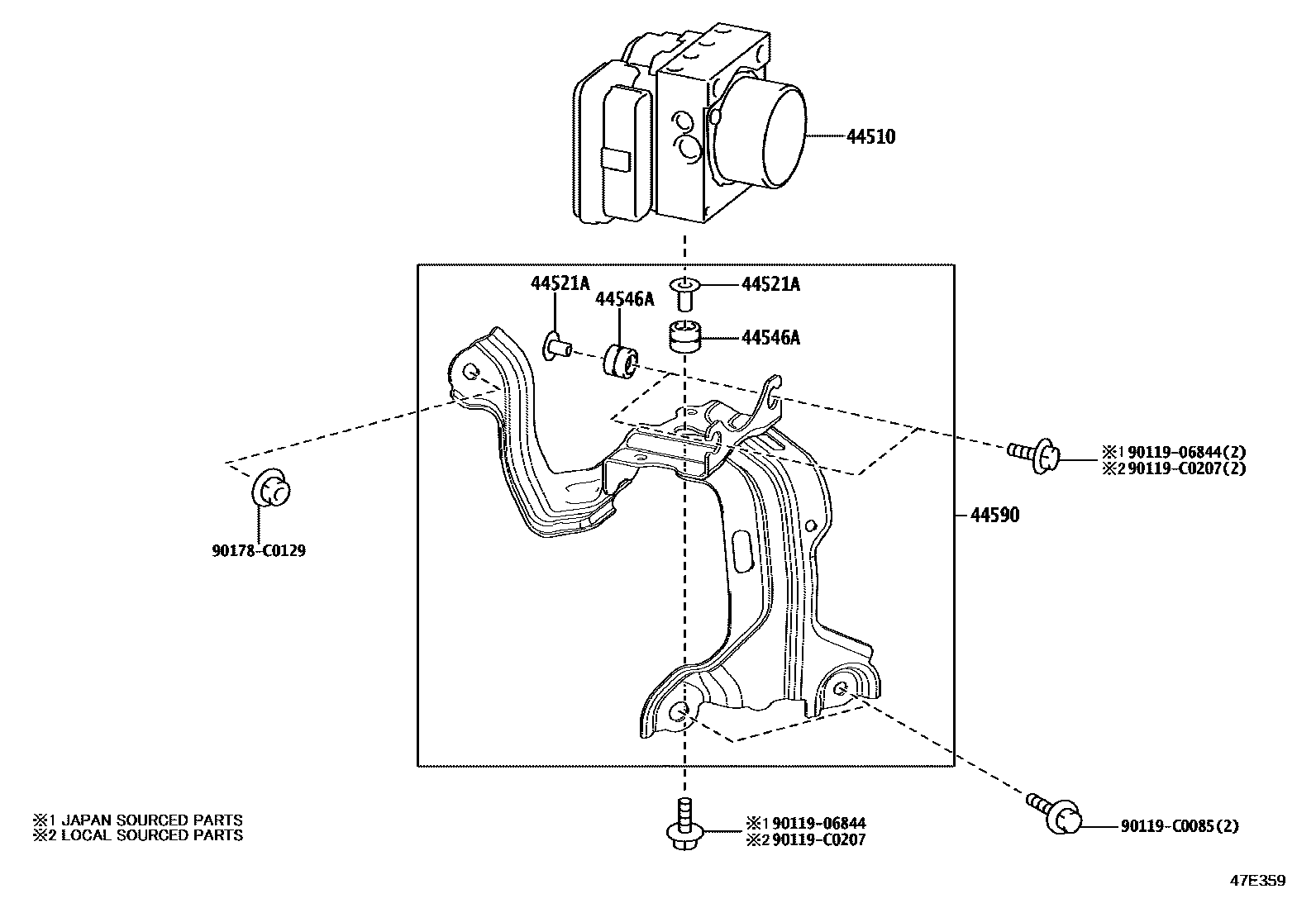

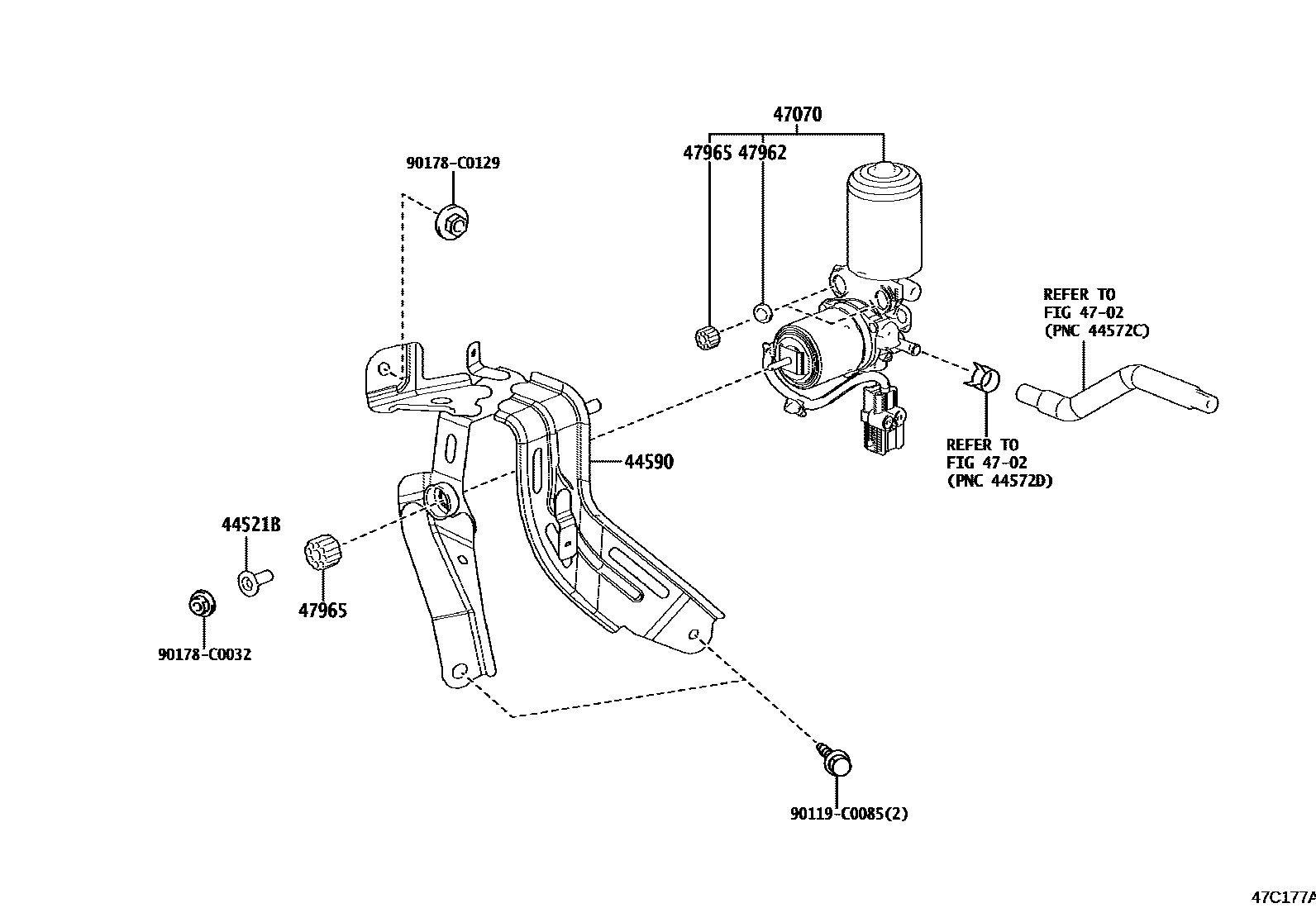

| 44510 | brake actuator assembly | 44050-0R300 · 44050-0R410 · 44050-0R420 · 44050-0R470 · 44050-0R480 · 44050-0R510 · 44050-0R610 · 44050-0R620 · 44050-0R650 |
| 44521A | No. 1 brake actuator housing collar | 44521-12050 · 44521-33020 |
| 44521B | No. 2 brake actuator housing collar | 44521-02030 · 44521-47010 |
| 44546A | Brake actuator bolt cushion | 44546-12120 |
| 44547B | brake actuator bracket cushion | 44547-02070 · 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-0R060 · 44590-0R070 · 44590-0R110 |
| 47070 | Brake booster pump assembly | 47070-42050 |

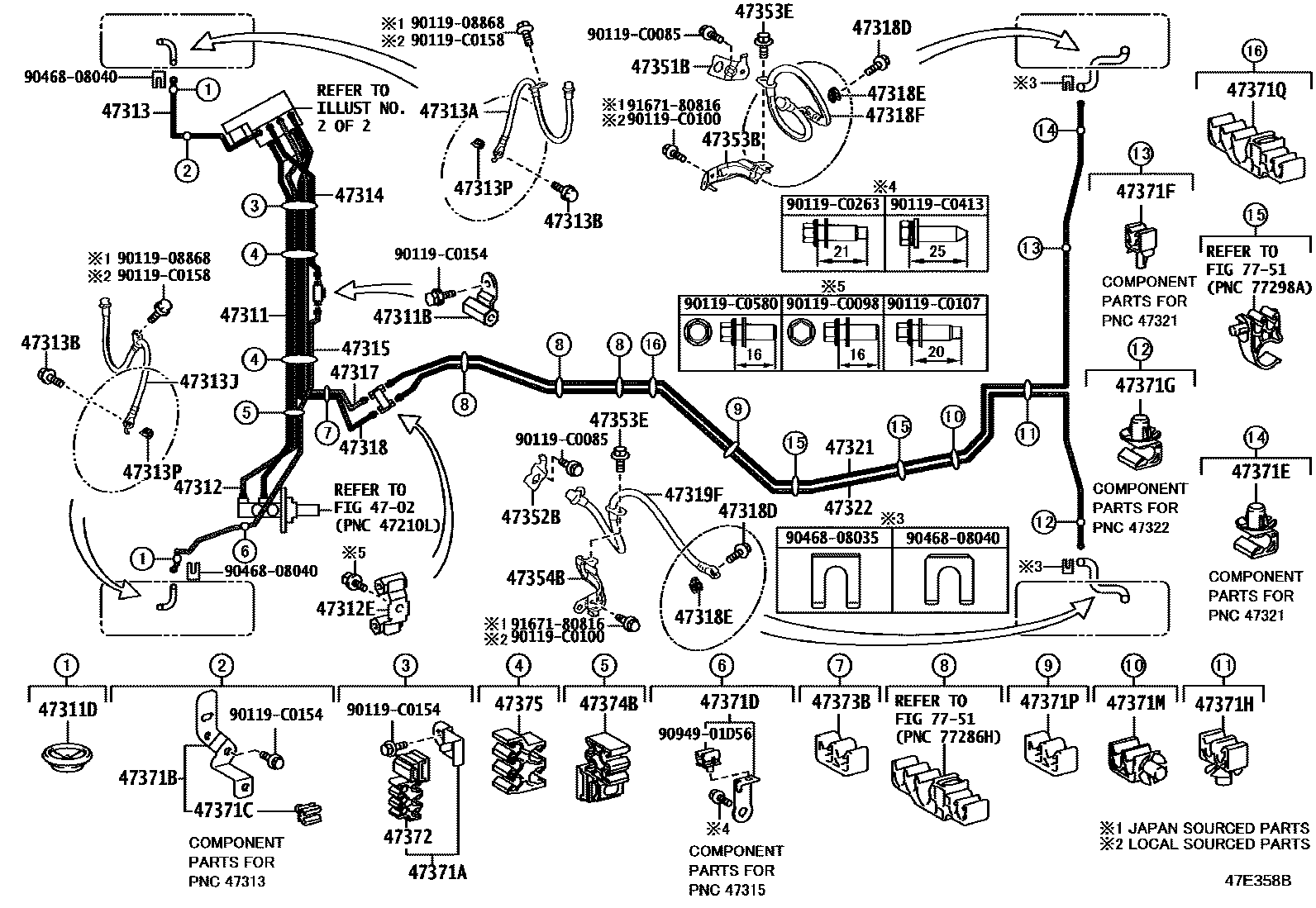

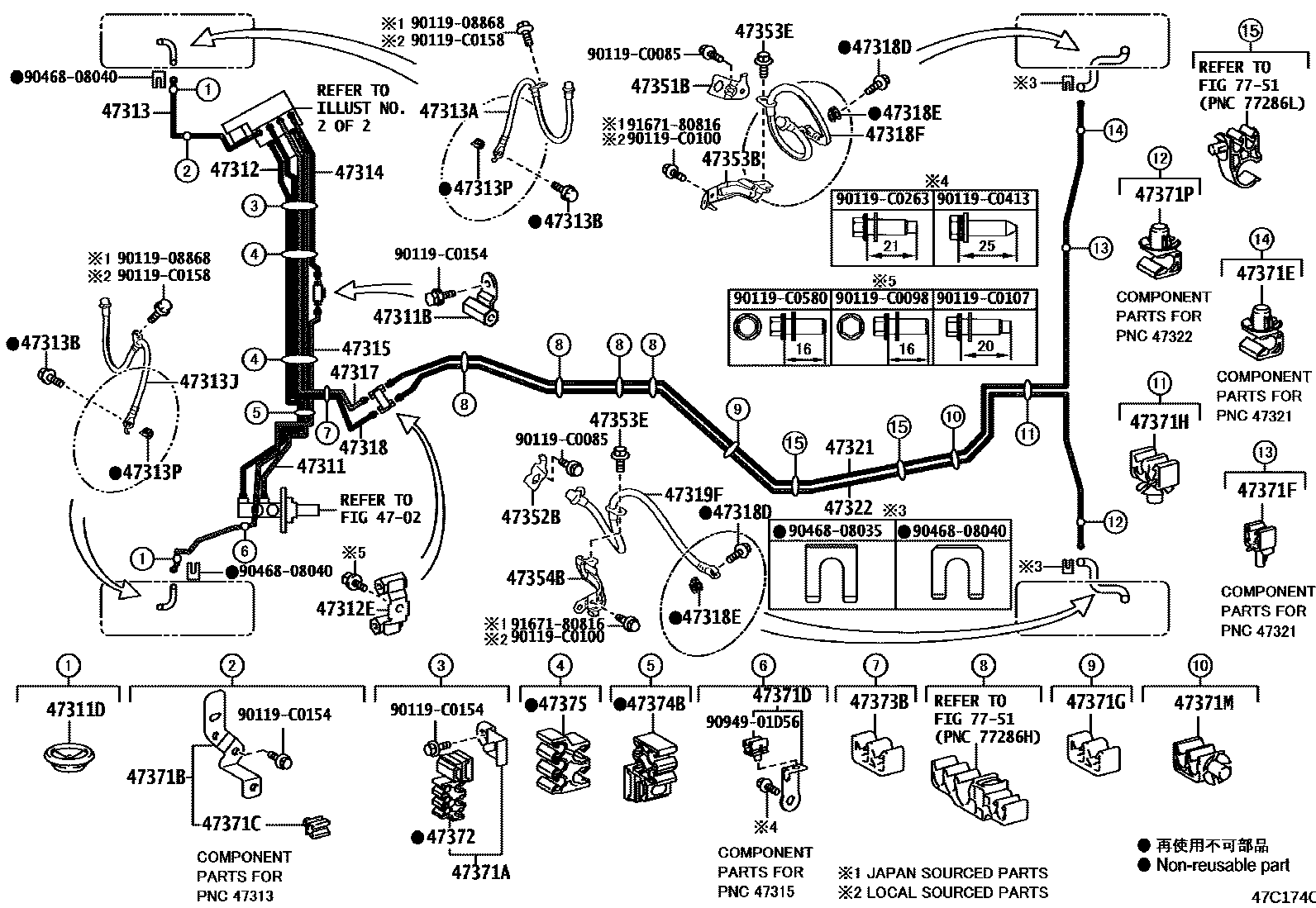

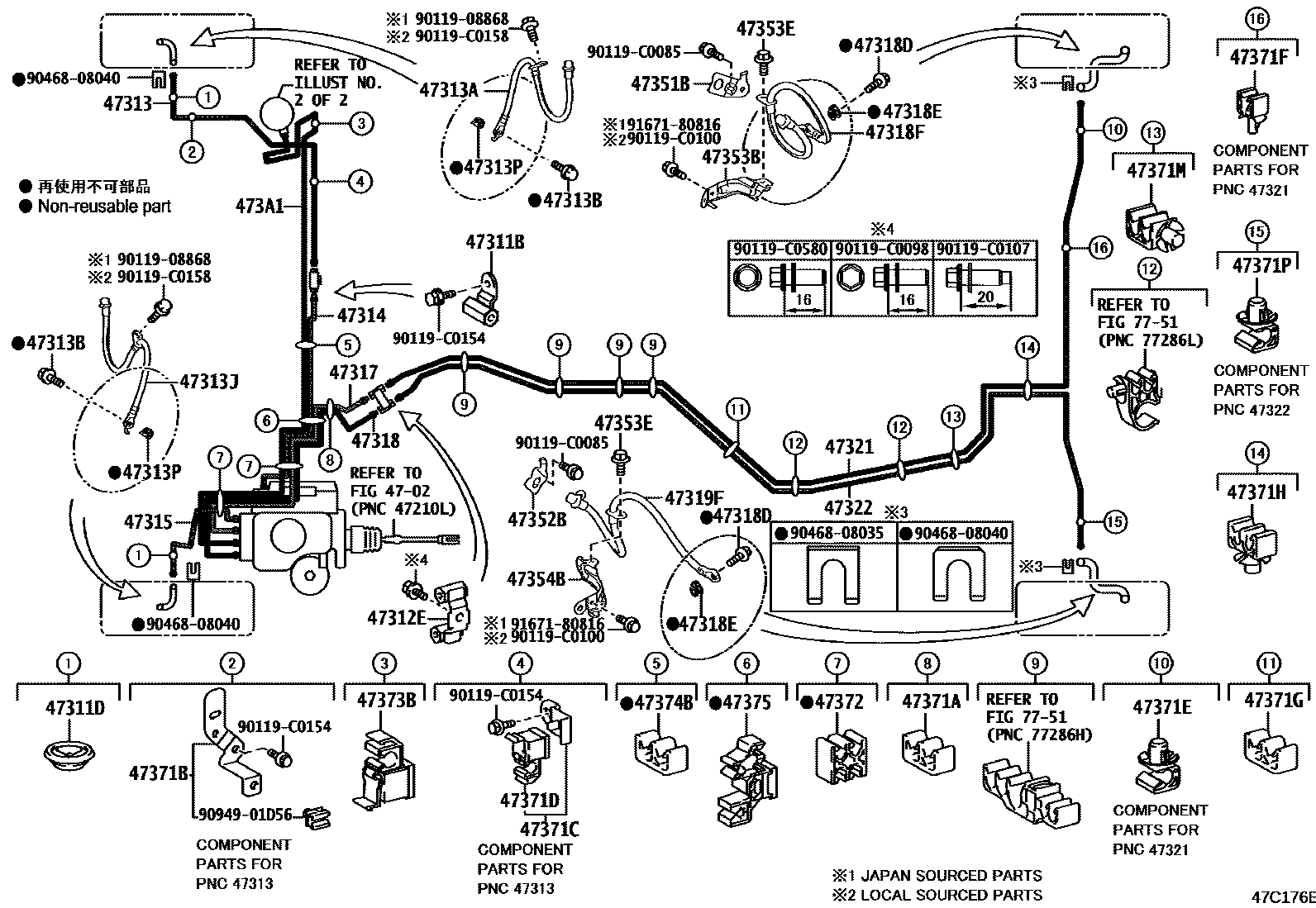

| 47311 | No. 1 front brake pipe | 47311-0R110 · 47311-0R140 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10272 · 90412-C0002 |
| 47311D | Seal (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-0R100 · 47312-0R130 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10285 · 90412-C0004 |
| 47313 | No. 3 front brake pipe | 47313-0E060 · 47313-0R120 · 47313-0R130 |
| 47313A | No. 1 front flexible hose | 90947-C2090 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-C0001 |
| 47313J | No. 2 front flexible hose | 90947-C2091 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-0R140 · 47314-0R150 · 47314-0R190 |
| 47315 | No. 5 front brake pipe | 47315-0R030 · 47315-0R040 · 47315-0R080 |
| 47317 | No. 7 front brake pipe | 47317-0R120 · 47317-0R130 · 47317-0R170 |
| 47318 | No. 8 front brake pipe | 47318-0R120 · 47318-0R130 · 47318-0R170 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-C0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-C2092 |
| 47319F | Left rear flexible hose | 90947-C2093 |
| 47321 | No. 1 rear brake pipe | 47321-0R090 |
| 47322 | No. 2 rear brake pipe | 47322-0R090 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-F4040 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-F4040 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-F4030 |
| 47353E | Bolt (hose bracket) | 90119-08868 · 90119-C0158 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-F4030 |
| 47371A | No. 1 brake pipe clamp | 47371-42150 · 90464-00903 |
| 47371B | No. 6 brake pipe clamp | 47371-0R070 |
| 47371C | No. 7 brake pipe clamp | 47371-42160 · 90949-01D56 |
| 47371D | No. 8 brake pipe clamp | 47371-0R080 · 90949-01D35 |
| 47371E | No. 9 brake pipe clamp | 90949-01D17 |
| 47371F | No. 10 brake pipe clamp | 90949-01E01 |
| 47371G | No. 11 brake pipe clamp | 90949-01D17 |
| 47371H | No. 12 brake pipe clamp | 90949-01D12 |
| 47371M | No. 13 brake pipe clamp | 90949-01D13 |
| 47371P | No. 14 brake pipe clamp | 90464-00903 |
| 47371Q | No. 15 brake pipe clamp | 77285-0R110 |
| 47372 | No. 2 brake pipe clamp | 90464-00957 · 90949-01E31 |
| 47373B | No. 3 brake pipe clamp | 90464-00903 · 90949-01D35 |
| 47374B | No. 4 brake pipe clamp | 90949-01D91 · 90949-01E30 |
| 47375 | No. 5 brake pipe clamp | 90949-01E38 · 90949-01E40 |
| 473A1 | Pipe from accumulator to brake master cylinder | 473A1-0R020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
