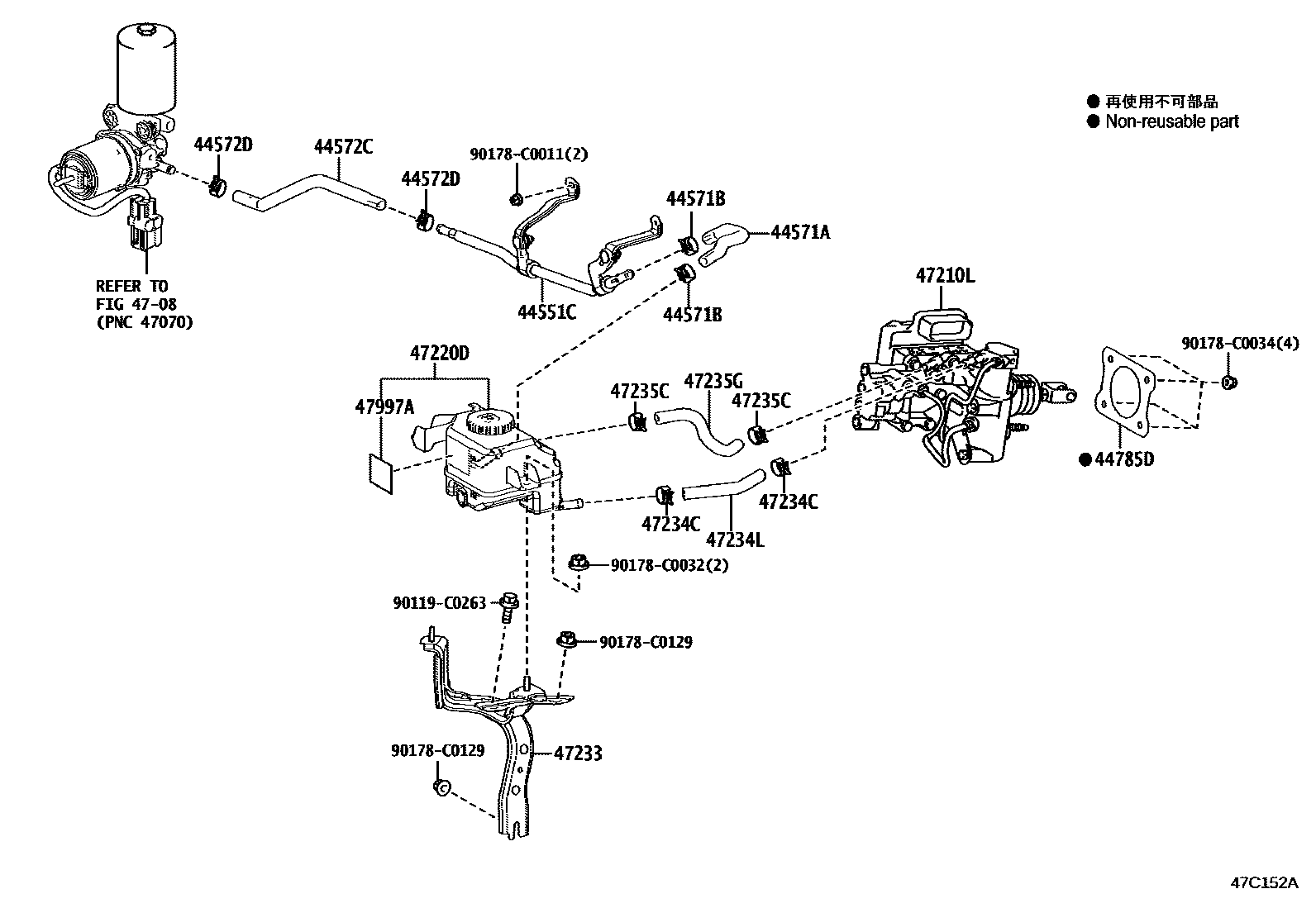

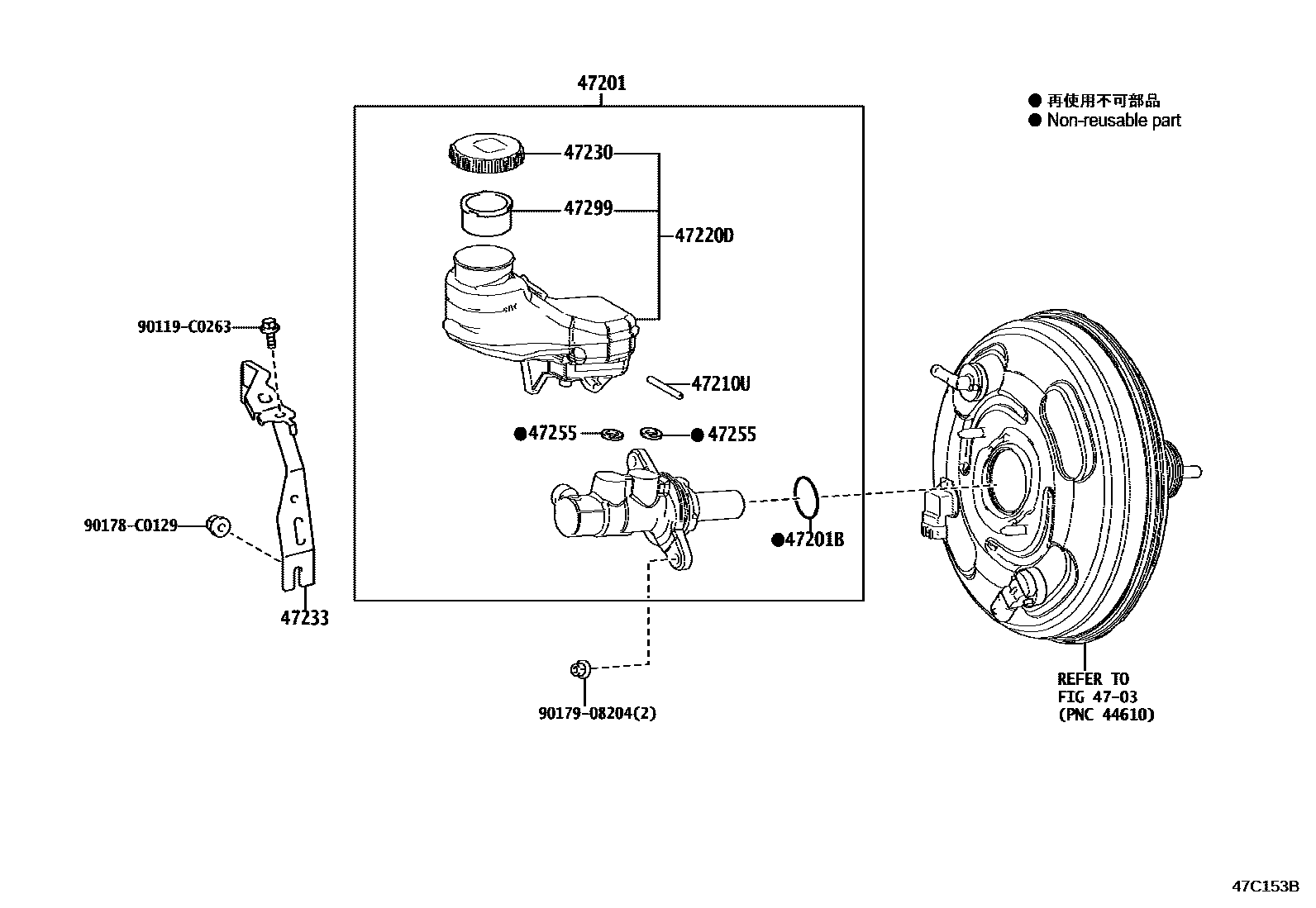

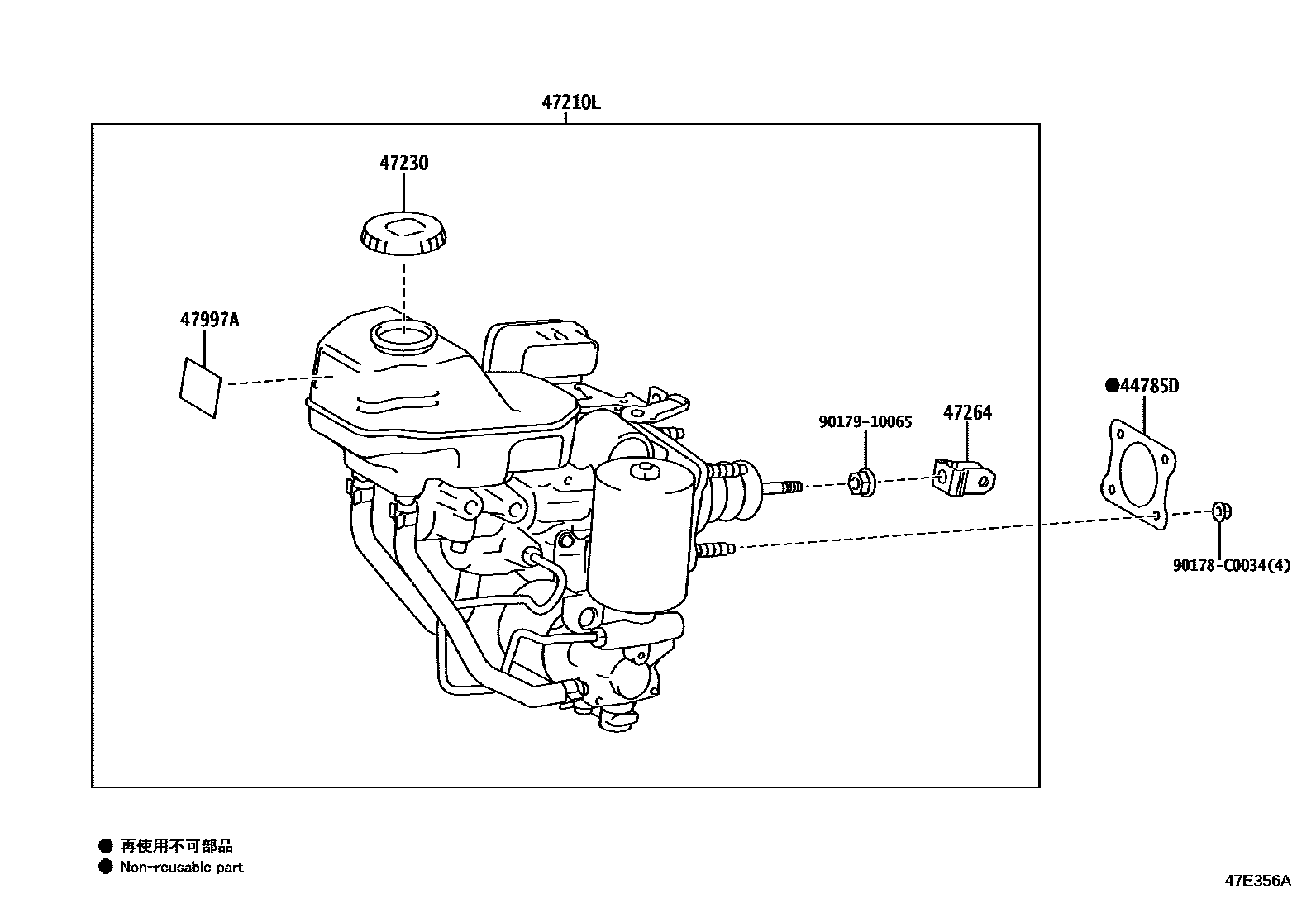

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-0R020 |
| 44571A | No. 1 brake actuator hose | 44571-0R020 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 90466-C0026 |
| 44572C | No. 2 brake actuator hose | 44572-0R020 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 90466-C0026 |
| 44785D | brake master cylinder gasket | 44785-02050 |
| 47201 | Brake master cylinder sub-assembly | 47201-0R150 |
| 47201B | O-ring (for brake master cylinder) | 90016-AH902 |
| 47210L | Brake booster assembly with master cylinder | 47050-0R050 · 47050-0R070 · 47050-42220 · 47050-42230 |
| 47210U | Direct sales (for brake master cylinder) | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0R100 · 47220-0R110 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0R100 · 47230-47090 |
| 47233 | Reservoir tank bracket | 47233-0R020 · 47233-0R030 |
| 47234C | Clamp (for No. 1 tube of liquid storage tank) | 90466-C0026 |
| 47234L | Reservoir Tank No. 1 Hose | 47234-0R020 |
| 47235C | Clamp (for brake master cylinder reservoir tank No. 2 pipe) | 90466-C0026 |
| 47235G | Reservoir tank No. 2 hose | 47235-0R020 |
| 47255 | Master pump reservoir seal | 90016-AT002 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
