Toyota RAV4 Parking Brake & Cable — Figure 4601

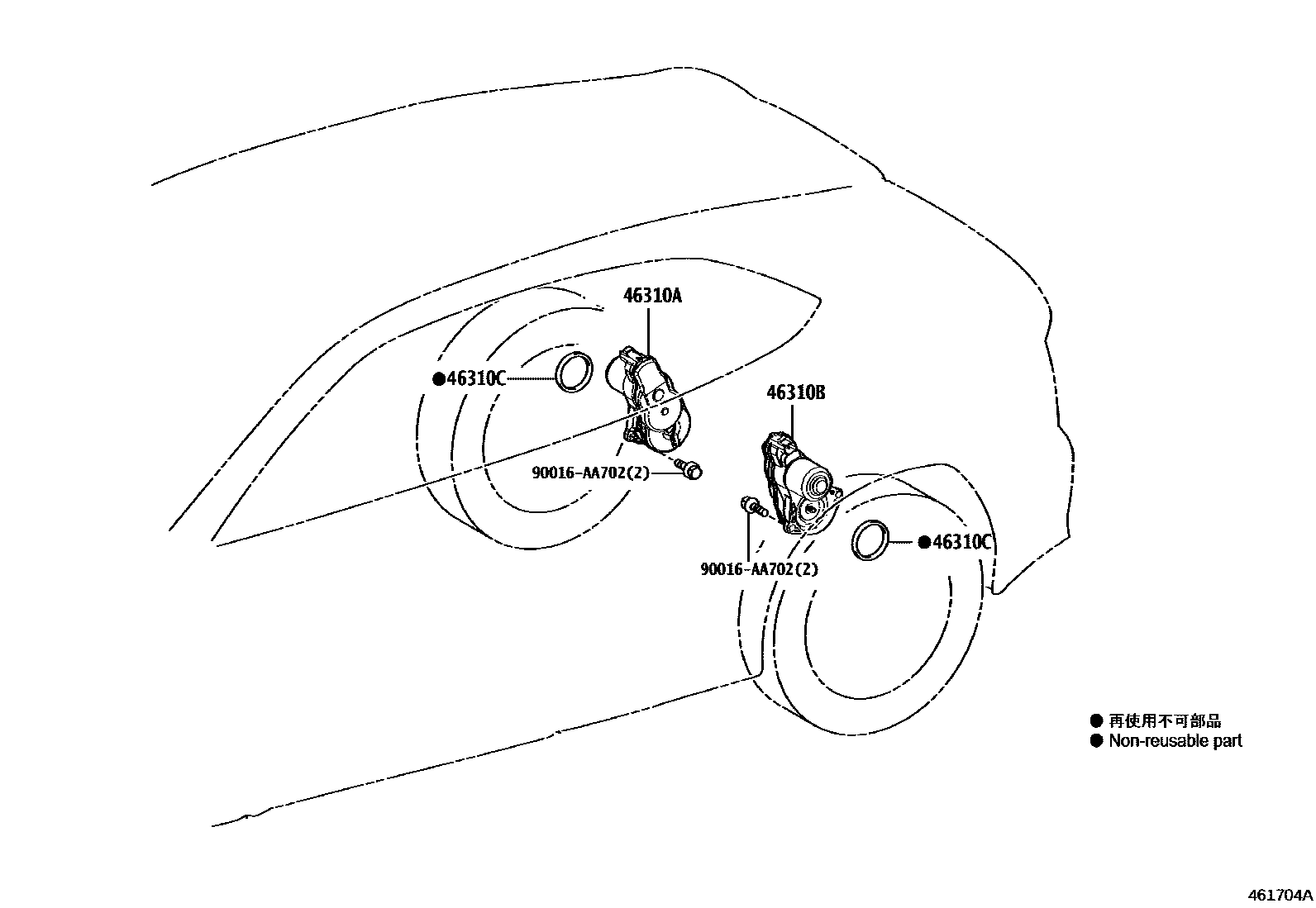

Toyota RAV4 EPC diagram 4601, Parking Brake & Cable, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46310A | Right parking brake actuator assembly | 46310-07010 |
| 46310B | Left parking brake actuator assembly | 46310-07010 |
| 46310C | Seal (for parking brake actuator) | 90015-AH005 |
