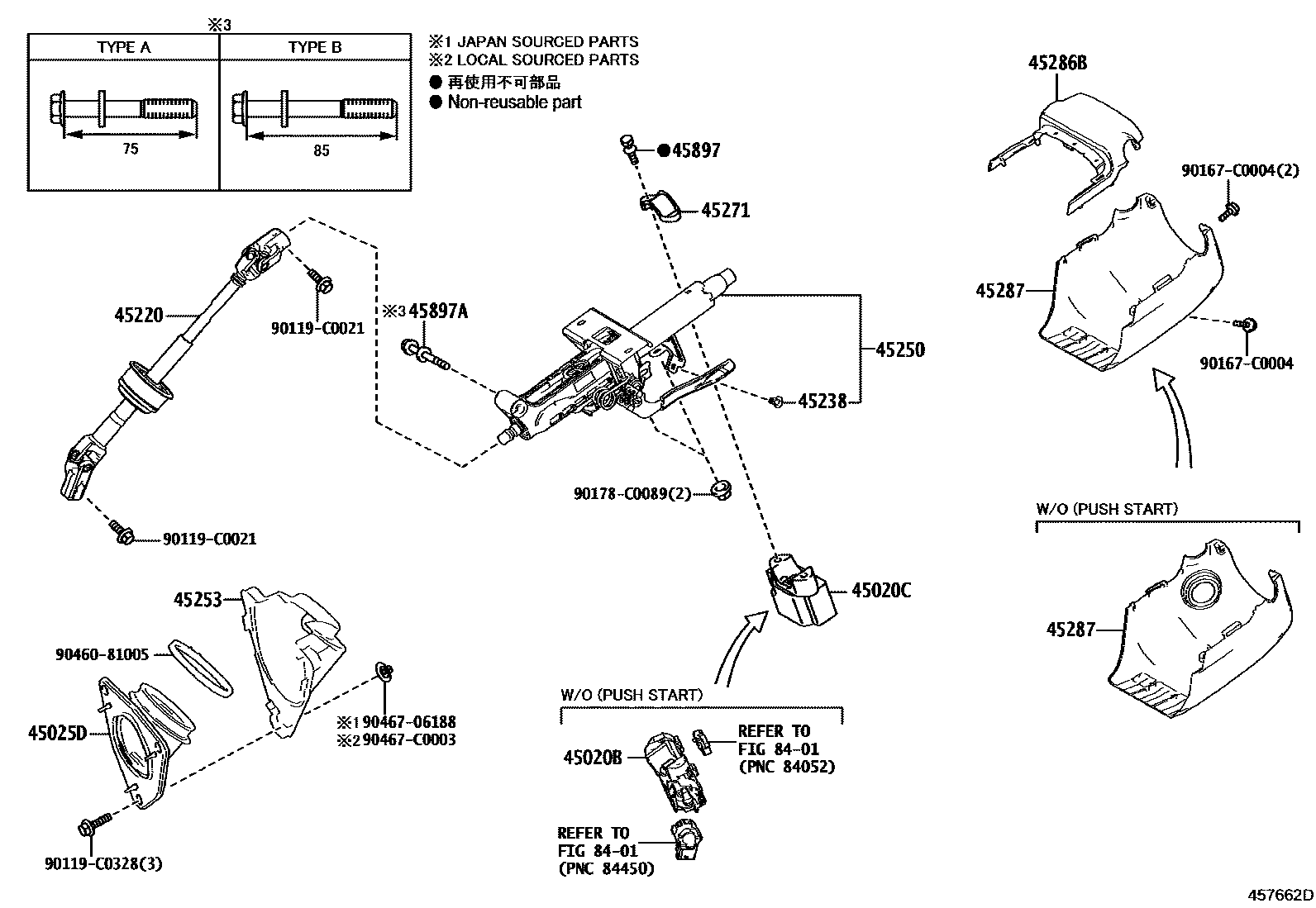

Toyota RAV4 Steering Column & Shaft — Figure 4501
Toyota RAV4 EPC diagram 4501, Steering Column & Shaft, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-02510 |
| 45020C | Steering lock actuator assembly with ECU | 45020-06290 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0R050 |
| 45220 | Steering intermediate shaft assembly | 45220-0R020 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-52010 |
| 45250 | Steering column assembly | 45250-0R040 · 45250-0R050 |
| 45253 | Steering column hole cover | 45253-0R020 |
| 45271 | Clamp on steering column | 45271-0A020 · 45271-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10980 · 90119-C0427 |
