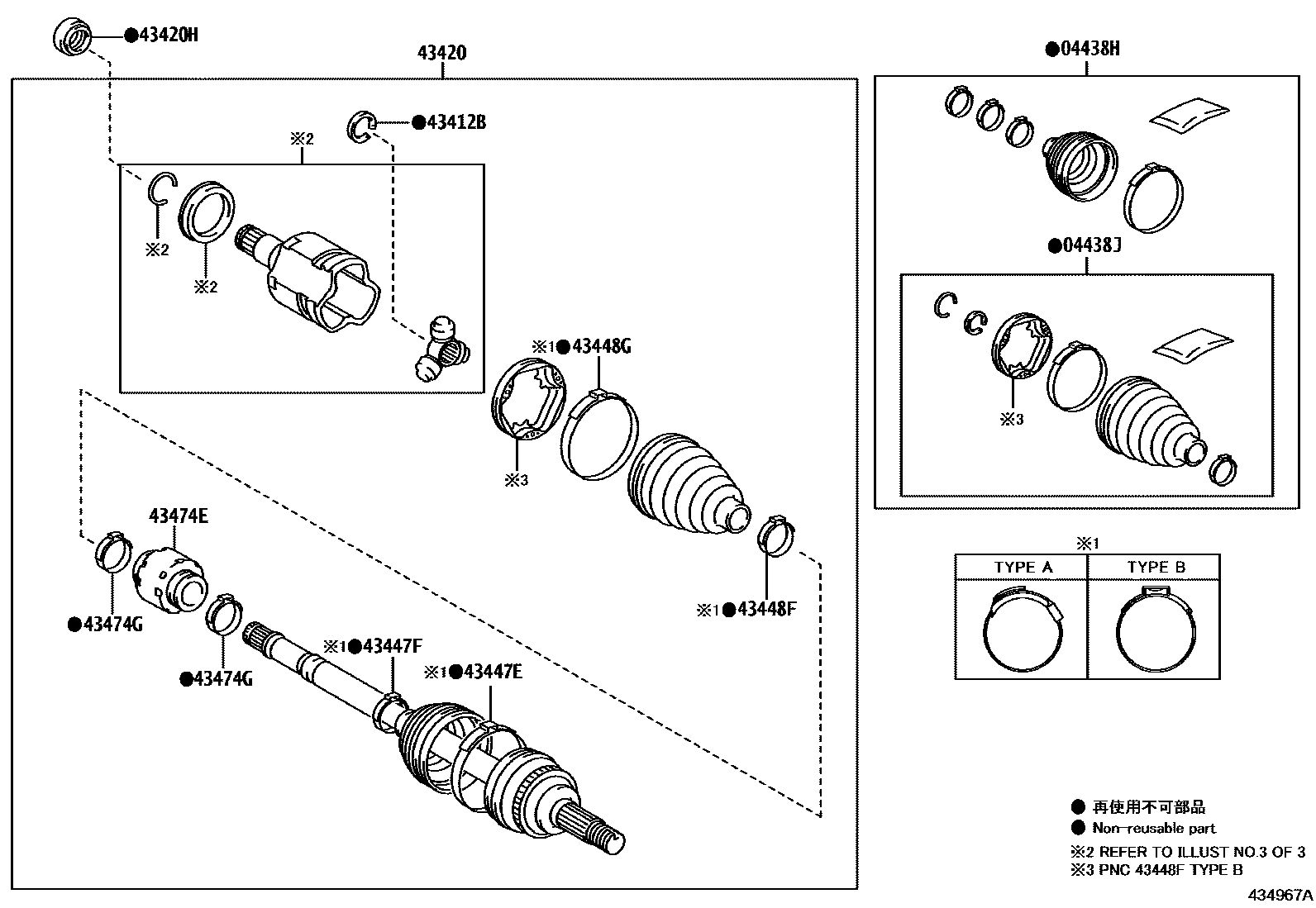

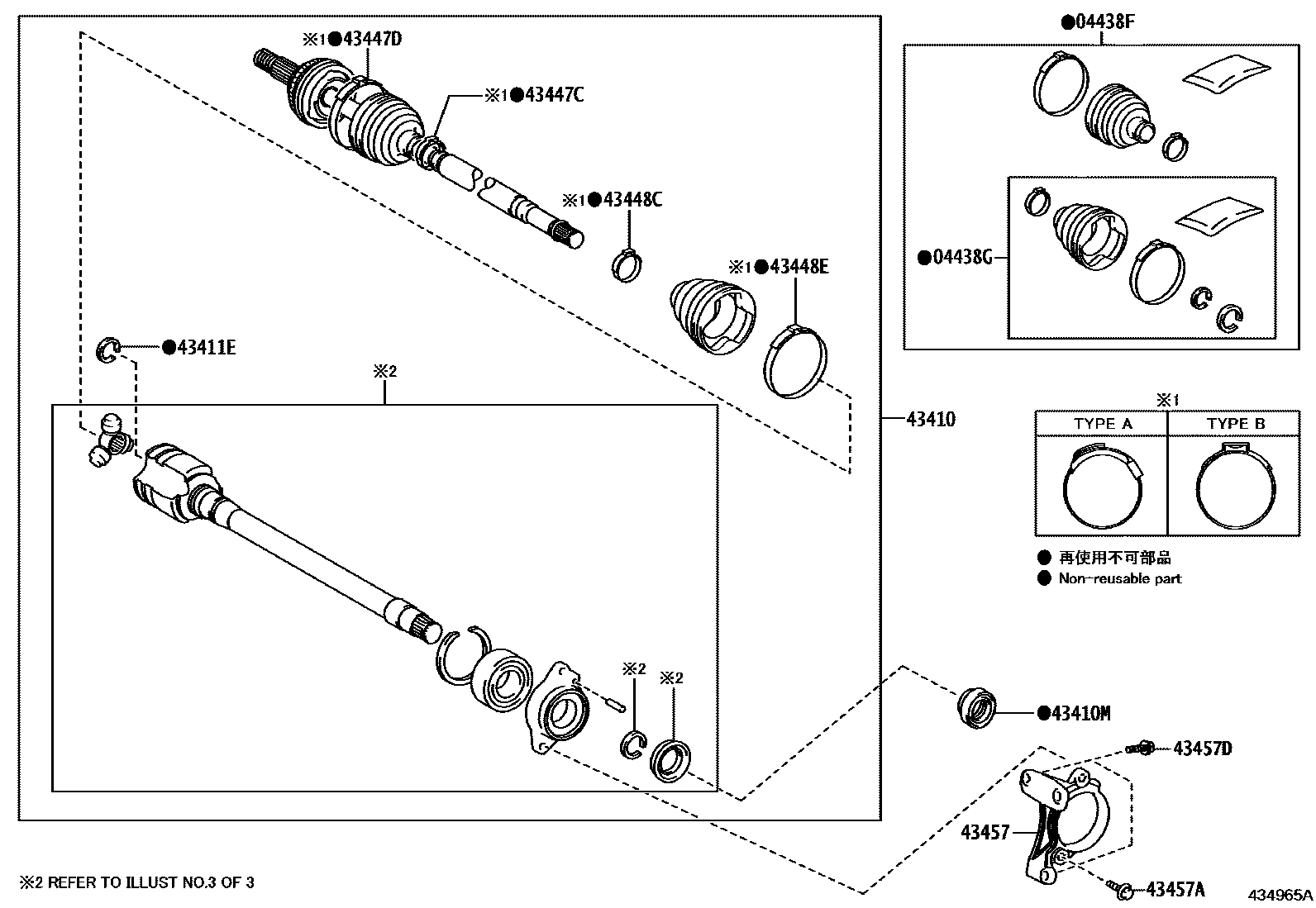

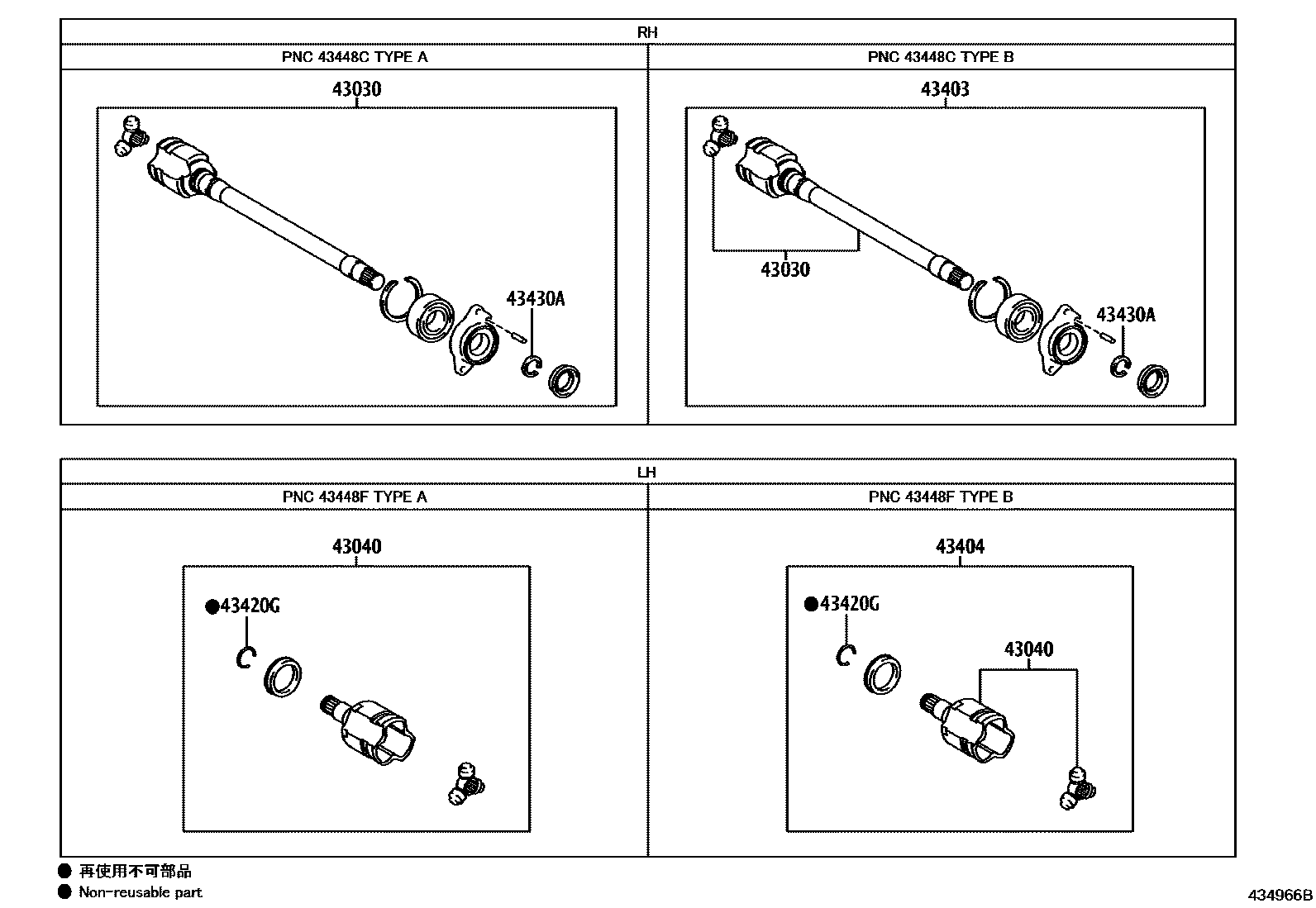

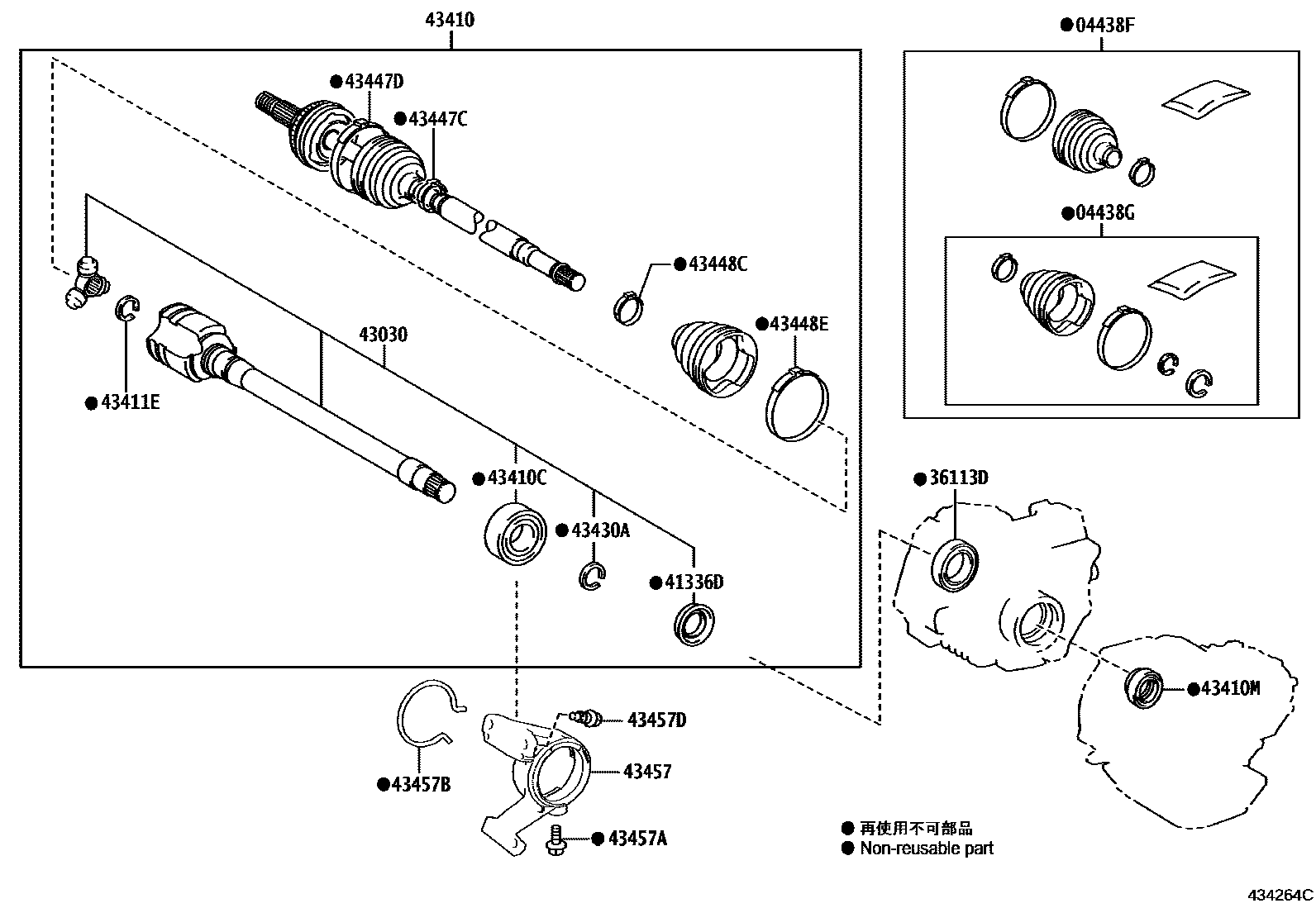

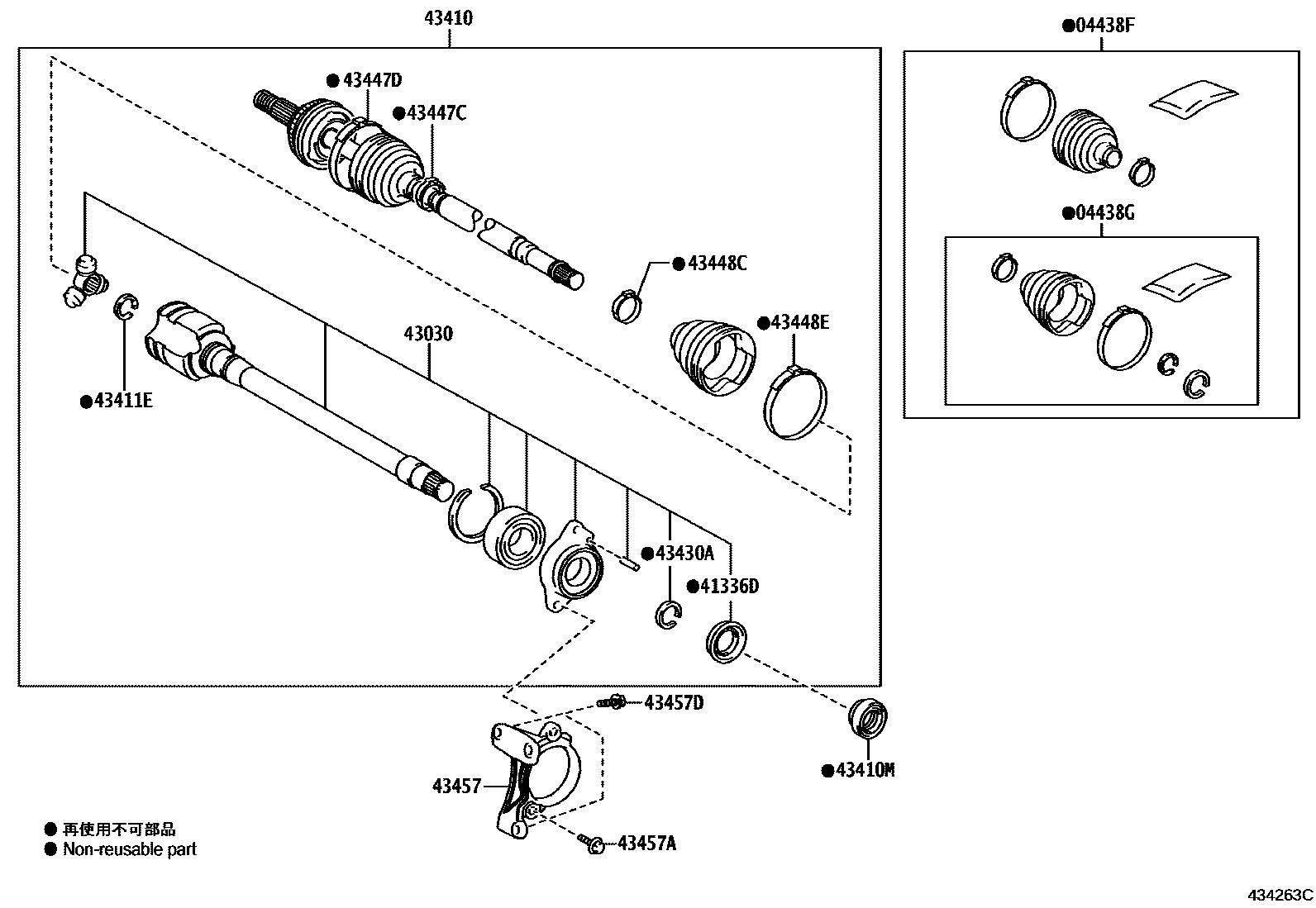

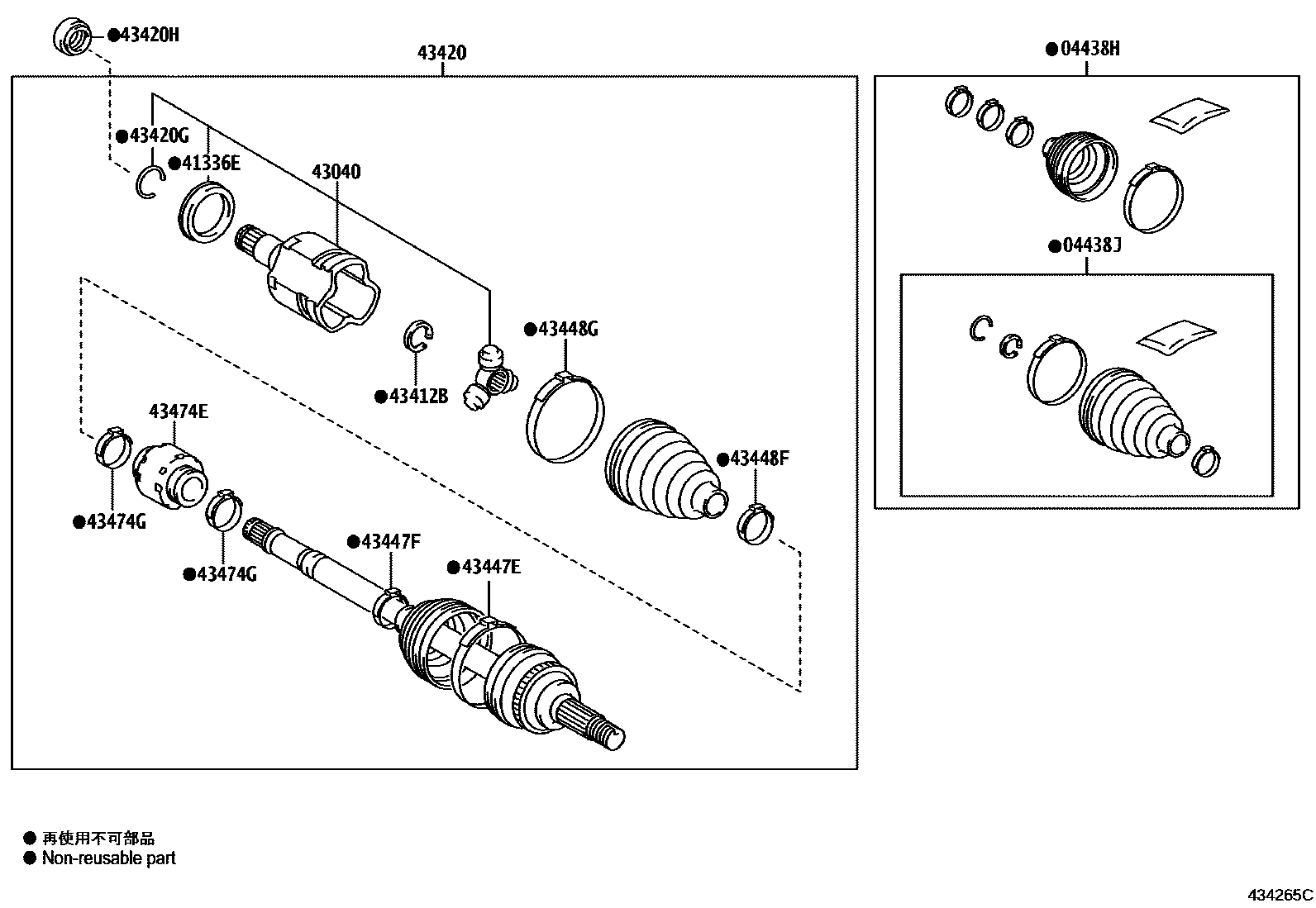

Toyota RAV4 Front Drive Shaft — Figure 4302
Toyota RAV4 EPC diagram 4302, Front Drive Shaft, with 6 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02880 · 04427-02890 · 04427-02A00 · 04427-02B51 · 04427-02C40 · 04427-02C50 · 04427-02C60 · 04427-02C70 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02830 · 04437-02840 · 04437-02A60 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02860 · 04427-02861 · 04427-02870 · 04427-02871 · 04427-02A80 · 04427-02B63 · 04427-02C80 · 04427-02C90 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02670 · 04437-02820 · 04437-02A70 |
| 36113D | Oil seal (for right transfer case) | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-02390 · 41336-06330 · 41336-0R090 · 41336-52020 |
| 41336E | Left front driveshaft dust cover | 41336-06340 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06530 · 43030-0E310 · 43030-0R180 · 43030-0R190 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06350 · 43040-0E210 |
| 43403 | Right front axle inner universal joint assembly | 43403-0E060 |
| 43404 | Left front axle inner universal joint assembly | 43404-0E070 |
| 43410 | Right front driveshaft assembly | 43410-0E431 · 43410-0R220 · 43410-0R230 · 43410-0R240 · 43410-0R250 · 43410-0R300 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 · 90363-C0015 |
| 43410M | Front drive shaft right oil seal | 90311-40047 · 90311-C0057 · 90316-34001 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 43425-F4070 · 90520-C0030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 43425-F4070 · 90520-C0030 |
| 43420 | Left front drive shaft assembly | 43420-06B60 · 43420-06B90 · 43420-07110 · 43420-0E271 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-0E300 · 90520-C0040 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-50058 · 90311-C0058 |
| 43430A | Shaft snap ring | 43425-0E320 · 90520-33008 · 90520-38015 · 90520-C0031 · 90520-C0032 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42100 · 42345-42120 · 42345-F4170 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42090 · 42345-42110 · 42345-F4180 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42090 · 42345-42110 · 42345-F4180 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42100 · 42345-42120 · 42345-F4170 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06B90 · 42345-28090 · 42345-33120 · 42345-F4170 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06B80 · 42345-33140 · 42345-F4200 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06B90 · 42345-28090 · 42345-33120 · 42345-F4170 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06B80 · 42345-33140 · 42345-F4200 |
| 43457 | drive shaft bearing bracket | 43457-0R120 · 43457-F4020 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-C0124 · 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-C0014 |
| 43474E | Left front driveshaft shock absorber | 43474-06190 · 43474-0E190 · 43474-0R110 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 · 42345-0E560 · 42345-12090 |
