Toyota RAV4 前桥壳和差速器 — Figure 4301

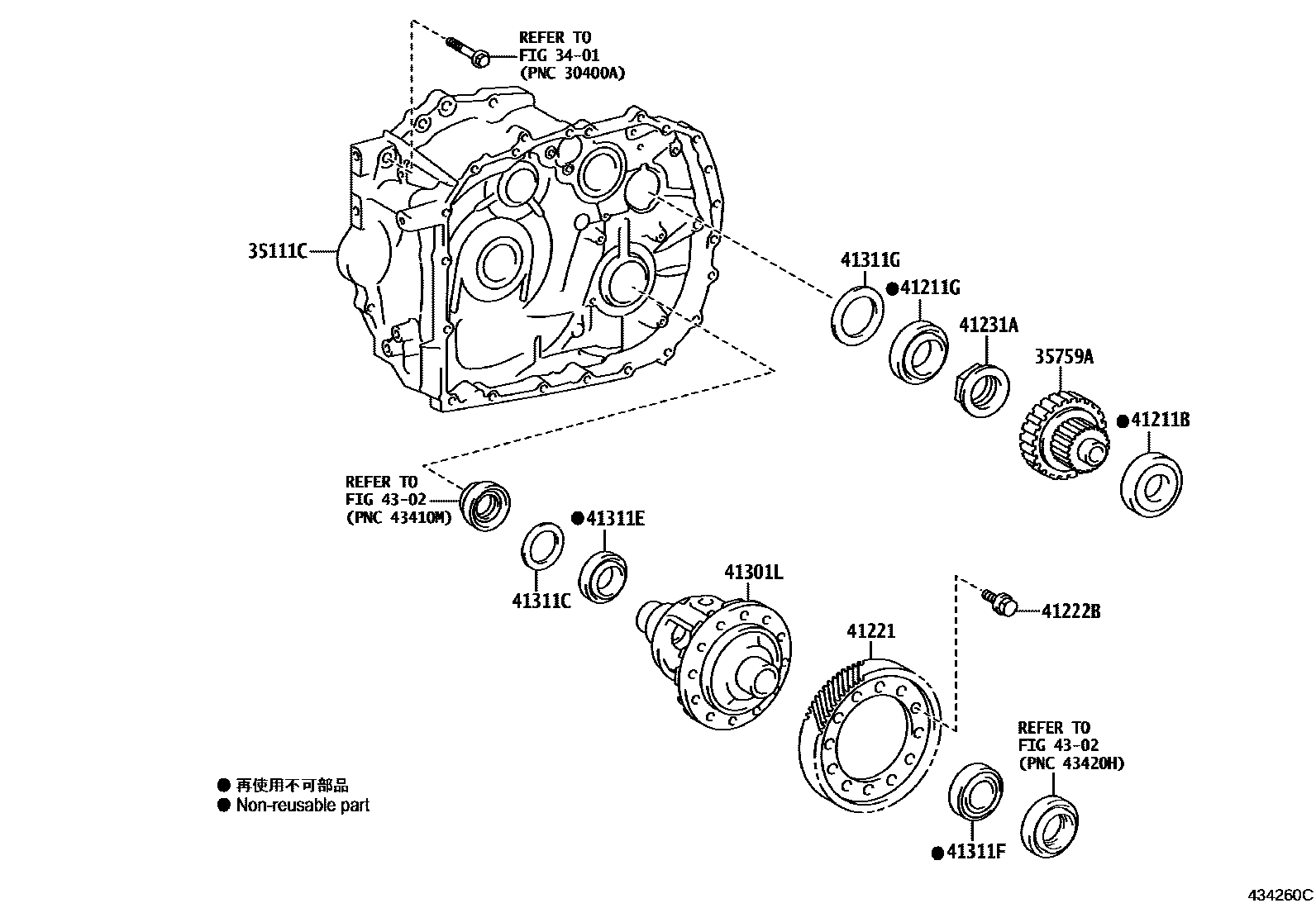

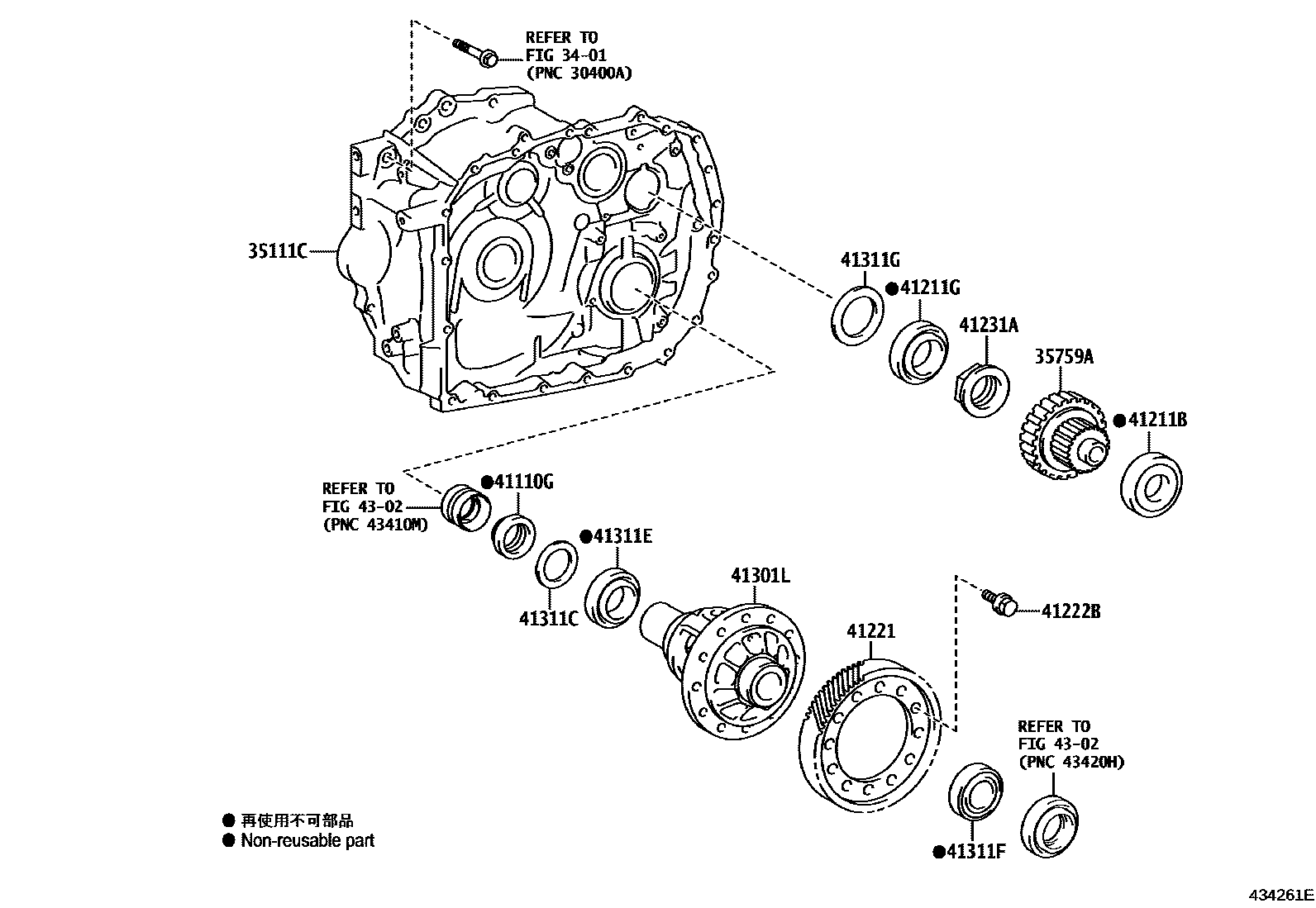

Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35111-0R080 · 35111-0R090 · 35111-42071 · 35111-42081 · 35111-42090 · 35111-42100 |
| 35759A | Reduction driven gear | 35705-42070 |
| 41110G | Oil seal (for differential side) | 90311-55004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29013 · 90366-C0066 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90366-25026 · 90366-C0068 |
| 41221 | Front differential ring gear | 41221-42250 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12303 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-0R060 · 41301-12420 · 41301-42290 |
| 41311C | Rear gasket (for front differential case) | 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 · 90564-75036 · 90564-75037 · 90564-75038 · 90564-75039 · 90564-75040 · 90564-75041 · 90564-75042 · 90564-75043 · 90564-75044 · 90564-75045 · 90564-75046 · 90564-75047 · 90564-75052 · 90564-75053 · 90564-75054 · 90564-75055 · 90564-75056 · 90564-75057 · 90564-75058 · 90564-C0078 · 90564-C0079 · 90564-C0080 · 90564-C0081 · 90564-C0082 · 90564-C0083 · 90564-C0084 · 90564-C0085 · 90564-C0086 · 90564-C0087 · 90564-C0088 · 90564-C0089 · 90564-C0090 · 90564-C0091 · 90564-C0092 · 90564-C0093 · 90564-C0094 · 90564-C0095 · 90564-C0096 · 90564-C0097 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50172 · 90366-57045 · 90366-C0069 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-51007 · 90366-C0067 |
| 41311G | Front flat washer (for front differential case) | 90564-44070 · 90564-44071 · 90564-44072 · 90564-44073 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 · 90564-C0055 · 90564-C0056 · 90564-C0057 · 90564-C0058 · 90564-C0059 · 90564-C0060 · 90564-C0061 · 90564-C0062 · 90564-C0063 · 90564-C0064 · 90564-C0065 · 90564-C0066 · 90564-C0067 · 90564-C0068 · 90564-C0069 · 90564-C0070 · 90564-C0071 · 90564-C0072 · 90564-C0073 · 90564-C0074 · 90564-C0075 · 90564-C0076 · 90564-C0077 |
