Toyota RAV4 车轮和车轮盖 — Figure 4103

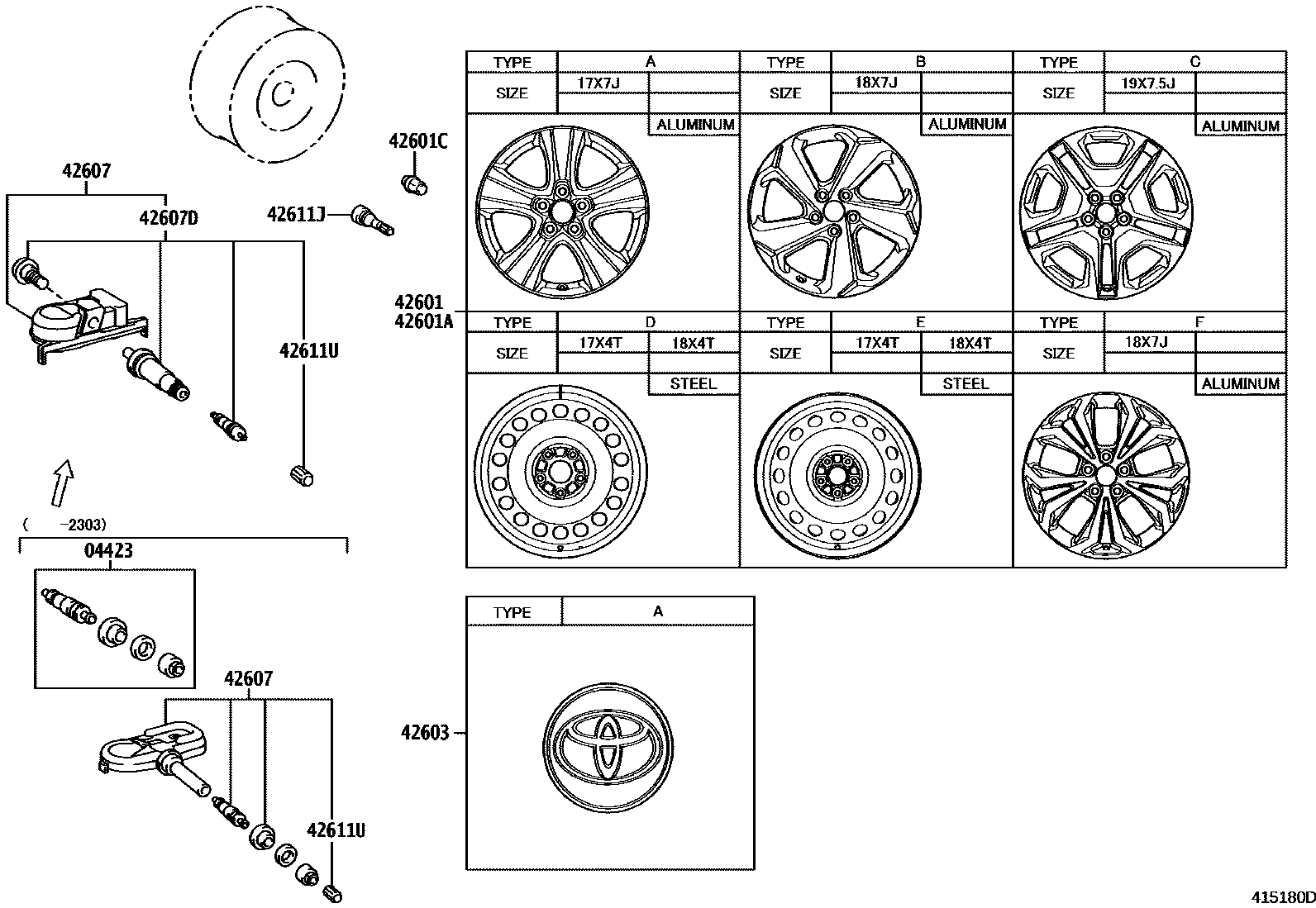

Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 |
| 42601 | spoke wheel | 42611-0R310 · 42611-0R330 · 42611-0R350 · 42611-0R640 · 42611-0R650 · 42611-YK080 · 42611-YK090 · 4261A-0R070 · 4261A-0R170 |
| 42601A | Spoke wheel (for spare tire) | 4261B-0R020 · 4261B-0R040 · 4261B-0R050 · 4261B-0R060 |
| 42601C | Hub nut (for axle) | 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02320 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06070 · 42607-0R030 |
| 42607D | tire pressure monitoring valve | 90942-C5002 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5004 |
| 42611U | tire valve cover | 90942-C5001 |
