Toyota RAV4 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

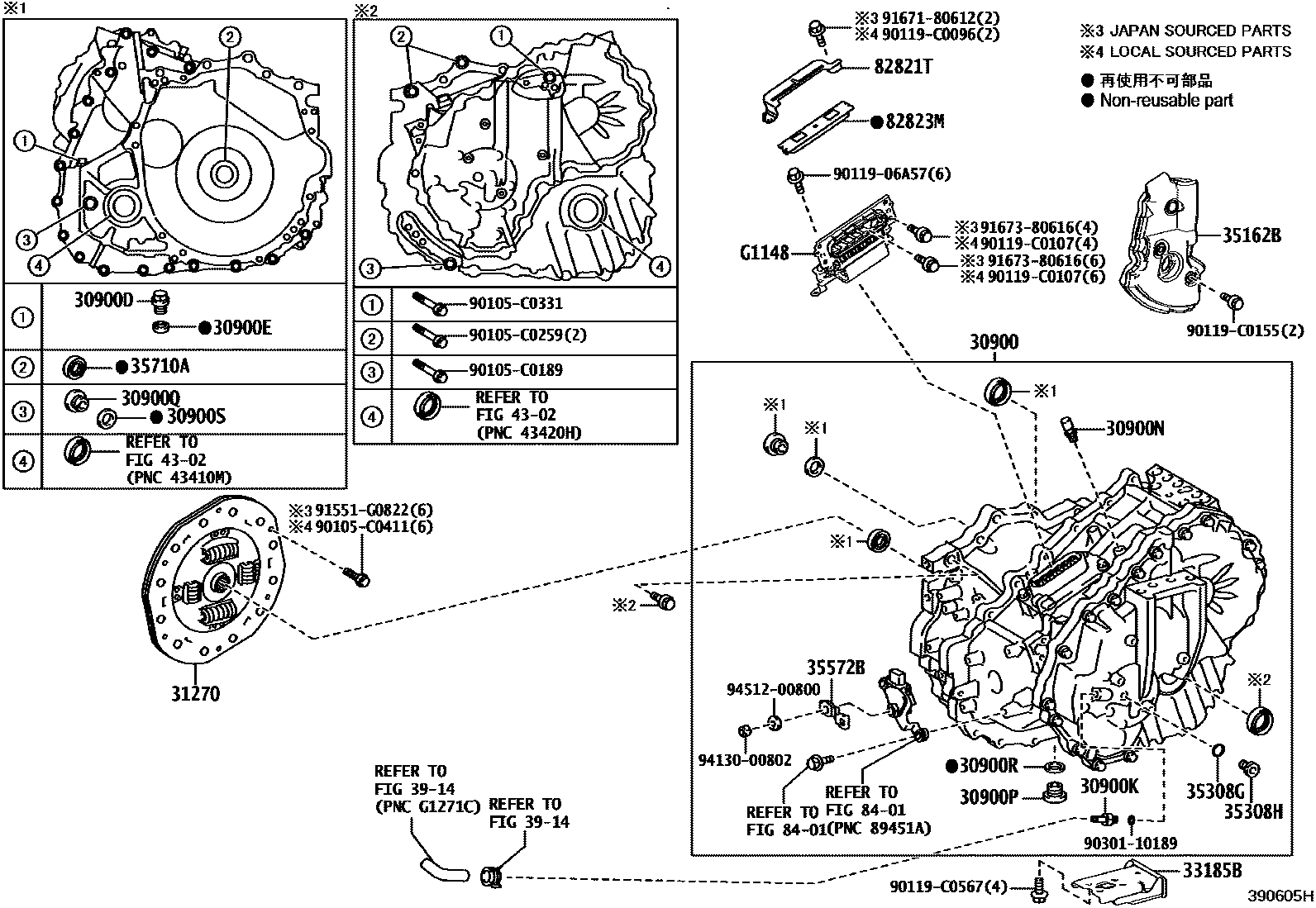

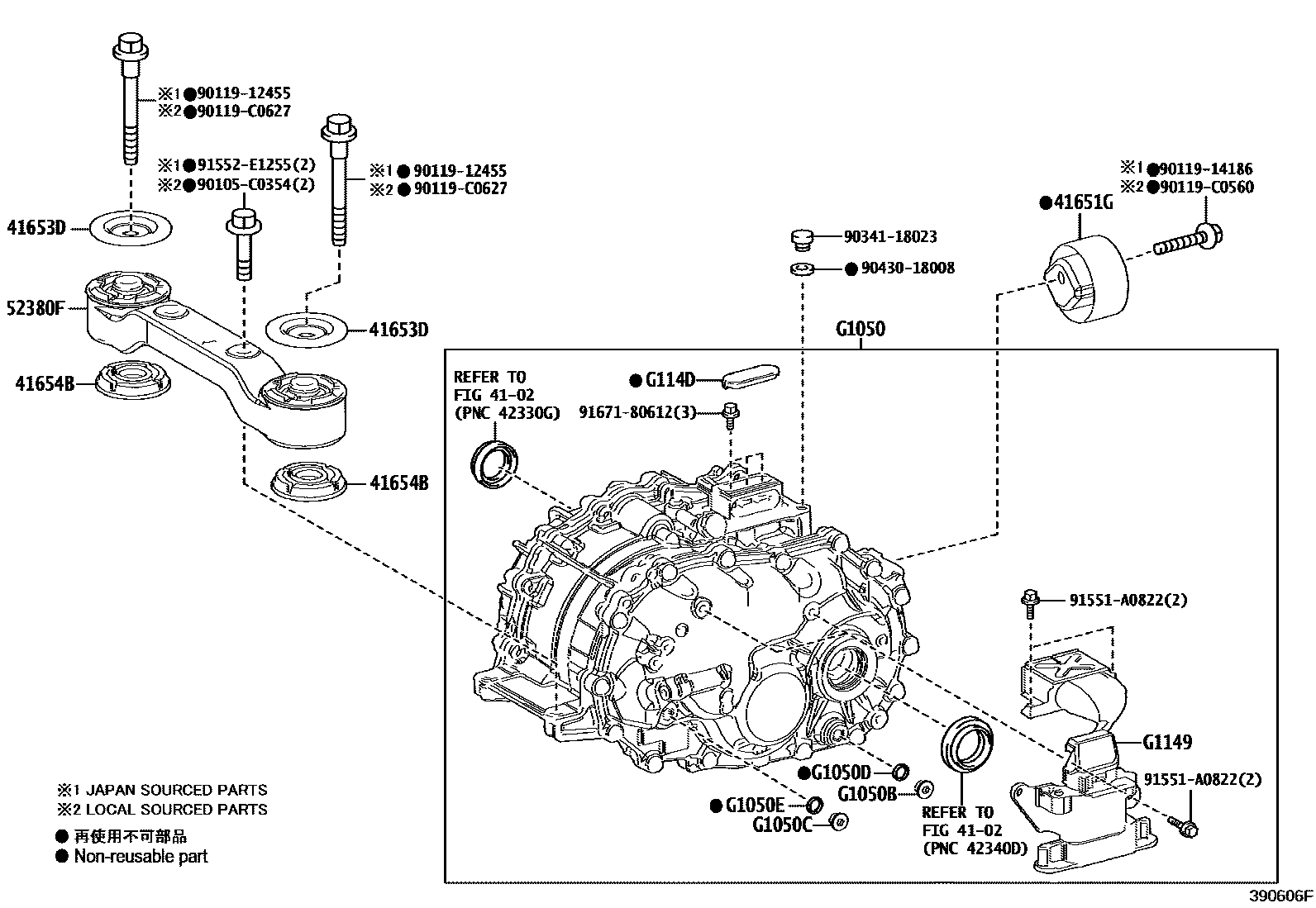

Toyota RAV4 EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-0R010 · 30900-0R011 · 30900-0R012 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 · 90341-C0022 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900K | Pipe connector (for transaxle housing) | 90404-13010 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 · 90430-C0007 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 · 90430-C0007 |
| 31270 | Transmission input damper assembly | 31270-0R030 · 31270-33030 |
| 33185B | Transmission axle bottom stop bracket | 33185-0R010 |
| 35162B | Transmission axle housing protective cover | 35162-33020 |
| 35308G | No. 2 O-ring (for transmission oil pump cover) | 90301-C0061 |
| 35308H | Screw plug (for transmission oil pump cover) | 90341-08001 |
| 35572B | Transmission outer lever | 35572-33070 |
| 35710A | T-type oil seal (for input shaft) | 90311-C0056 |
| 41651G | Differential fixed cushion | 41651-0R120 |
| 41653D | Differential fixed part upper stop | 41653-0R040 |
| 41654B | Differential fixed part lower block | 41654-0R030 |
| 52380F | Front differential bracket assembly | 52380-0R120 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-47040 |
| G1050 | Rear traction motor assembly with transmission axle | 30970-42010 · G1050-42010 · G1050-42011 |
| G1050B | Drain plug (for rear traction motor) | 90341-18051 |
| G1050C | Oil filling plug (for rear traction motor) | 90341-18023 |
| G1050D | Drain plug gasket (for rear traction motor) | 90430-18008 |
| G1050E | Oil filling plug gasket (for rear traction motor) | 90430-18008 |
| G1148 | Motor cable | G1148-33050 |
| G1149 | Cable (for rear traction motor) | G1149-42010 |
| G114D | Motor cable terminal cover | G114D-47021 |
