Toyota RAV4 Propeller Shaft & Universal Joint — Figure 3701

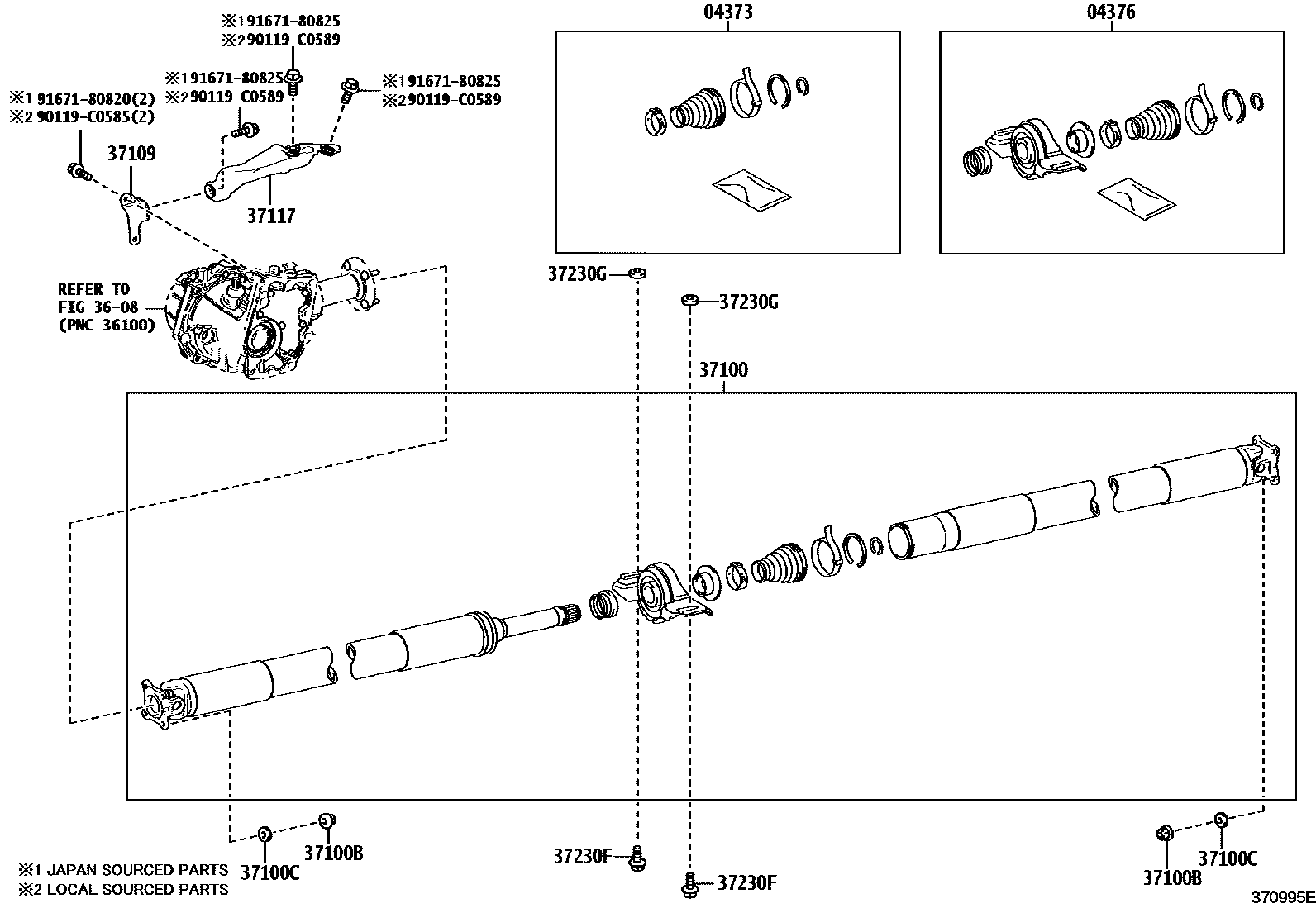

Toyota RAV4 EPC diagram 3701, Propeller Shaft & Universal Joint, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04373 | Universal joint dust boot assembly | 04373-52010 |
| 04376 | Intermediate support bearing assembly | 04376-52020 |
| 37100 | Drive shaft assembly with central bearing | 37100-0R020 · 37100-0R030 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90178-C0066 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90201-08097 |
| 37109 | Drive shaft insulation pad No. 1 bracket sub-assembly | 37109-0R020 |
| 37117 | drive shaft insulation pad | 37117-0R020 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-C0288 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10081 · 90201-10083 · 90201-10123 |
