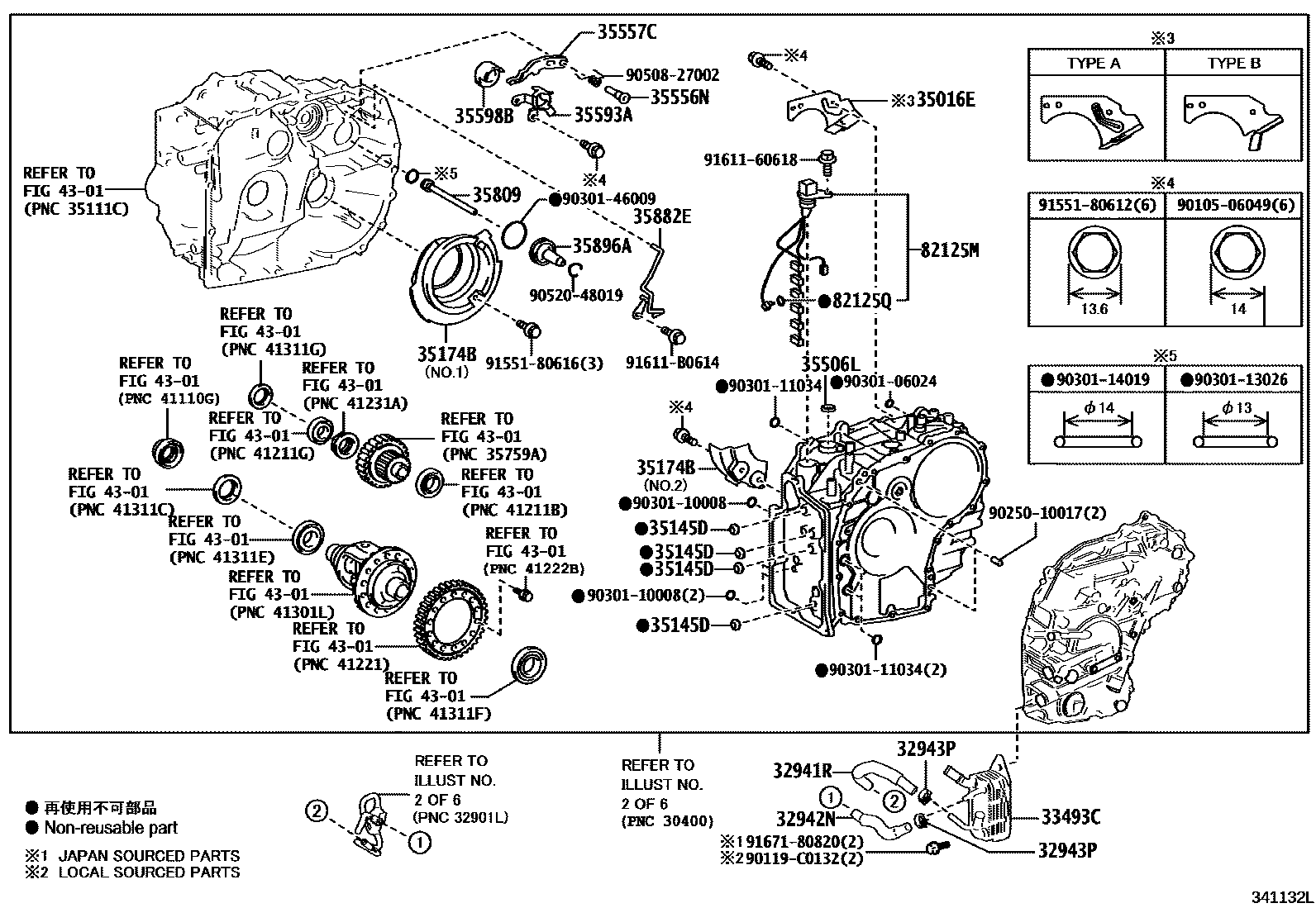

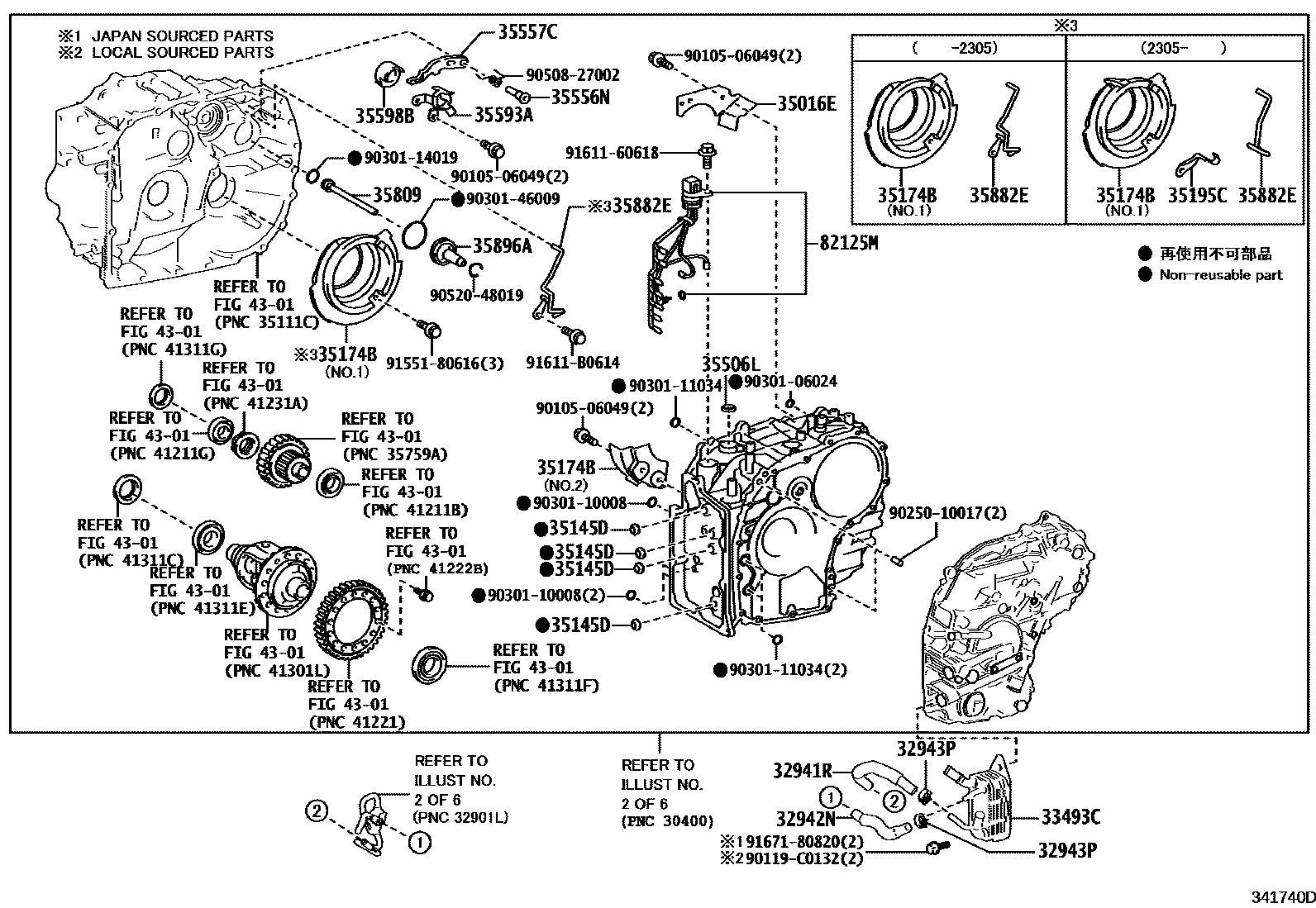

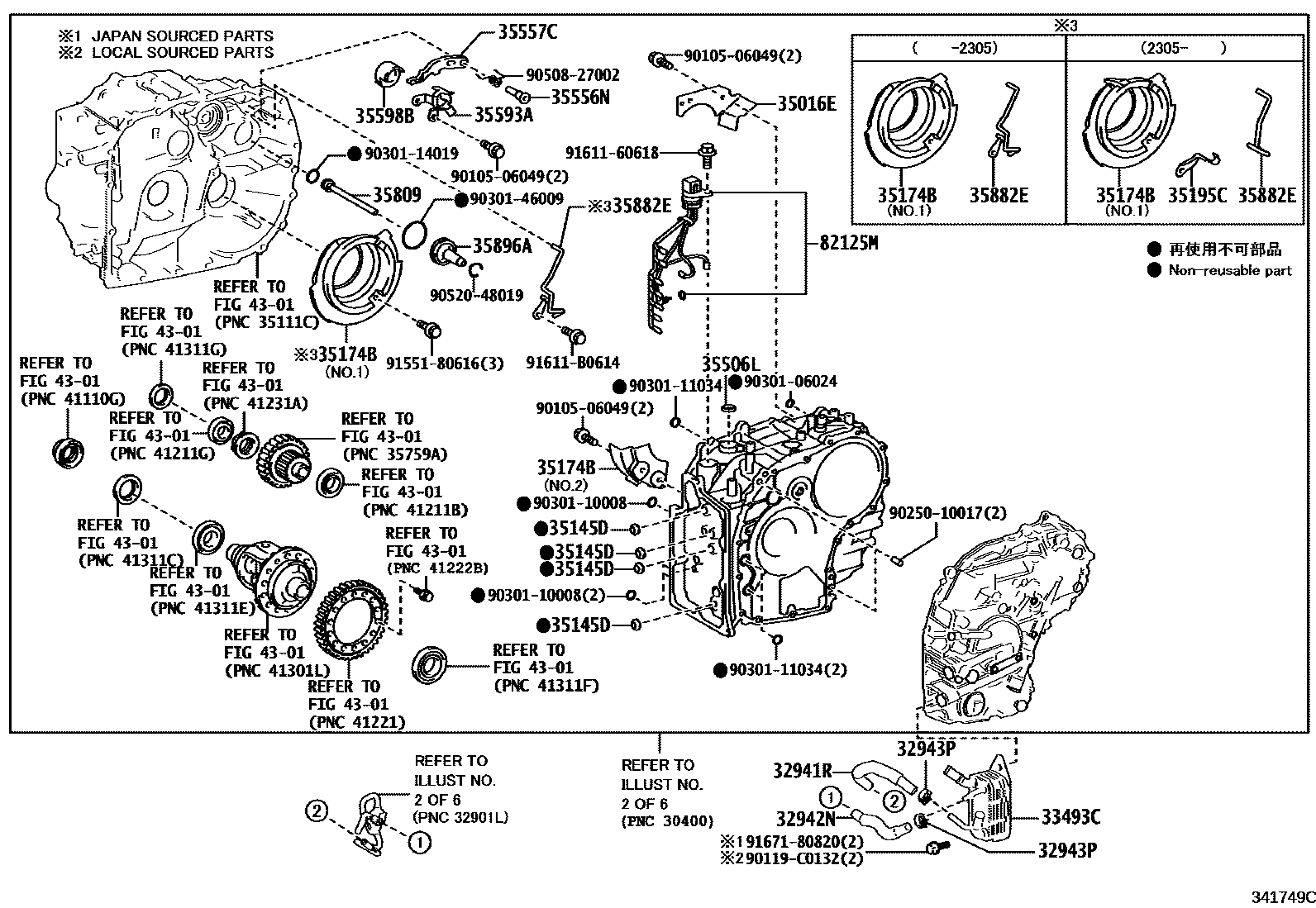

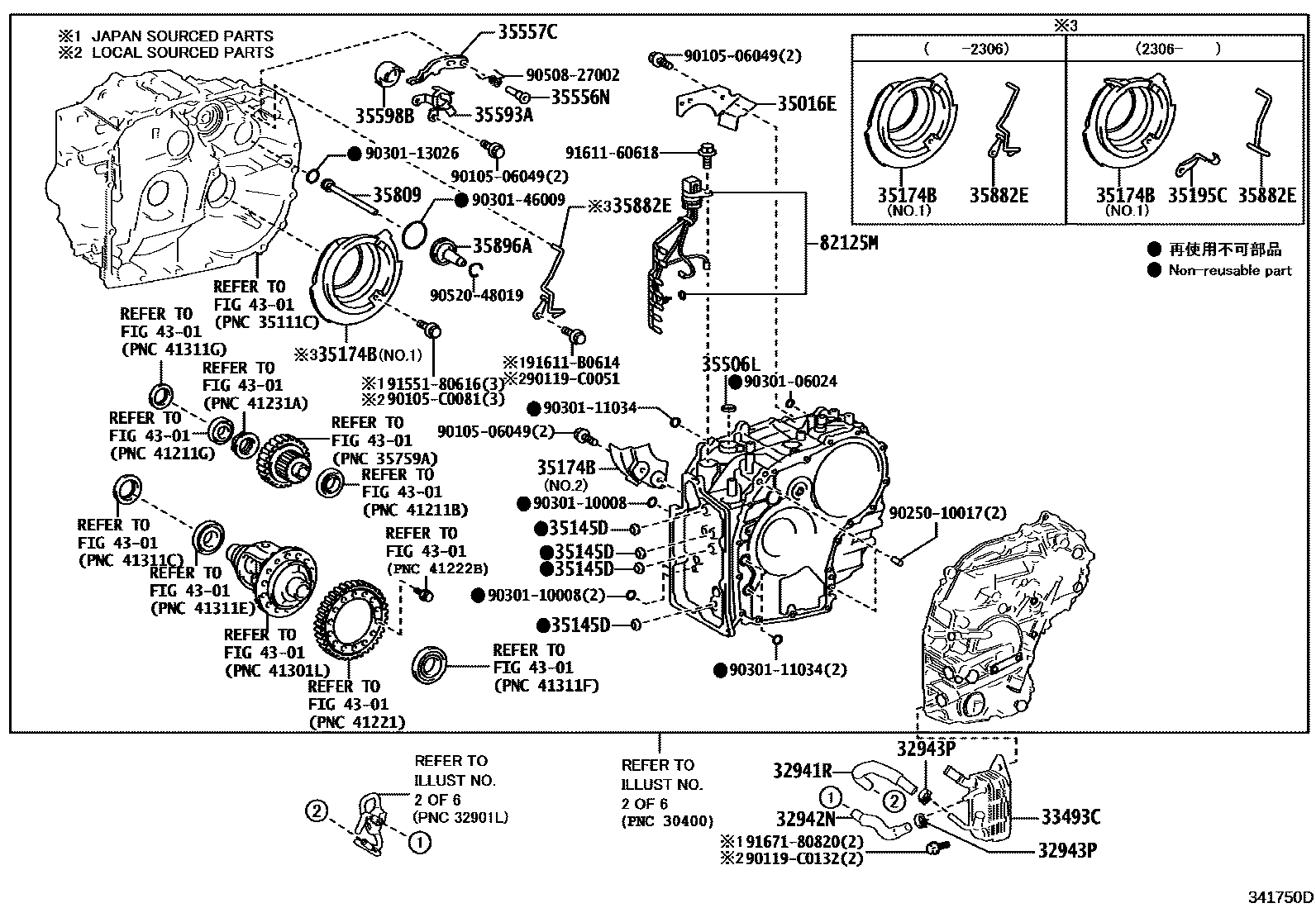

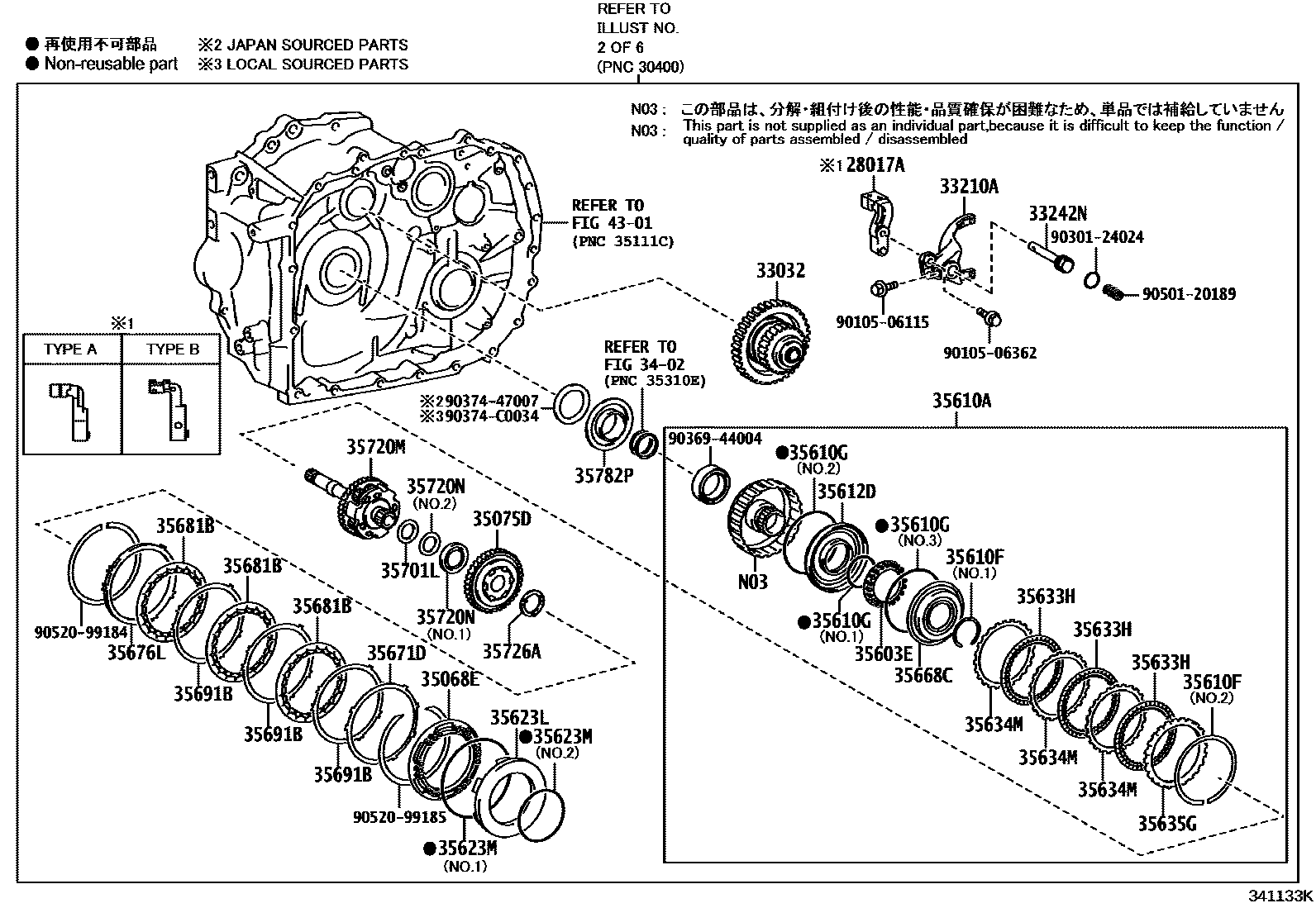

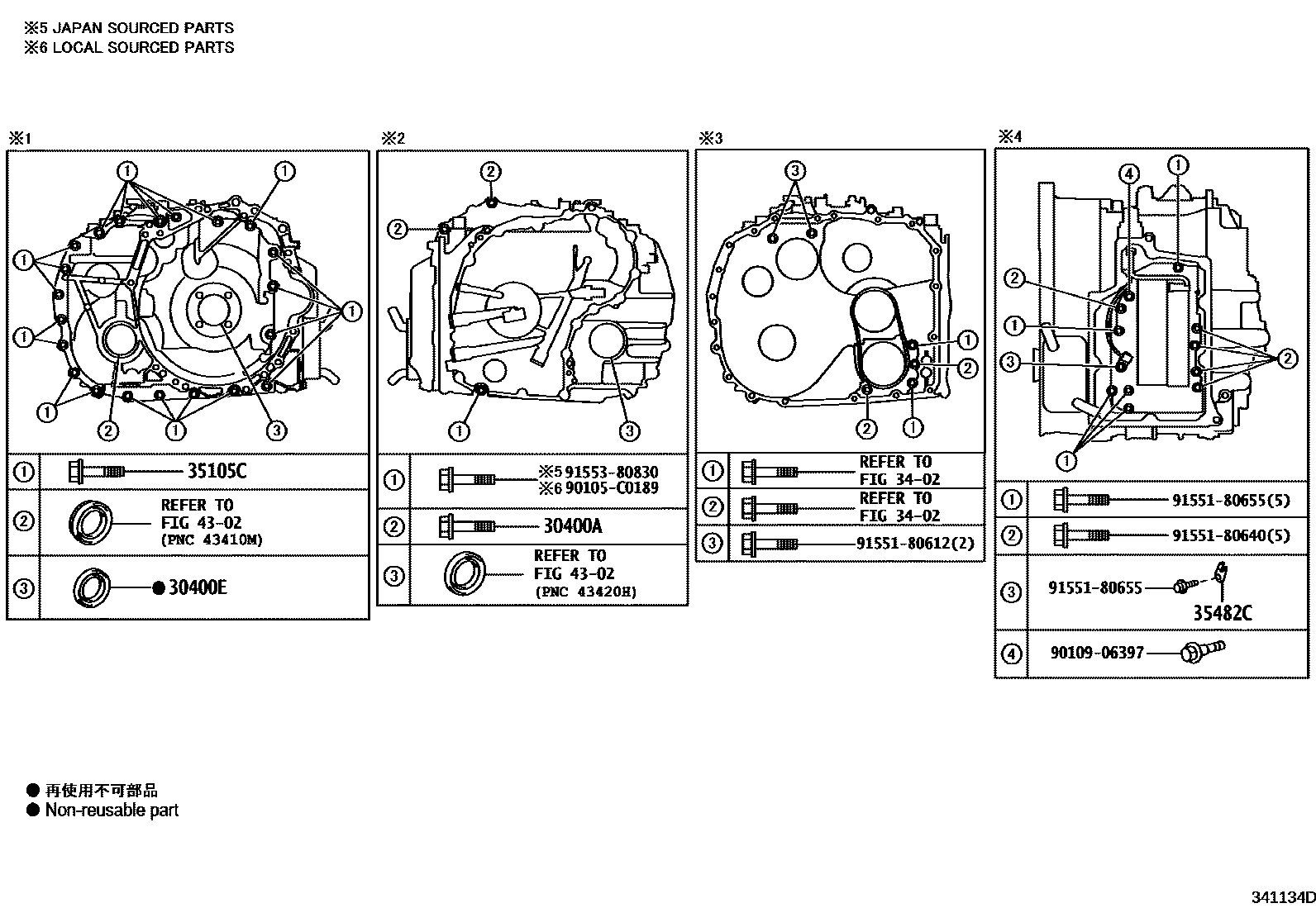

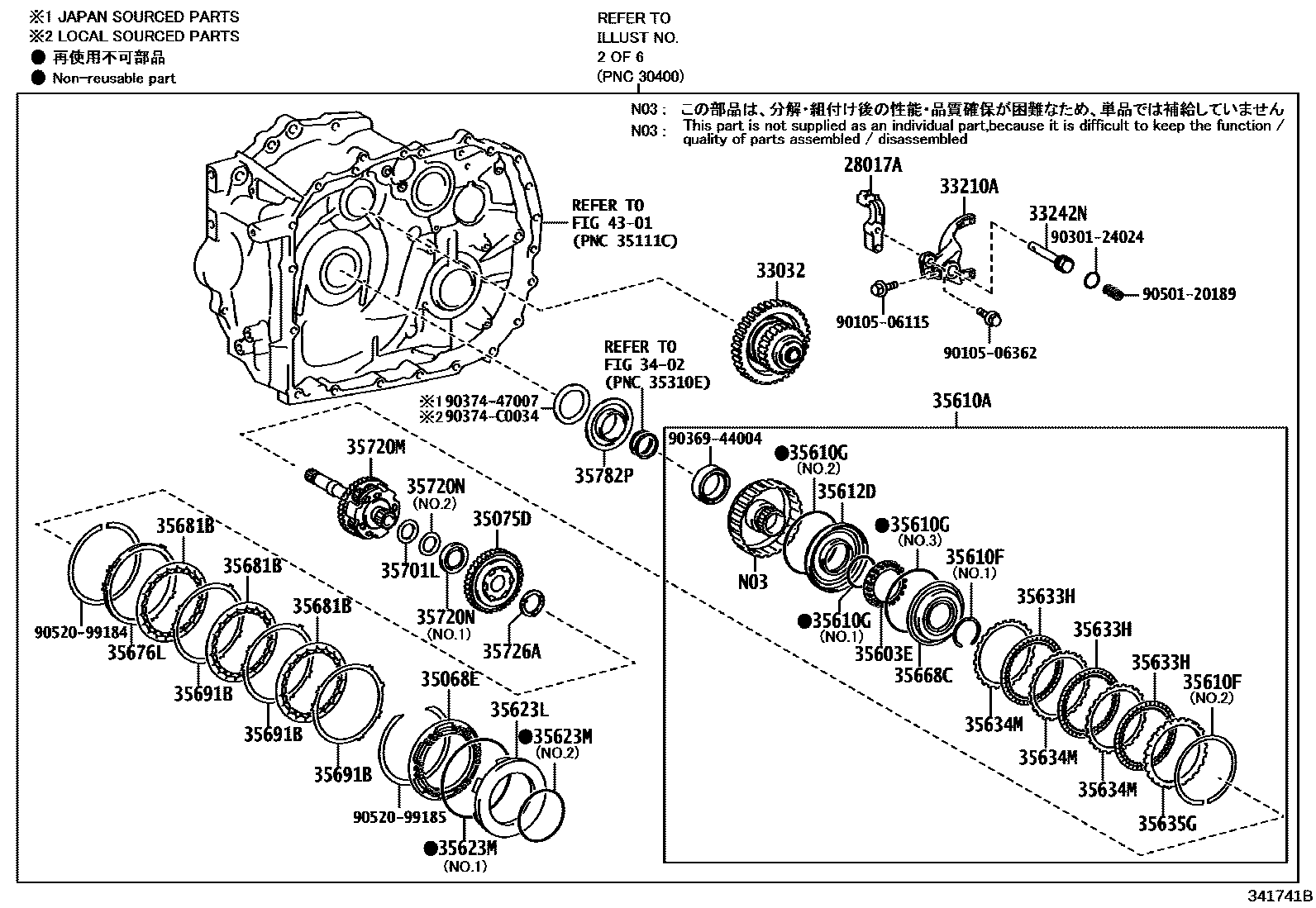

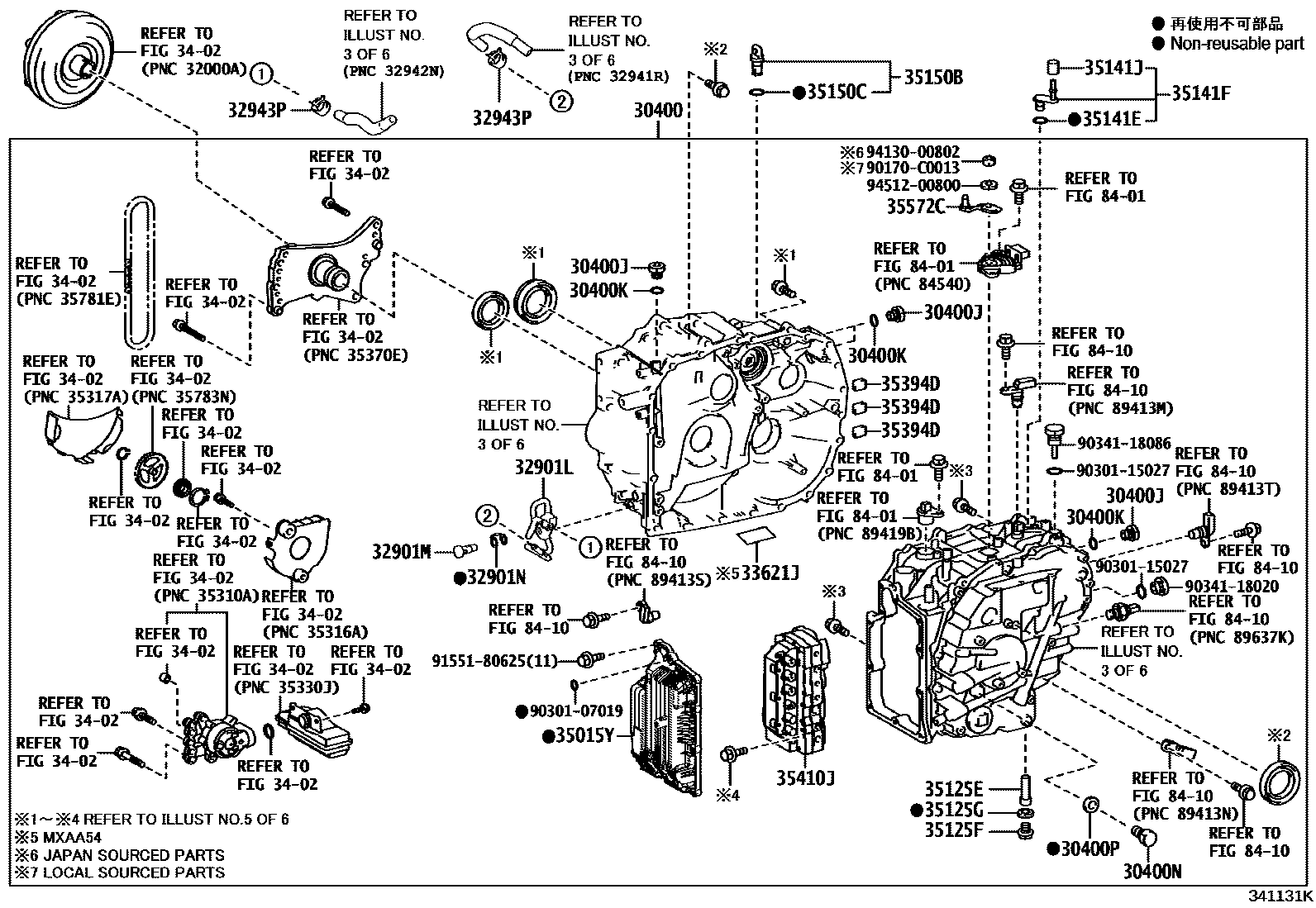

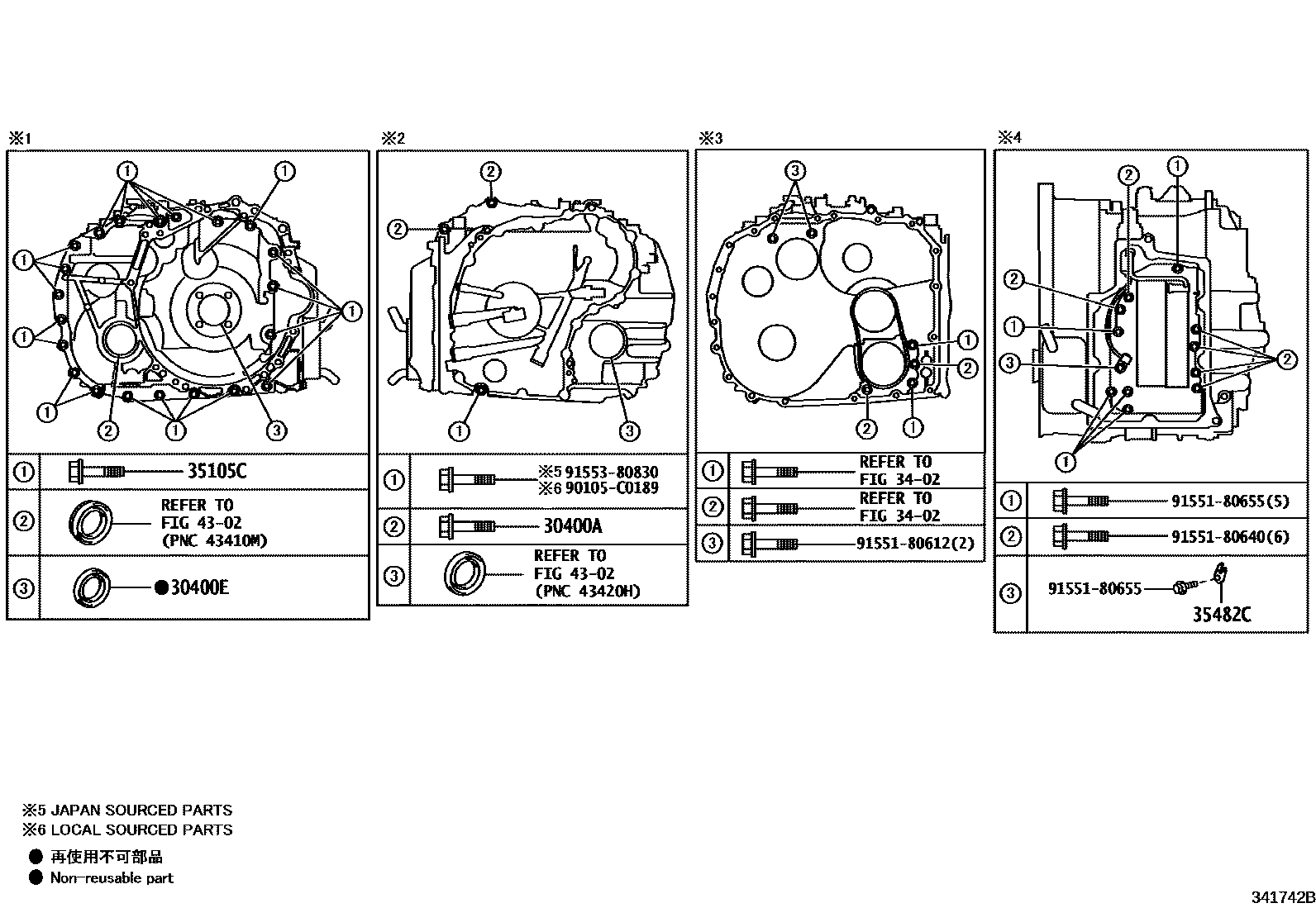

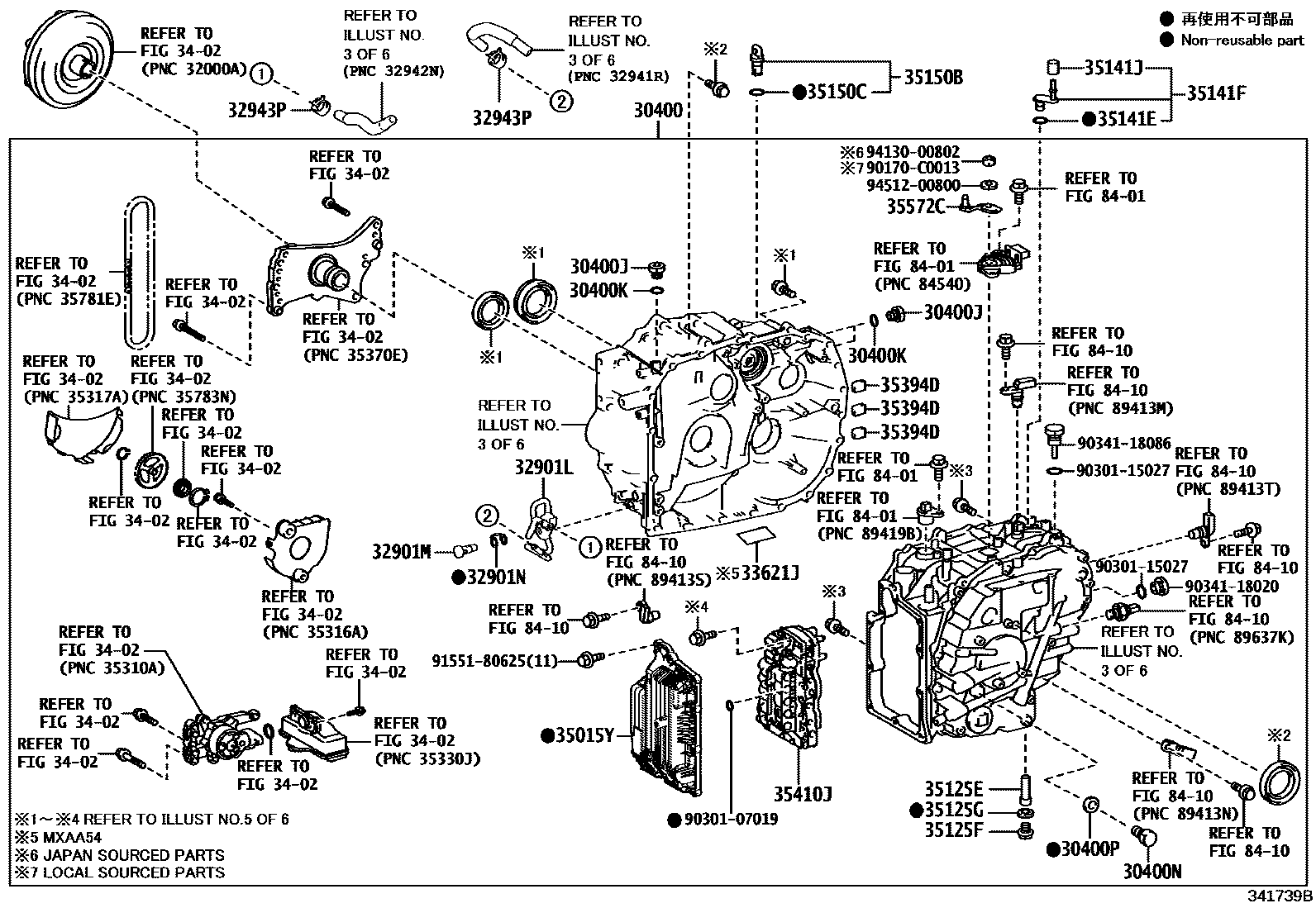

Toyota RAV4 传动桥总成(CVT) — Figure 3401
Toyota RAV4 EPC diagram 3401, 传动桥总成(CVT), with 12 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

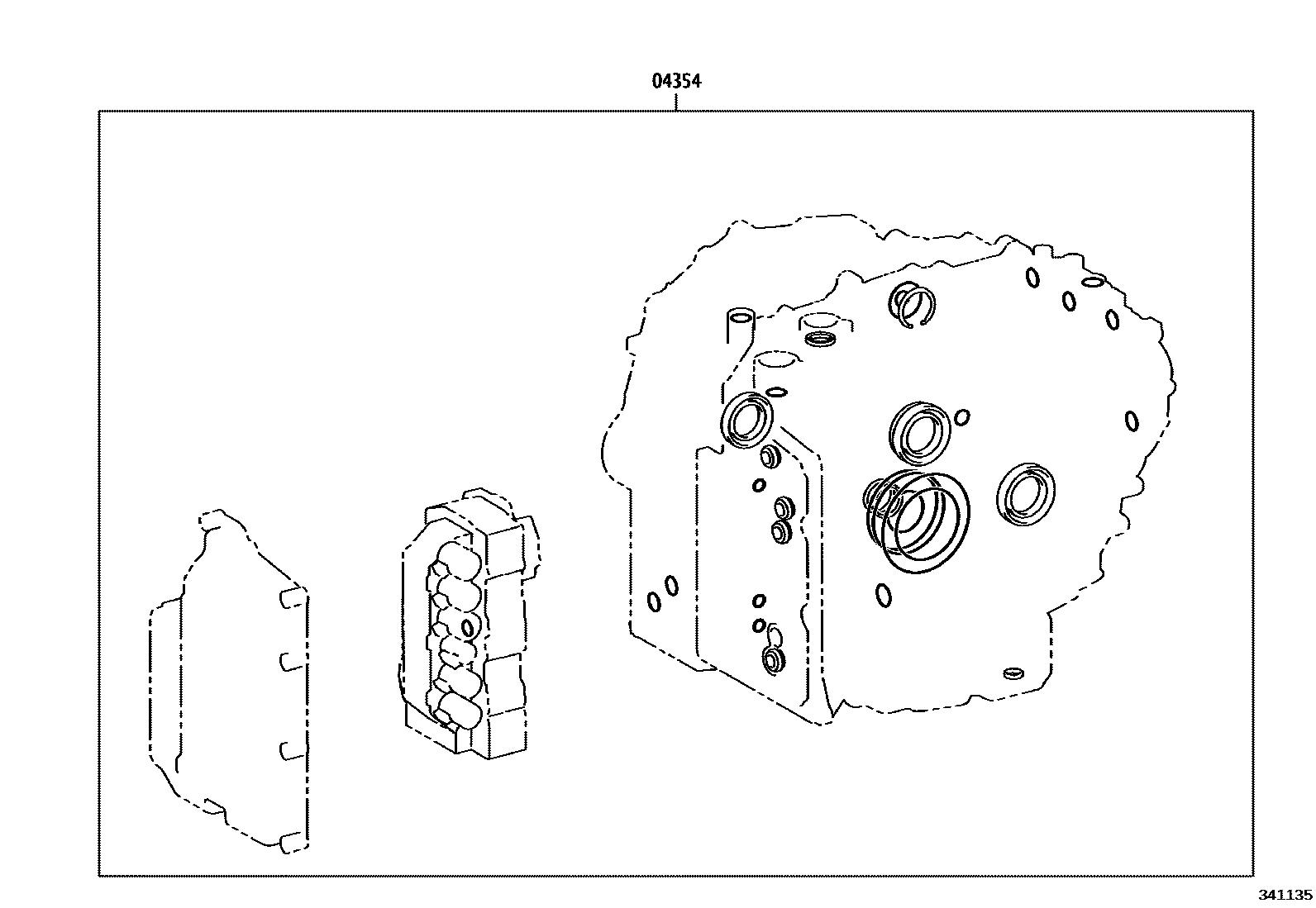

| 04354 | CVT Transaxle Overhaul Kit | 04354-0R010 · 04354-0R011 · 04354-0R020 · 04354-42010 · 04354-42011 · 04354-42020 |
| 28017A | Bracket (for shift fork) | 28017-24110 · 28017-24120 · 28017-F2010 |

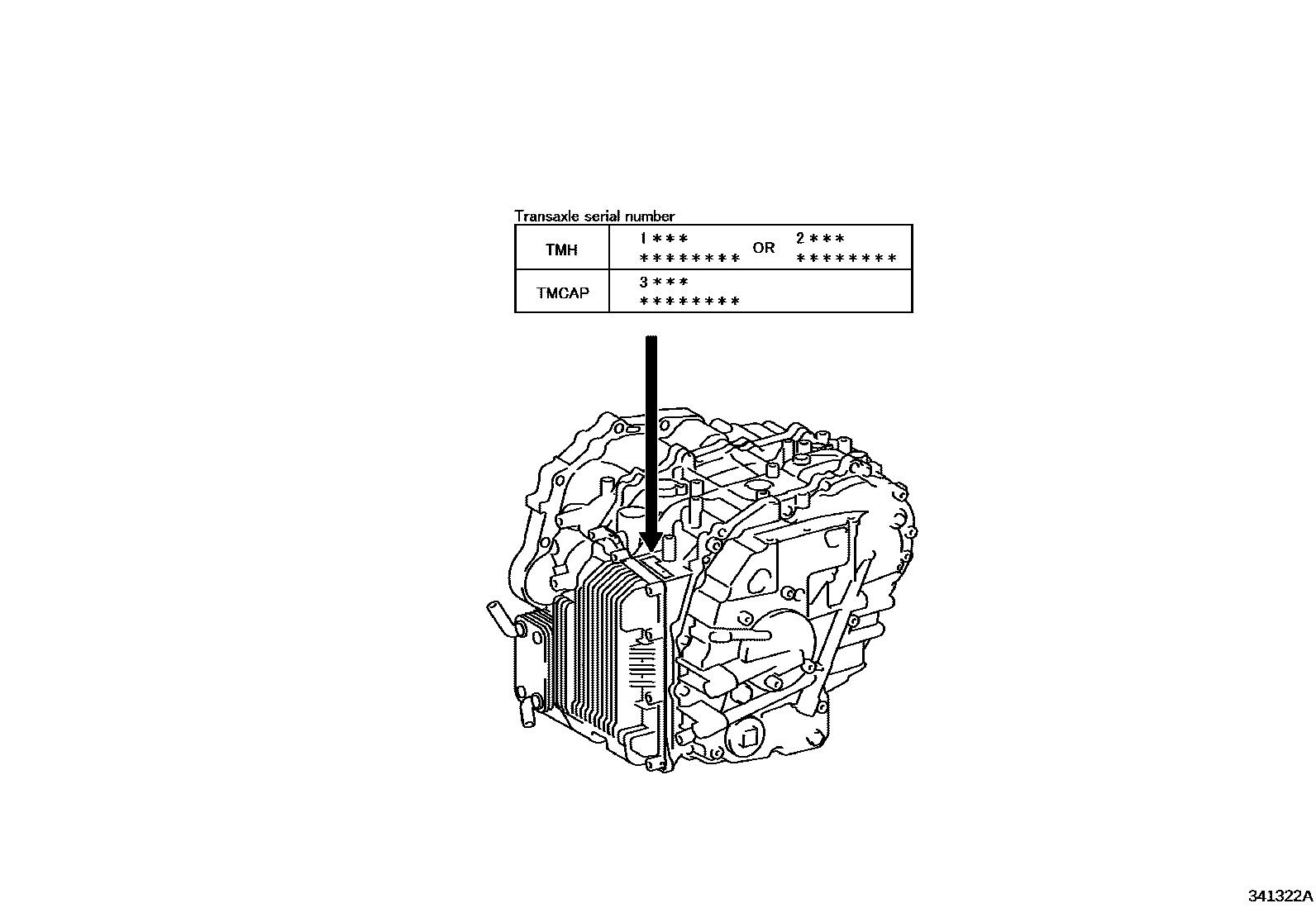

| 30400 | Continuously variable transmission axle assembly | 30400-0R010 · 30400-0R020 · 30400-42100 · 30400-42120 · 30400-42160 · 30400-42170 |
| 30400A | Bolts (for securing transaxle and engine) | 90105-C0259 · 91552-81250 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-41019 |
| 30400J | Transmission axle hole plug | 90341-08001 |
| 30400K | Transaxle hole plug gasket | 90301-06196 · 90301-C0061 |
| 30400N | Oil filling plug (CVT) | 90341-18077 · 90341-C0011 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 · 90430-C0007 |
| 32901L | Transmission oil cooler elbow sub-assembly | 32901-42010 |
| 32901M | Connector bolt (for oil cooler) | 90401-14019 |
| 32901N | Gasket (for transmission oil cooler connector) | 90430-14017 |
| 32941R | No. 1 transmission oil cooler oil inlet hose | 32941-07050 |
| 32942N | No. 1 transmission oil cooler oil outlet hose | 32942-07080 |
| 32943P | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 33032 | First gear gear sub-assembly | 33032-12110 |
| 33210A | No. 1 shift fork assembly | 33210-0R010 · 33210-12040 |
| 33242N | No. 1 shift fork shaft | 33242-12130 |
| 33493C | Transmission oil cooler | 33493-0E030 · 33493-0R010 |
| 33621J | Transaxle oil information label | 33621-28021 |
| 35015Y | Transmission axle half shaft cover sub-assembly | 35015-42010 · 35015-42020 |
| 35016E | Gearbox shell plate sub-assembly | 35016-12010 · 35165-28010 |
| 35068E | First and reverse brake return spring sub-assembly | 35068-12040 · 35068-12041 |
| 35075D | Front planetary ring gear sub-assembly | 35075-12050 |
| 35105C | Bolts (for transaxle housing and transaxle housing) | 91551-00830 · 91551-10830 |
| 35125E | Overflow pipe (CVT) | 35125-12500 |
| 35125F | Overflow plug (CVT) | 90341-18016 |
| 35125G | Overflow plug gasket (CVT) | 90430-18008 · 90430-C0007 |
| 35141E | O-ring (for breather plug) | 90301-09173 |
| 35141F | No. 1 vent plug (CVT) | 90930-03240 |
| 35141J | No. 2 vent plug (CVT) | 90930-03243 |
| 35145D | Transmission axle housing gasket | 35145-33010 |
| 35150B | gearbox plug assembly | 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 |
| 35174B | Oil storage tank locking plate | 35174-12030 · 35174-12040 · 35174-42010 · 35174-F4010 · 35174-F4020 |
| 35195C | No. 1 transmission axle fuel supply pipe clamp | 35195-42010 · 35195-F4010 |
| 35394D | Oil filter magnet (CVT) | 35394-02010 · 35394-48010 |
| 35410J | Transmission valve body assembly | 35410-10240 · 35410-12880 · 35410-12881 · 35410-42070 · 35410-42080 |
| 35482C | temperature sensor clip | 35482-02010 · 35482-73010 |
| 35506L | Oil seal (for manual valve stem shaft) | 90311-12002 · 90311-C0033 |
| 35556N | Parking lock pawl shaft | 35556-12040 |
| 35557C | Parking pawl | 35557-0R020 · 35557-12061 |
| 35572C | transmission control lever | 35572-0R010 · 35572-12190 |
| 35593A | Cam guide bushing | 35593-12040 |
| 35598B | Parking lock cover | 35598-0R030 · 35598-12040 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-12050 · 35603-12051 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-12290 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-44041 · 90520-99187 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-52007 · 90302-99006 · 90302-99007 |
| 35612D | forward clutch piston | 35612-12090 |
| 35623L | Reverse brake piston | 35623-0R030 · 35623-12100 · 35623-42010 · 35623-F4010 |
| 35623M | O-ring (for reverse brake piston) | 90301-95004 · 90301-99238 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-12150 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-12100 |
| 35635G | forward clutch flange | 35635-12280 · 35635-12290 · 35635-12300 · 35635-12310 · 35635-12320 · 35635-12330 |
| 35668C | No. 1 clutch balancer | 35668-12050 · 35668-12051 |
| 35671D | brake cushion | 35671-12050 |
| 35676L | brake flange | 35676-12120 · 35676-42010 |
| 35681B | No. 1 brake disc | 35681-12040 |
| 35691B | No. 1 brake pad | 35691-12050 |
| 35701L | Thrust bearing race (for input shaft) | 35789-0R040 · 35789-12110 |
| 35720M | Planetary gear assembly | 35720-12090 |
| 35720N | Thrust needle roller bearings (for planetary gears) | 90374-24008 · 90374-29012 · 90374-C0035 · 90374-C0036 |
| 35726A | Planetary ring gear thrust washer | 35726-12020 |
| 35782P | drive sprocket | 35782-0R050 · 35782-12070 |
| 35809 | C-2 clutch pressure oil supply pipe sub-assembly | 35809-12010 · 35895-0R010 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-12060 · 35882-42010 · 35882-F4010 |
| 35896A | Countershaft lubricating oil supply pipe | 35896-12010 |
| 82125M | Transmission wiring harness | 82125-12670 · 82125-42030 |
| 82125Q | O-ring (for transmission wiring harness) | 90301-06004 |
