Toyota RAV4 废气再循环系统 — Figure 2501

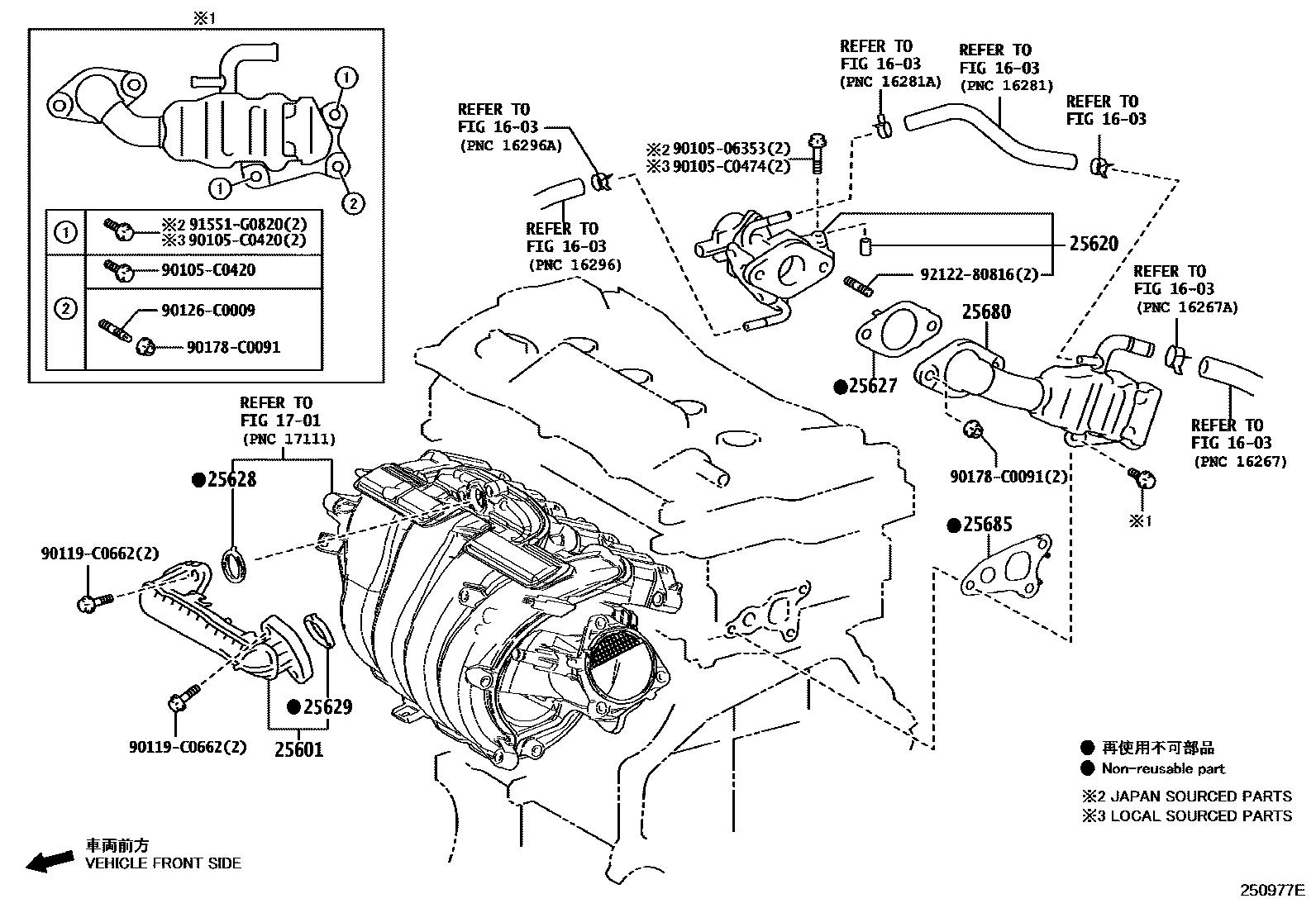

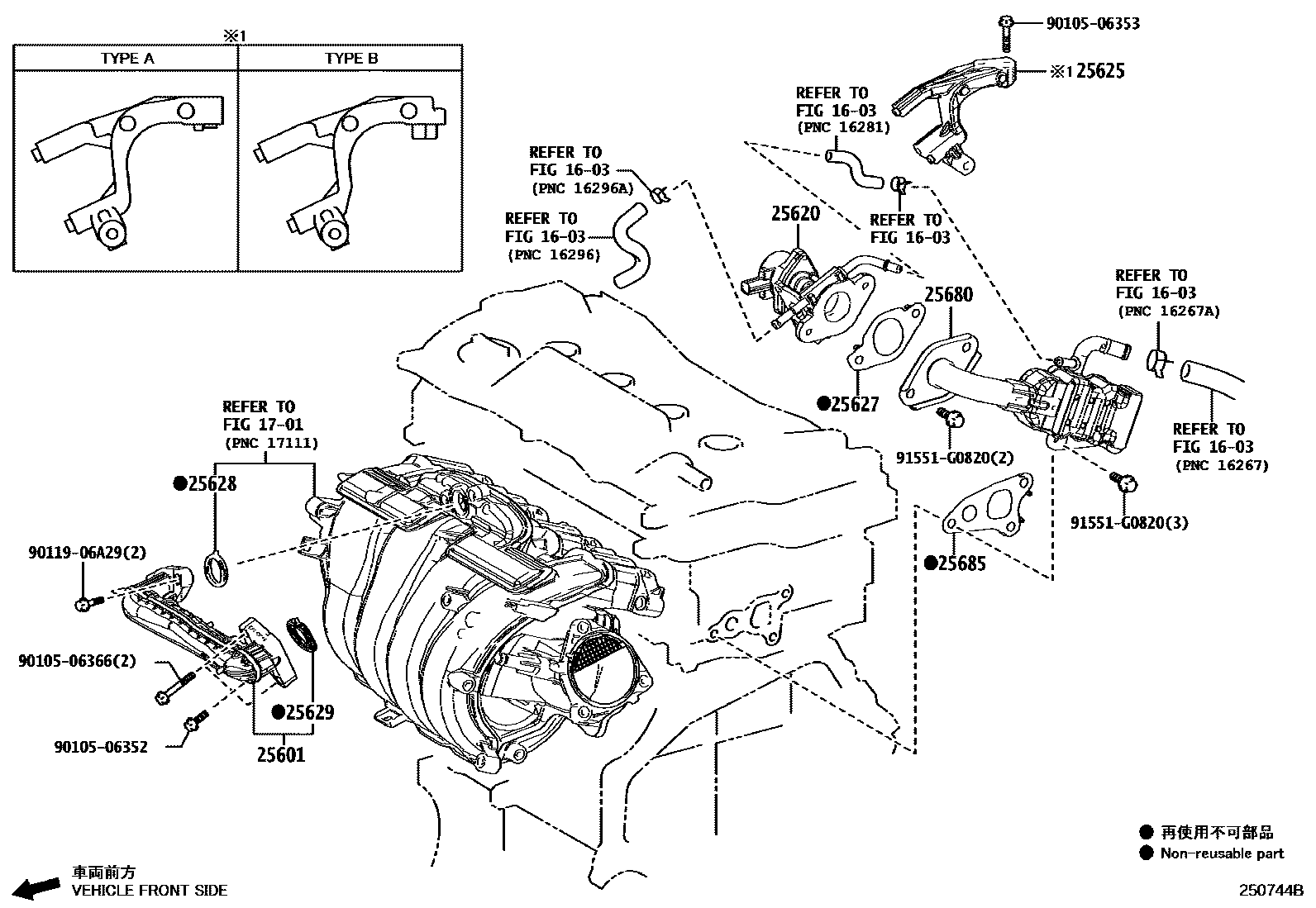

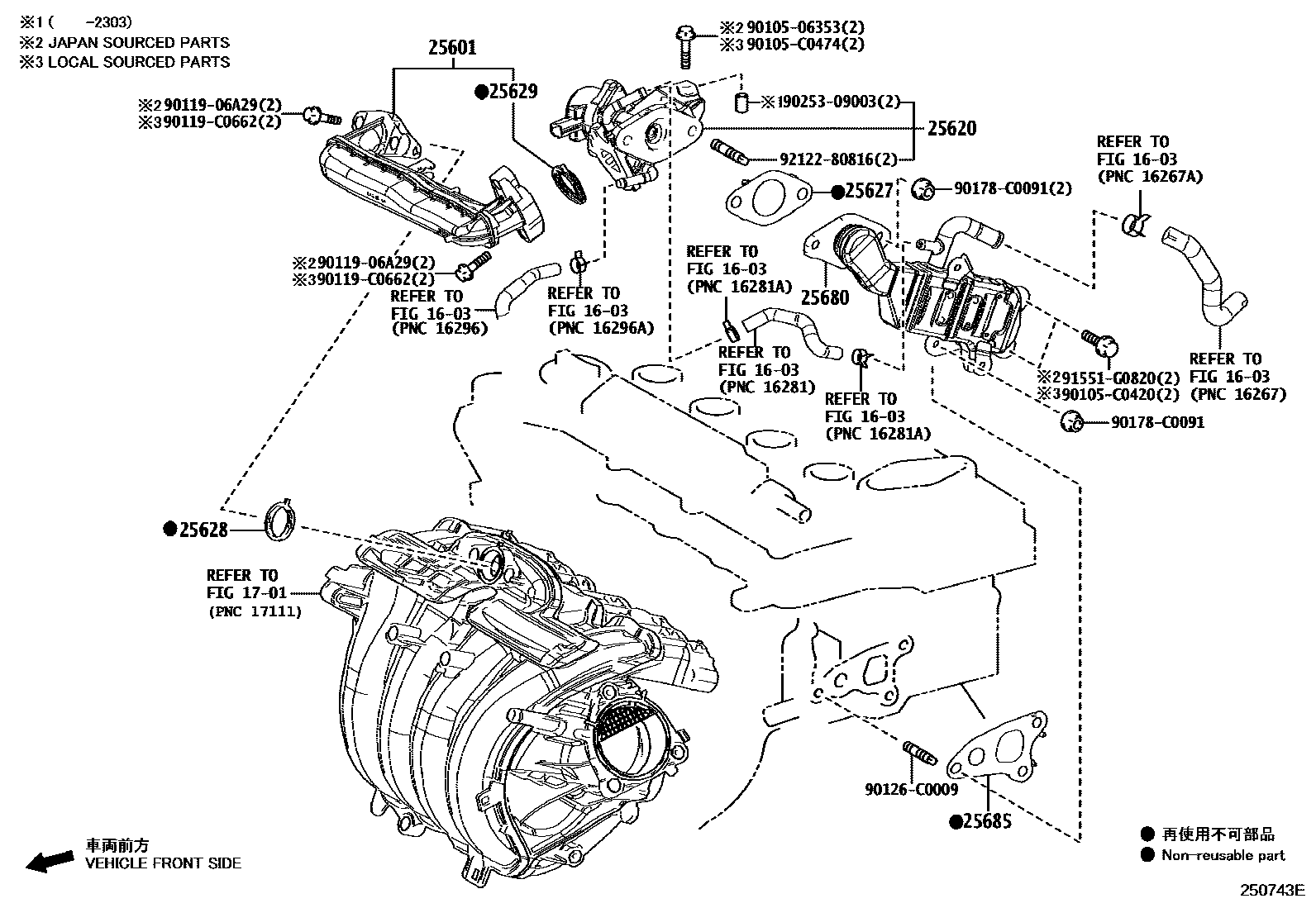

Toyota RAV4 EPC diagram 2501, 废气再循环系统, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-25011 · 25601-F0030 · 25601-F2040 · 25601-F2050 |
| 25620 | EGR valve assembly | 25620-25050 · 25620-F2030 |
| 25625 | EGR valve bracket | 25625-25010 · 25625-25030 |
| 25627 | EGR valve gasket | 25627-25010 · 25627-F2020 |
| 25628 | EGR air intake gasket | 25628-25010 |
| 25629 | EGR valve adapter gasket | 25629-25010 |
| 25680 | EGR cooler assembly | 25680-25040 · 25680-F0070 · 25680-F2030 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-25011 · 25685-F2010 |
