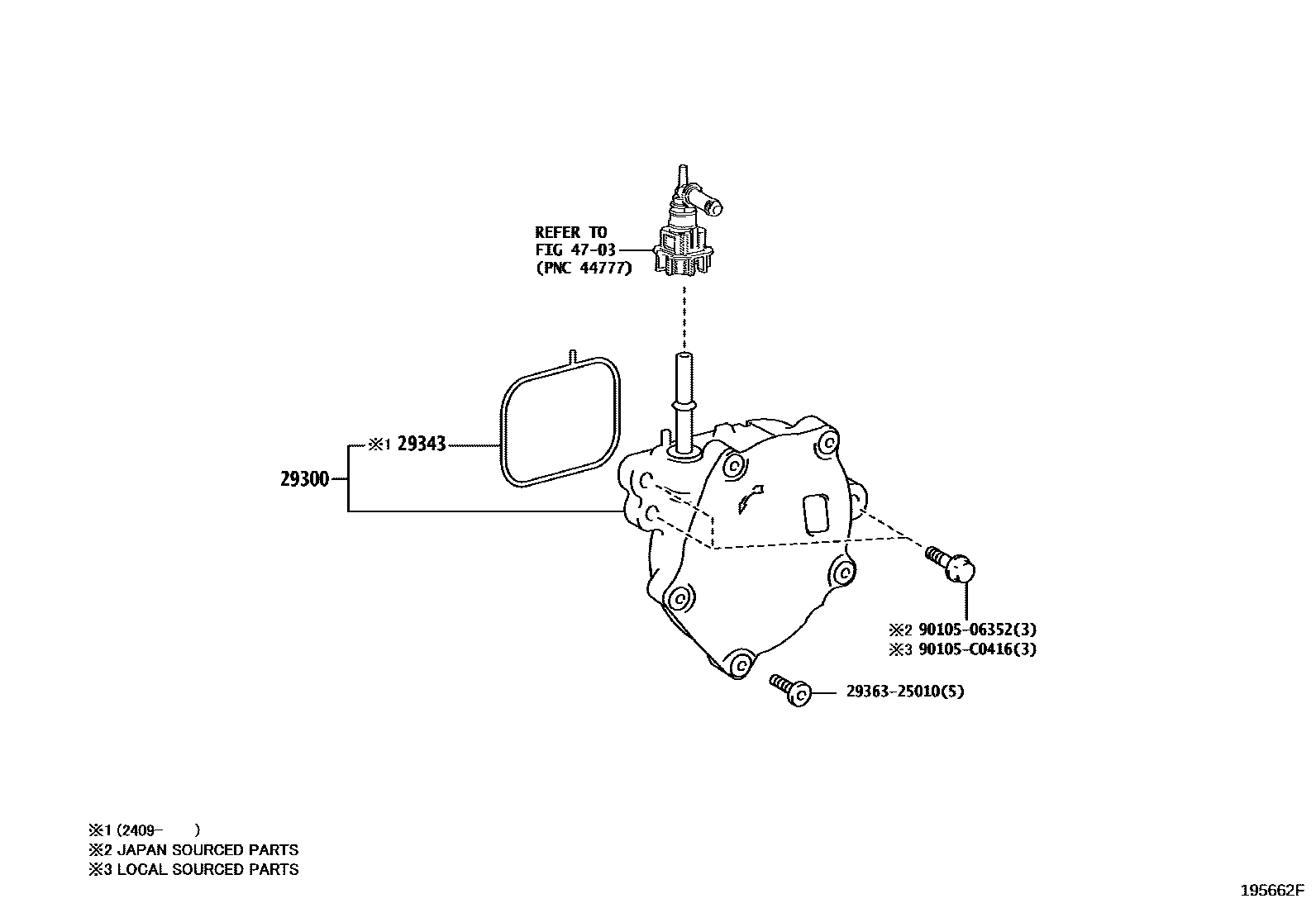

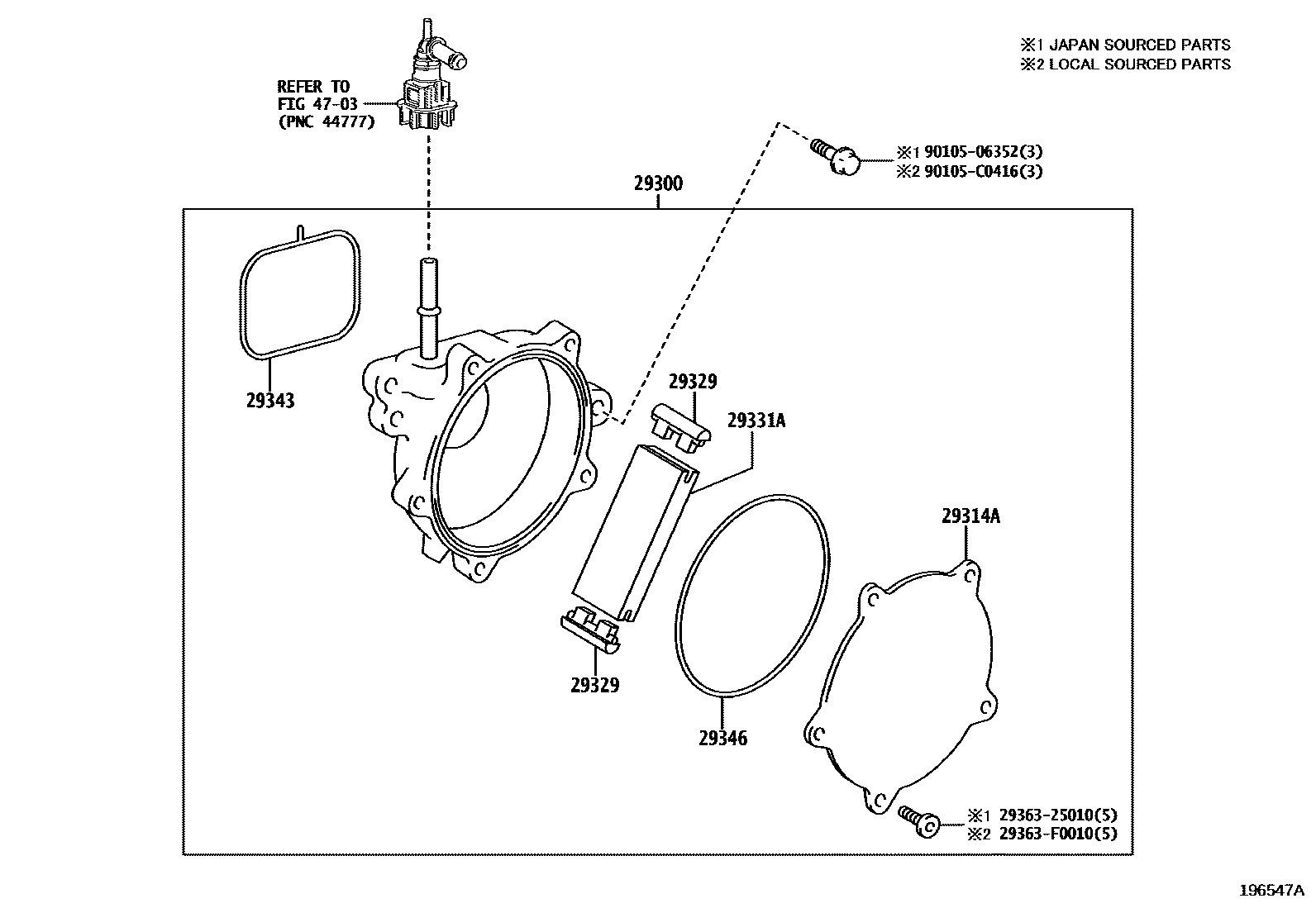

Toyota RAV4 真空泵 — Figure 1905
Toyota RAV4 EPC diagram 1905, 真空泵, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 29300 | Vacuum pump assembly | 29300-F2040 · 29300-F2041 |
| 29314A | end cap | 29314-25010 · 29314-F0010 |
| 29329 | Vane vacuum pump cover | 29329-25011 · 29329-F0011 |
| 29331A | vacuum pump blades | 29331-37010 · 29331-F0010 |
| 29343 | Vacuum pump No. 1 O-ring | 29343-25010 · 29343-F0010 · 29343-F2030 |
| 29346 | Vacuum pump cover O-ring | 29346-25010 · 29346-F0010 |
