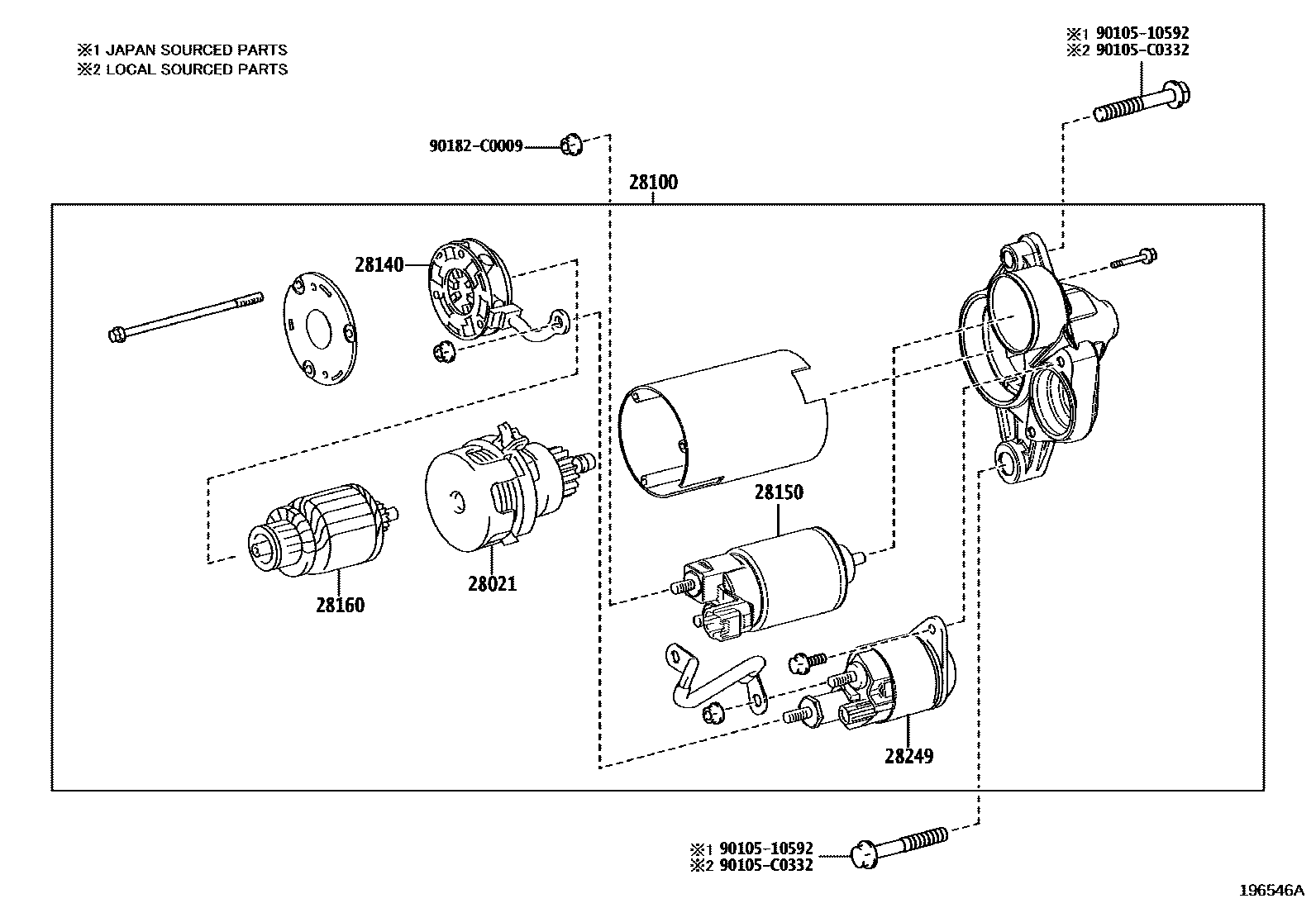

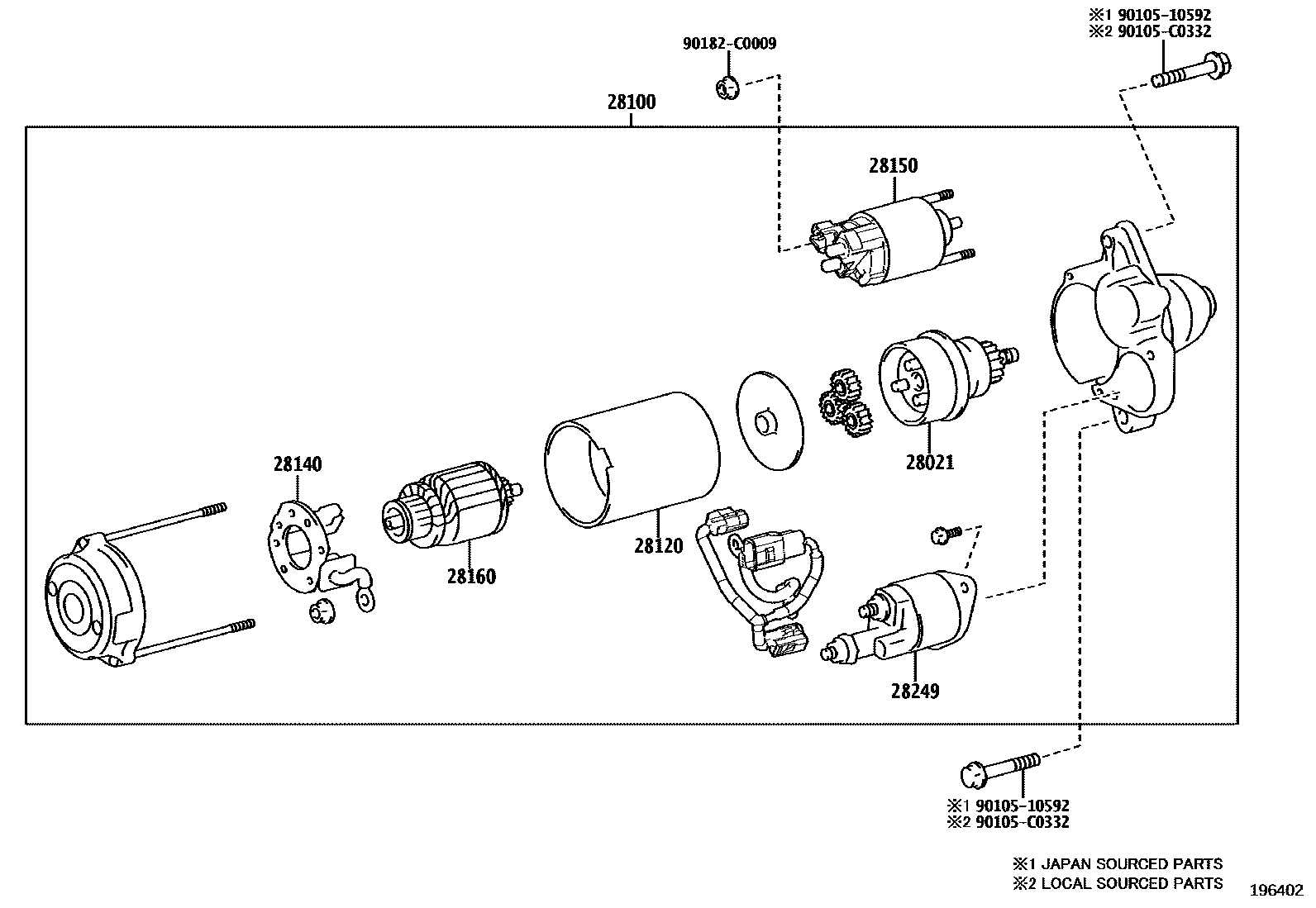

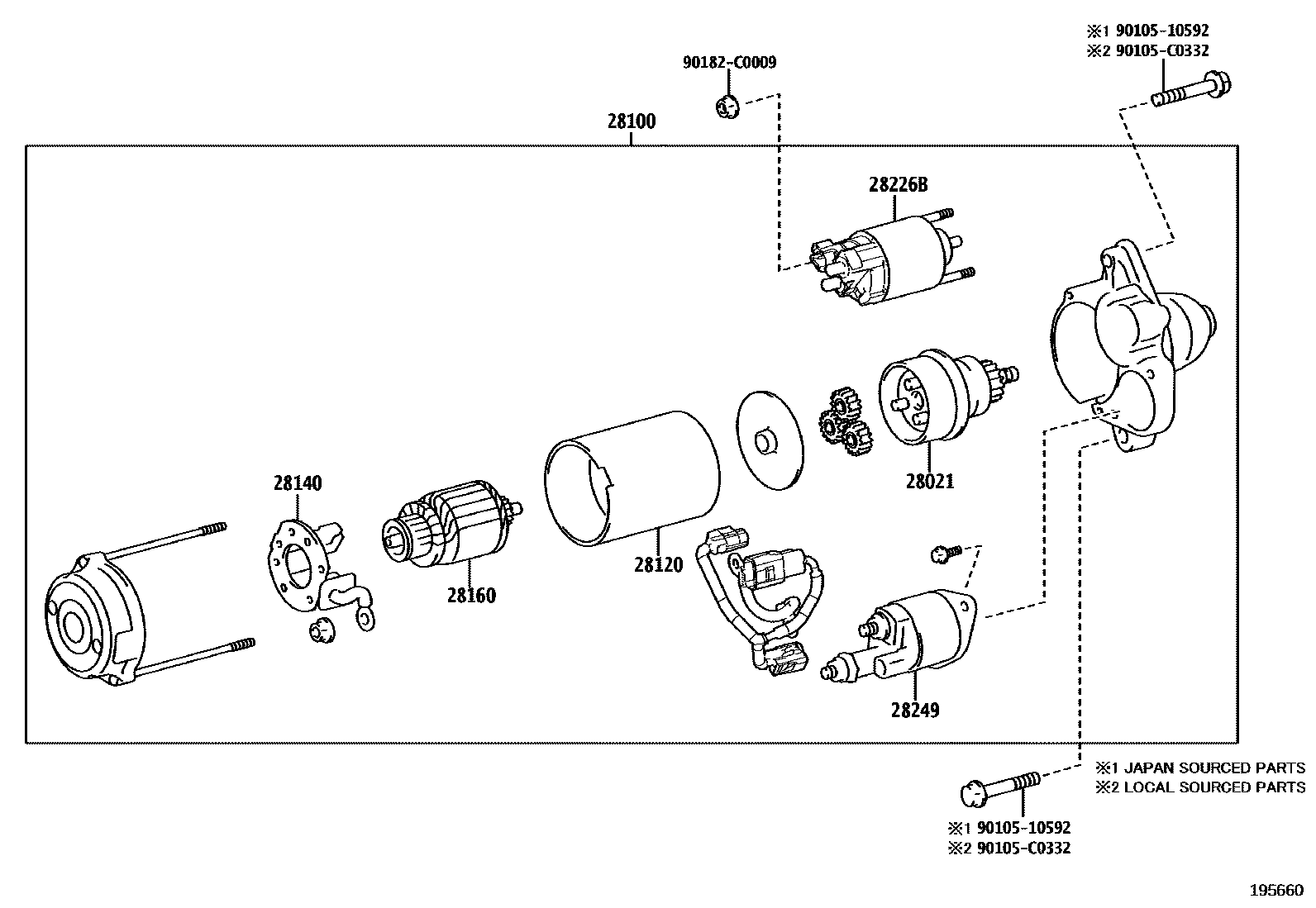

Toyota RAV4 起动机 — Figure 1904
Toyota RAV4 EPC diagram 1904, 起动机, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-F0020 · 28021-F2170 |
| 28100 | Starter assembly | 28100-F0050 · 28100-F2070 · 28100-F2090 |
| 28120 | Starter yoke assembly | 28120-F0020 |
| 28140 | Starter brush holder assembly | 28140-0V040 · 28140-F2170 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y331 · 28150-F2170 |
| 28160 | Starter armature assembly | 28160-0S050 · 28160-F2170 |
| 28226B | starter magnetic switch | 28226-25070 |
| 28249 | Starter starting current deceleration relay | 28249-37100 · 28249-F0020 |
