Toyota RAV4 Exhaust Pipe — Figure 1702

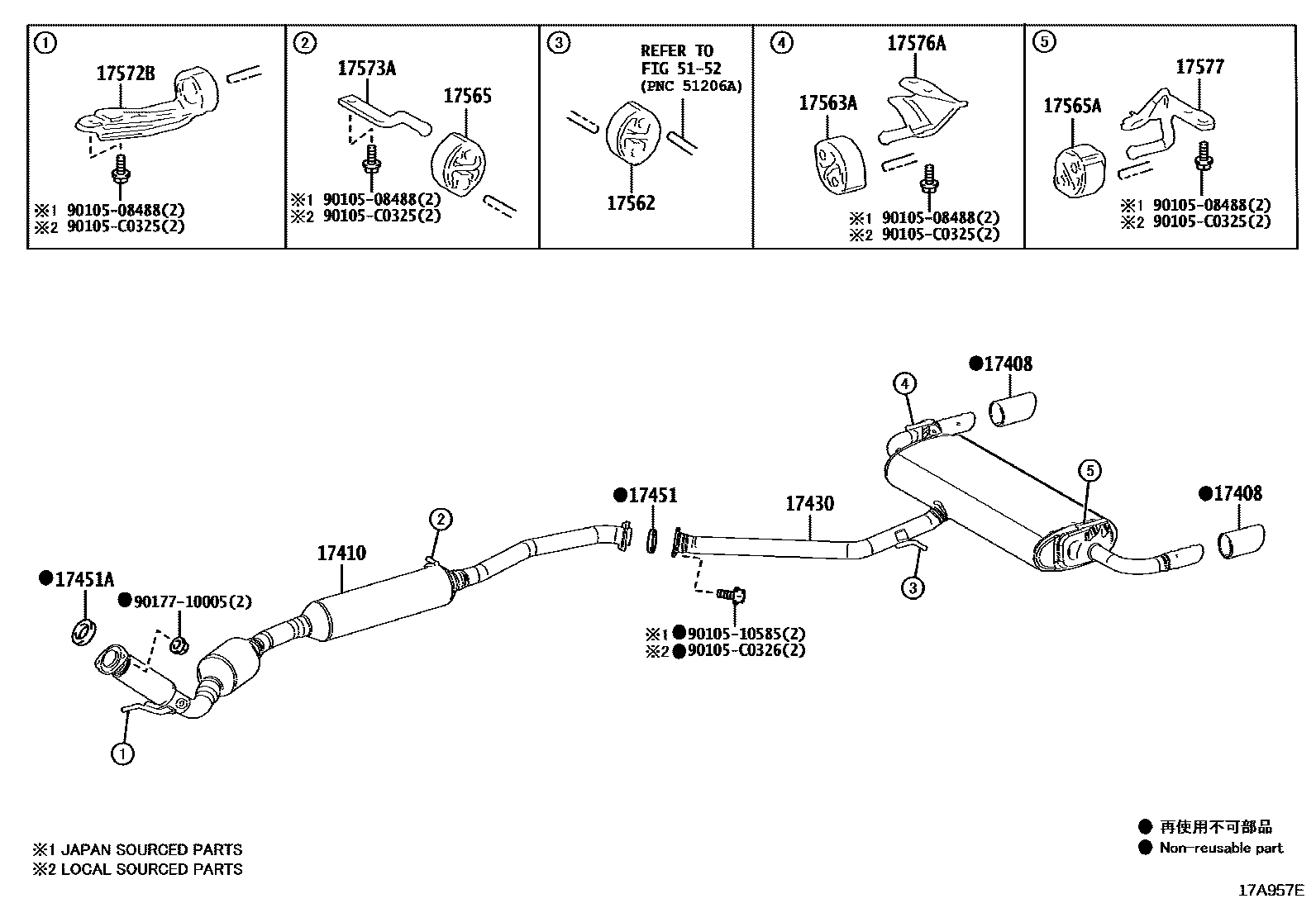

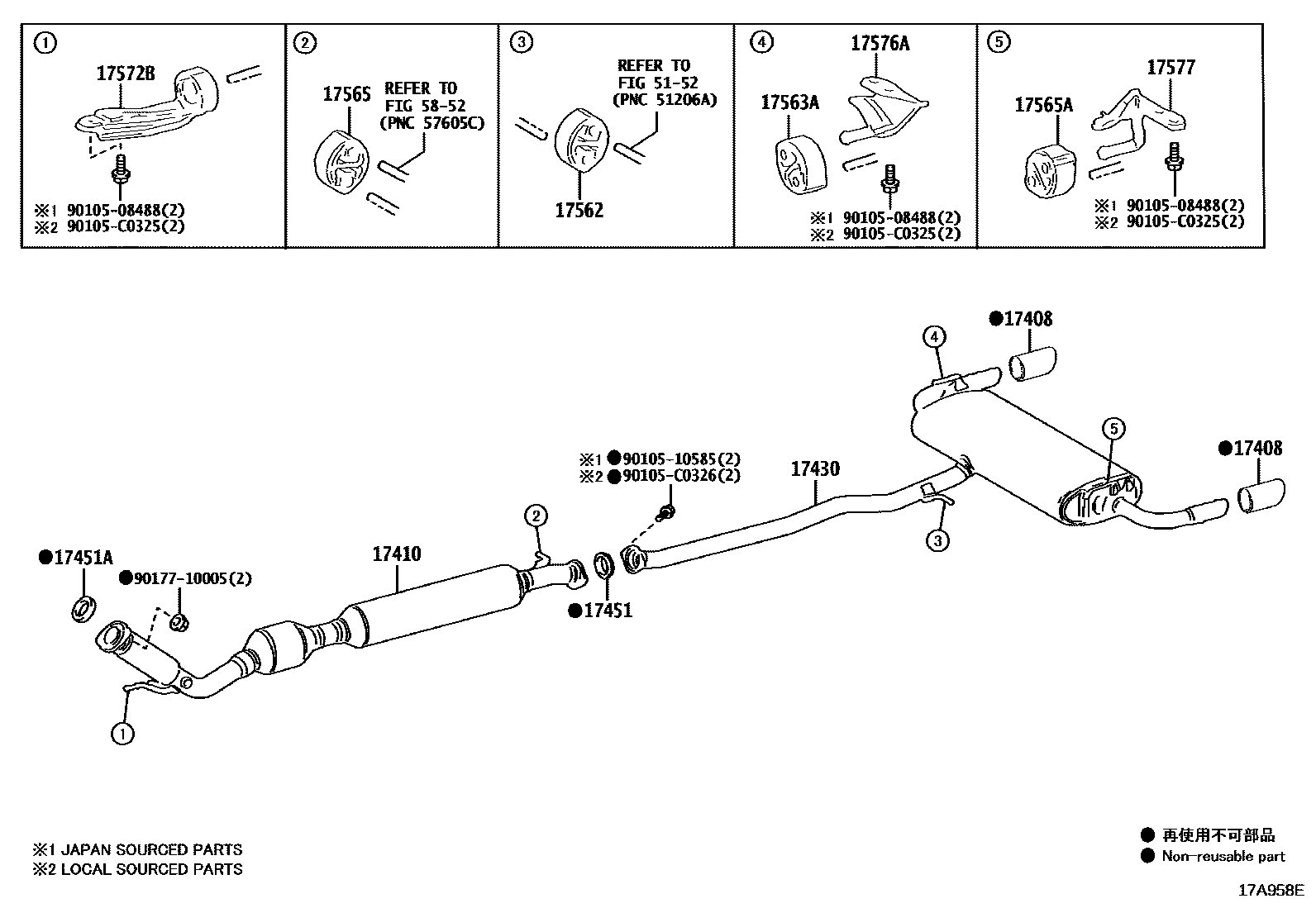

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-F0010 · 17408-F0011 · 17408-F0050 · 17408-F0051 |
| 17410 | Front exhaust pipe assembly | 17410-F0230 · 17410-F0240 · 17410-F0570 · 17410-F2500 |
| 17430 | Exhaust tailpipe assembly | 17430-F0250 · 17430-F0251 · 17430-F0252 · 17430-F0260 · 17430-F0261 · 17430-F0262 |
| 17451 | Exhaust pipe gasket | 17451-25040 · 17451-F0030 · 17451-F0140 |
| 17451A | No. 2 exhaust pipe gasket | 90917-C6003 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0D080 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0D080 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0T011 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D080 |
| 17572B | No. 2 exhaust pipe bracket | 17572-F0060 |
| 17573A | No. 3 exhaust pipe bracket | 17573-F0060 |
| 17576A | No. 6 exhaust pipe bracket | 17576-F0070 · 17576-F0071 |
| 17577 | No. 7 exhaust pipe bracket | 17577-F0060 · 17577-F0061 |
