Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 5 PNC and OE references.

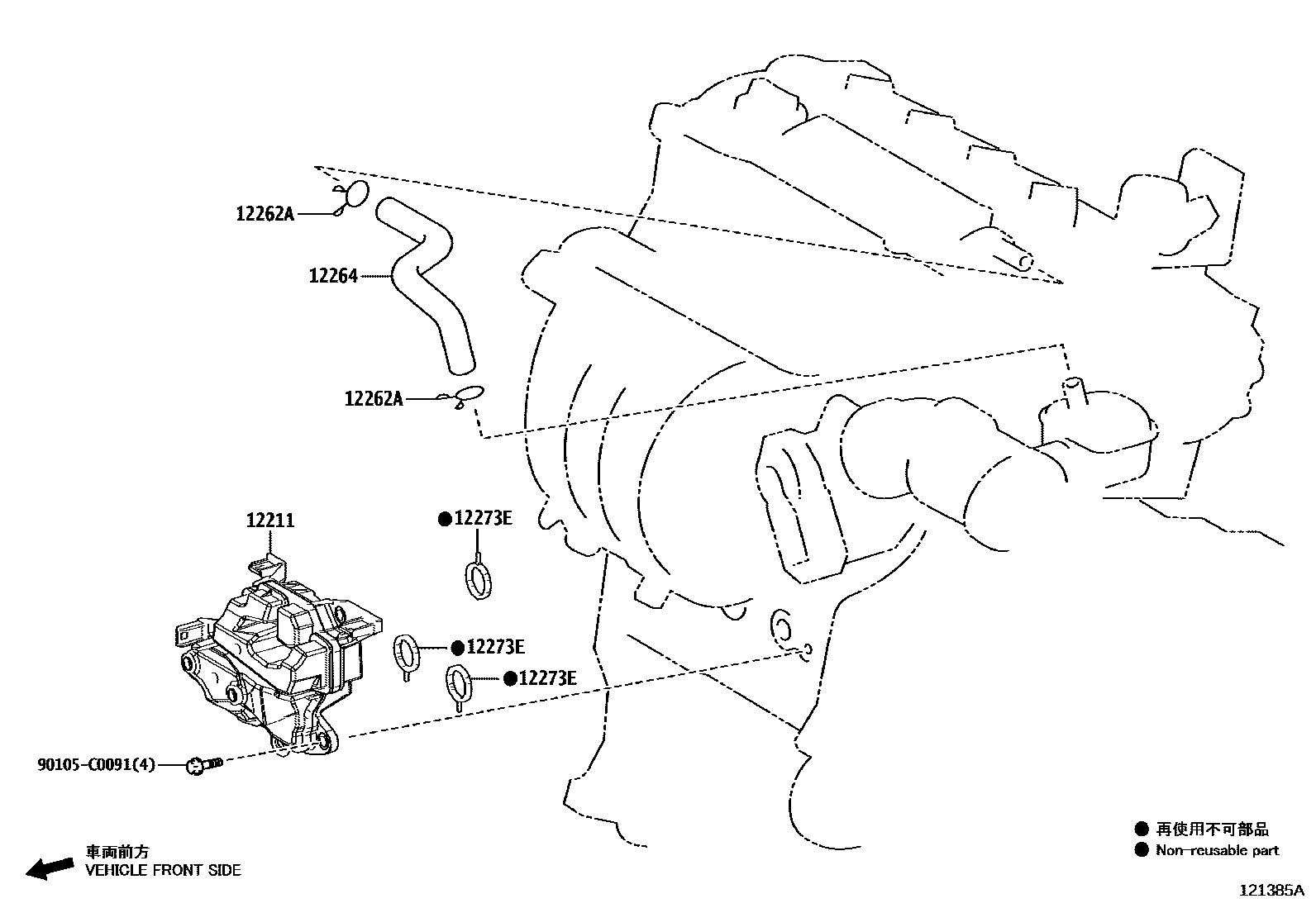

Toyota RAV4 Ventilation Hose EPC diagram — 121385B
Ventilation Hose — 121385B (201911 – 999999)

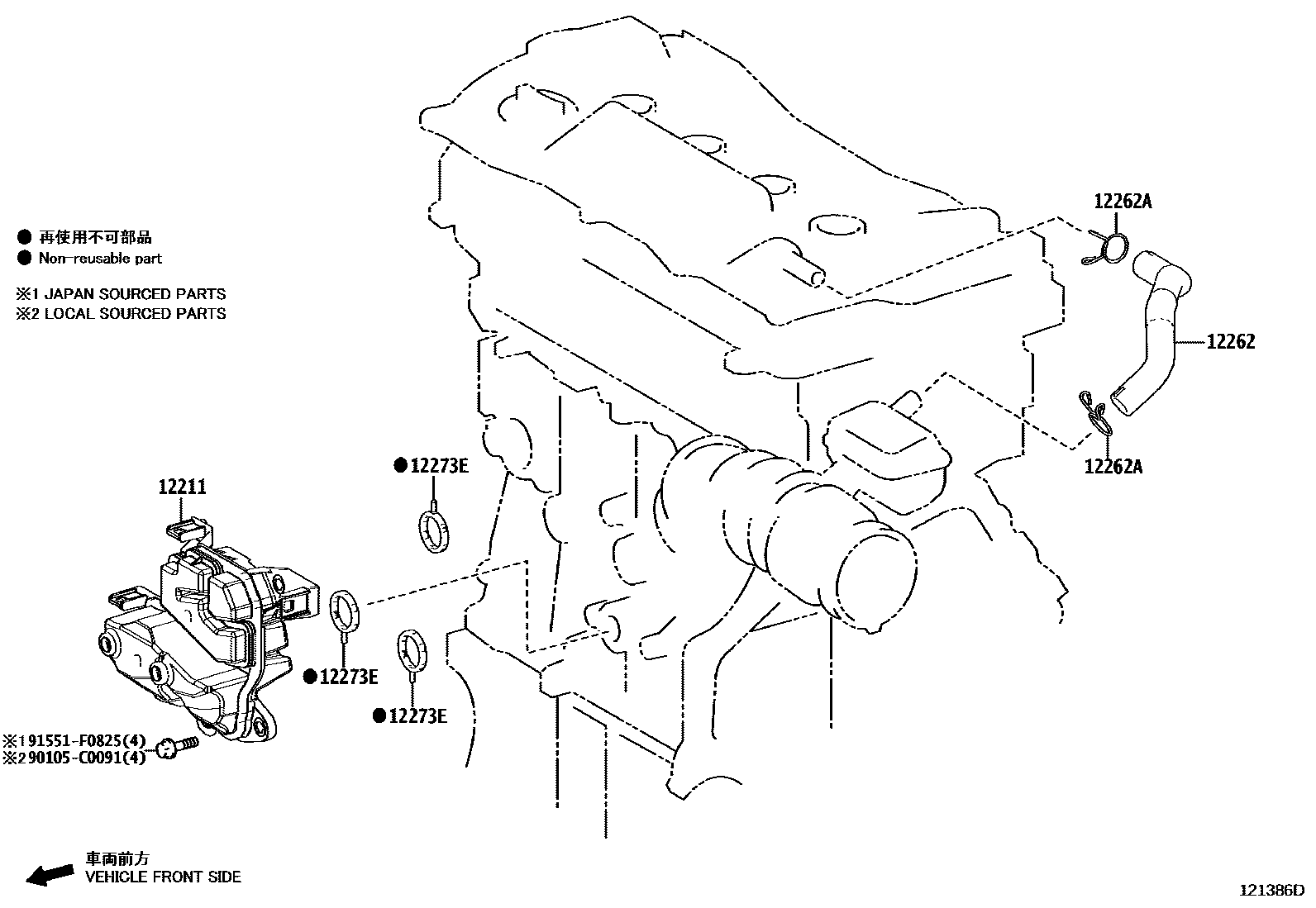

Toyota RAV4 Ventilation Hose EPC diagram — 121386D
Ventilation Hose — 121386D (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-25010 · 12211-25011 · 12211-F0020 · 12211-F2040
12262Ventilation hose No. 212262-25080
12262AClamp (for vent hose No. 2)90467-21004
12264No. 4 ventilation hose12262-24060
12273EPads (for ventilation boxes)12273-24010 · 12273-F2020
