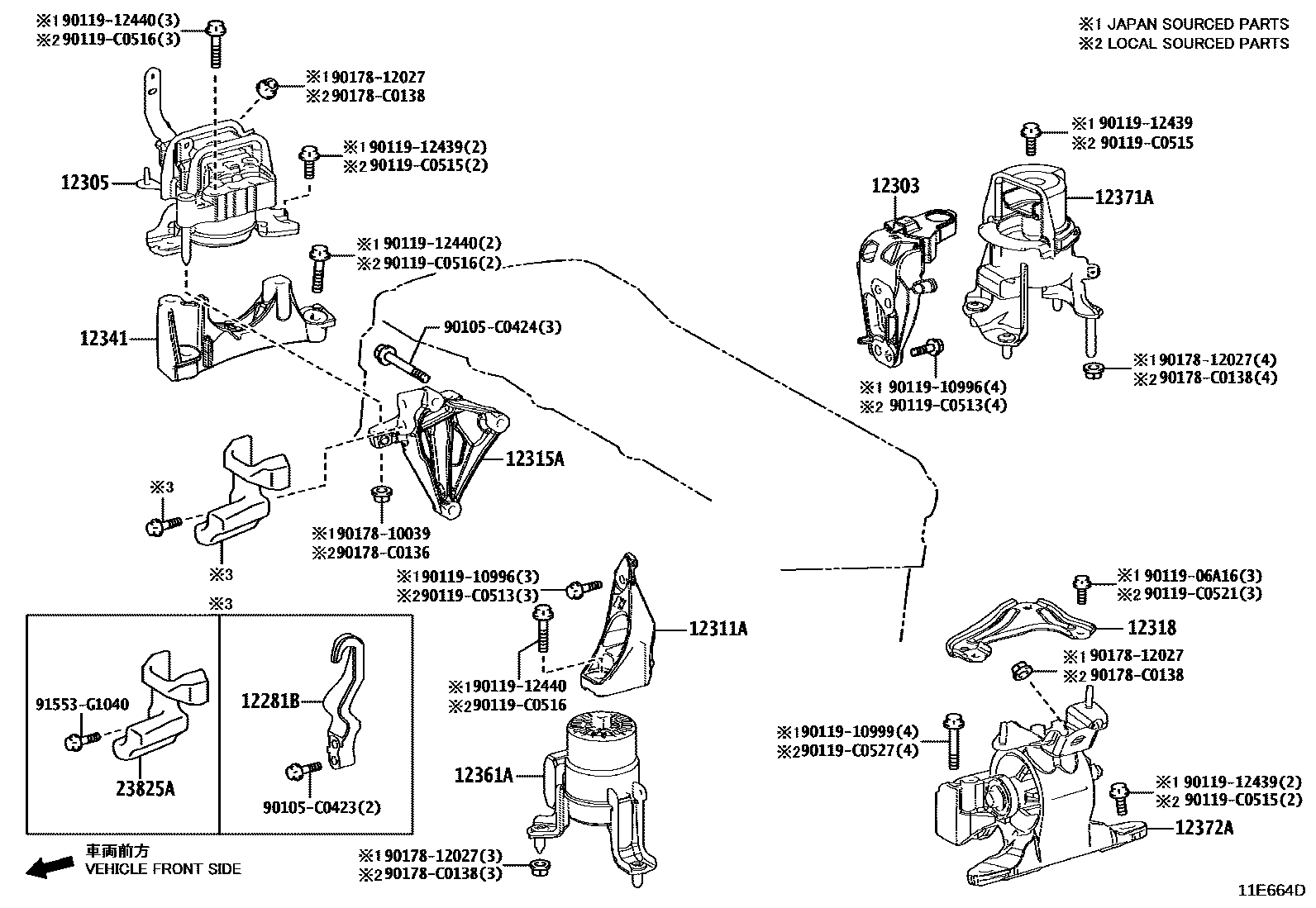

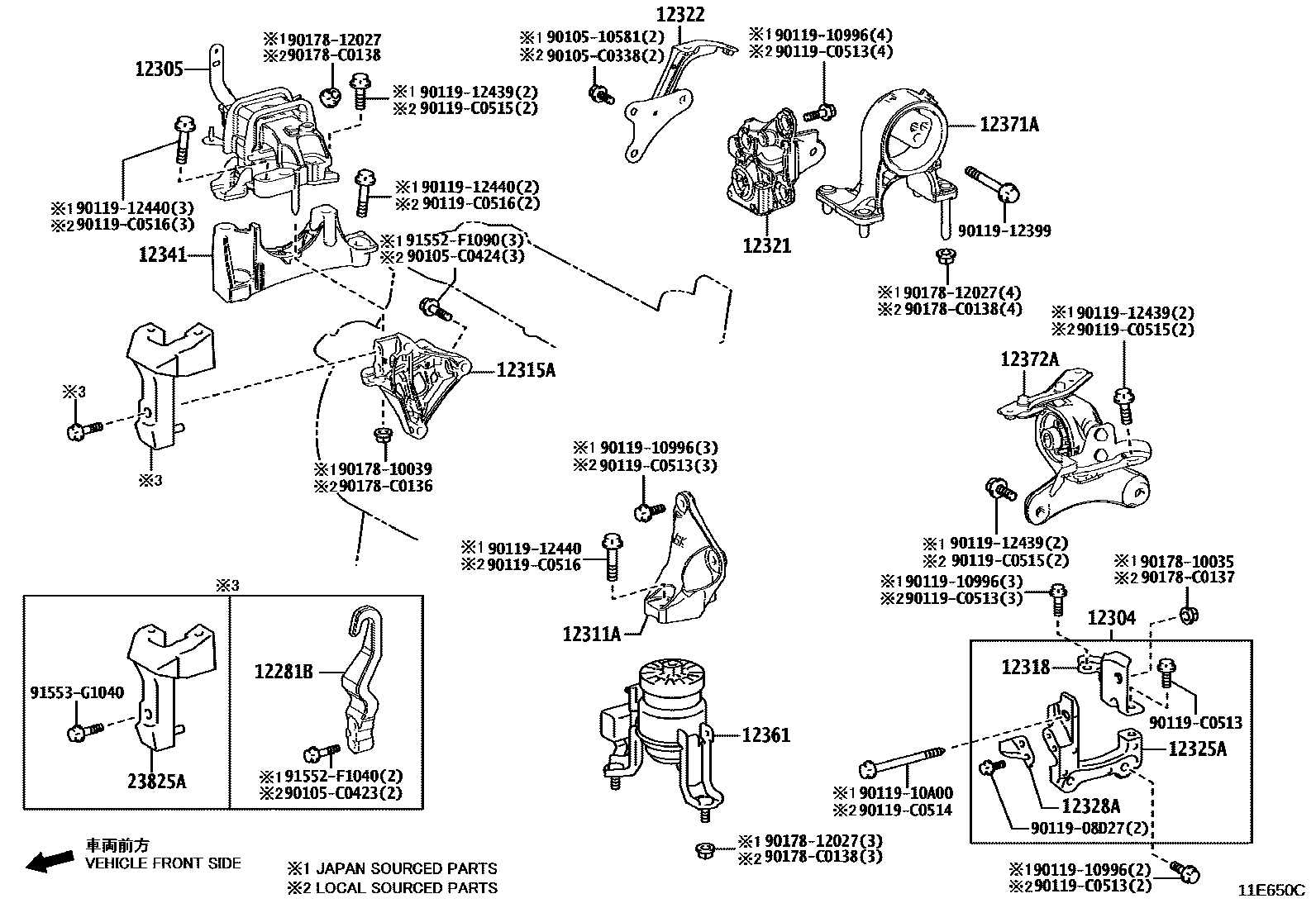

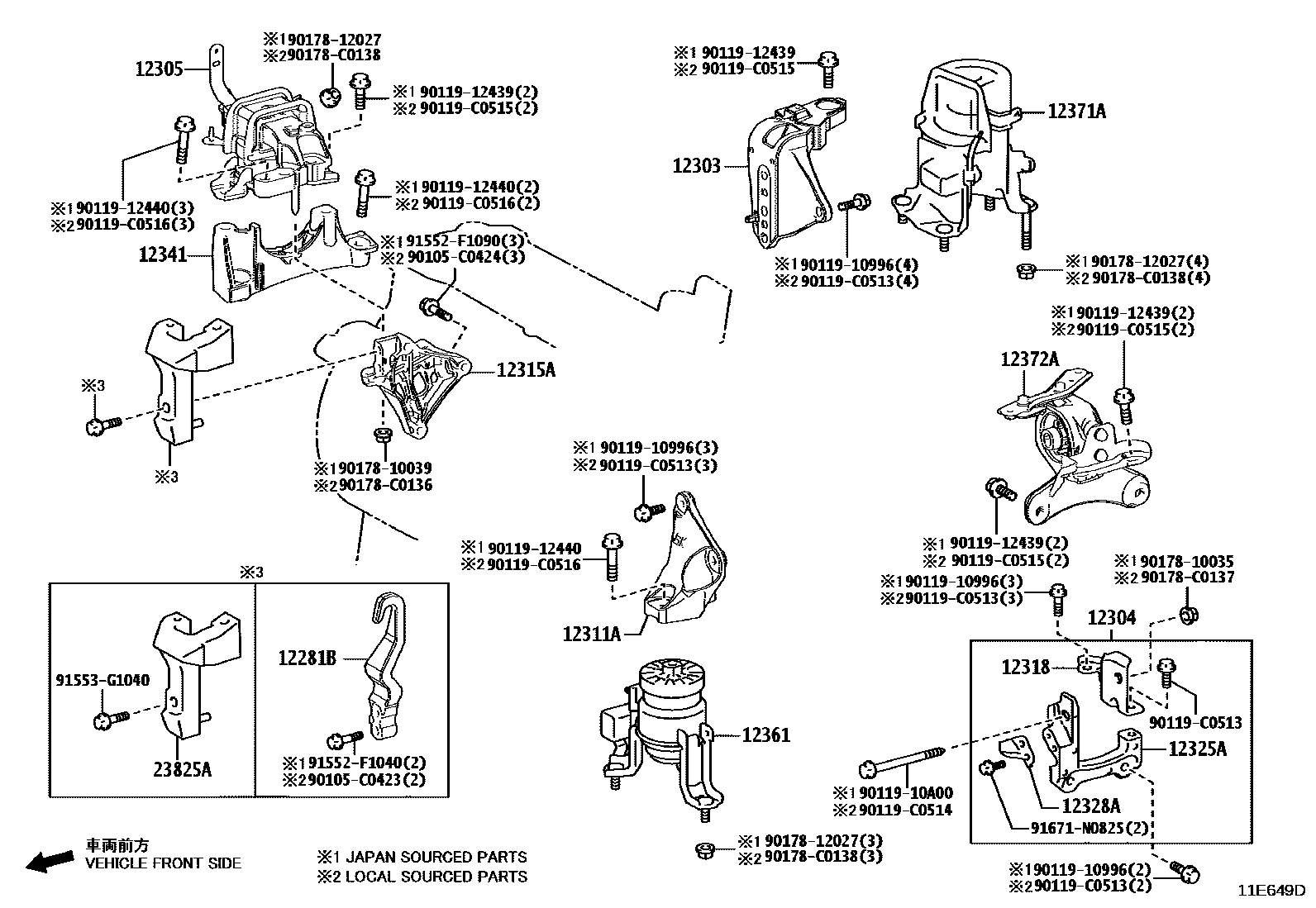

Toyota RAV4 Engine Mounting — Figure 1107
Toyota RAV4 EPC diagram 1107, Engine Mounting, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-25030 · 12281-F2010 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-F0200 · 12303-F2060 |
| 12304 | Engine left mounting bracket sub-assembly | 12304-F2010 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-F0120 · 12305-F2060 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-F0090 · 12311-F2010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-25030 · 12315-25031 · 12315-F0030 · 12315-F2050 |
| 12318 | Engine left mounting bracket | 12318-F0090 · 12318-F2060 |
| 12321 | Engine No. 1 rear suspension bracket | 12321-F2030 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-F2010 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-F2060 |
| 12328A | Engine No. 2 left side mounting bracket | 12328-F2020 |
| 12341 | engine mounting spacer | 12341-F0050 |
| 12361 | Engine front mounting vibration isolation pad | 12361-F2020 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-F0120 · 12361-F0121 |
| 12371A | Engine rear mount vibration isolation pad | 12371-F0130 · 12371-F2020 · 12371-F2030 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-F0060 · 12372-F2090 |
| 23825A | Oil pipeline anti-collision parts | 23825-24010 · 23825-25010 · 23825-F0010 · 23825-F2030 |
