Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 8 PNC and OE references.

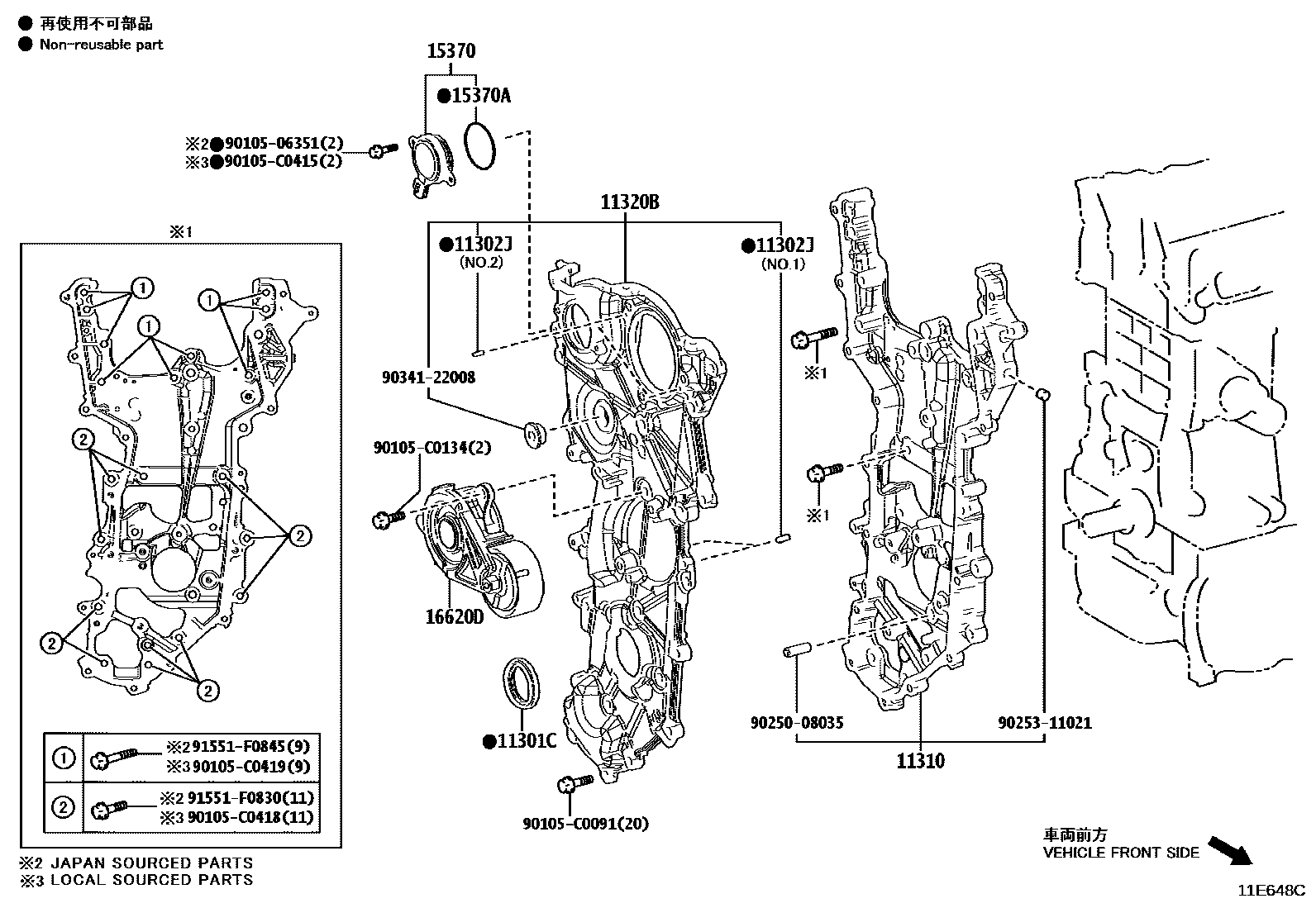

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 11E648C
Timing Gear Cover & Rear End Plate — 11E648C (201911 – 999999)

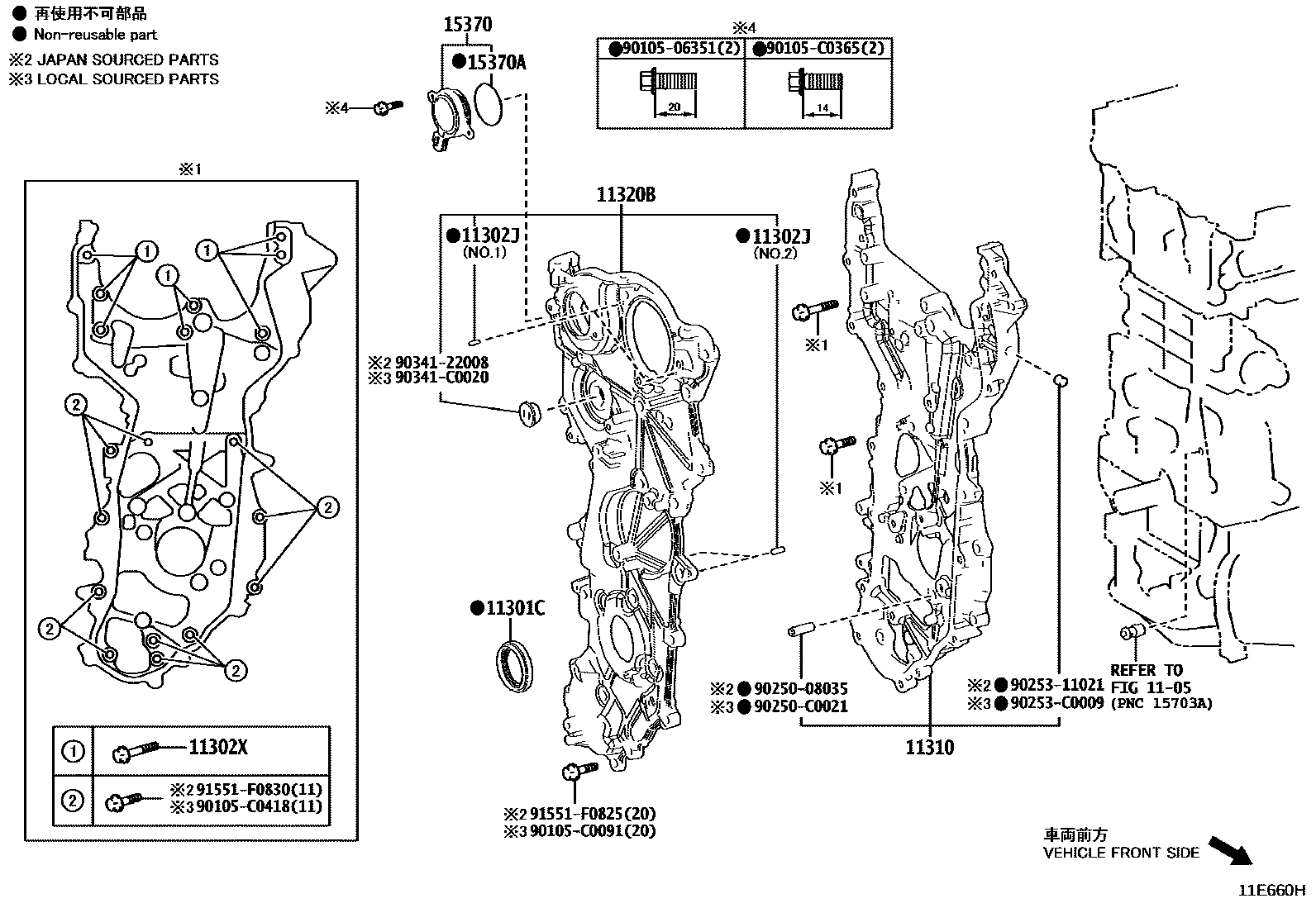

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 11E660H
Timing Gear Cover & Rear End Plate — 11E660H (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044 · 90311-C0054
11302JDirect sales (for timing chain cover)90250-04097 · 90250-06003 · 90250-C0009
11302Xflange bolts90105-C0419 · 91551-F0845
11310Timing chain cover assembly11310-25030 · 11310-F0030 · 11310-F0031 · 11310-F2050 · 11310-F2051
11320BNo. 2 timing chain cover assembly11320-25010 · 11320-25011 · 11320-F0030 · 11320-F2050
15370Camshaft timing oil control solenoid valve assembly15370-25020 · 15370-F2020
15370AO-ring (for camshaft timing oil control solenoid valve)90301-44006 · 90301-T0079
16620DPoly V-belt tensioner assembly16620-F2040 · 16620-F2070
