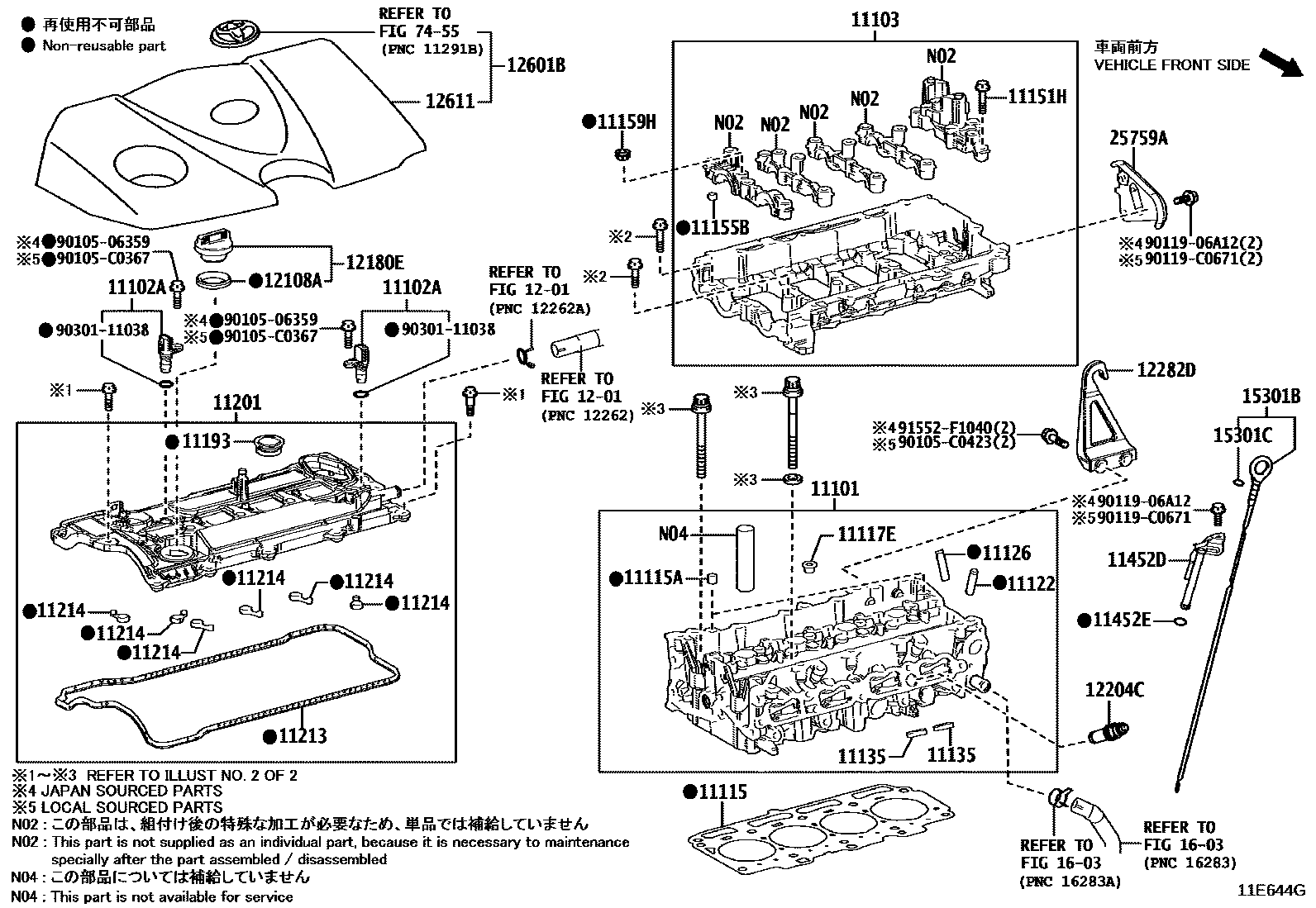

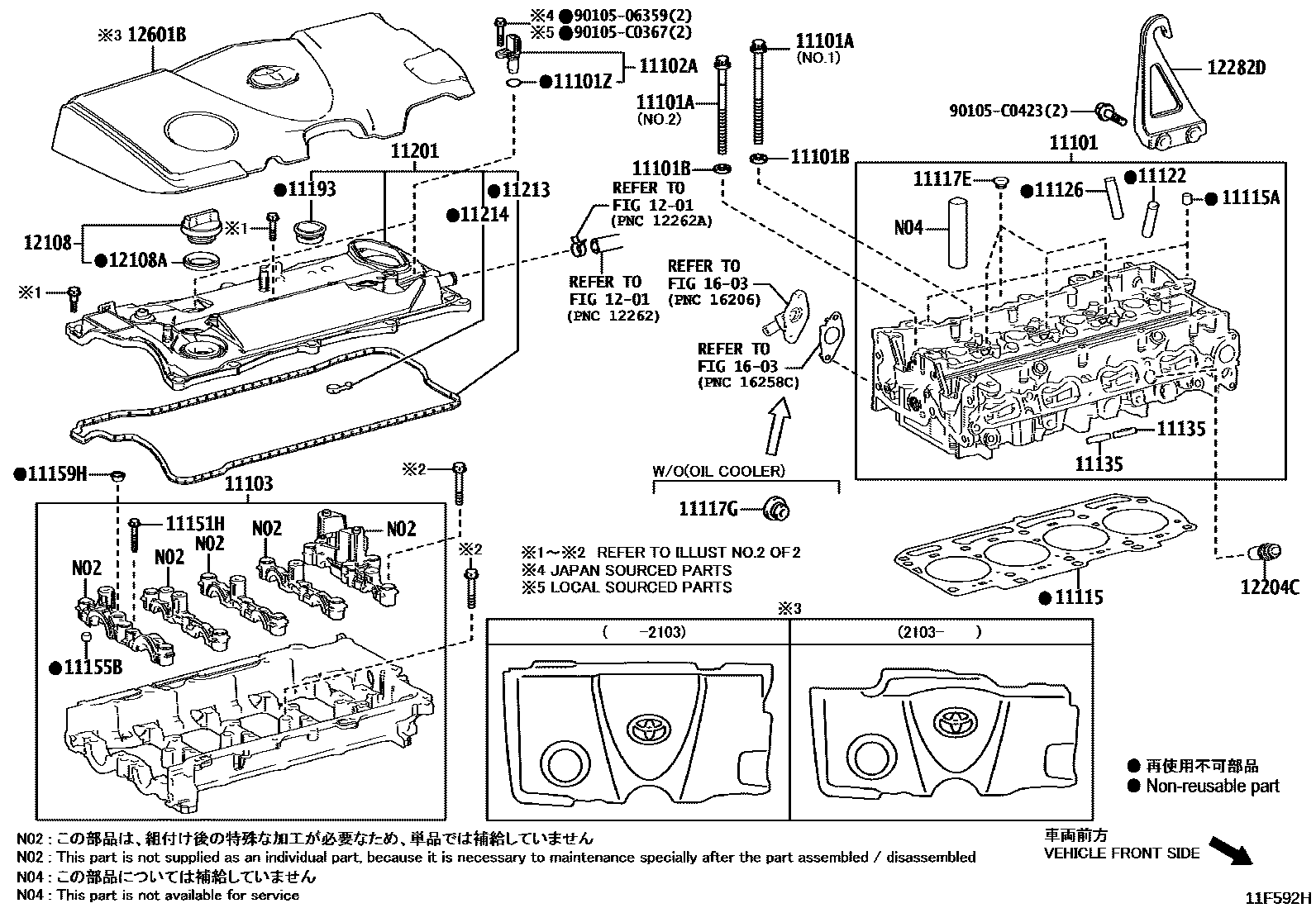

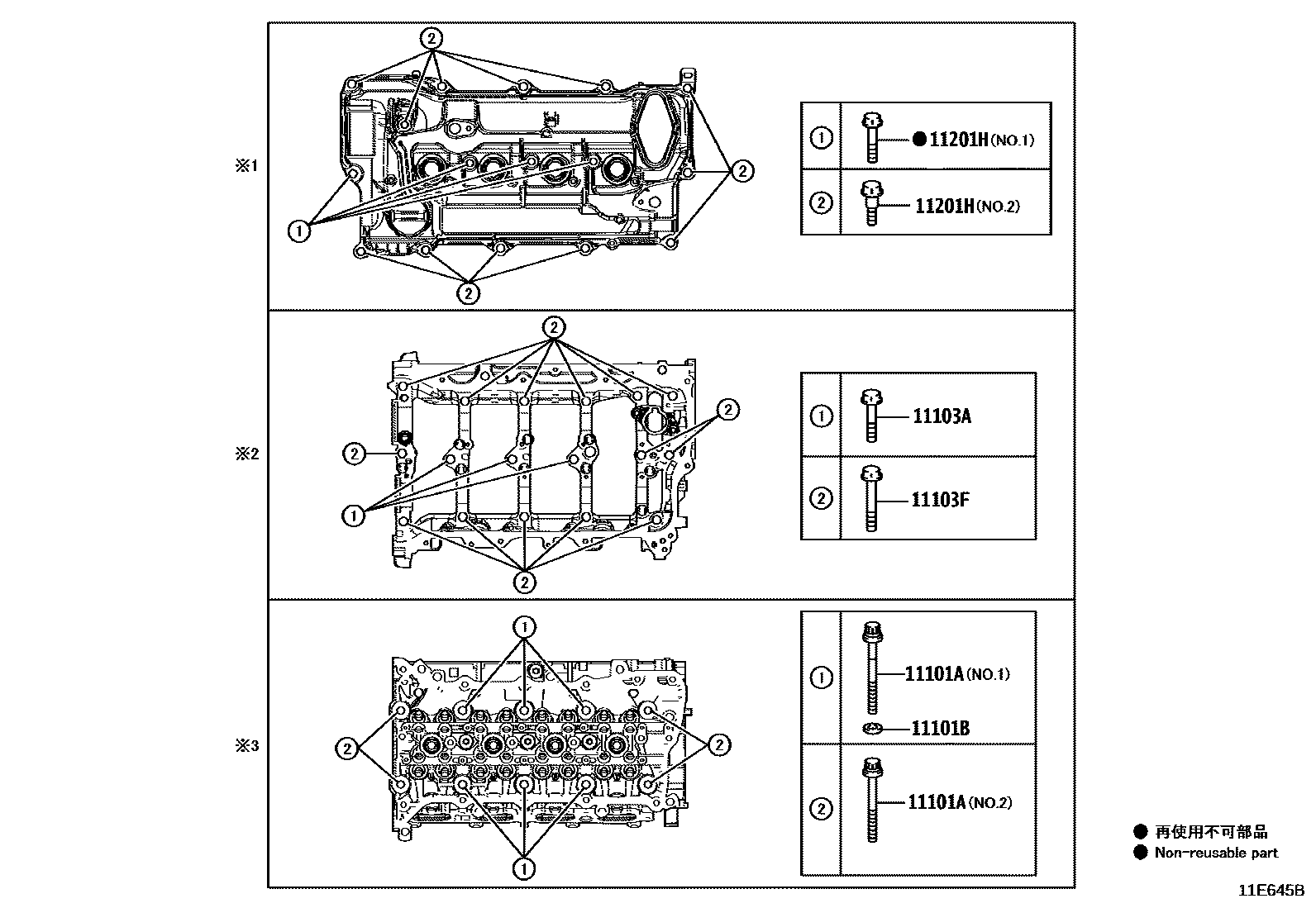

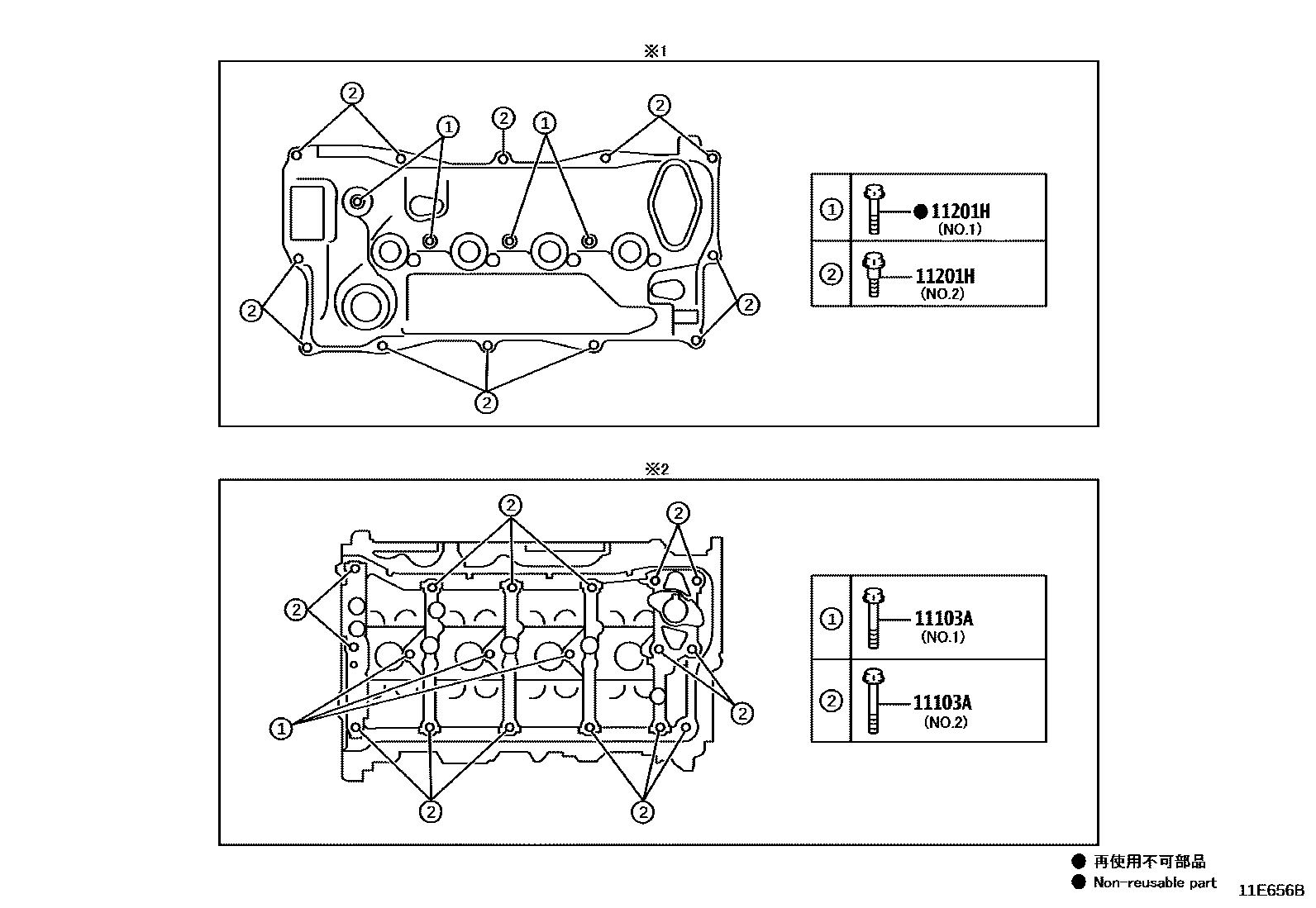

Toyota RAV4 Cylinder Head — Figure 1104
Toyota RAV4 EPC diagram 1104, Cylinder Head, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-29625 · 11101-29626 · 11101-29627 · 11101-F9020 · 11101-F9021 · 11101-F9022 · 11101-F9140 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02201 · 90910-02202 · 90910-C2004 · 90910-C2009 · 90910-C2011 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-12079 · 90201-C0007 |
| 11101Z | Cam position sensor O-ring | 90301-11038 |
| 11102A | Camshaft position sensor | 90919-05096 · 90919-C5007 |
| 11103 | Camshaft housing sub-assembly | 11103-25021 · 11103-25090 · 11103-F0070 · 11103-F2051 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-C0168 · 90105-C0421 · 91551-G0840 · 91551-G0865 |
| 11103F | Bolts (for camshaft housing assembly) | 90105-C0168 · 91551-G0865 |
| 11115 | GASKET, CYLINDER HEAD | 11115-25050 · 11115-F0020 · 11115-F2020 |
| 11115A | PIN, RING | 90253-12002 · 90253-C0002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 · 90341-C0012 |
| 11117G | No. 3 headed straight thread plug | 90341-24006 · 90341-C0019 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31090 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-47010 · 11123-31041 · 11123-47010 |
| 11135 | Exhaust valve seat | 11135-25020 · 11135-F0050 · 11135-F2030 · 11136-25020 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-C0469 |
| 11155B | PIN, RING | 90253-13005 · 90253-C0004 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-31040 · 11159-F2010 |
| 11193 | spark plug bushing gasket | 11193-37030 · 11193-F2020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-25032 · 11201-25033 · 11201-F0030 · 11201-F2050 · 11201-F2051 |
| 11201H | Bolts (for cylinder head cover) | 90105-06359 · 90105-C0367 · 90109-06384 · 90109-C0027 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-24020 · 11213-25020 · 11213-F0010 · 11213-F2020 |
| 11214 | No. 2 cylinder head cover gasket | 11213-31080 |
| 11452D | Engine oil level gauge guide | 11452-F2050 |
| 11452E | O-ring (for oil level gauge guide) | 90301-C0037 · 96741-19010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0V010 · 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12180E | Oil filler cap assembly | 12180-0V010 |
| 12204C | Ventilation valve sub-assembly | 12204-25010 · 12204-F2020 |
| 12282D | ENGINE HANGER, NO.2 | 12282-25010 · 12282-F2010 |
| 12601B | No. 1 engine hood sub-assembly | 12601-25060 · 12601-F0120 · 12601-F0121 · 12601-F2050 |
| 12611 | Engine hood No. 1 | 12611-F2040 |
| 15301B | Engine oil level scoring assembly | 15301-F2070 |
| 15301C | O-ring (for engine oil level gauge) | 90301-C0083 · 96741-19005 |
| 25759A | Vacuum pressure tank bracket | 25759-F2020 |
