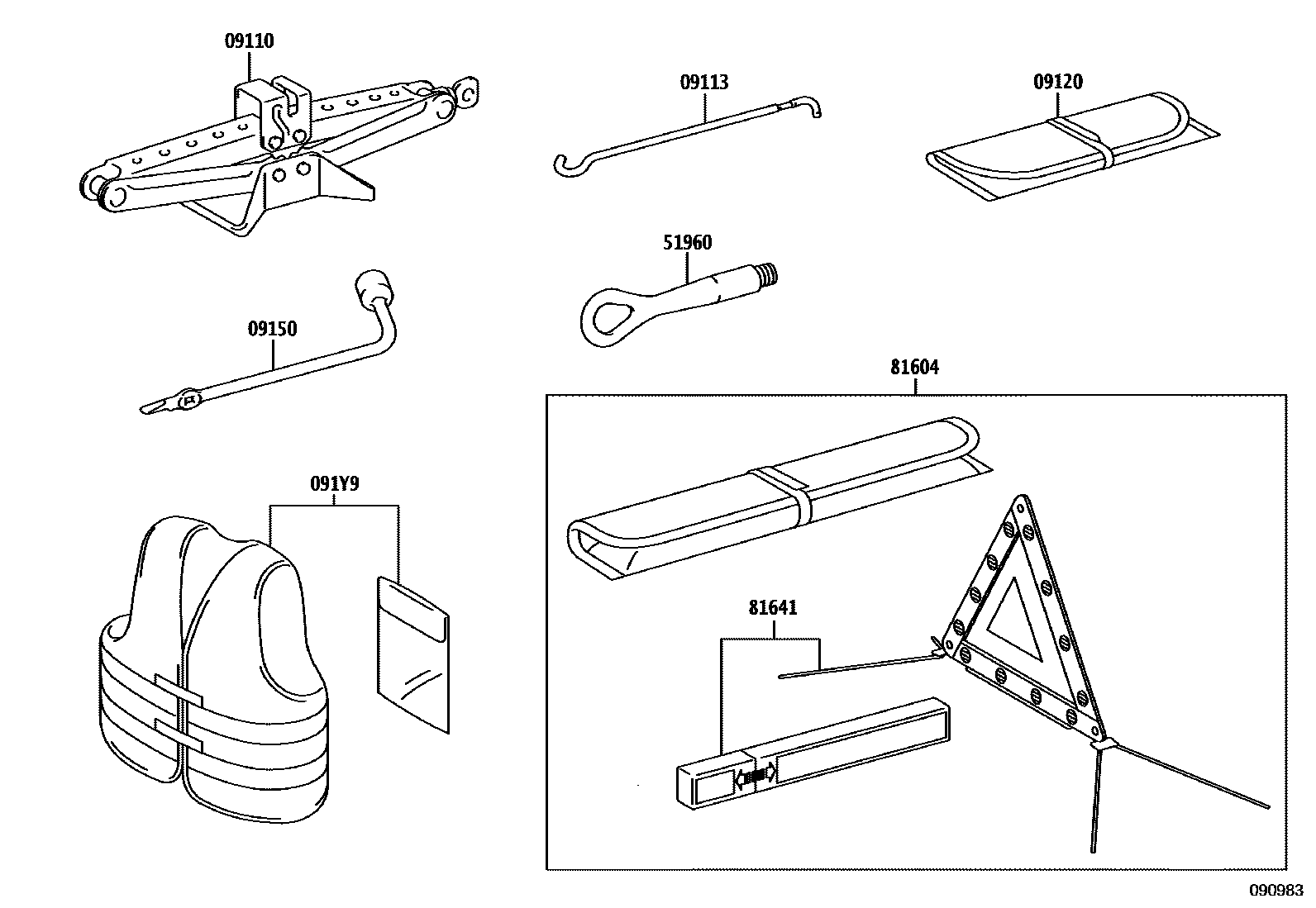

Toyota RAV4 Standard Tools — Figure 0901
Toyota RAV4 EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0R090 · 09111-42050 |
| 09113 | Jack Handle | 09113-0R030 |
| 09120 | Tool Bag | 09120-0D010 |
| 09150 | Wheel Nut Wrench Case | 09150-0R020 |
| 091Y9 | Sheath with reflector | 091Y9-0R010 |
| 51960 | Front Towing Hook Assembly | 51961-0E120 · 51961-0R060 |
| 81604 | Triangular reflector assembly | 81005-0R010 |
| 81641 | triangular reflector | 81604-02030 |
