Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 2 PNC and OE references.

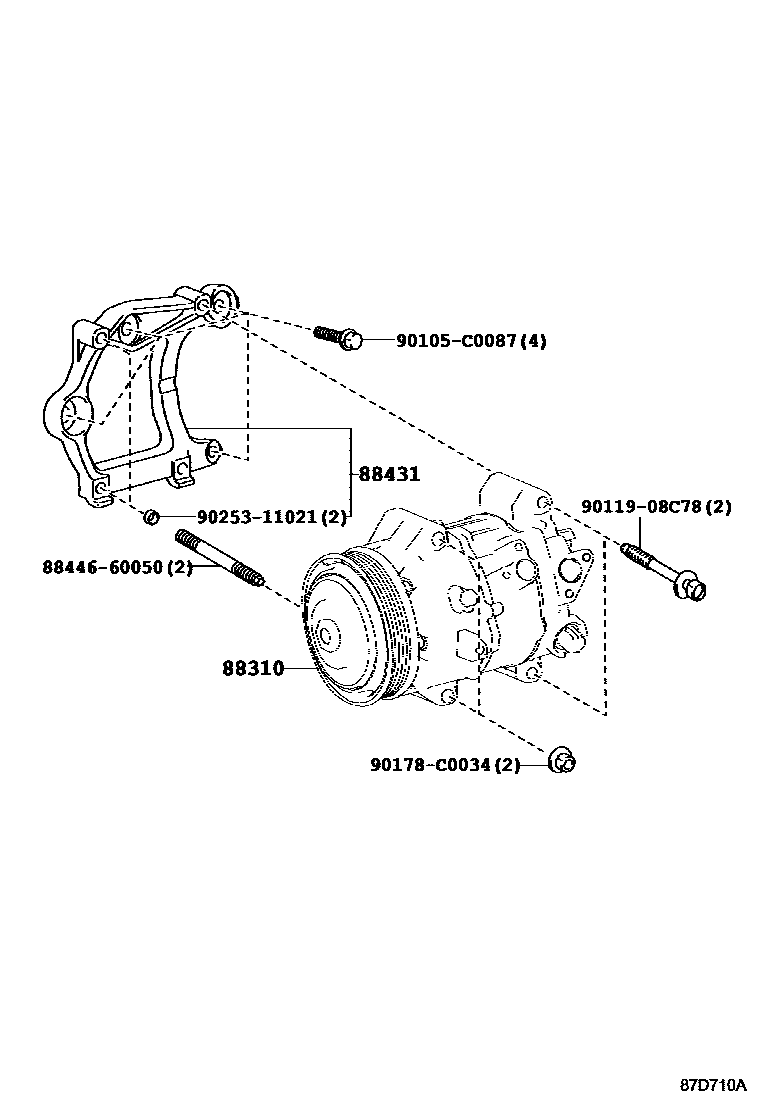

Toyota RAV4 Heating & Air Conditioning - Compressor EPC diagram — 87D710A
Heating & Air Conditioning - Compressor — 87D710A (201308 – 999999)

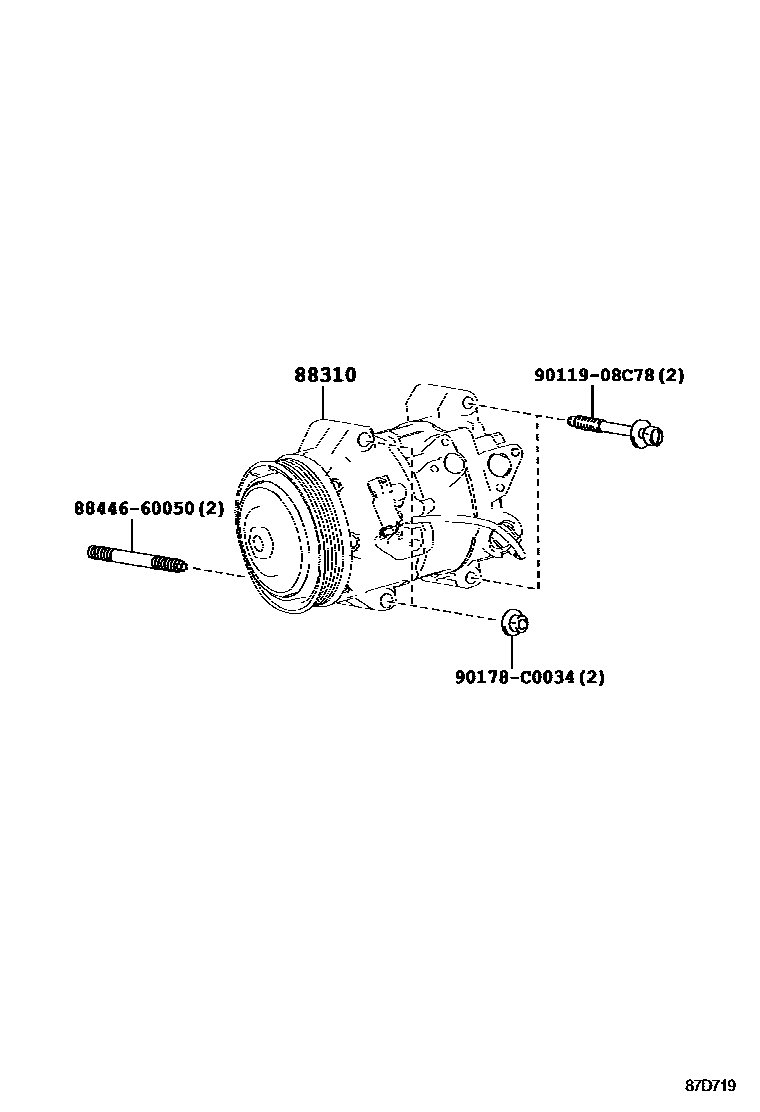

Toyota RAV4 Heating & Air Conditioning - Compressor EPC diagram — 87D719
Heating & Air Conditioning - Compressor — 87D719 (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
88310Compressor assembly with pulley88310-0R060 · 88310-0R061 · 88310-0R070 · 88310-0R071
88431Compressor No. 1 mounting bracket12502-0V020
