Toyota RAV4 暖风和空调系统 - 冷却器组件 — Figure 8714

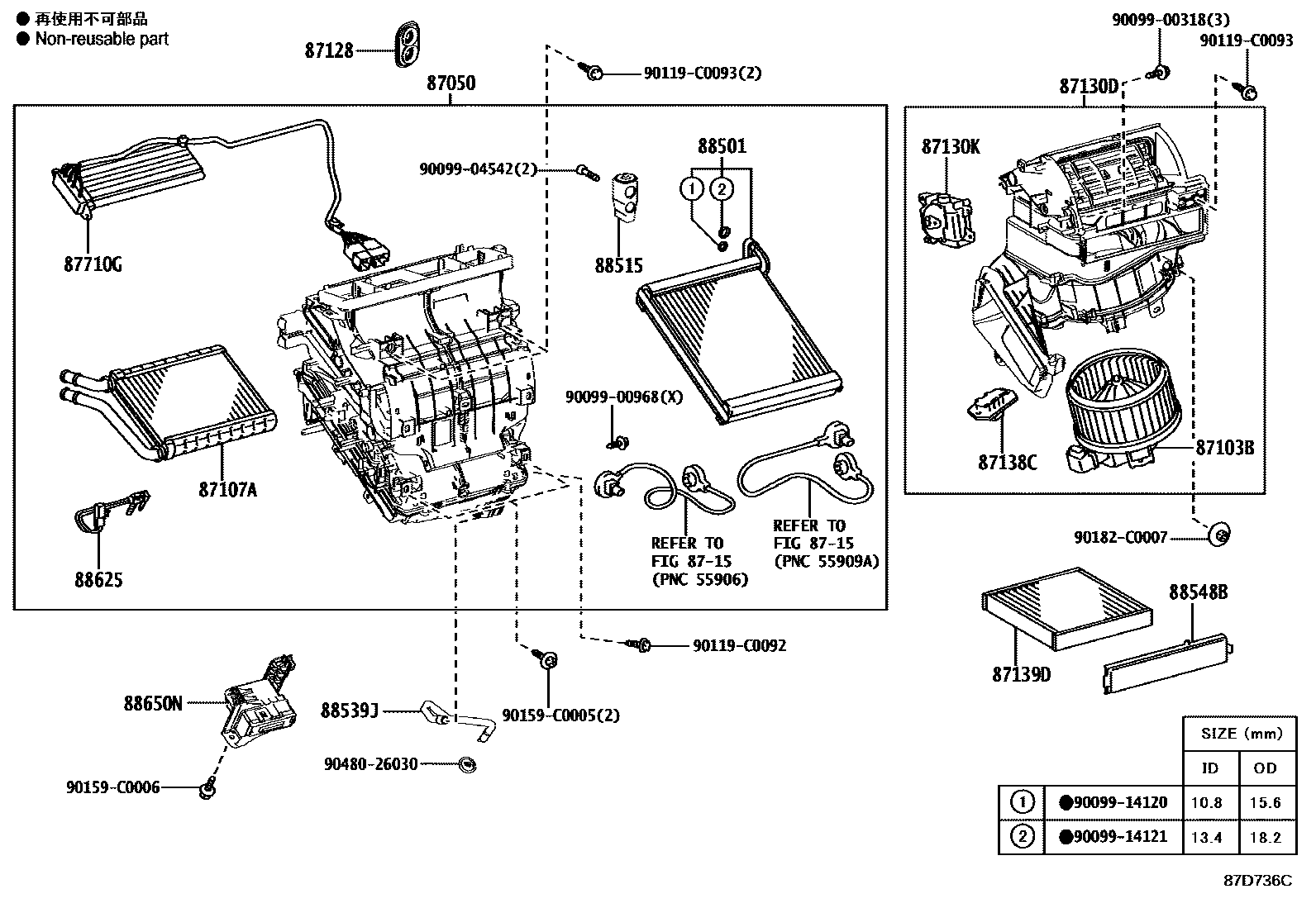

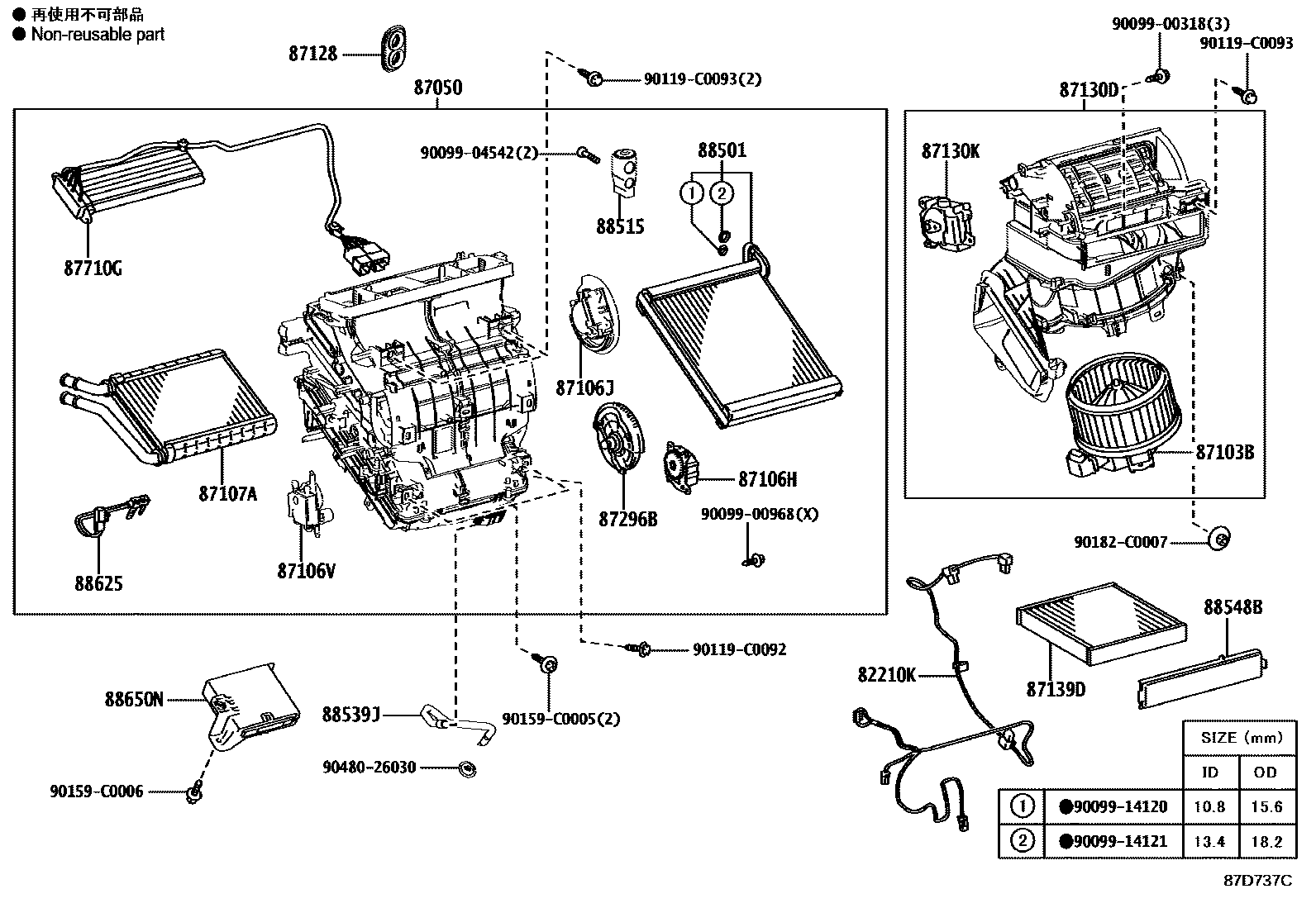

Toyota RAV4 EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-0R030 |
| 87050 | Air conditioning radiator assembly | 87050-02B50 · 87050-0R040 · 87050-0R070 · 87050-0R080 |
| 87103B | Blower motor sub-assembly with fan | 87103-02180 · 87103-0R020 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-0R040 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02320 |
| 87106V | Damper servo mechanism sub-assembly (for No. 2 air mixing) | 87106-0R050 |
| 87107A | Heater radiator device sub-assembly | 87107-02220 |
| 87128 | heater seal | 87128-02020 |
| 87130D | Blower assembly | 87130-02470 · 87130-0R040 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-02330 · 87106-02340 |
| 87138C | Blower resistor | 87138-02120 |
| 87139D | Air fine filter element | 87139-0R020 · 87139-50100 |
| 87296B | Heater choke control lever | 87296-0R010 |
| 87710G | Rapid heater assembly | 87710-12020 · 87710-42040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-02212 |
| 88515 | Cooler expansion valve | 88515-02130 · 88515-0D200 |
| 88539J | Cooler drain hose | 88539-0R040 |
| 88548B | air filter housing | 88548-02100 |
| 88625 | Cooler No. 1 Thermistor | 88625-0D100 |
| 88650N | Air conditioning amplifier assembly | 88650-0R180 · 88650-0R190 · 88650-0R200 · 88650-0R250 · 88650-0R260 |
