Toyota RAV4 后视镜 — Figure 8701

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 12 PNC and OE references.

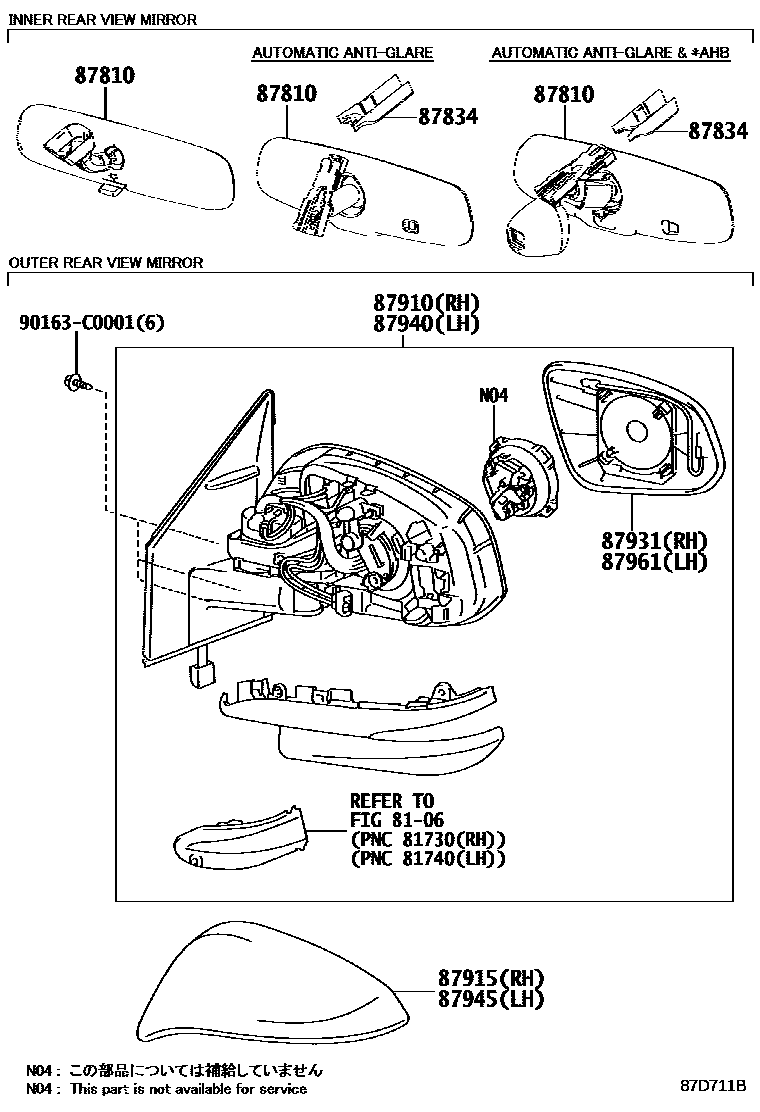

Toyota RAV4 后视镜 EPC diagram — 87D711B
后视镜 — 87D711B (201308 – 201607)

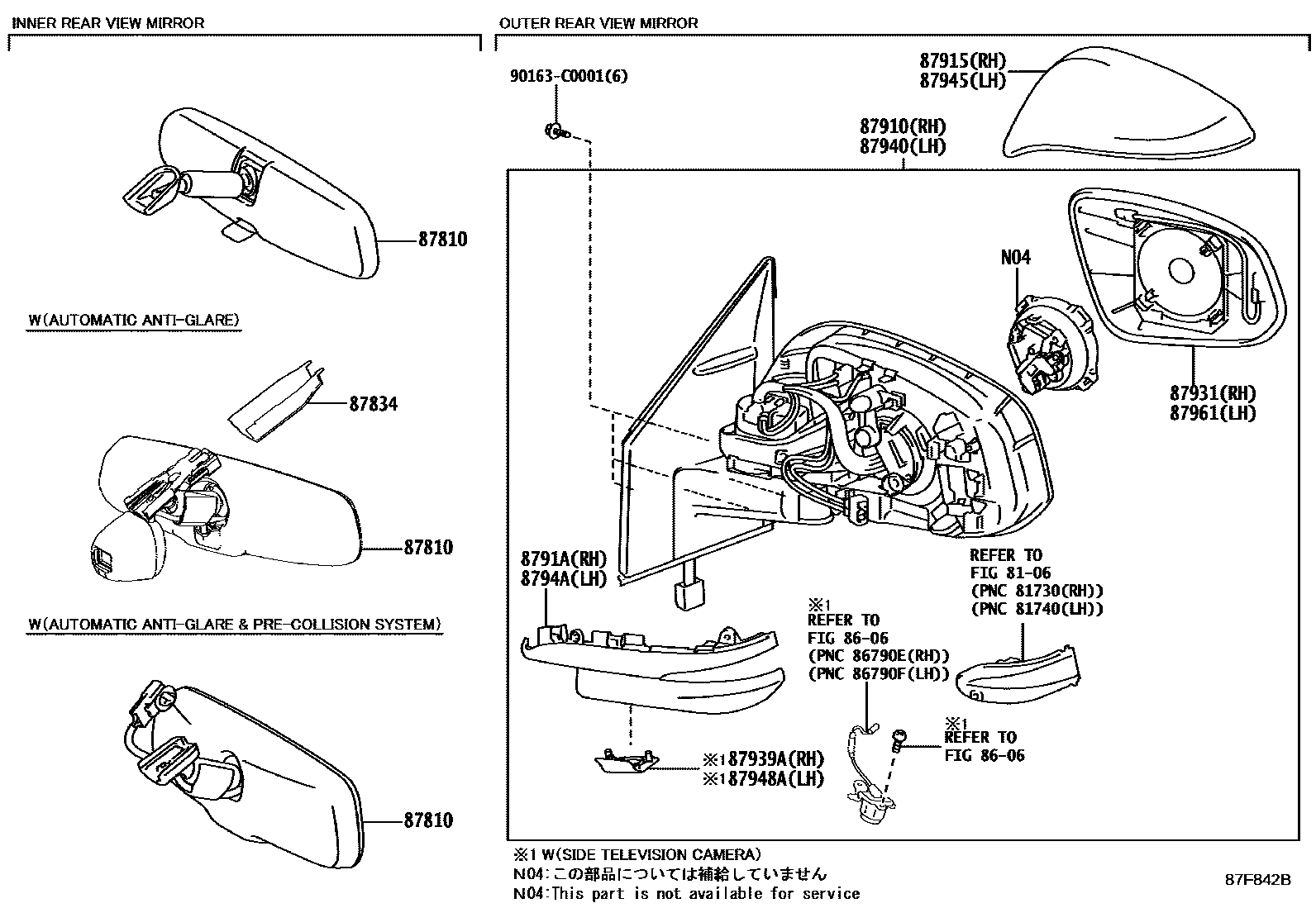

Toyota RAV4 后视镜 EPC diagram — 87F842B
后视镜 — 87F842B (201607 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-0D070 · 87810-0R040 · 87810-0R050 · 87810-0R060 · 87810-0R070 · 87810-0R080 · 87810-0R090 · 87810-0R100
87834Interior rearview mirror stay fixing cover87818-04010 · 87818-0R020 · 87818-0W030
87910Right exterior rearview mirror assembly87910-0R110 · 87910-0R120 · 87910-0R130 · 87910-0R140 · 87910-0R150 · 87910-0R220 · 87910-0R230 · 87910-0R240
87915Right exterior rearview mirror cover87915-0R902
8791ARight exterior rearview mirror cover No. 28791A-0R220
87931Right exterior rearview mirror87903-0R010 · 87903-0R020 · 87931-0R110 · 87931-0R120 · 87931-0R130 · 87931-0R220
87939ARight exterior rearview mirror hole cover8791B-0R220
87940Left exterior rearview mirror assembly87940-0R120 · 87940-0R130 · 87940-0R140 · 87940-0R150 · 87940-0R160 · 87940-0R230 · 87940-0R240 · 87940-0R250
87945Left exterior rearview mirror cap87945-0R903
87948ALeft exterior rearview mirror hole cover8794B-0R220
8794ANo. 2 left exterior rearview mirror cap8794A-0R220
87961Left exterior rearview mirror87906-0R010 · 87906-0R020 · 87961-0R120 · 87961-0R130 · 87961-0R140 · 87961-0R230
