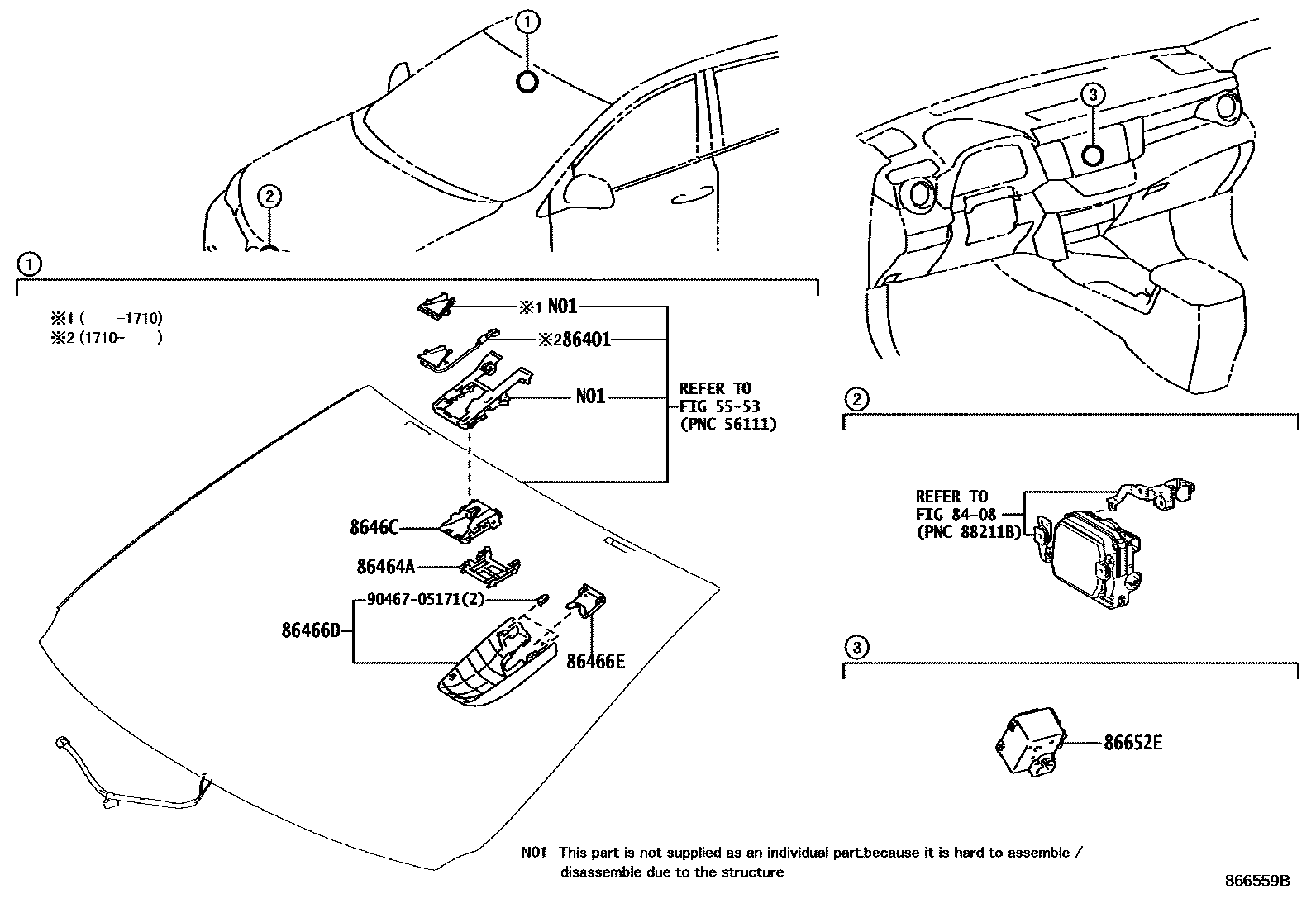

Toyota RAV4 预碰撞安全系统 — Figure 8617
Toyota RAV4 EPC diagram 8617, 预碰撞安全系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-48030 |
| 86464A | Front identification lock | 86464-48011 |
| 86466D | Front identification cover No. 1 | 86466-42040 · 86466-42041 |
| 86466E | Front identification cover No. 2 | 86466-42050 · 86466-42051 |
| 8646C | front recognition camera | 8646C-42020 · 8646C-42021 |
| 86652E | Pre-collision safety system buzzer | 86652-50010 |
