Toyota RAV4 倒车影像和摄像头 — Figure 8606

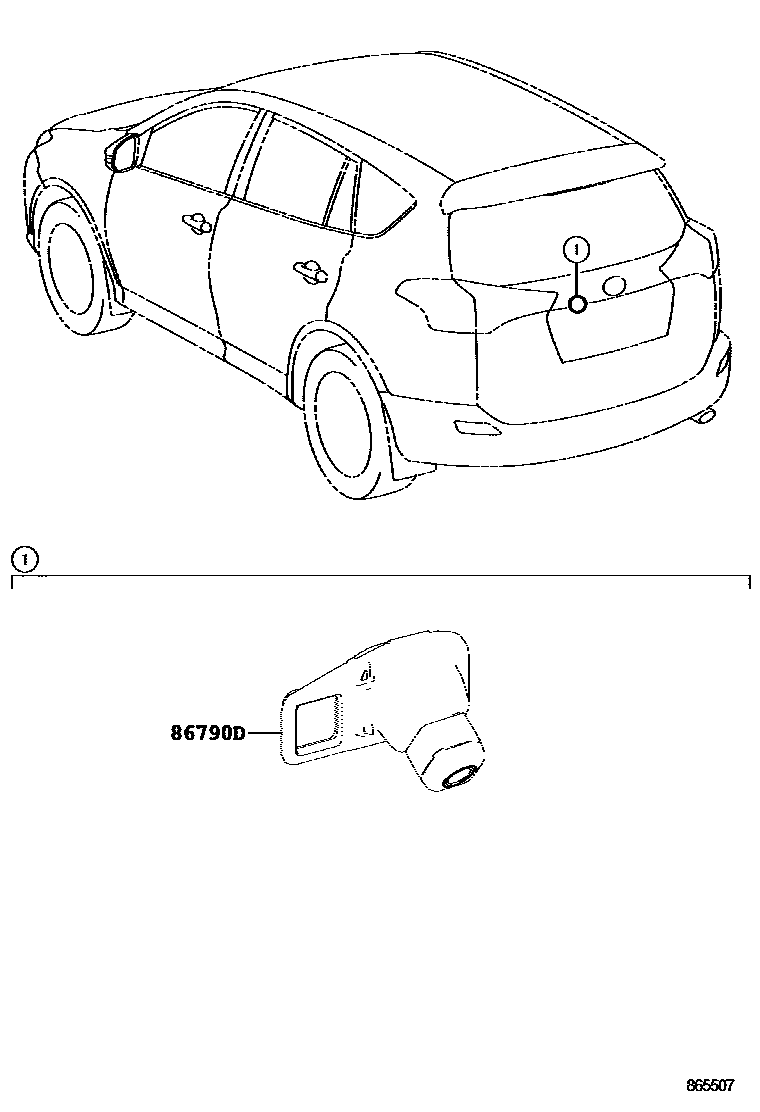

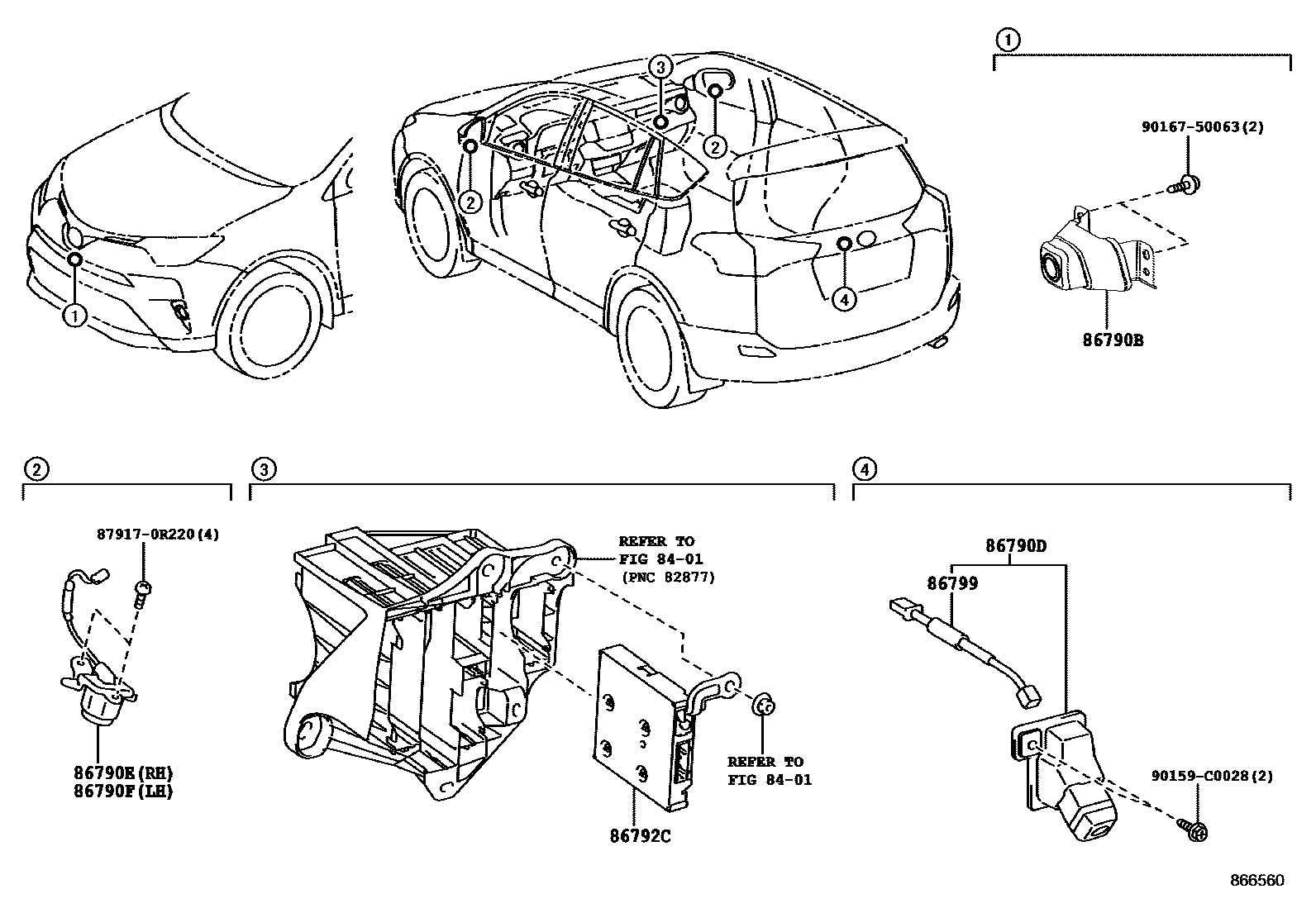

Toyota RAV4 EPC diagram 8606, 倒车影像和摄像头, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-0R040 · 86790-0R041 |
| 86790D | Rear reversing image camera assembly | 86790-0R030 · 86790-0R031 · 86790-0R090 |
| 86790E | Right image camera assembly | 86790-0R110 |
| 86790F | Left image camera assembly | 86790-0R100 |
| 86792C | Parking assist ECU | 86792-0R010 · 86792-42040 · 86792-42041 |
| 86799 | Reversing image camera wiring harness | 86799-42010 |
