Toyota RAV4 antenna — Figure 8604

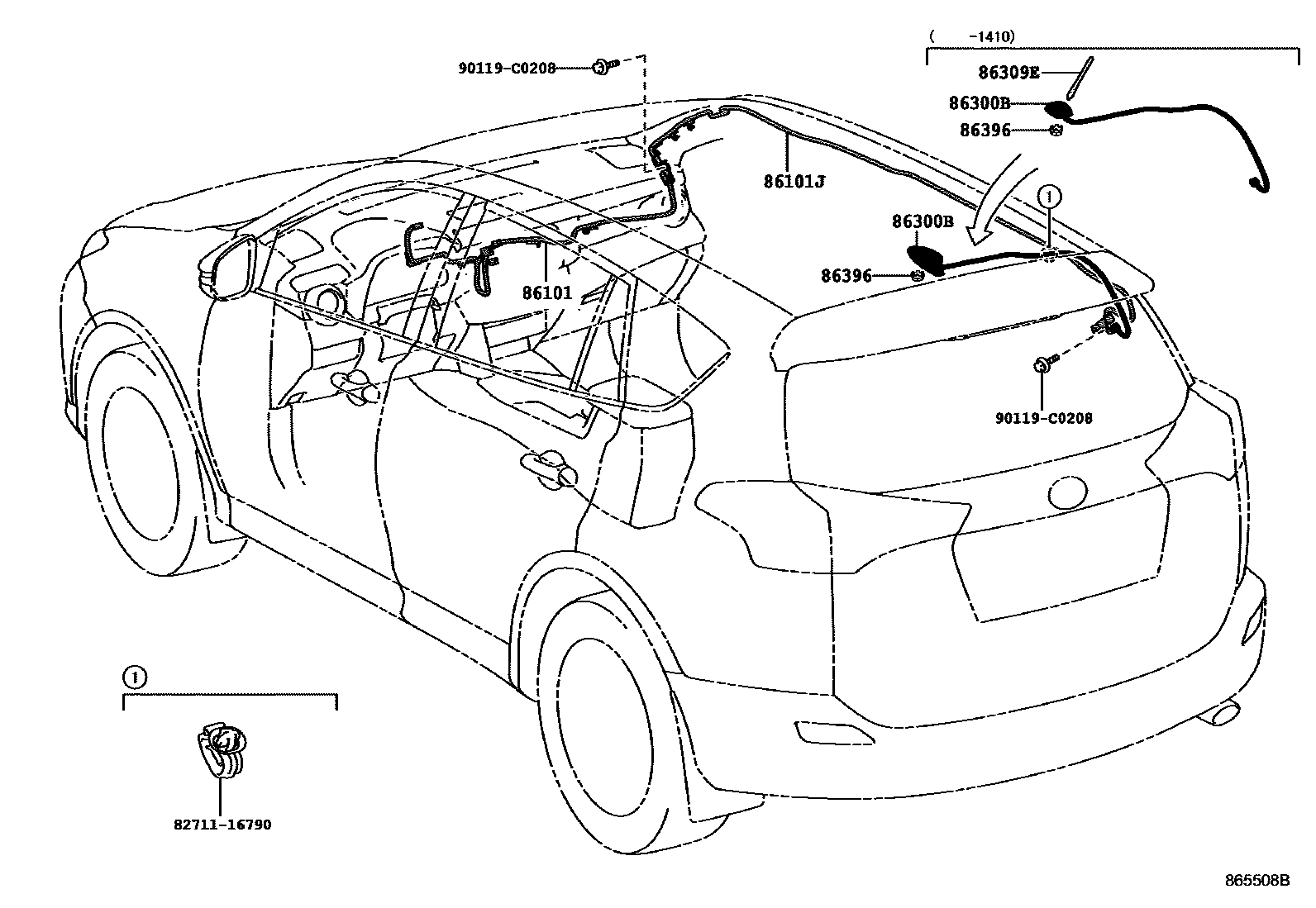

Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0R320 · 86101-0R331 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0R300 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0R050 |
| 86309E | Roof antenna sub-assembly | 86309-0R030 |
| 86396 | Antenna nut | 86396-47010 |
