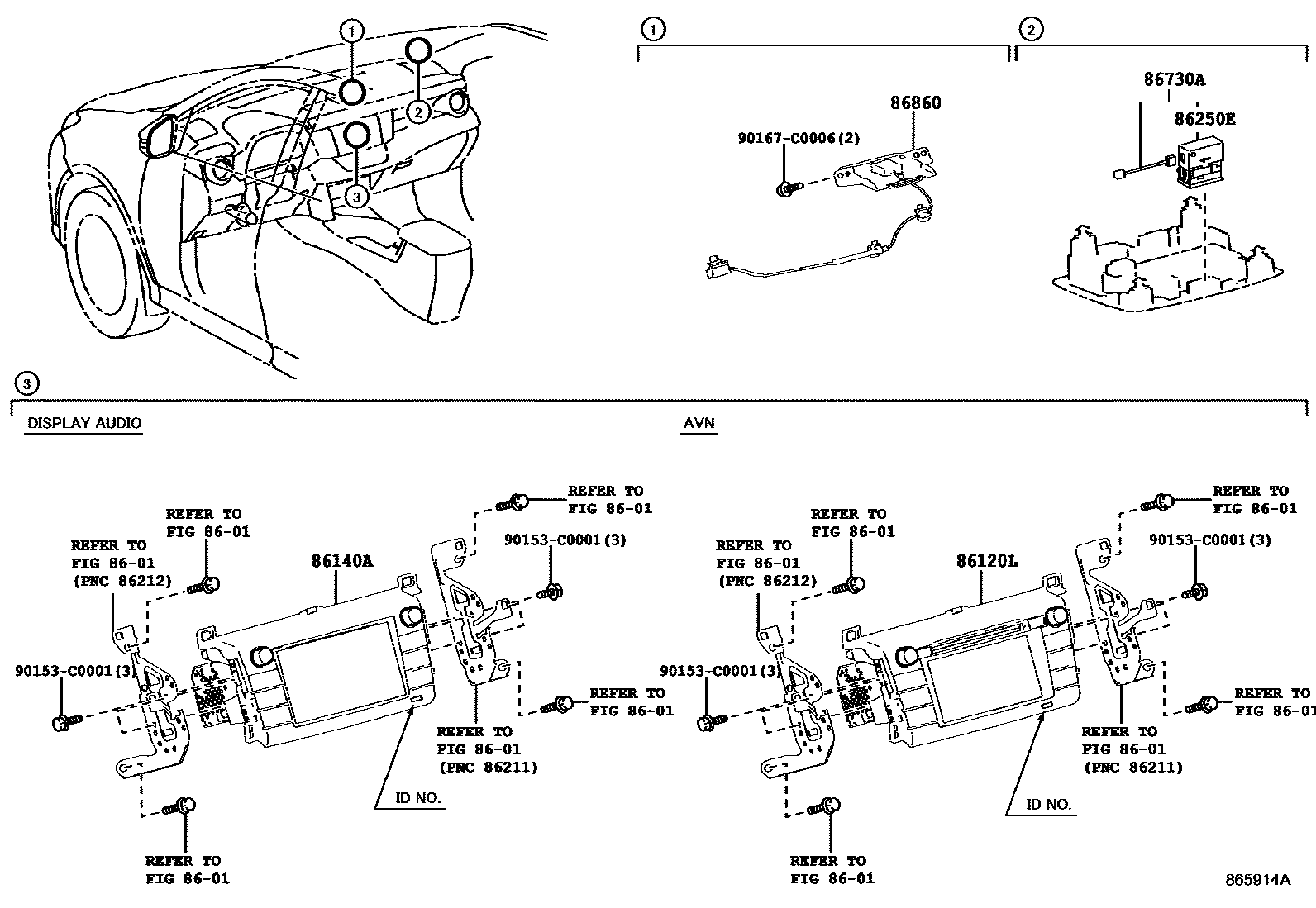

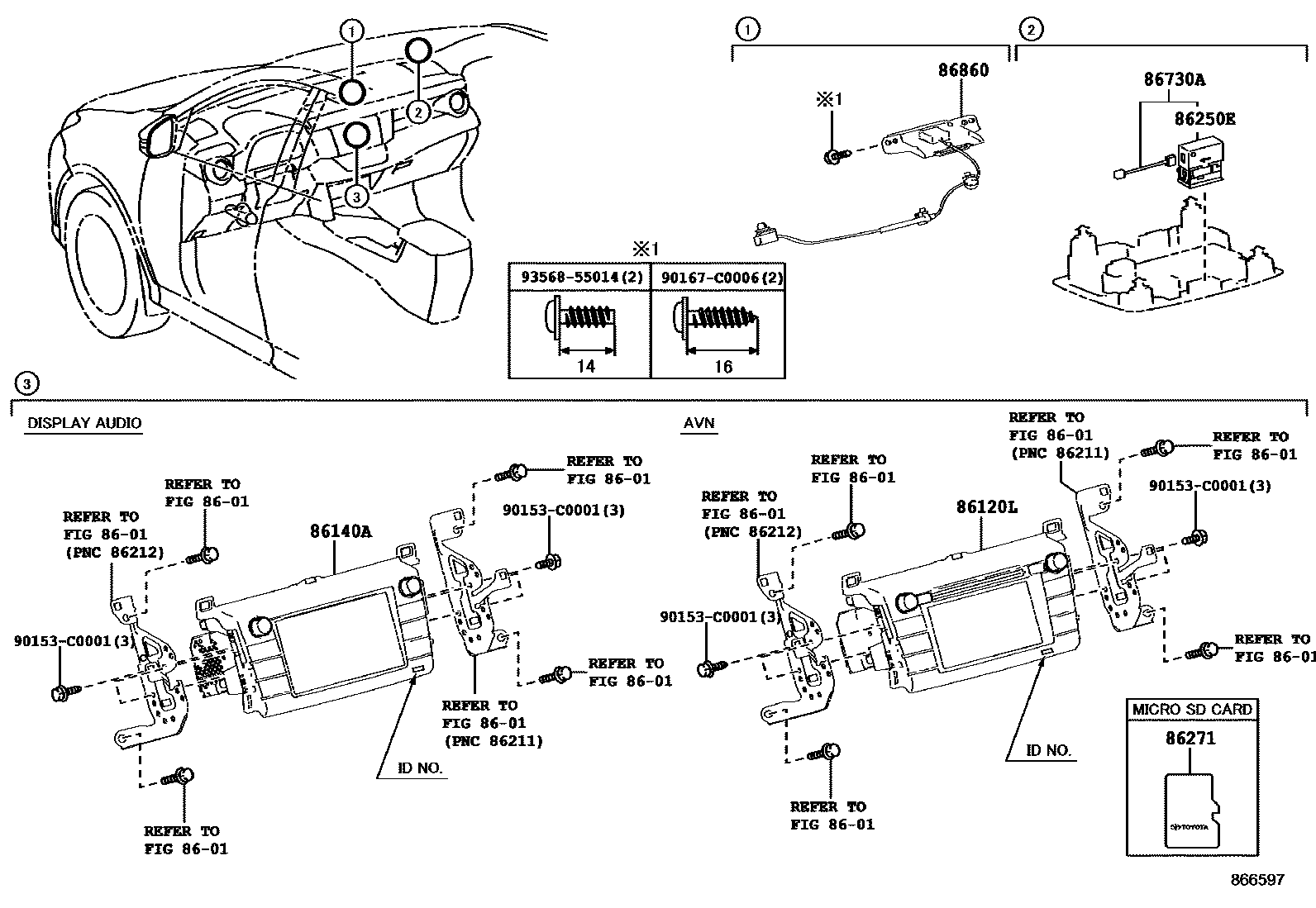

Toyota RAV4 导航和前监视器显示屏 — Figure 8603
Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86100-0R050 · 86100-0R051 · 86100-0R052 · 86100-0R130 · 86100-0R131 · 86100-0R132 · 86100-0R133 · 86804-0R050 |
| 86140A | Radio and display receiver assembly | 86140-0R080 · 86140-0R130 · 86140-0R190 |
| 86250E | amplifier loudspeaker assembly | 86250-06020 · 86250-52030 |
| 86271 | CD | 86845-0G010 · 86845-0G012 · 86845-0G013 · 86845-0G014 · 86845-0G015 |
| 86730A | Telephone amplifier assembly | 86730-0R020 · 86730-52070 |
| 86860 | Navigation antenna assembly | 86860-0R020 |
