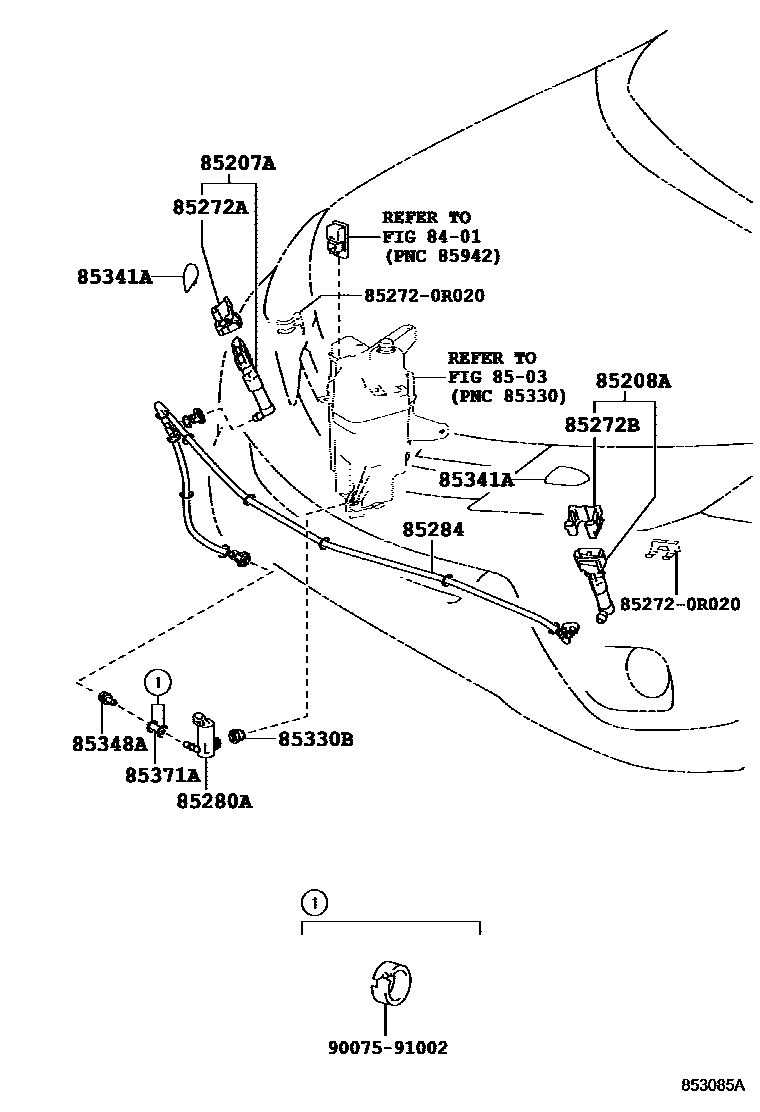

Toyota RAV4 前大灯清洗器 — Figure 8505
Toyota RAV4 EPC diagram 8505, 前大灯清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85207A | Right headlight washer actuator sub-assembly | 85207-0R010 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-0R010 |
| 85272A | Headlight washer No. 1 clip | 85272-0R010 |
| 85272B | Headlight washer clip No. 2 | 85273-0R010 |
| 85280A | Headlight washer motor and pump assembly | 85280-47010 |
| 85284 | Headlight washer hose assembly | 85271-0R010 |
| 85330B | Headlight washer washer fluid tank bushing | 90099-32089 |
| 85348A | Headlight washer hose connector No. 1 | 90075-17002 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15053 |
