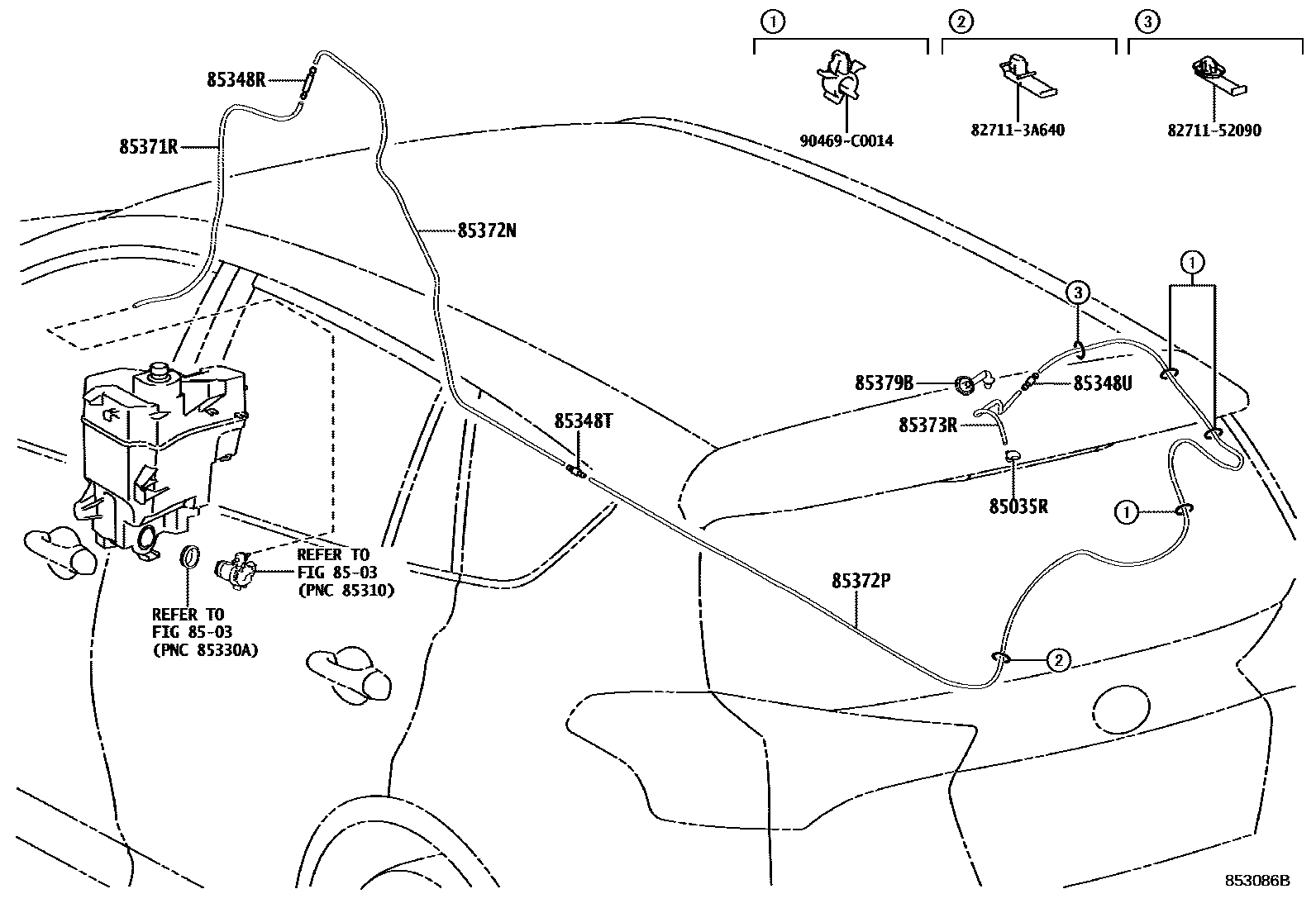

Toyota RAV4 后清洗器 — Figure 8504
Toyota RAV4 EPC diagram 8504, 后清洗器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-42020 |
| 85348R | No. 1 rear washer hose connector | 85349-0R060 |
| 85348T | No. 2 rear washer hose connector | 85375-0D030 |
| 85348U | No. 3 rear washer hose connector | 85375-0D030 |
| 85371R | Rear washer hose (from motor to connector) | 90068-33191 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90068-33197 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90068-33198 |
| 85373R | Rear washer hose (from connector to nozzle) | 90068-33199 |
| 85379B | Cleaner seal A | 85373-44010 |
