Toyota RAV4 挡风玻璃清洗器 — Figure 8503

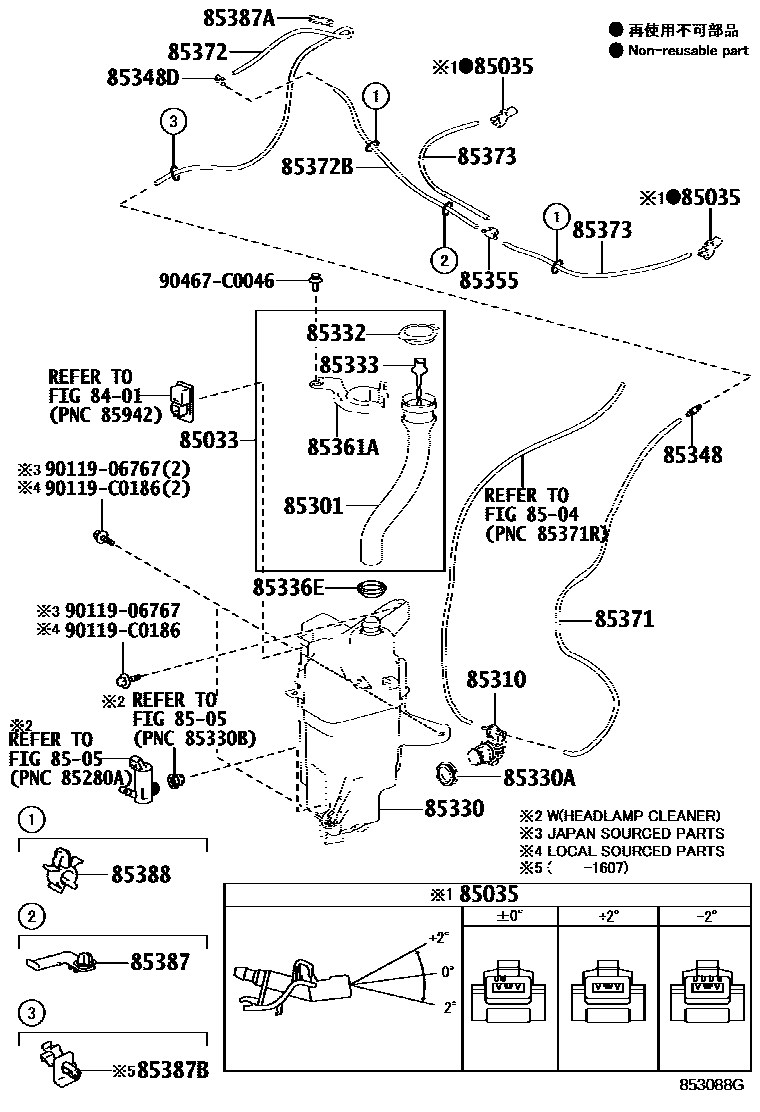

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85316-0R040 |
| 85035 | Cleaner nozzle sub-assembly | 85381-12400 · 85381-12410 · 85381-12420 |
| 85301 | Cleaner water inlet sub-assembly | 85319-0R020 |
| 85310 | Windshield washer motor and pump assembly | 85330-42010 |
| 85330 | Windshield washer fluid tank assembly | 85315-0R040 · 85315-0R050 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85332 | Windshield washer fluid tank cap | 85316-0P010 |
| 85333 | Windshield washer fluid tank filter | 85312-0R010 |
| 85336E | Windshield washer water inlet hose seal | 85336-42320 |
| 85348 | Windshield washer hose connector No. 1 | 85375-0D030 |
| 85348D | No. 1 windshield washer elbow joint | 85375-60290 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85361A | Windshield washer bracket No. 1 | 85337-0R040 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33190 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33195 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33196 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33200 |
| 85387 | Clip No. 1 (for windshield washer) | 82711-10500 |
| 85387A | Cleaner clip No. 2 | 85387-02280 |
| 85387B | No. 3 cleaner clip | 85371-32020 |
| 85388 | Clip No. 2 (for windshield washer) | 90469-07011 · 90469-C0014 |
