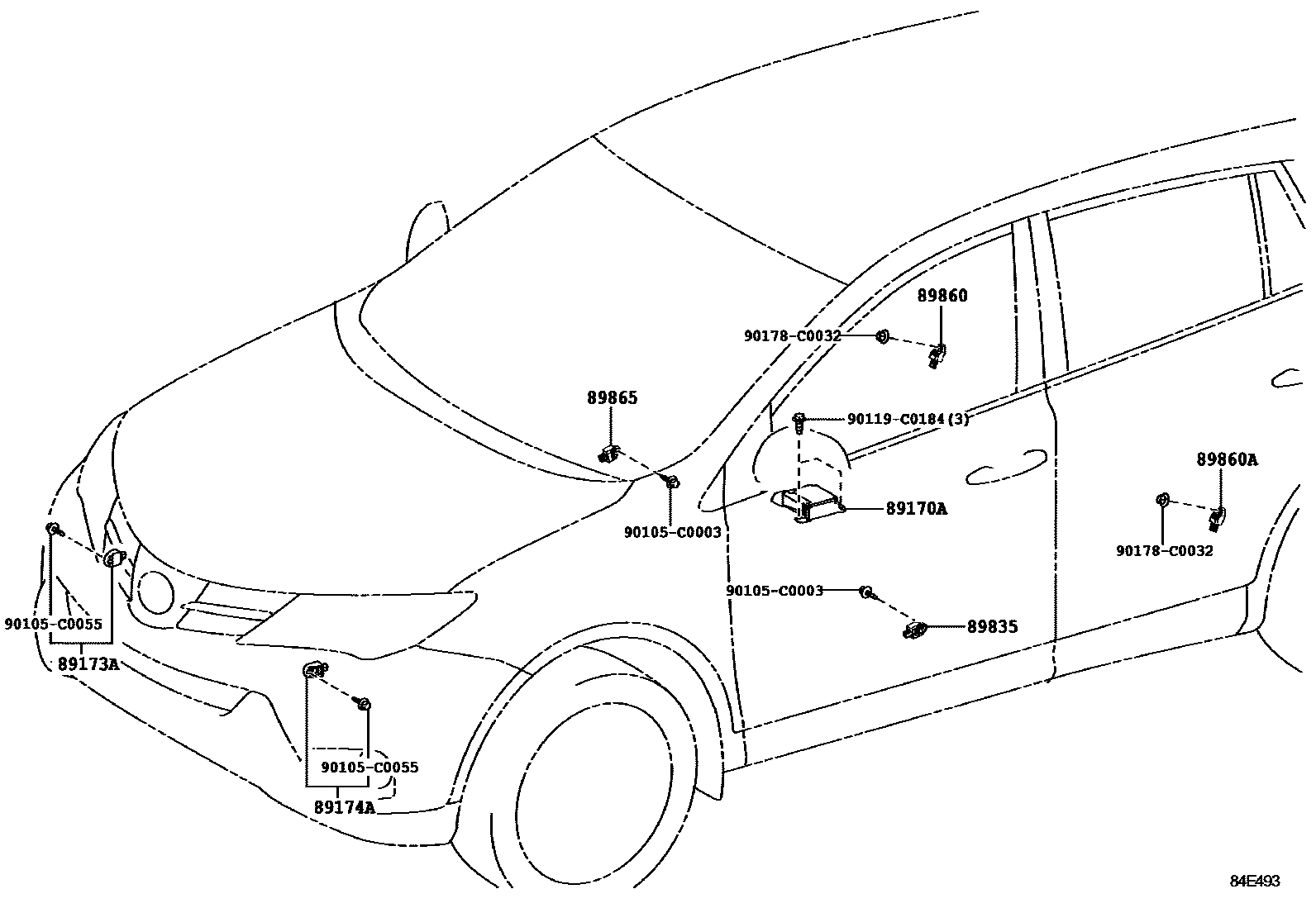

Toyota RAV4 空气囊 — Figure 8421
Toyota RAV4 EPC diagram 8421, 空气囊, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-0R090 · 89170-0R091 · 89170-0R100 · 89170-0R101 · 89170-0R110 · 89170-0R111 · 89170-0R210 |
| 89173A | Right front air bag sensor | 89173-09895 |
| 89174A | Left front air bag sensor | 89173-09895 |
| 89835 | Left door side air bag sensor | 89831-0R110 |
| 89860 | Right side airbag sensor assembly | 89831-0R120 |
| 89860A | Left side air bag sensor assembly | 89831-0R120 |
| 89865 | Right door side air bag sensor | 89831-0R110 |
