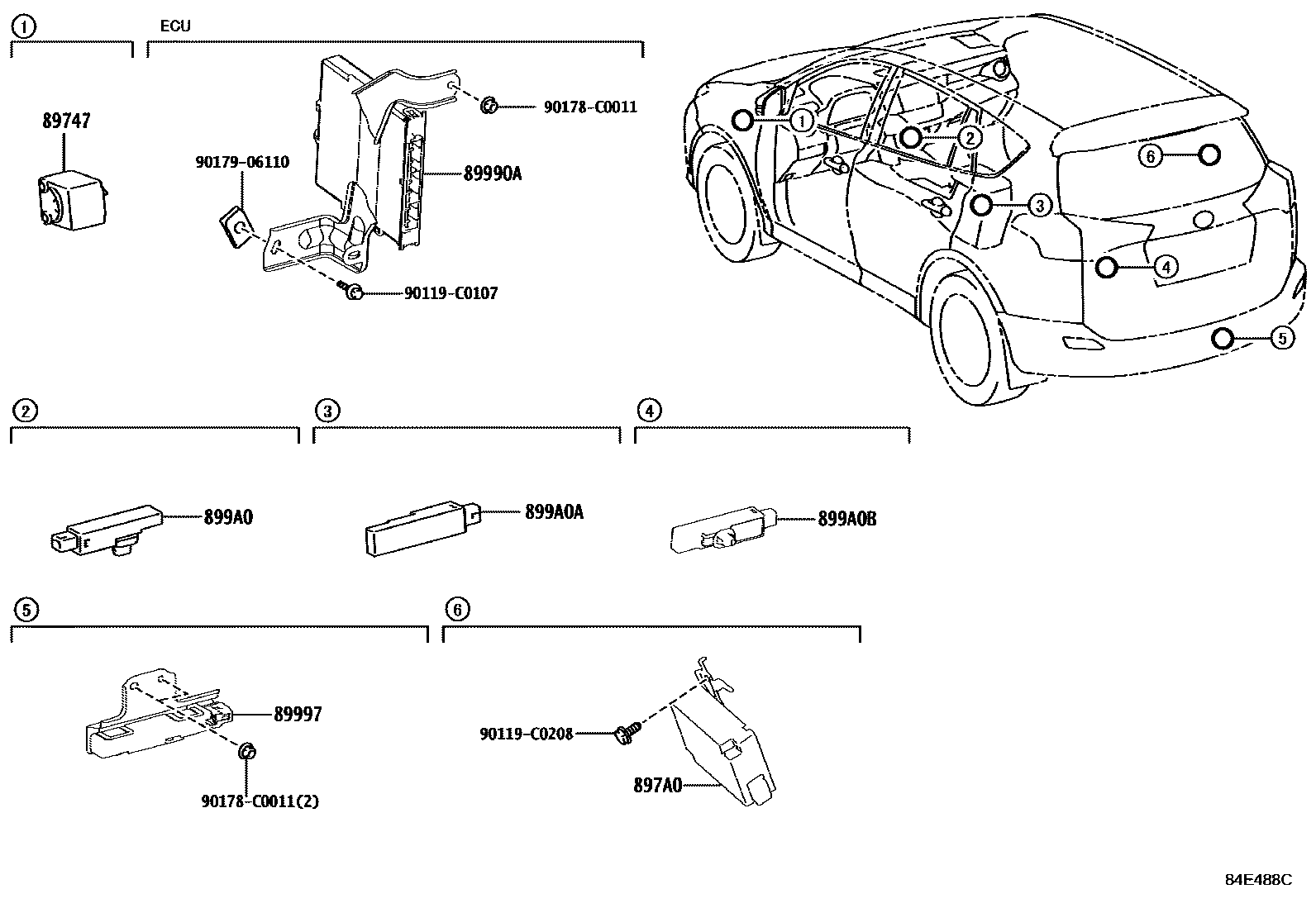

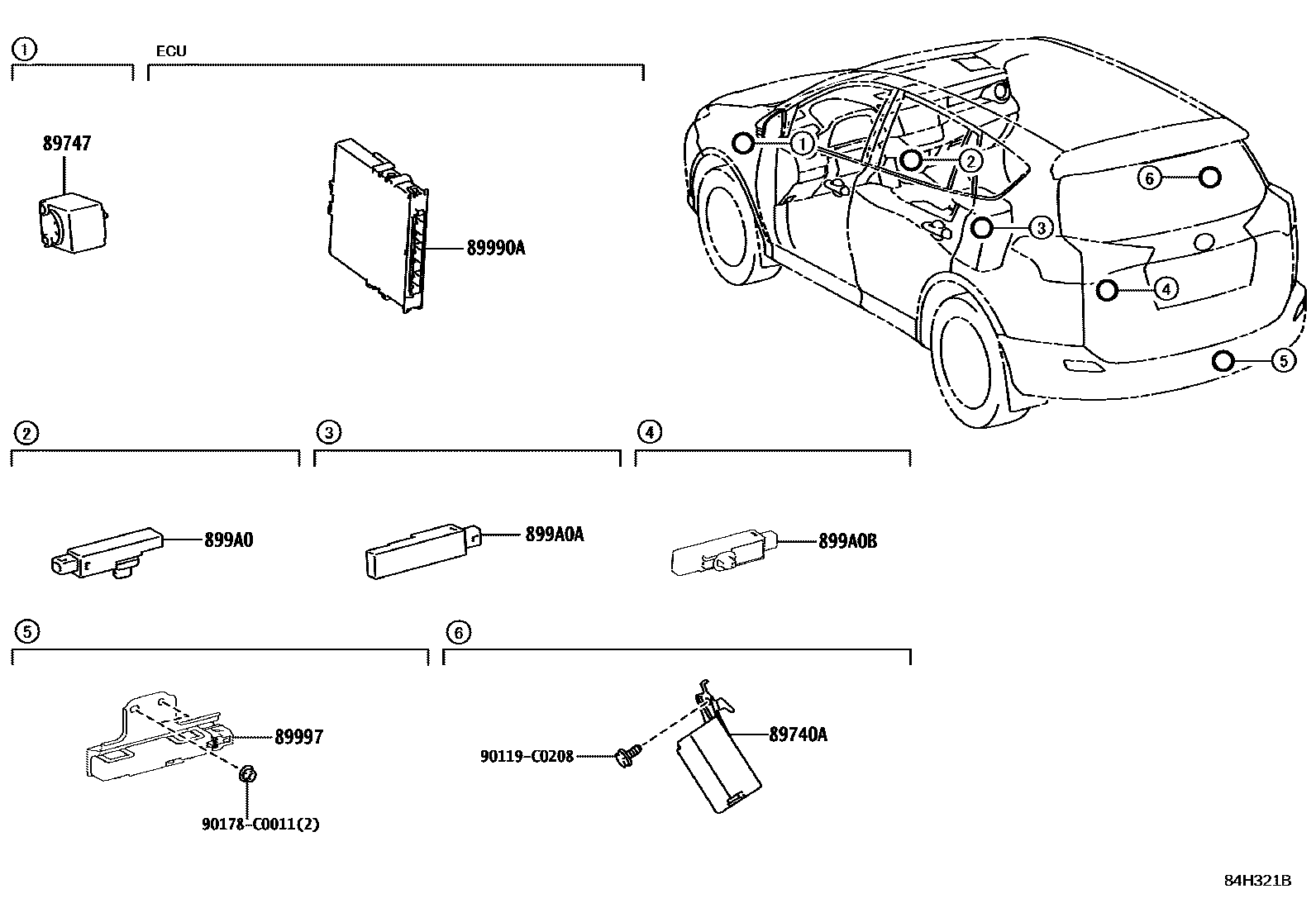

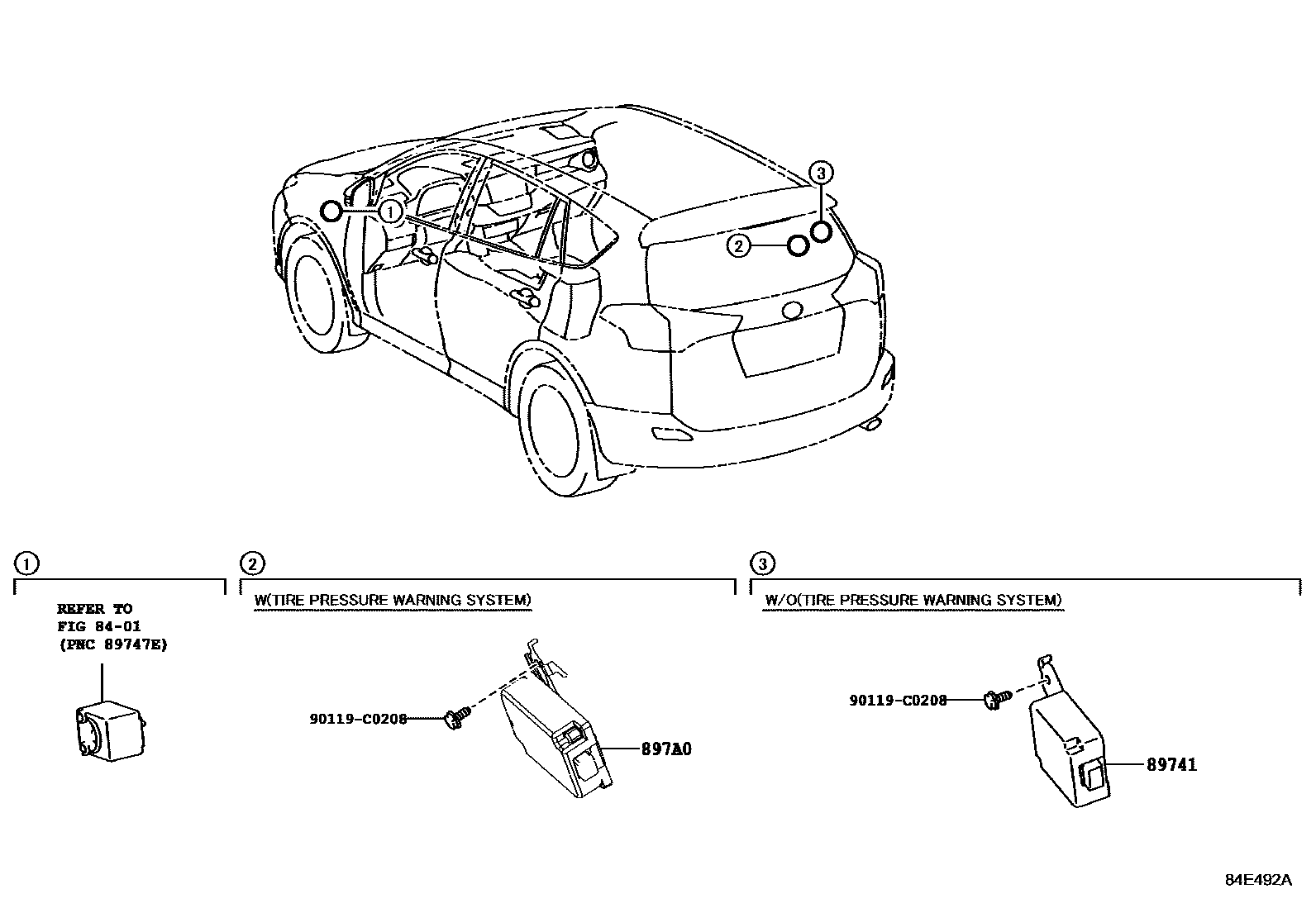

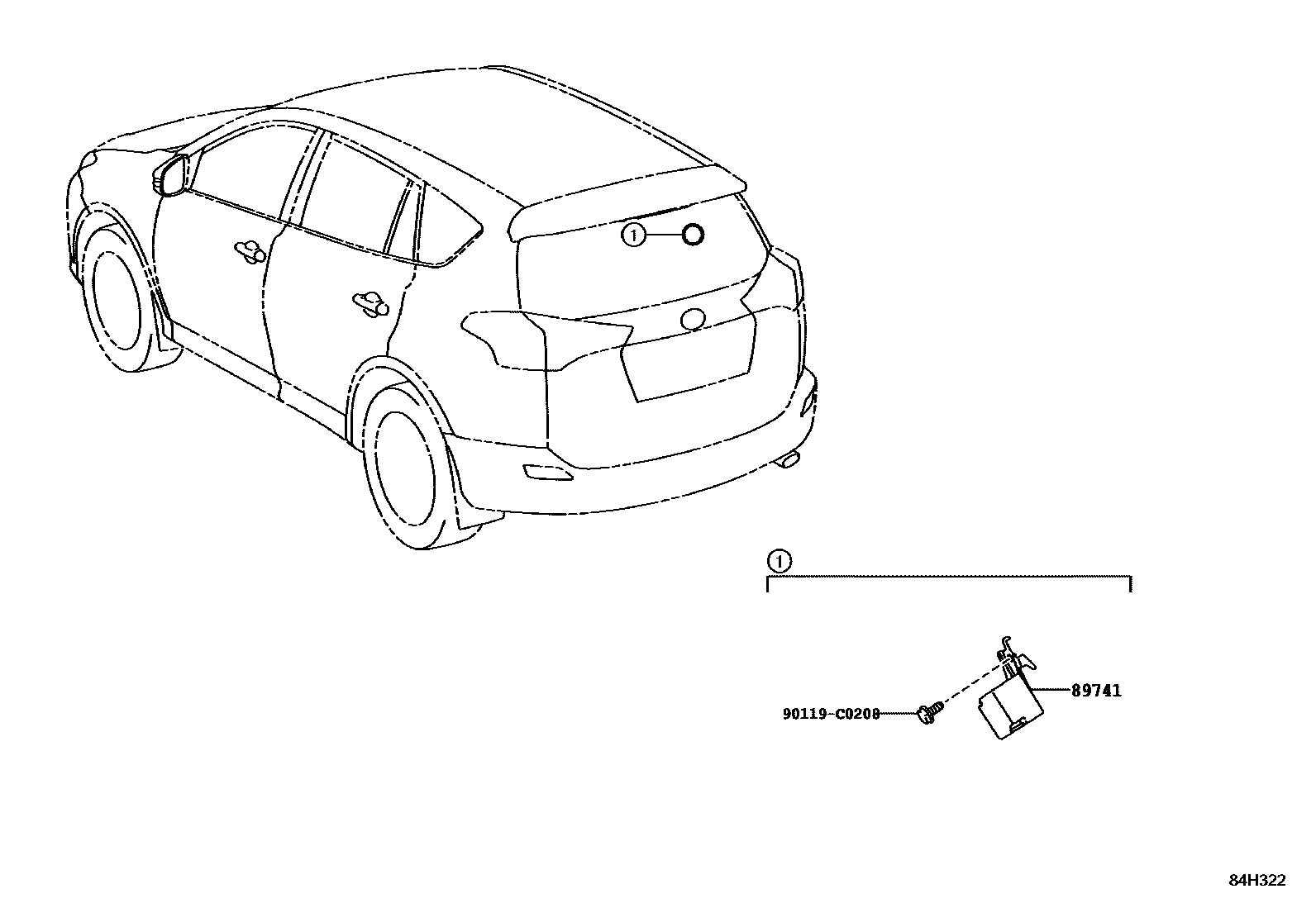

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-0R050 |
| 89741 | door control receiver | 89741-0R040 · 89741-0R041 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 897A0 | Door control and tire pressure detection system receiver assembly | 897A0-0R030 · 897B0-0R030 |
| 89990A | Smart key ECU assembly | 89990-0R030 · 89990-0R031 · 89990-0R050 |
| 89997 | electronic key antenna | 89997-0R040 · 89997-42010 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0N010 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D070 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-0D070 |
