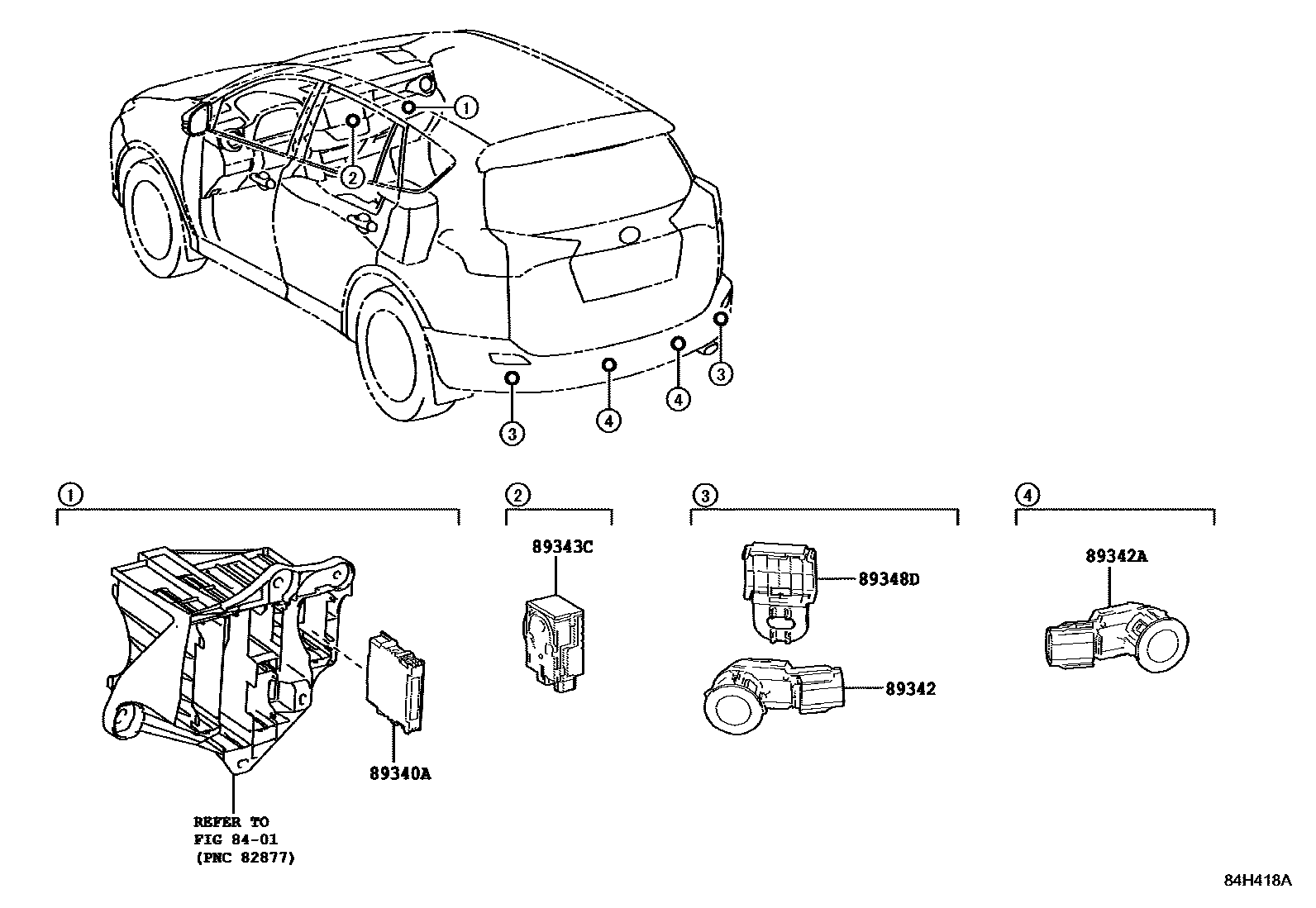

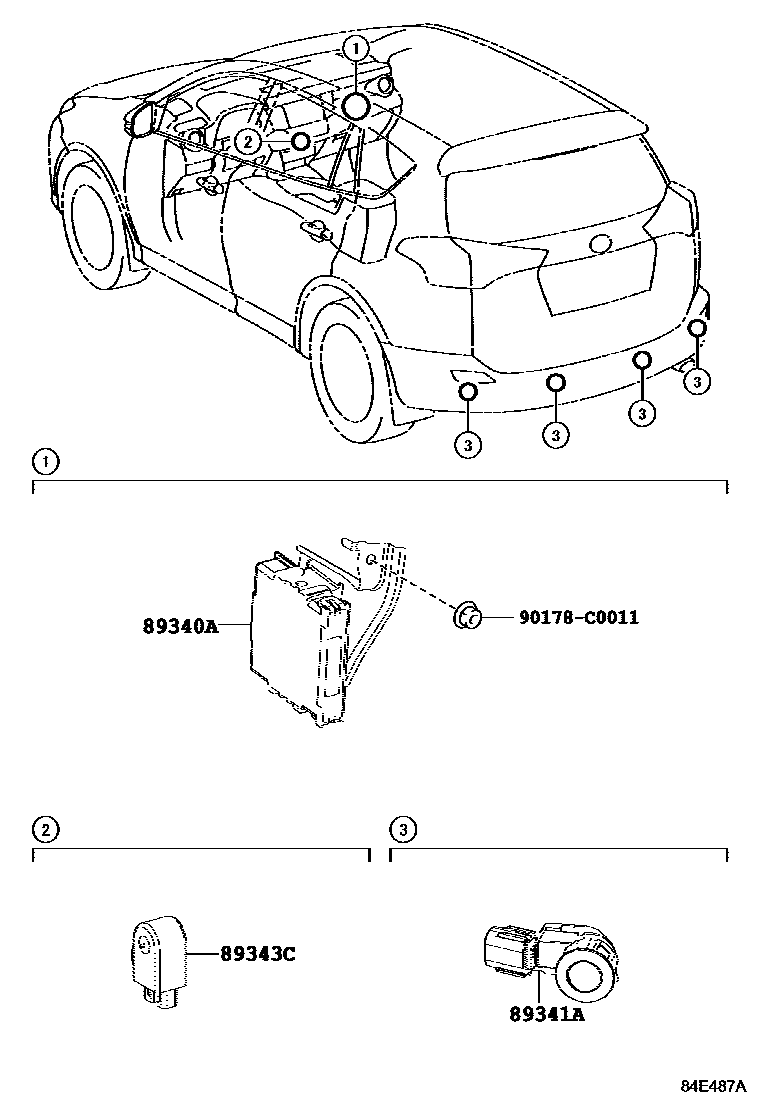

Toyota RAV4 测距雷达和倒车雷达 — Figure 8417
Toyota RAV4 EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89340A | Distance warning ECU assembly | 89340-0R020 · 89340-0R060 |
| 89341A | Ultrasonic sensor No. 1 | 89341-0R020 · 89341-0R021 |
| 89342 | Back corner ultrasonic sensor | 89341-0R022 |
| 89342A | Rear center ultrasonic sensor | 89341-0R022 |
| 89343C | No. 1 distance warning buzzer | 89343-02010 · 89343-0G010 · 89343-72010 |
| 89348D | Ultrasonic sensor clip | 89348-02120 |
