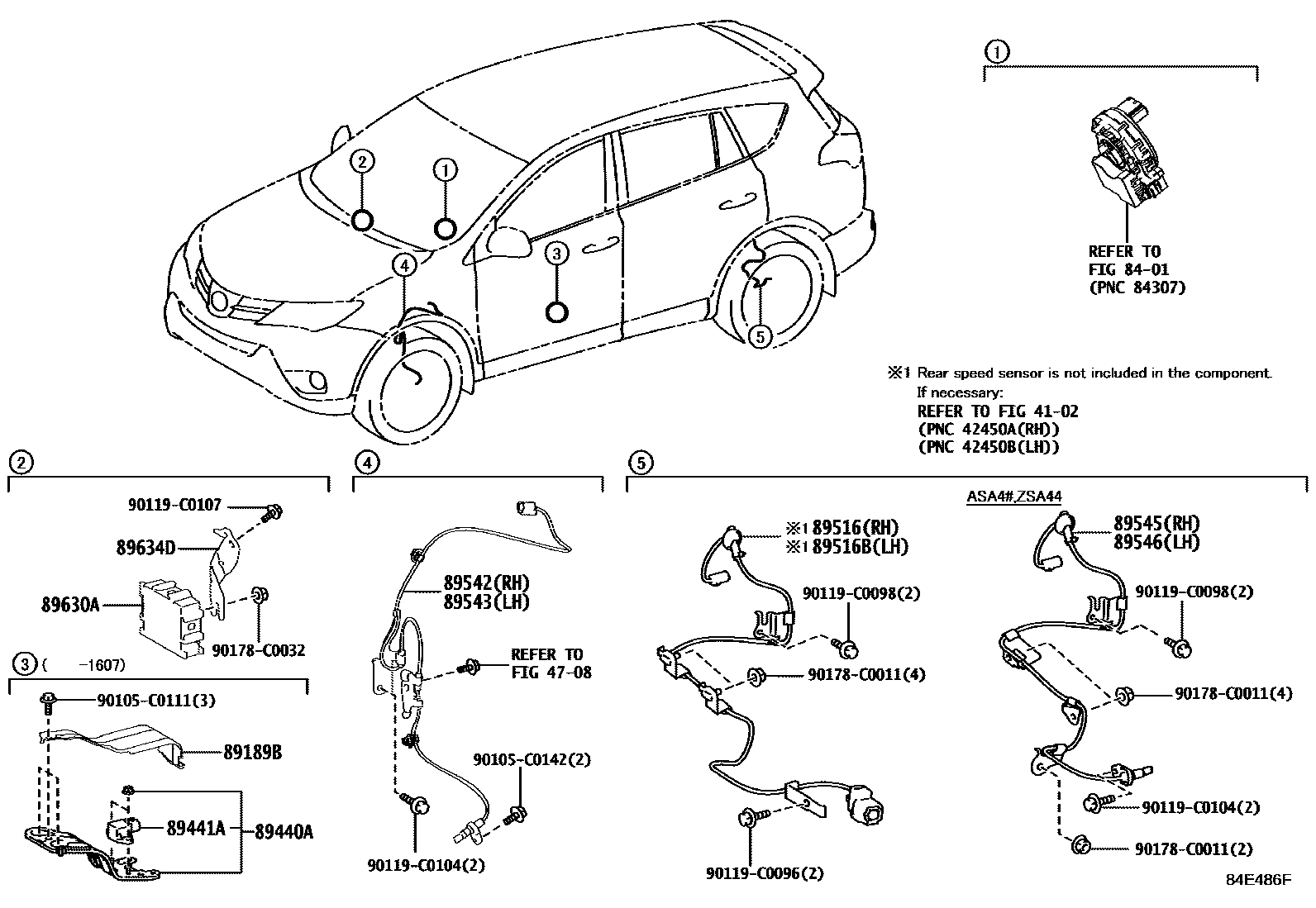

Toyota RAV4 ABS 和 VSC — Figure 8414
Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89189B | Yaw rate sensor bracket | 89189-42020 |
| 89440A | Deceleration sensor assembly | 89440-42070 |
| 89441A | deceleration sensor | 89440-42070 · 89441-12060 |
| 89516 | Anti-skid control sensor wiring harness | 89516-0R070 · 89516-0R110 |
| 89516B | Anti-skid control sensor wiring harness | 89516-0R080 · 89516-0R120 |
| 89542 | Right front wheel speed sensor | 89542-0R020 |
| 89543 | Left front wheel speed sensor | 89543-0R020 |
| 89545 | Right rear wheel speed sensor | 89545-0R020 |
| 89546 | Left rear wheel speed sensor | 89546-0R020 |
| 89630A | Four-wheel drive ECU assembly | 89630-0R020 · 89630-0R040 |
| 89634D | No. 3 anti-skid control ECU bracket | 89634-42020 |
