Toyota RAV4 超速档和电子控制变速器 — Figure 8410

Toyota RAV4 EPC diagram 8410, 超速档和电子控制变速器, with 3 images and 6 PNC and OE references.

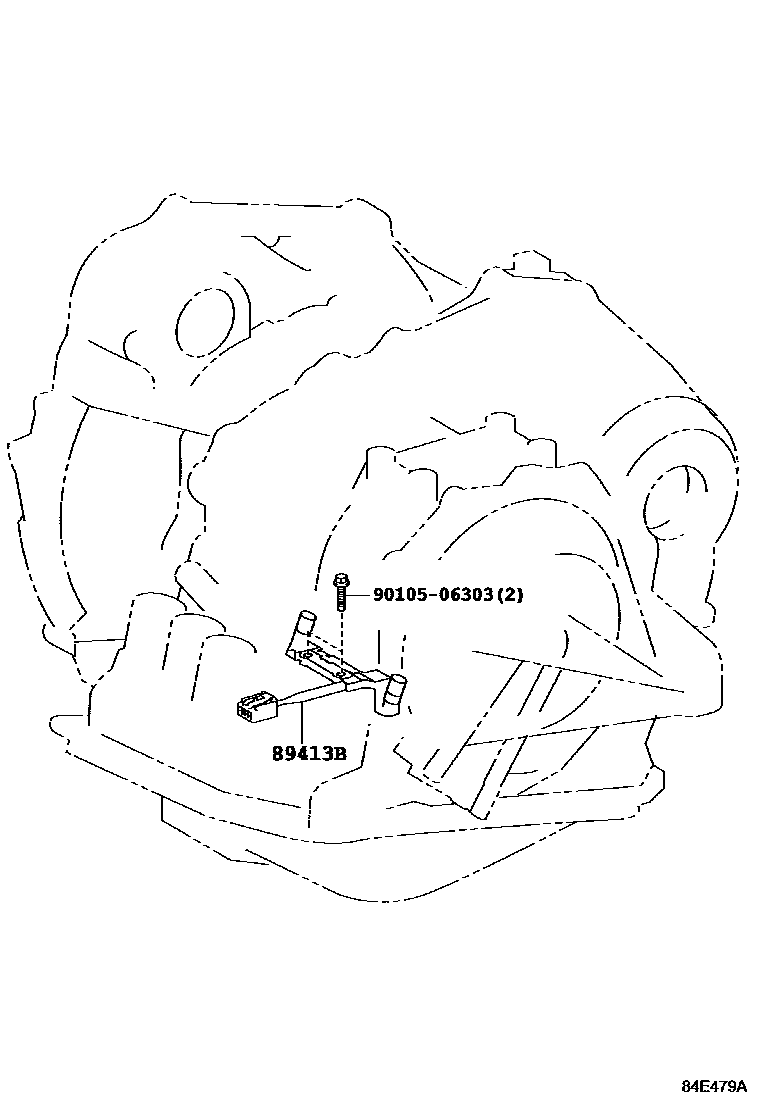

Toyota RAV4 超速档和电子控制变速器 EPC diagram — 84E479A
超速档和电子控制变速器 — 84E479A (201308 – 999999)

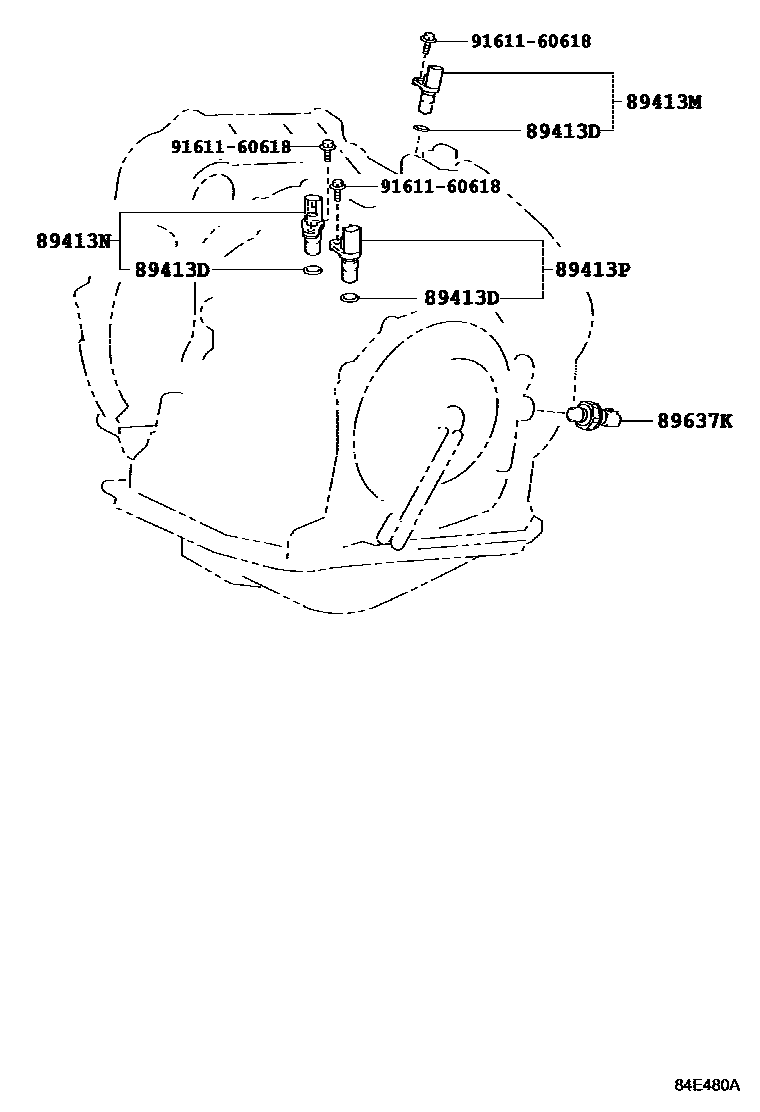

Toyota RAV4 超速档和电子控制变速器 EPC diagram — 84E480A
超速档和电子控制变速器 — 84E480A (201308 – 201607)

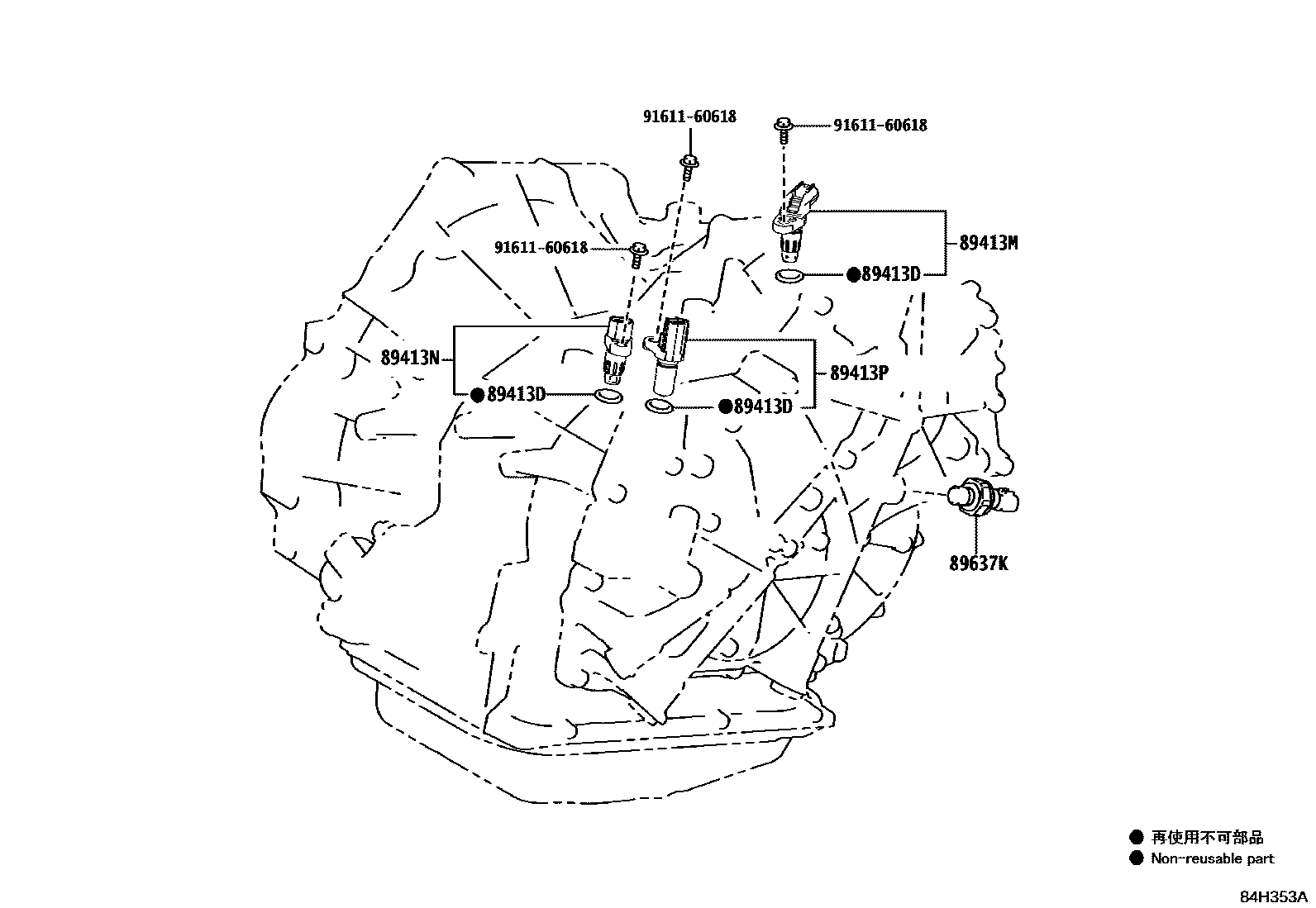

Toyota RAV4 超速档和电子控制变速器 EPC diagram — 84H353A
超速档和电子控制变速器 — 84H353A (201607 – 999999)

PNC and OE references

PNCPart nameOE numbers
89413BTransmission speed sensor89413-73010
89413DO-ring (for transmission speed sensor)90301-11008
89413MTransmission speed sensor (NOUT)89413-12020 · 89413-28010
89413NTransmission speed sensor (NT)89413-28010 · 89413-28011
89413PTransmission speed sensor (NIN)89413-60020 · 89413-60021
89637Koil pressure sensor89637-63010
