Toyota RAV4 巡航控制(自动行驶) — Figure 8408

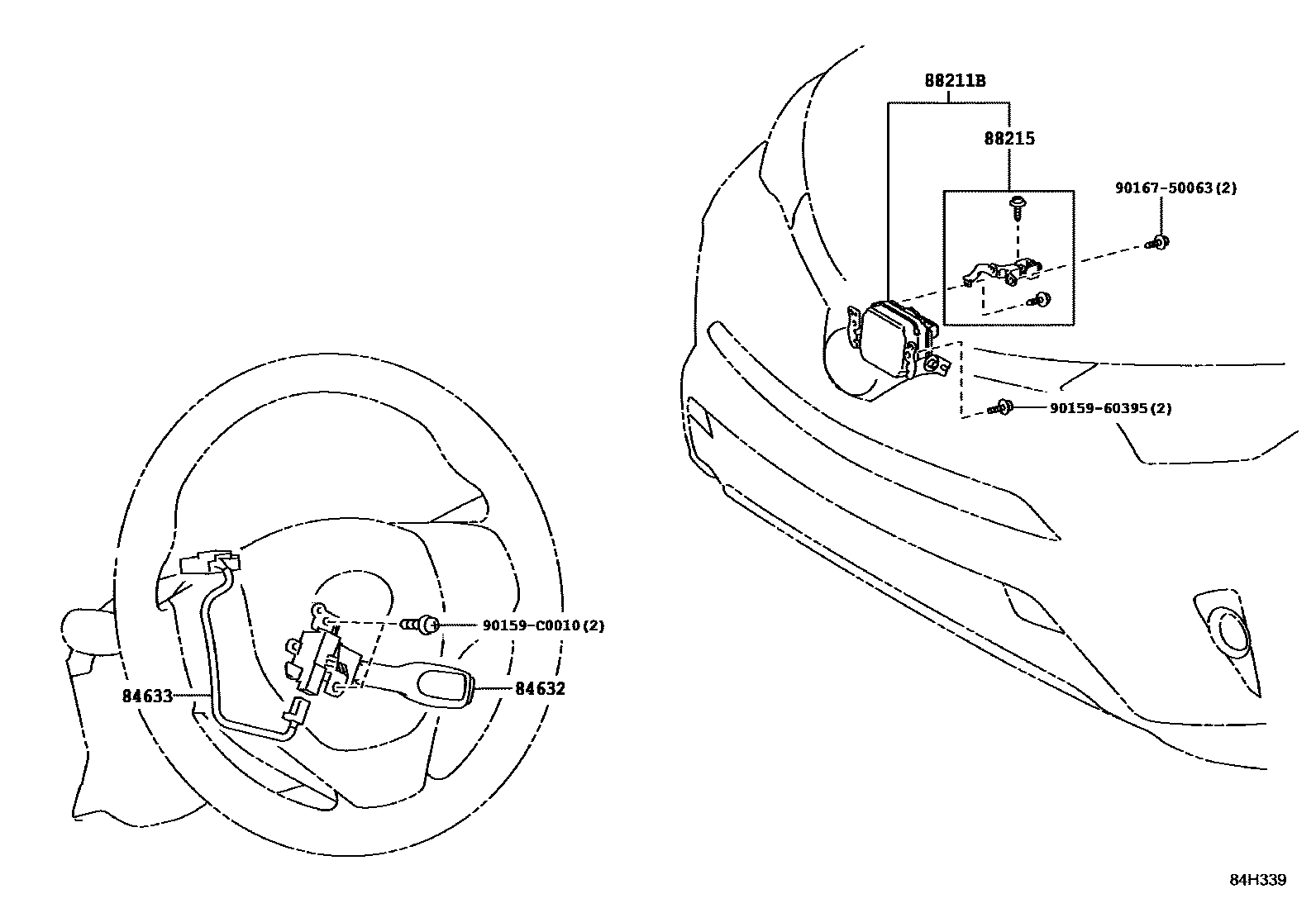

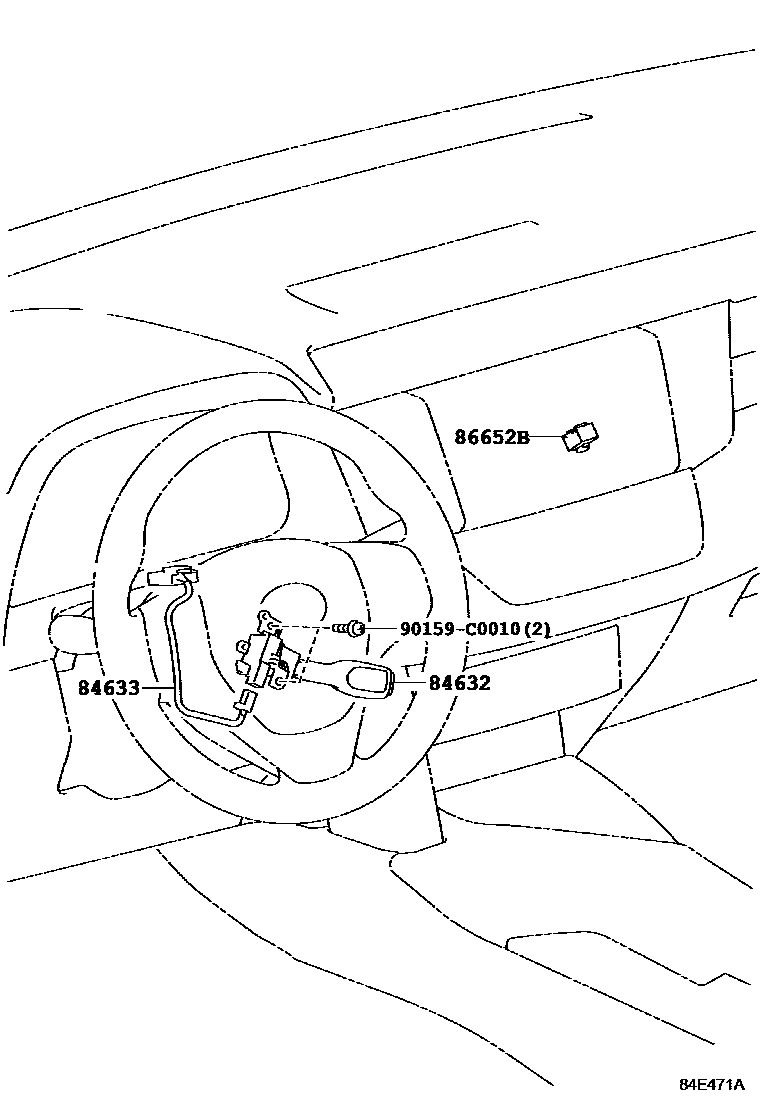

Toyota RAV4 EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84632 | cruise control master switch | 84632-02020 · 84632-0R020 · 84632-34011 |
| 84633 | cruise control switch wiring harness | 84633-02030 · 84633-0R010 · 84633-48020 |
| 86652B | Anti-skid control buzzer | 86652-50010 |
| 88211B | Millimeter wave radar sensor assembly | 88210-47090 |
| 88215 | Millimeter wave radar sensor bracket No. 1 | 88201-60010 |
