Toyota RAV4 电子燃油喷射系统 — Figure 8404

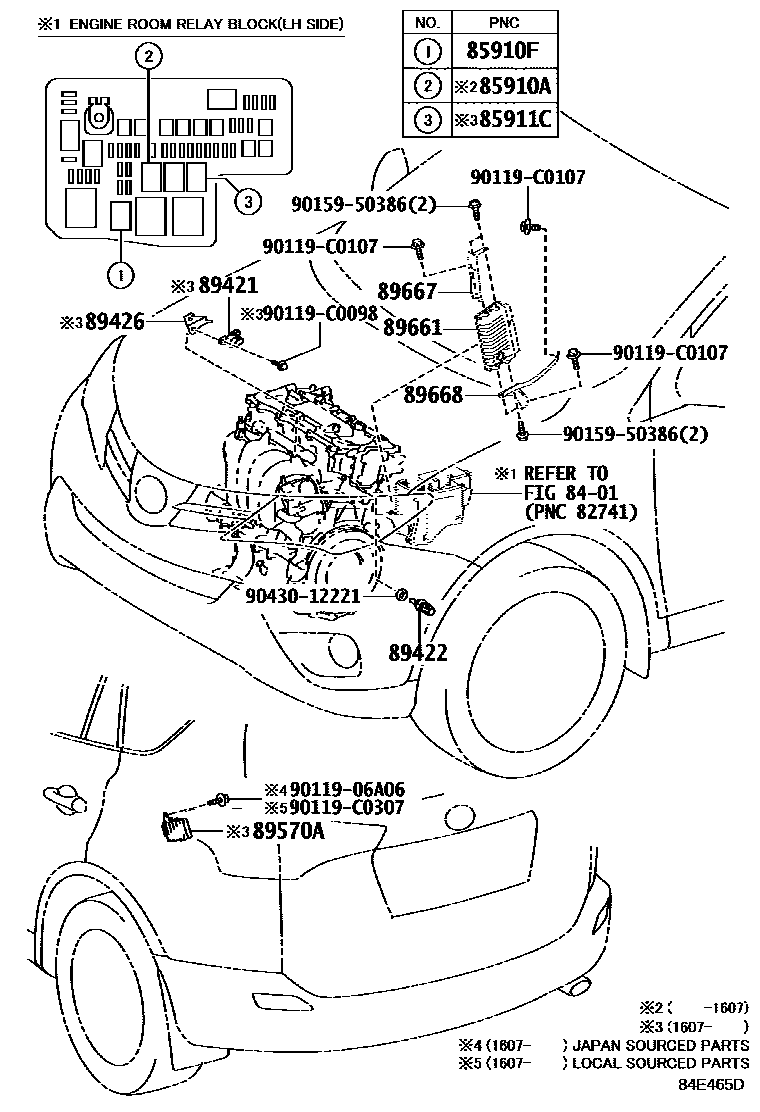

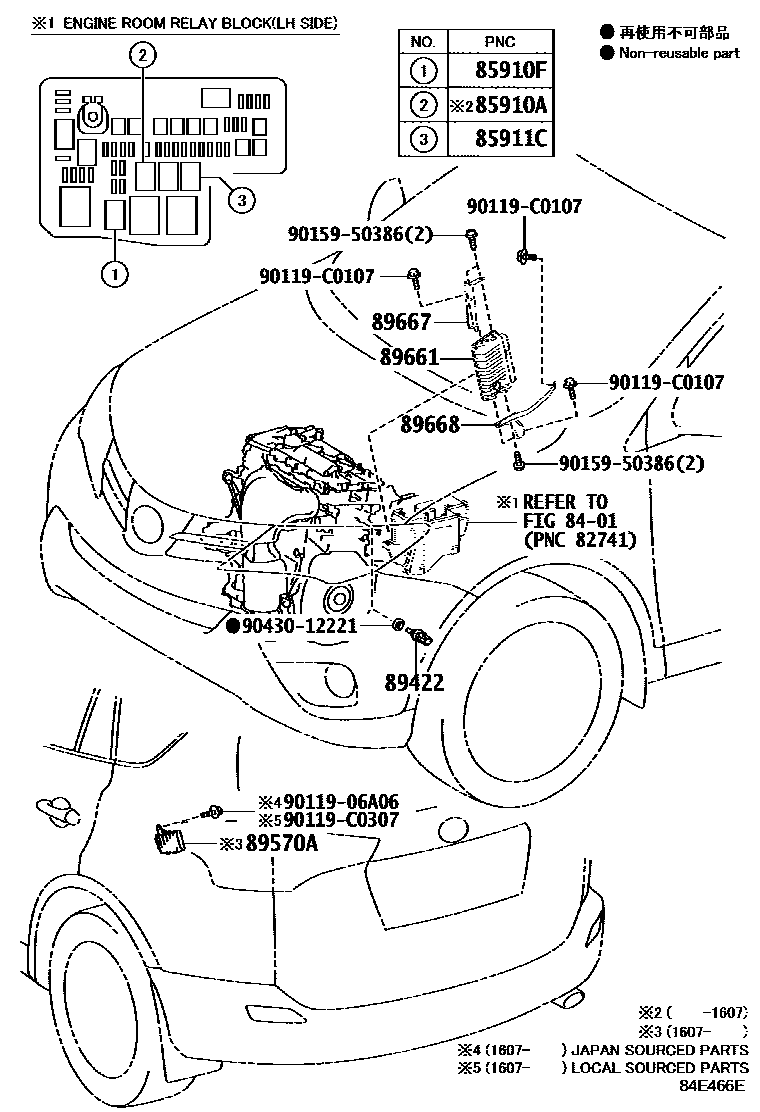

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-T2005 |
| 85910F | ECU relay (for EFI) | 90987-02027 · 90987-T2005 |
| 85911C | EFI2 relay | 90987-02027 · 90987-T2005 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 |
| 89426 | Vacuum sensor holder | 89426-0R010 |
| 89570A | Fuel pump control ECU assembly | 89570-42030 |
| 89661 | Engine control ECU | 89661-0R330 · 89661-0R340 · 89661-0R350 · 89661-0R360 · 89661-0R370 · 89661-0R550 · 89661-0R560 · 89661-0R570 · 89661-0R670 · 89661-0R680 |
| 89667 | Engine control ECU bracket | 89667-0R020 |
| 89668 | No. 2 engine control ECU bracket | 89668-0R020 |
