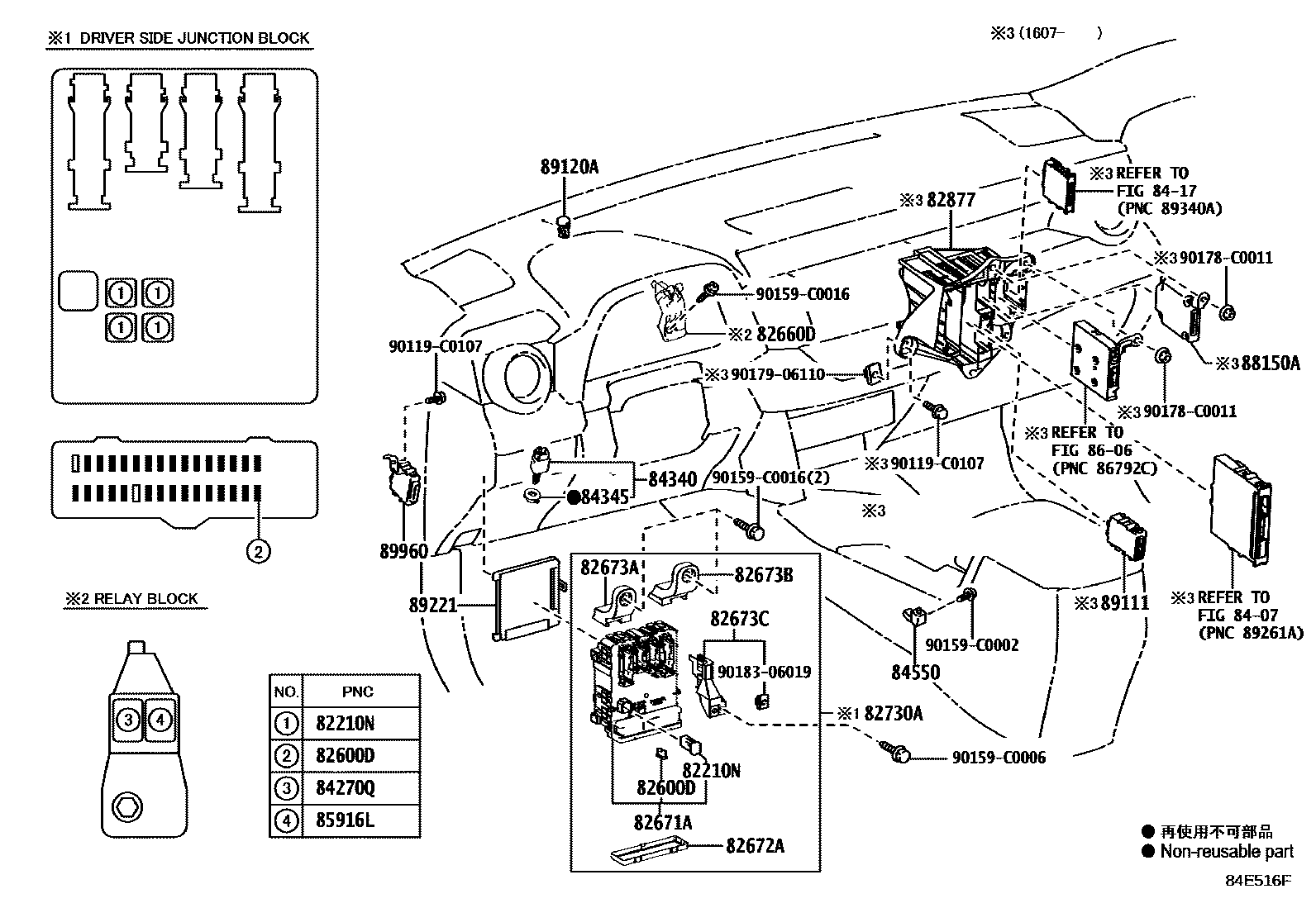

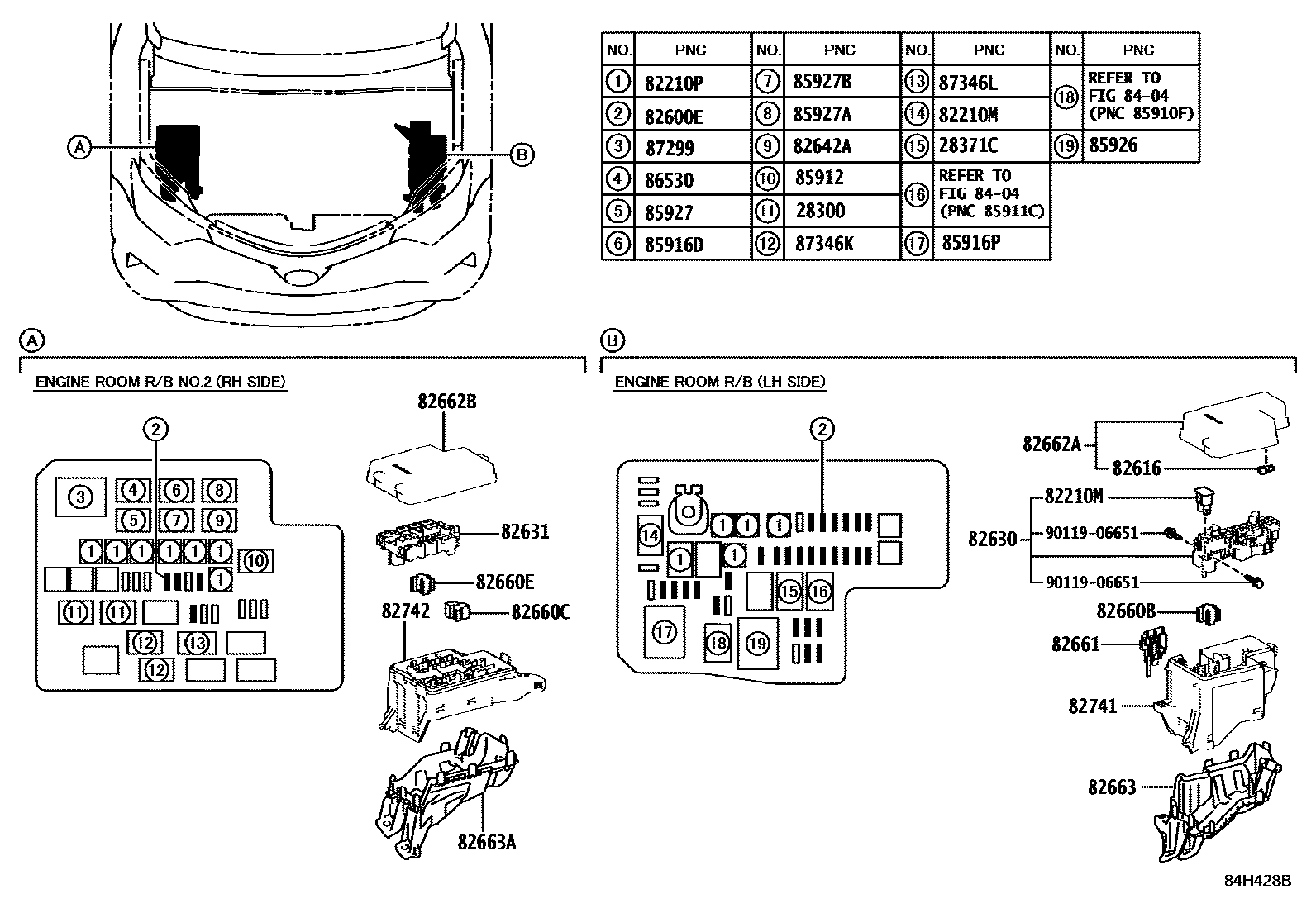

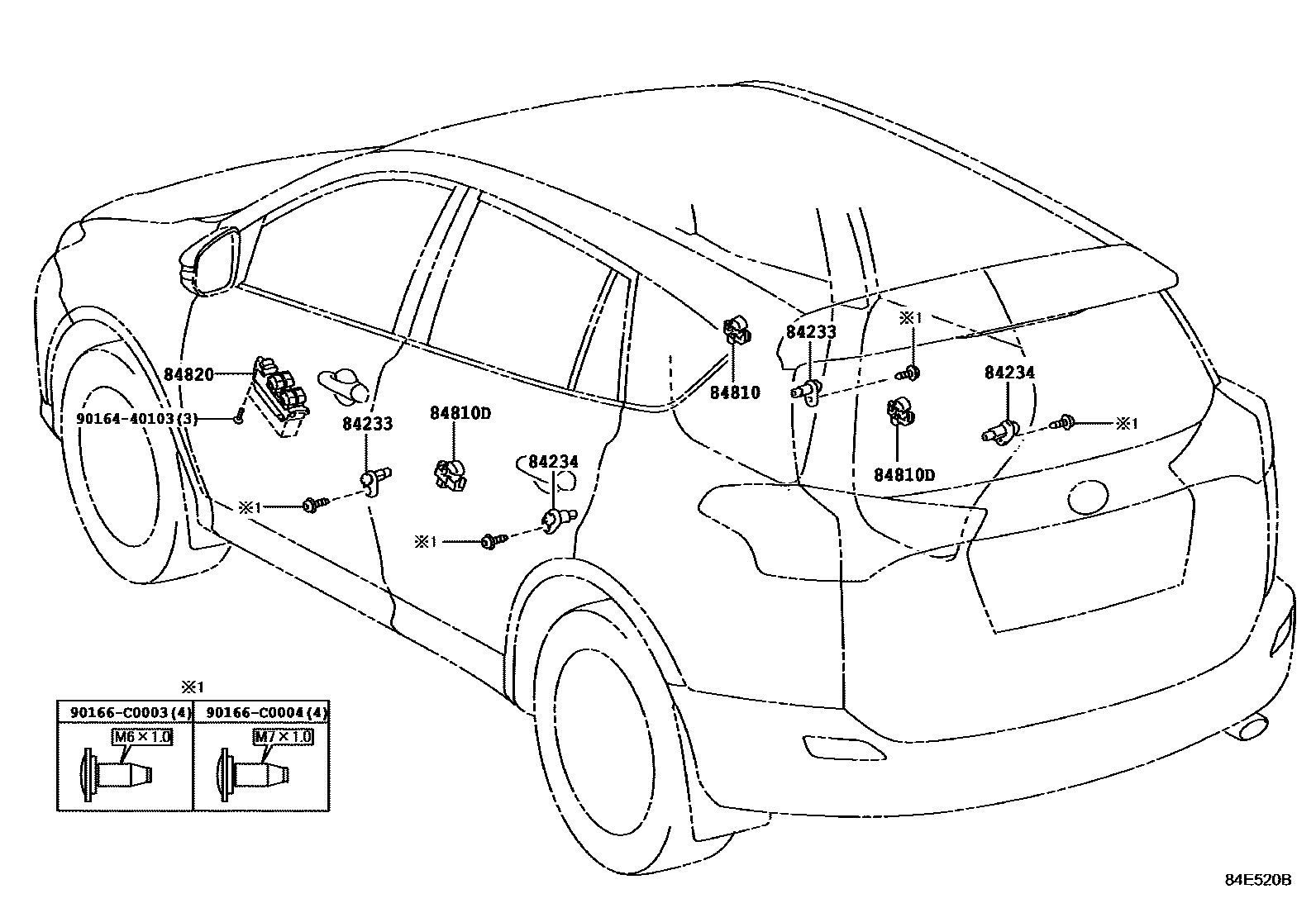

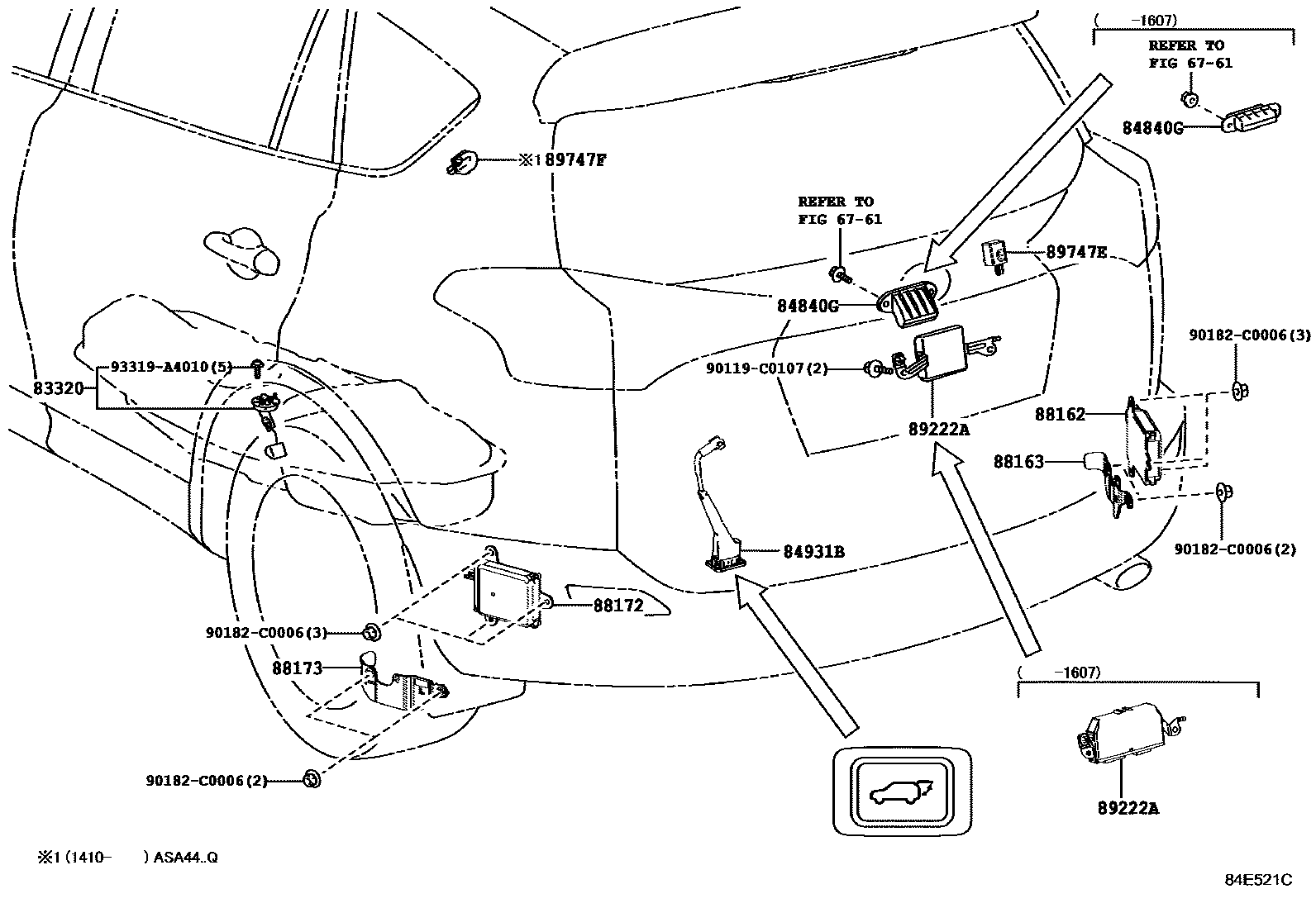

Toyota RAV4 开关和继电器和ECU — Figure 8401
Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 12 images and 109 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-28010 |
| 28371C | No. 2 ignition relay | 90987-02027 · 90987-T2005 |

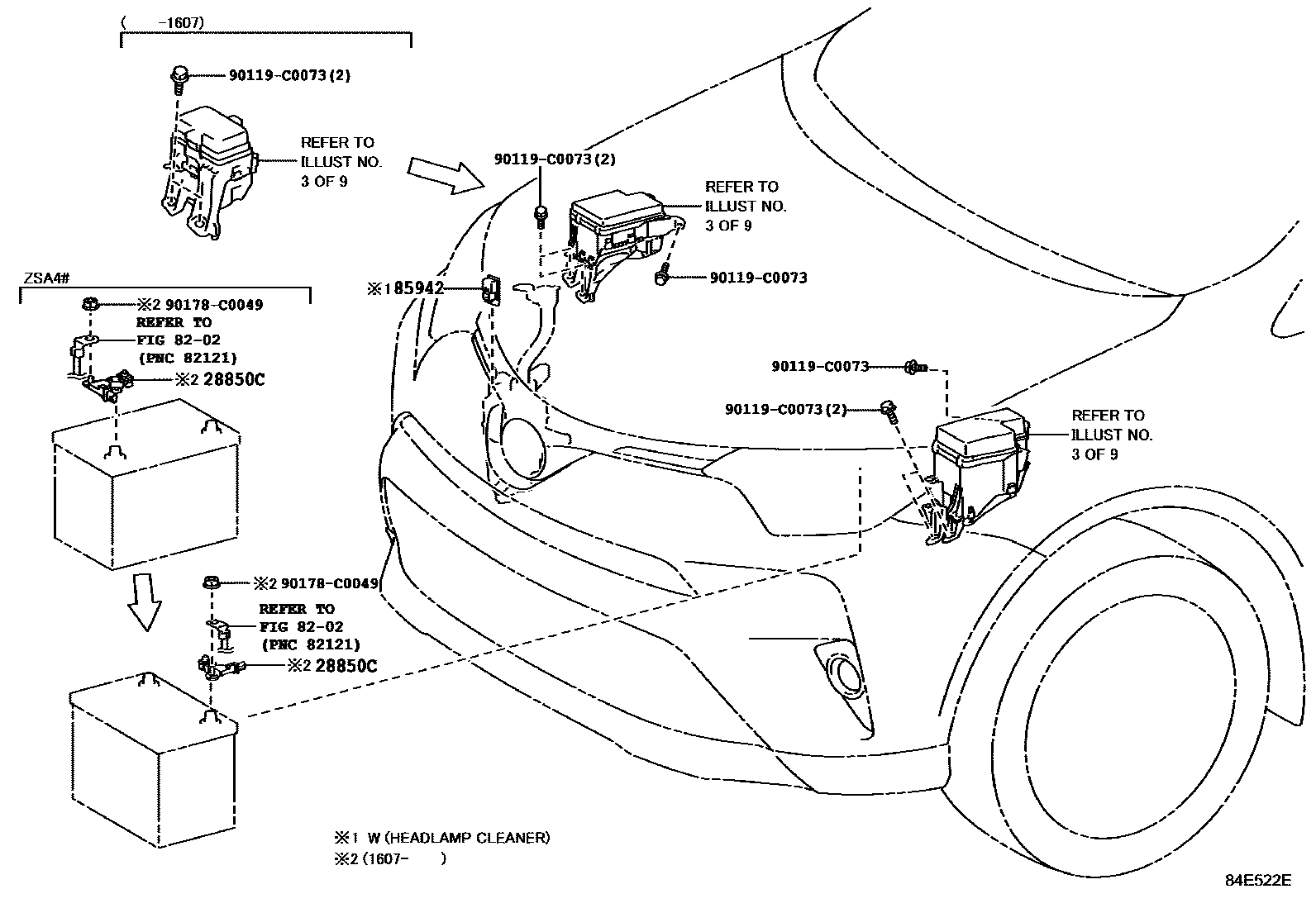

| 28850C | Battery status sensor assembly | 28850-0V020 |
| 82210M | fuse | 90982-08274 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08295 · 90982-08296 · 90982-08305 |
| 82241J | Shorting pin | 82241-42010 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82630-0R010 · 82630-0R020 · 82630-42010 |
| 82631 | fuse holder | 82631-0R040 · 82631-42060 |
| 82642A | driving light relay | 90987-T2005 |
| 82660B | Relay assembly | 82660-0H070 |
| 82660C | Relay assembly | 82660-0R010 · 82660-52010 |
| 82660D | Relay assembly | 82660-0R020 |
| 82660E | Relay assembly | 82660-0H070 |
| 82661 | No. 1 relay box cover | 82661-0R010 |
| 82662A | No. 1 relay box upper cover | 82662-0R100 · 82662-0R110 · 82662-0R170 · 82662-0R200 · 82662-0R210 |
| 82662B | No. 2 relay box upper cover | 82662-0R120 · 82662-0R220 · 82662-0R230 |
| 82663 | Relay box lower cover | 82663-0R030 · 82663-42100 |
| 82663A | No. 2 relay box lower cover | 82663-0R040 · 82663-0R050 · 82663-42110 |
| 82671A | junction box | 82732-0R030 · 82732-0R060 · 82732-0R061 · 82732-0R100 |
| 82672A | Junction box cover | 82672-0R020 · 82672-0R040 |
| 82673A | Junction box bracket | 82673-0R040 |
| 82673B | Junction box bracket | 82673-0R050 |
| 82673C | Junction box bracket | 82673-0R060 |
| 82730A | Driver's side junction box assembly | 82730-0R110 · 82730-0R111 · 82730-0R190 · 82730-0R191 · 82730-0R290 |

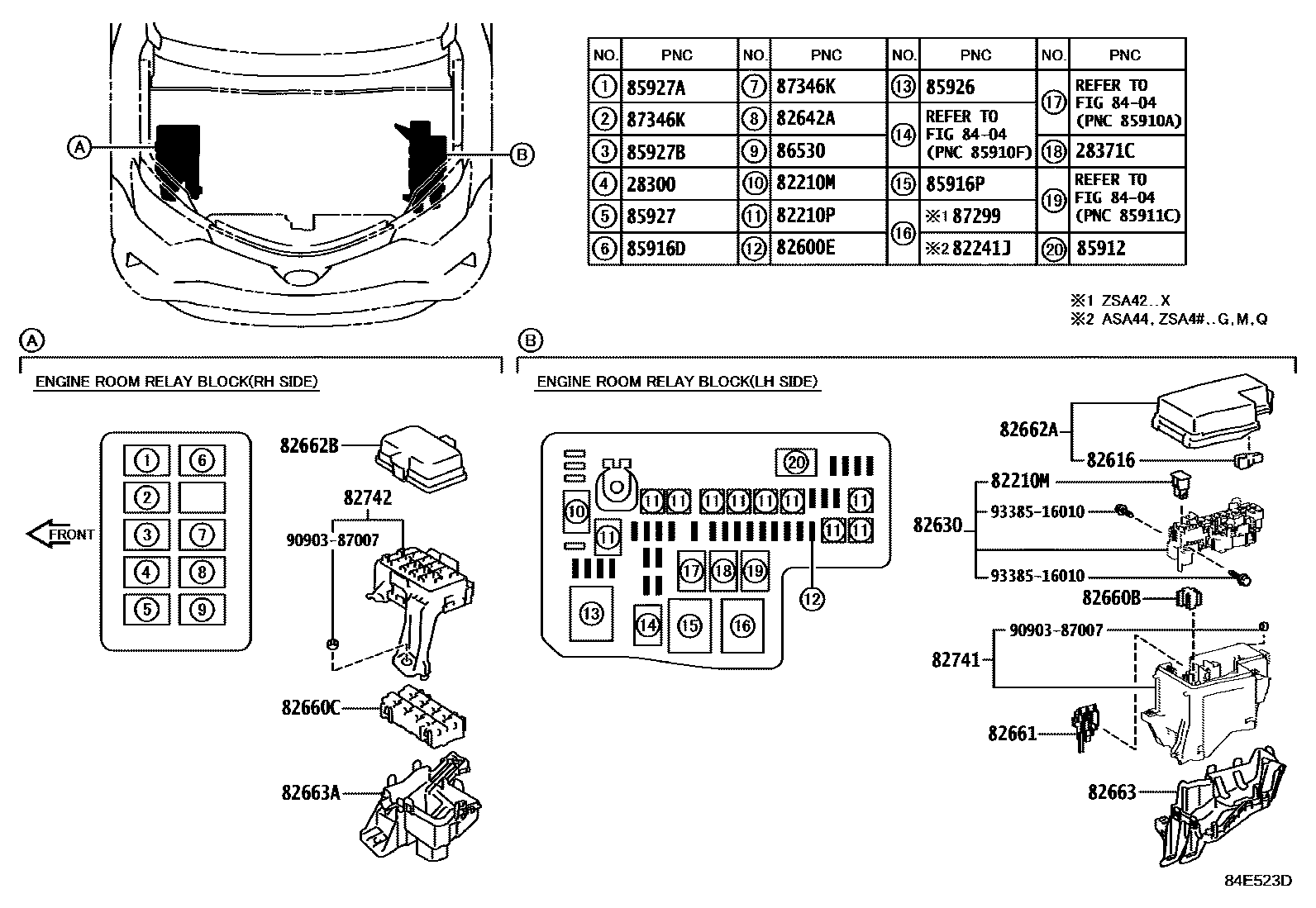

| 82741 | Engine room relay box | 82741-0R010 · 82741-42020 |
| 82742 | Engine room No. 2 relay box | 82741-0R020 · 82741-0R030 · 82741-42031 |
| 82877 | Right ECU integrated box | 82877-0R010 |
| 83320 | Fuel gauge sensor assembly | 83320-09150 |

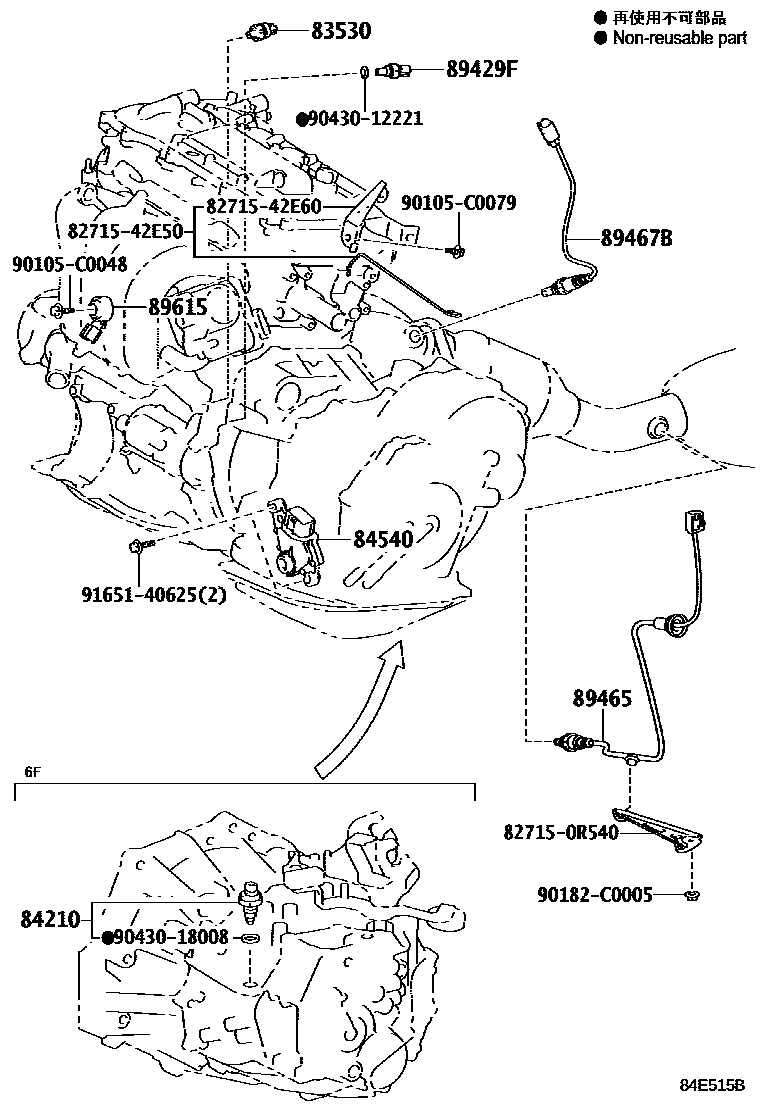

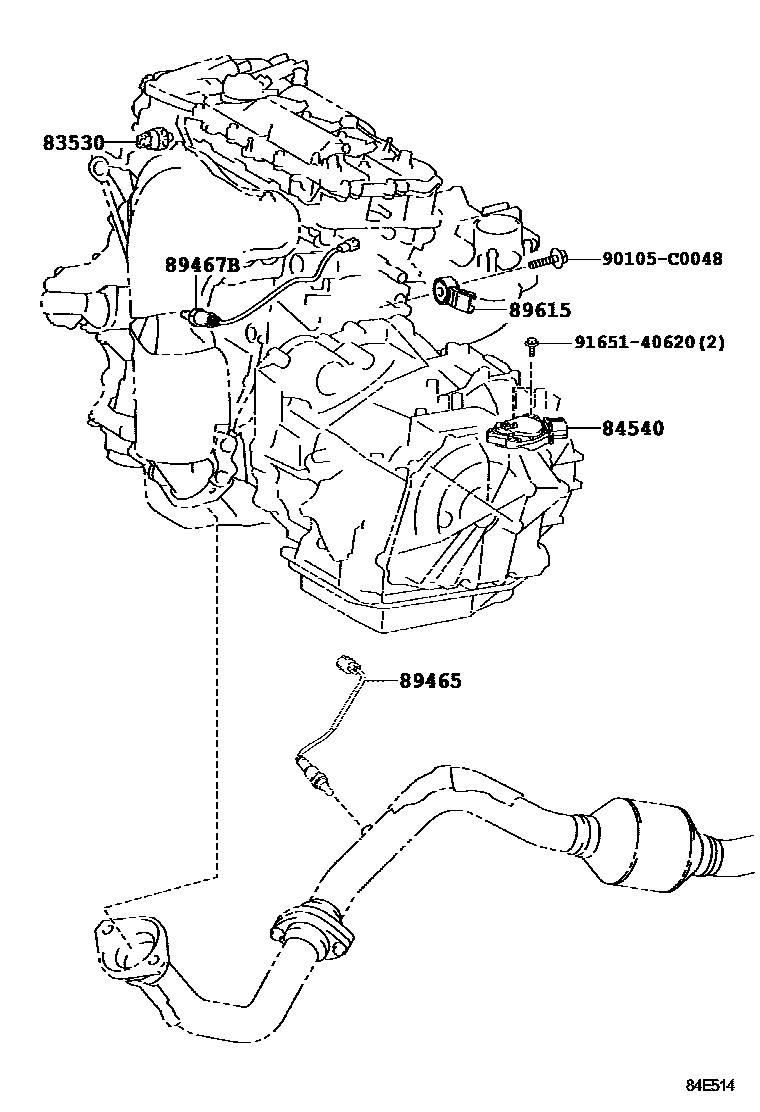

| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83950M | Warning light assembly | 83950-0R060 · 83950-0R070 · 83950-0R080 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-0R070 · 84140-0R071 · 84140-0R080 · 84140-0R081 |
| 84152 | Headlight beam height adjustment switch | 84152-0R030 · 84152-0R031 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0R010 |
| 84270Q | headlight relay | 90987-T2005 |

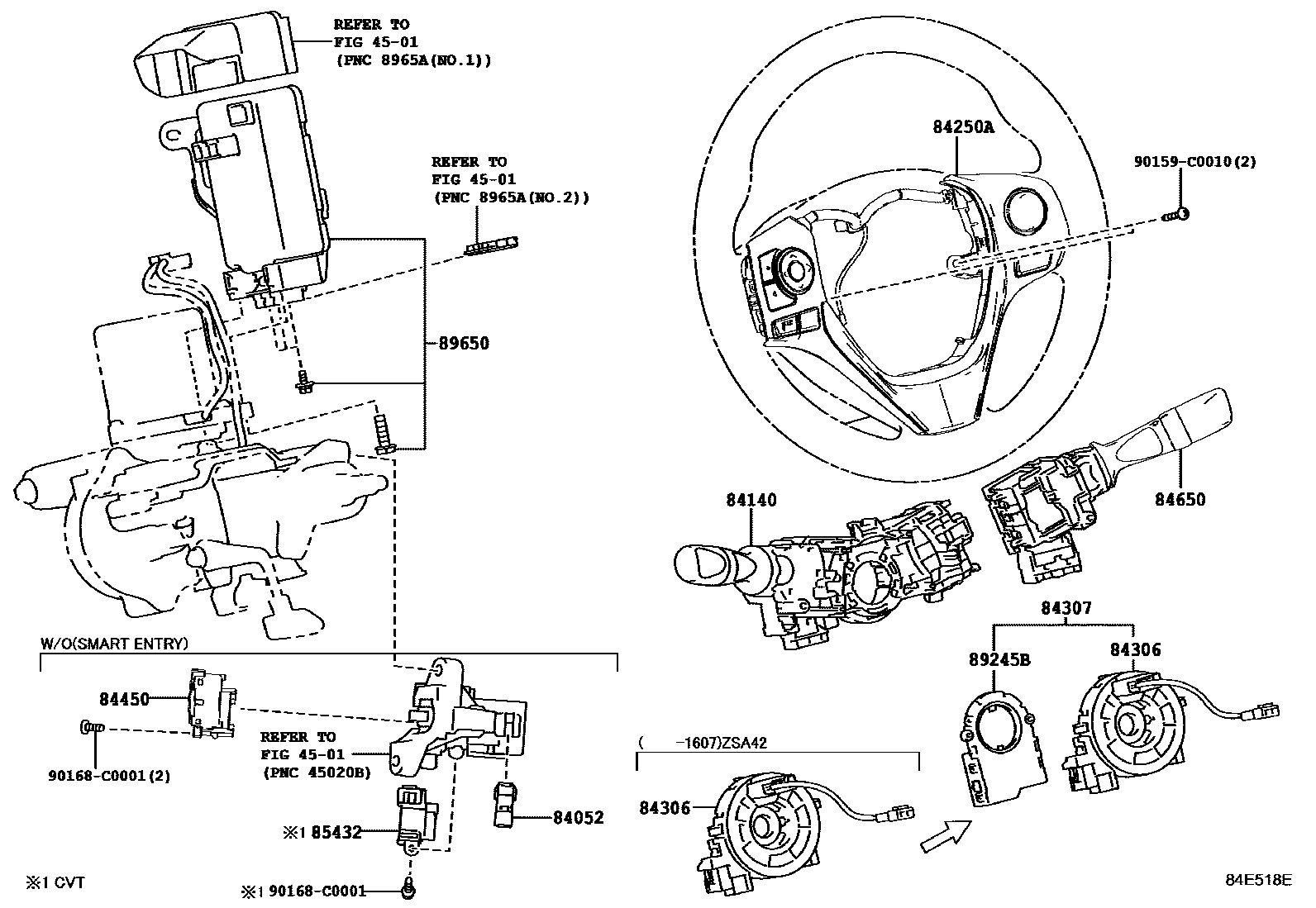

| 84306 | Spiral cable sub-assembly | 84306-06180 · 84308-02020 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-0R060 |
| 84340 | brake light switch assembly | 84340-09110 · 84340-09120 |
| 84345 | Brake light switch base adjuster | 84345-0R010 |
| 84450 | Ignition or starter switch assembly | 84450-0R020 |
| 84470 | Warning release switch assembly | 84470-0R020 · 84470-0R021 |
| 84470A | Economic operation cancel switch assembly | 84470-0R030 |
| 84540 | Neutral start switch assembly | 84540-28030 · 84540-33010 · 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-02050 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-0R070 · 84652-0R071 · 84652-0R080 · 84652-0R081 |

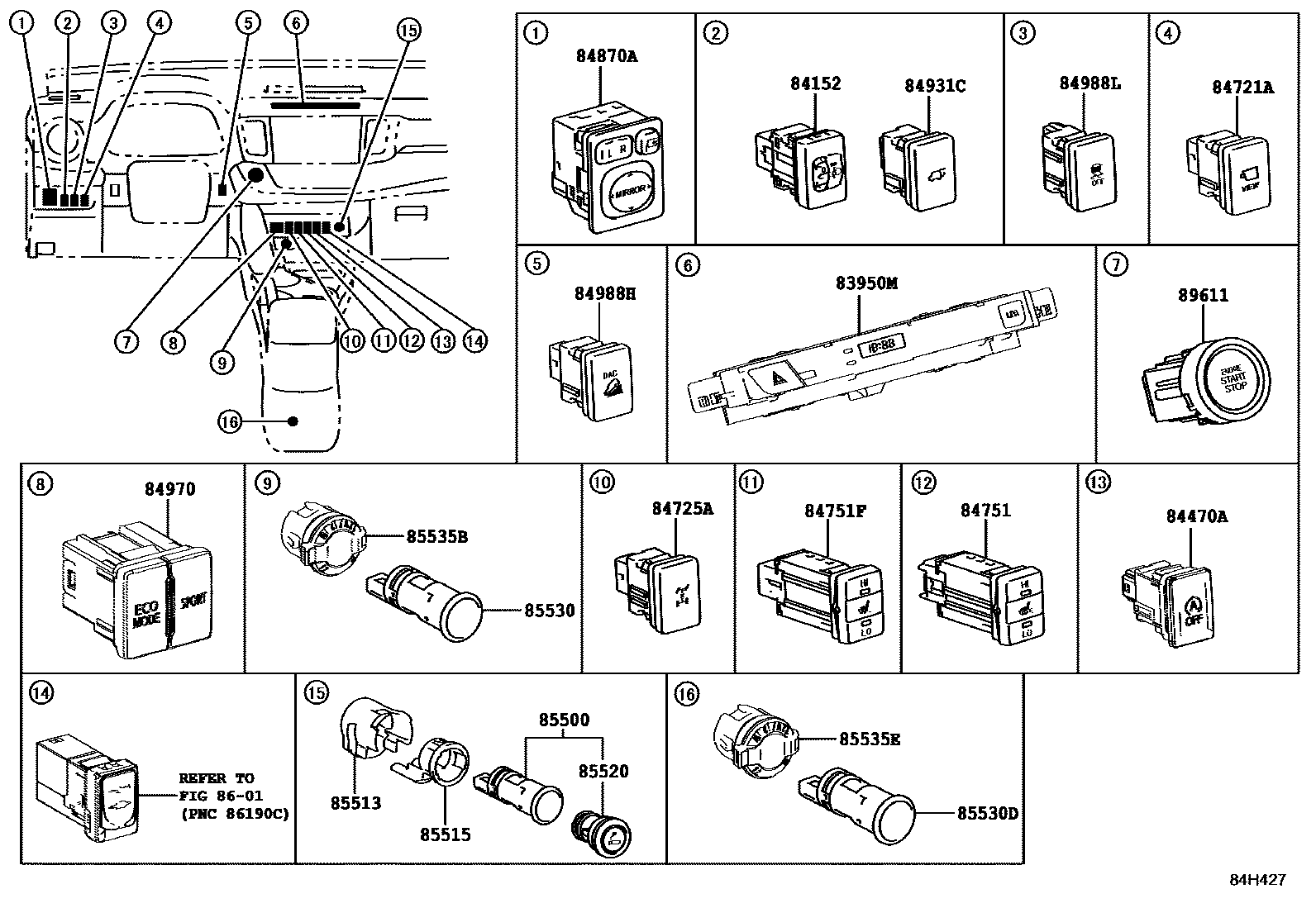

| 84721A | Front blind spot monitoring system switch | 84721-0R010 |
| 84725A | Differential lock switch | 84725-0R010 · 84725-0R011 |
| 84740B | Air purifier switch assembly | 84740-0R020 · 84740-0R021 |
| 84751 | Seat heater switch | 84751-0R040 · 84751-0R041 · 84751-0R042 |
| 84751F | Seat heater switch | 84751-0R050 · 84751-0R051 · 84751-0R052 |
| 84810 | Electric window lift switch assembly | 84810-0D080 |
| 84810D | Rear electric window lift switch assembly | 84810-0D080 |
| 84820 | Electric window lift main switch assembly | 84820-0R050 |
| 84840G | Back door opener switch assembly | 84840-06030 · 84840-28040 · 84840-42030 · 84840-42040 |

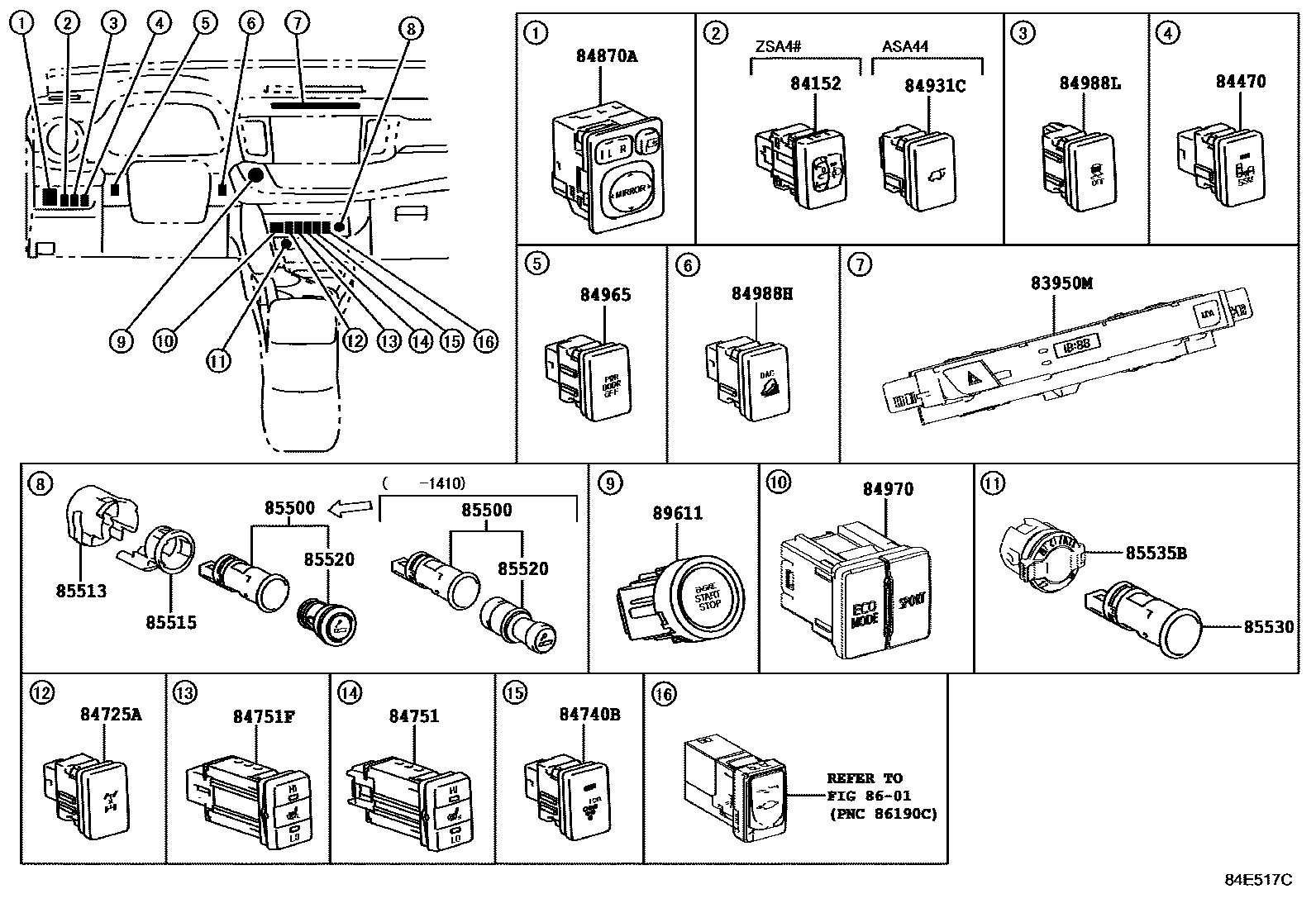

| 84870A | Exterior rearview mirror switch assembly | 84870-0D050 · 84870-0D080 |

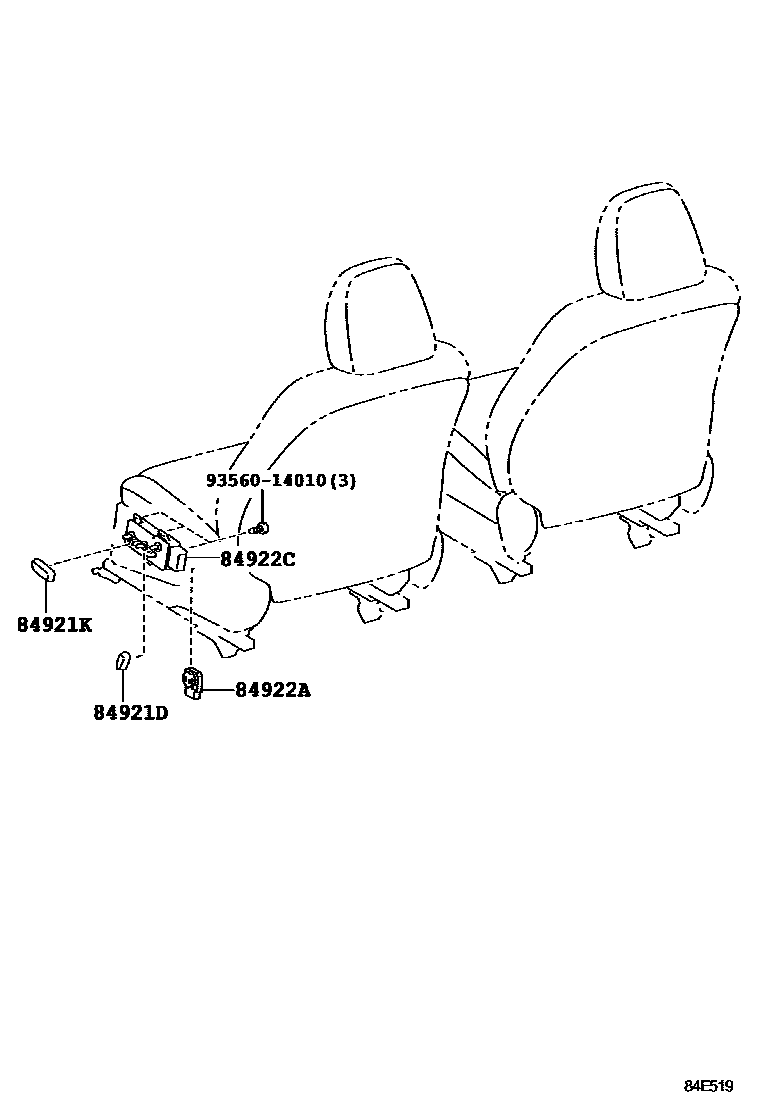

| 84922C | Front left electric seat switch | 84922-0P030 |
| 84931B | door control switch | 84930-0R040 |
| 84931C | Back door control switch | 84930-0R030 · 84930-0R031 |
| 84965 | Electric back door main switch | 84962-0R030 · 84962-0R031 |
| 84970 | Combination switch assembly | 84970-0R020 |
| 84988H | Downhill assist control switch | 84988-0R080 · 84988-0R081 |
| 84988L | VSC off switch | 84988-0R090 · 84988-0R091 |
| 85432 | Key interlock solenoid valve | 85432-06020 |
| 85500 | Cigarette lighter assembly | 85500-26040 · 85500-50090 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-0R020 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 · 85520-30200 |
| 85530 | No. 1 power socket assembly | 85530-0N010 |
| 85530D | No. 2 power socket assembly | 85530-0N010 |
| 85535B | No. 1 power outlet cover | 85535-0R050 |
| 85535E | No. 2 power outlet cover | 85535-0R060 |
| 85912 | defogger relay | 90987-02027 |
| 85916D | fog light relay | 90987-T2005 |
| 85916L | Rear fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2004 |
| 85926 | Headlight dimmer relay | 90987-T2004 |
| 85927 | cooling fan relay | 90987-02027 · 90987-T2005 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 · 90987-T4001 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 · 90987-T2005 |
| 85942 | Headlight washer control relay | 85942-02060 |
| 86530 | Speaker relay assembly | 90987-T2005 |
| 87299 | heater relay | 90987-T4002 |
| 87346K | PTC heater relay | 90987-T2005 |
| 87346L | PTC heater relay | 90987-T2004 |
| 88150A | Driving assistance ECU assembly | 88150-42061 |
| 88162 | Blind spot monitor right sensor | 88162-0W090 · 88162-0W310 · 88162-0W311 · 88162-0W420 · 88162-42080 · 88162-42081 |
| 88163 | Blind spot monitor right side cover | 88163-0R020 |
| 88172 | Blind spot monitor left sensor | 88162-0W090 · 88162-0W310 · 88162-0W311 · 88162-0W420 · 88162-42080 · 88162-42081 |
| 88173 | Blind spot monitor left cover | 88173-0R020 |
| 89111 | Network gateway ECU | 89111-42021 |
| 89120A | Automatic light control sensor | 89121-0E030 · 89121-50020 |
| 89221 | Multi-channel network body ECU | 89220-0R100 · 89220-0R110 · 89220-0R120 · 89220-0R130 · 89220-0R380 · 89220-0R390 |
| 89222A | Multi-channel network door ECU | 89222-0R050 · 89222-0R070 · 89222-42020 · 89222-42030 · 89222-42070 |
| 89245B | steering sensor | 89245-09050 · 8924B-0R010 |
| 89429F | temperature sensor | 89429-12010 |
| 89465 | oxygen sensor | 89465-0R050 · 89465-0R060 · 89465-0R070 · 89467-0R090 |
| 89467B | air fuel ratio sensor | 89467-0R030 · 89467-0R060 · 89467-0R070 · 89467-0R080 · 89467-42180 |
| 89611 | One-button start switch | 89611-0R010 · 89611-0R011 · 89611-0R012 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-0R050 · 89650-0R080 |
| 89747E | Electric back door warning buzzer | 89747-30040 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-42140 · 89960-42170 · 89960-42300 |
