Toyota RAV4 仪表 — Figure 8301

Toyota RAV4 EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.

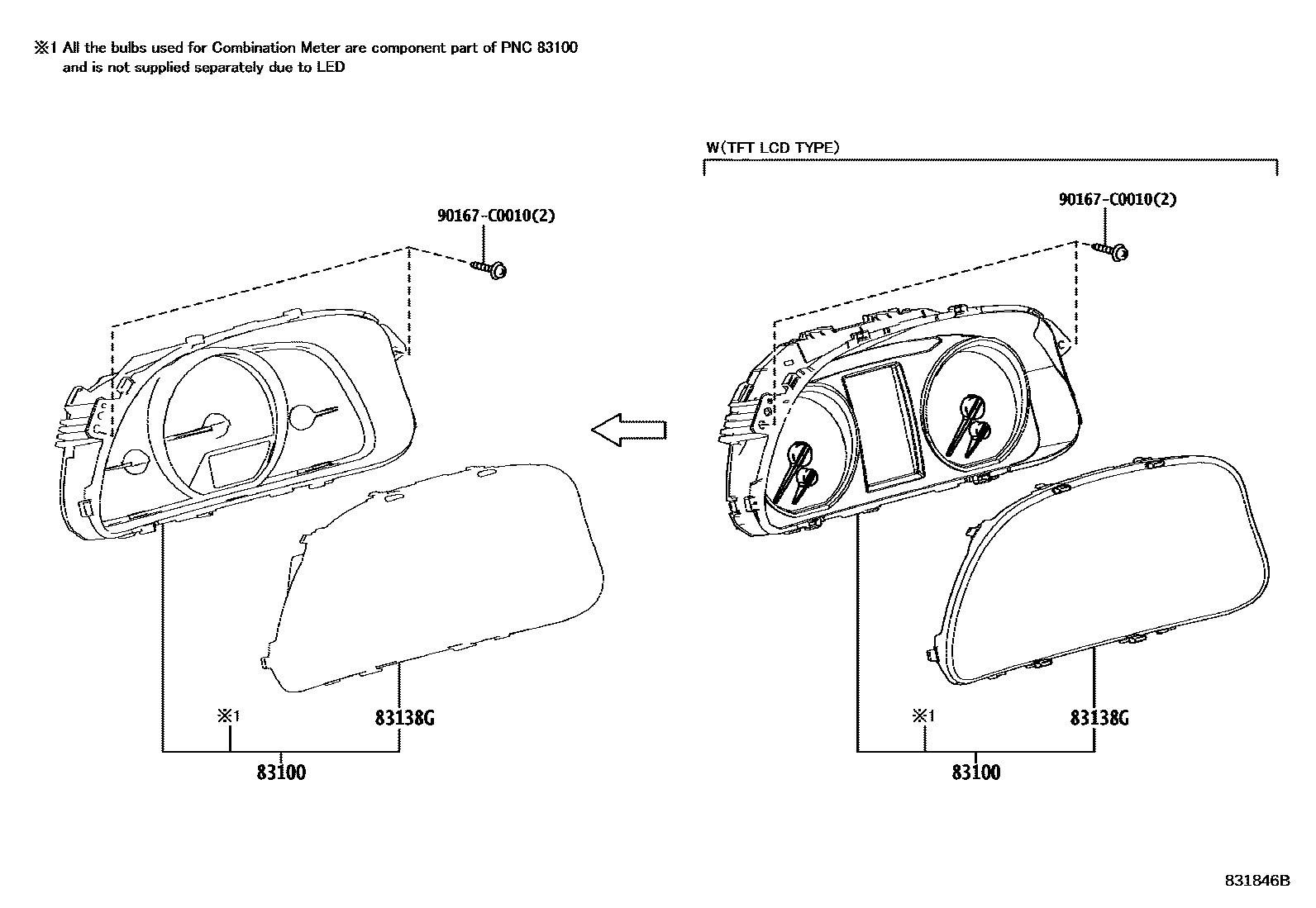

Toyota RAV4 仪表 EPC diagram — 831846B
仪表 — 831846B (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-0R170 · 83800-0R180 · 83800-0R200 · 83800-0R280 · 83800-0R300 · 83800-0R640 · 83800-0R650 · 83800-0R680
83138GInstrument cluster glass83852-0R170 · 83852-0R180 · 83852-0R300
