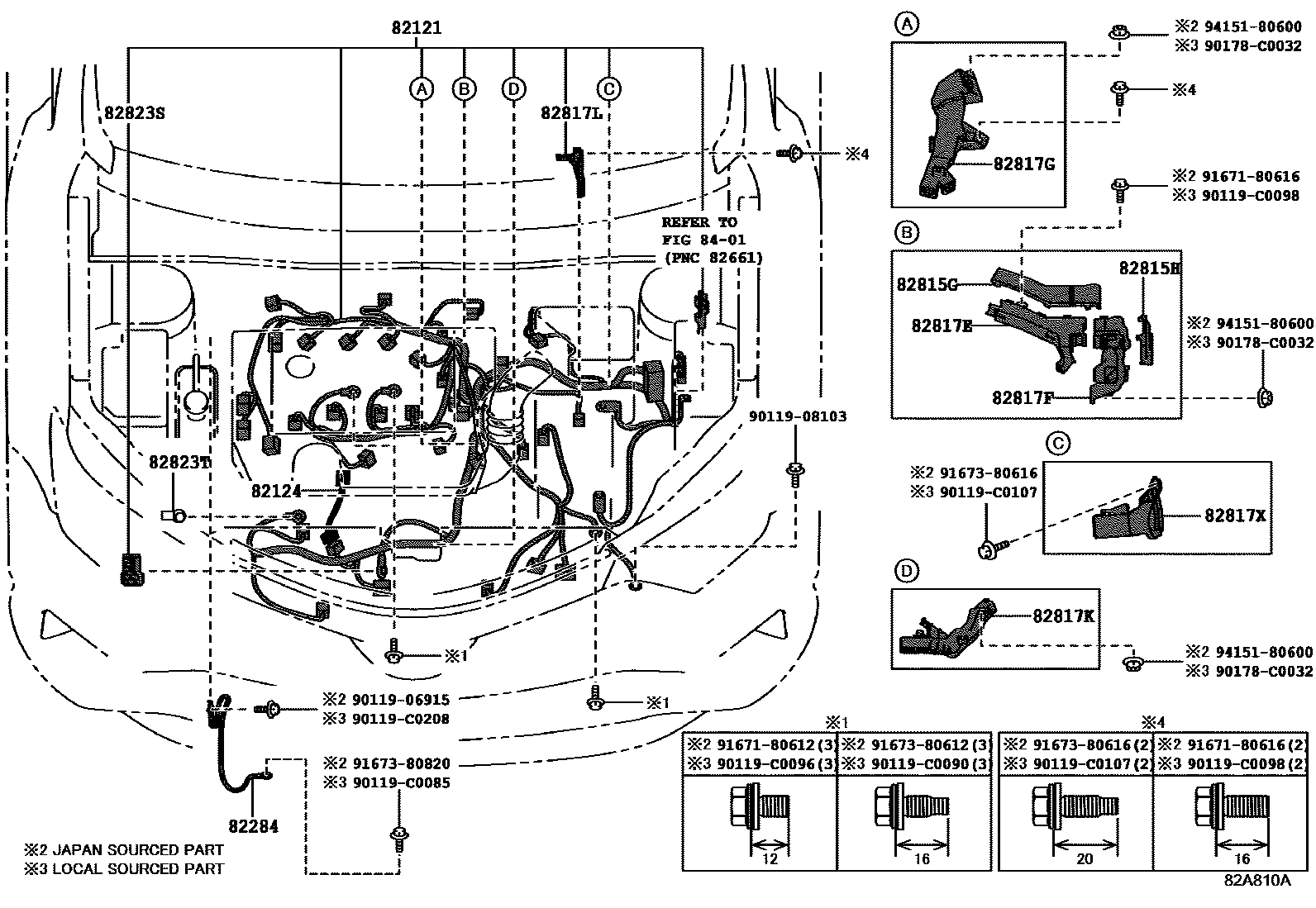

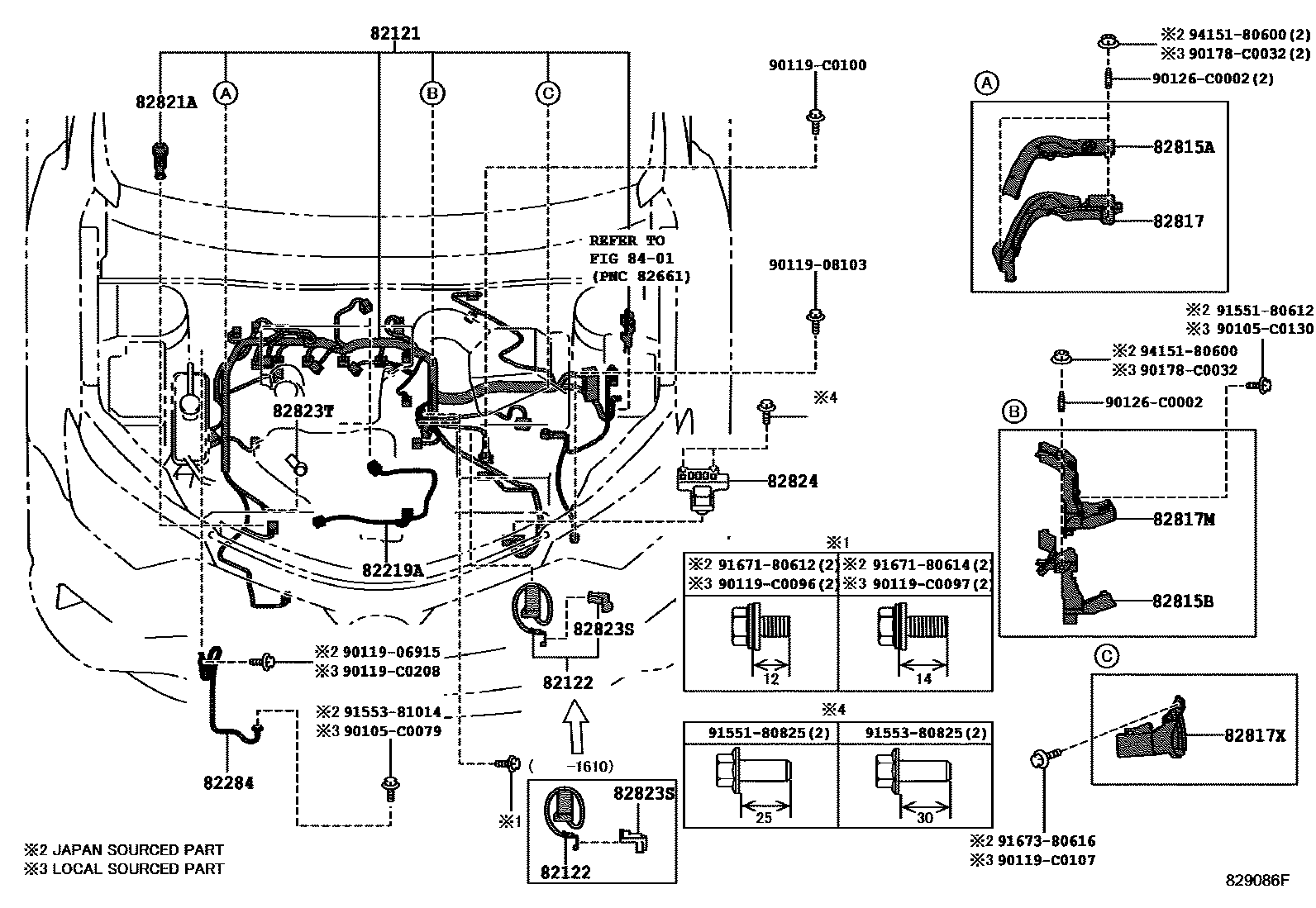

Toyota RAV4 线束和卡夹 — Figure 8202
Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 13 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

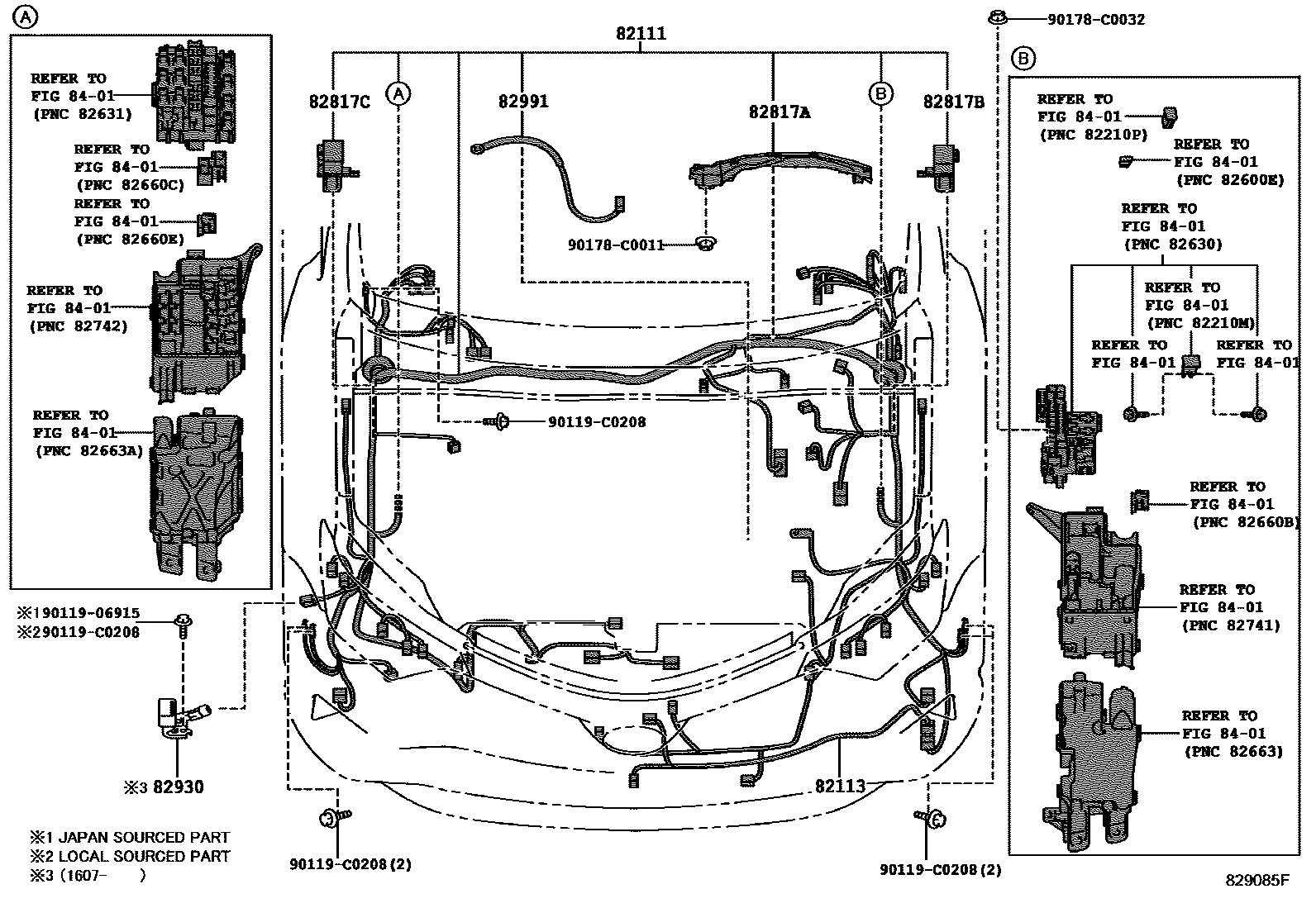

| 82111 | Engine room main wiring harness | 82111-0R140 · 82111-0R150 · 82111-0R190 · 82111-0R200 · 82111-0R210 · 82111-0R220 · 82111-0R221 · 82111-0R230 · 82111-0R240 · 82111-0R360 · 82111-0R361 · 82111-0R370 · 82111-0R371 · 82111-0R380 · 82111-0R381 · 82111-0R390 · 82111-0R391 · 82111-0R400 · 82111-0R401 · 82111-0R410 · 82111-0R411 · 82111-0R500 · 82111-0R510 · 82111-0R520 · 82111-0R530 · 82111-0R550 · 82111-0R560 · 82111-0R750 · 82111-0R760 · 82111-0R890 |
| 82113 | Engine room wiring harness No. 3 | 82113-0R080 · 82113-0R090 |

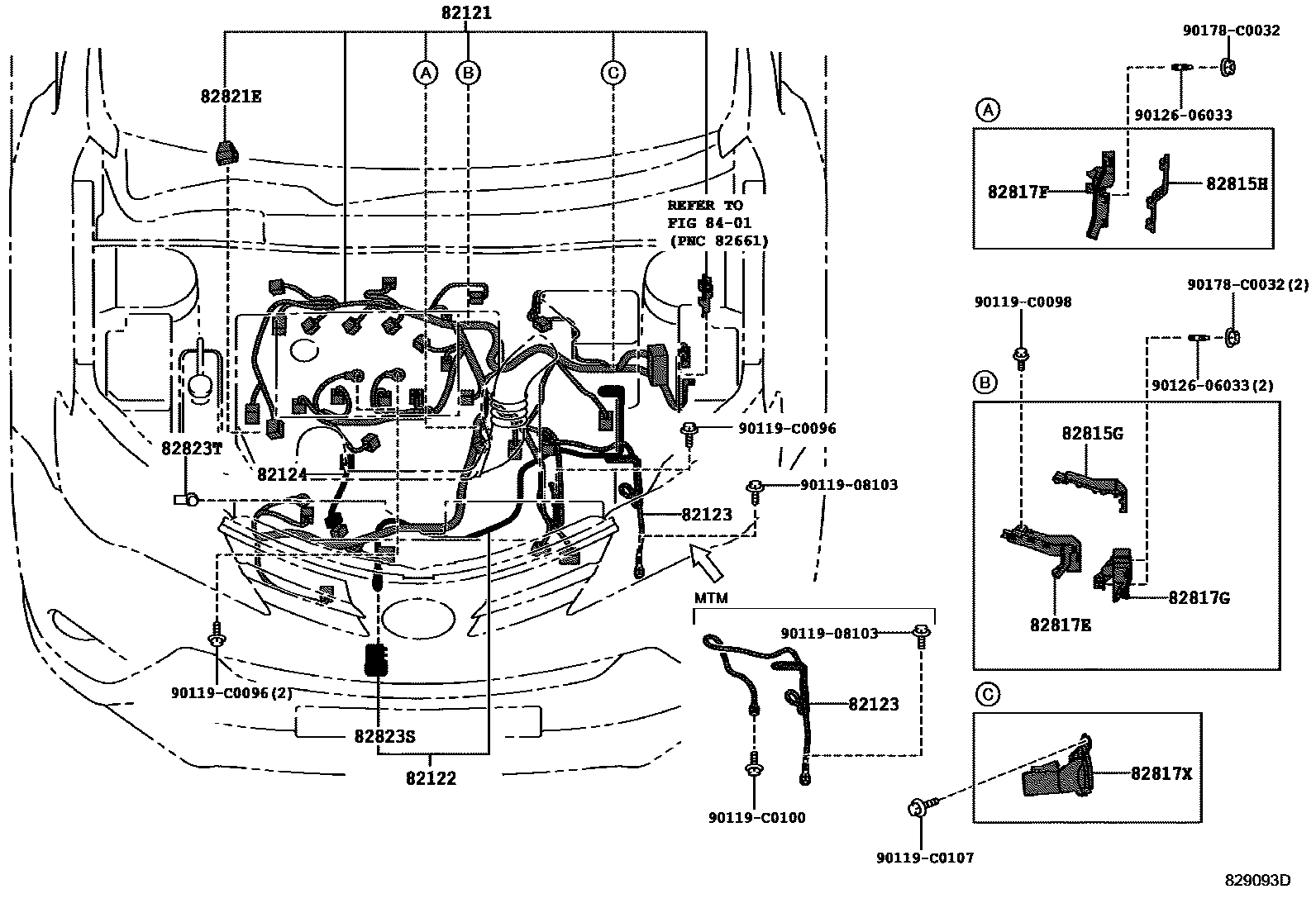

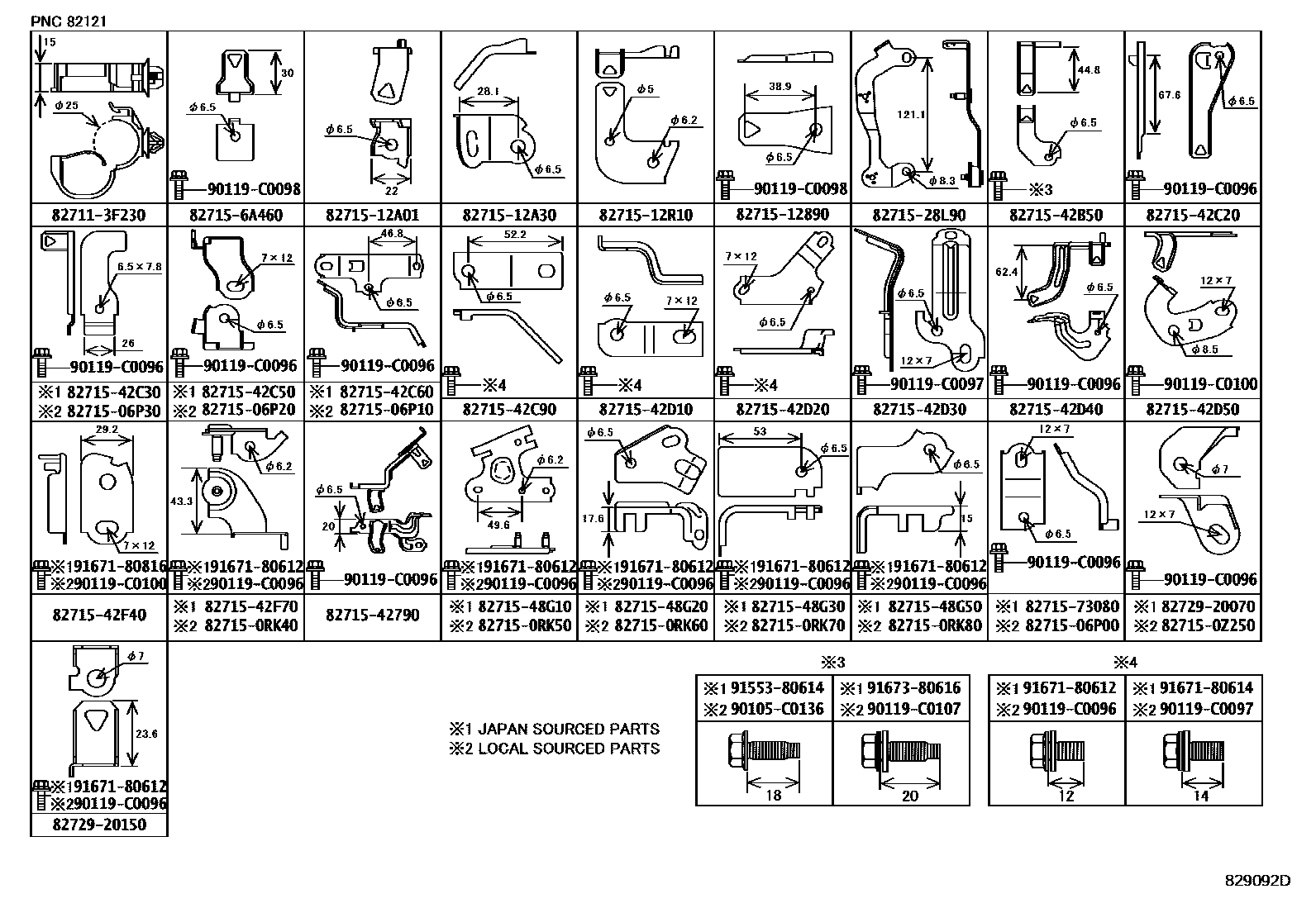

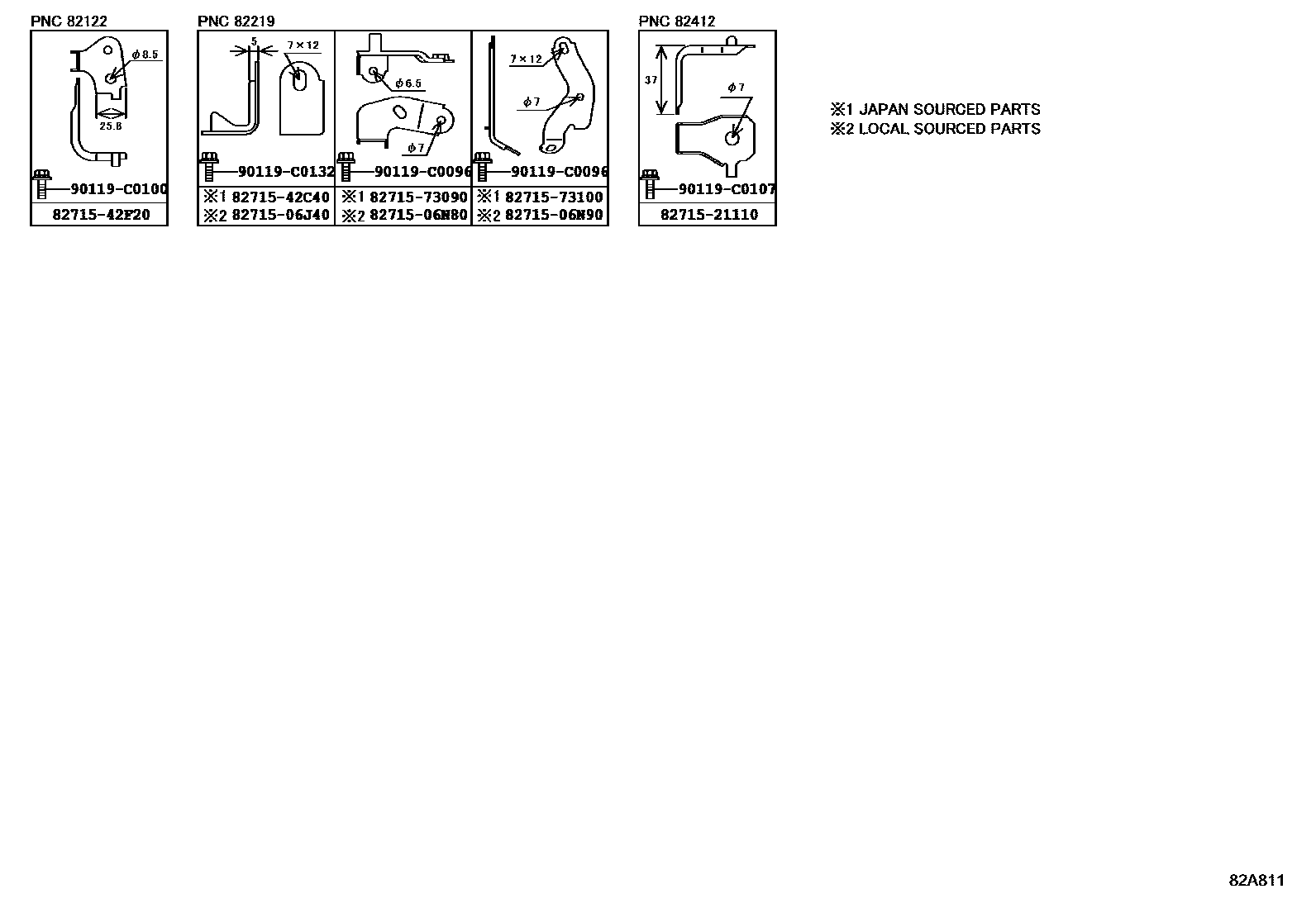

| 82121 | Engine wiring harness | 82121-0R110 · 82121-0R120 · 82121-0R130 · 82121-0R150 · 82121-0R160 · 82121-0R250 · 82121-0R260 |
| 82122 | Engine No. 2 wiring harness | 82122-0R060 · 82122-0R061 · 82122-0R070 |
| 82123 | Engine No. 3 wiring harness | 82123-0R050 · 82123-0R060 |
| 82124 | Engine No. 4 wiring harness | 82124-02100 |

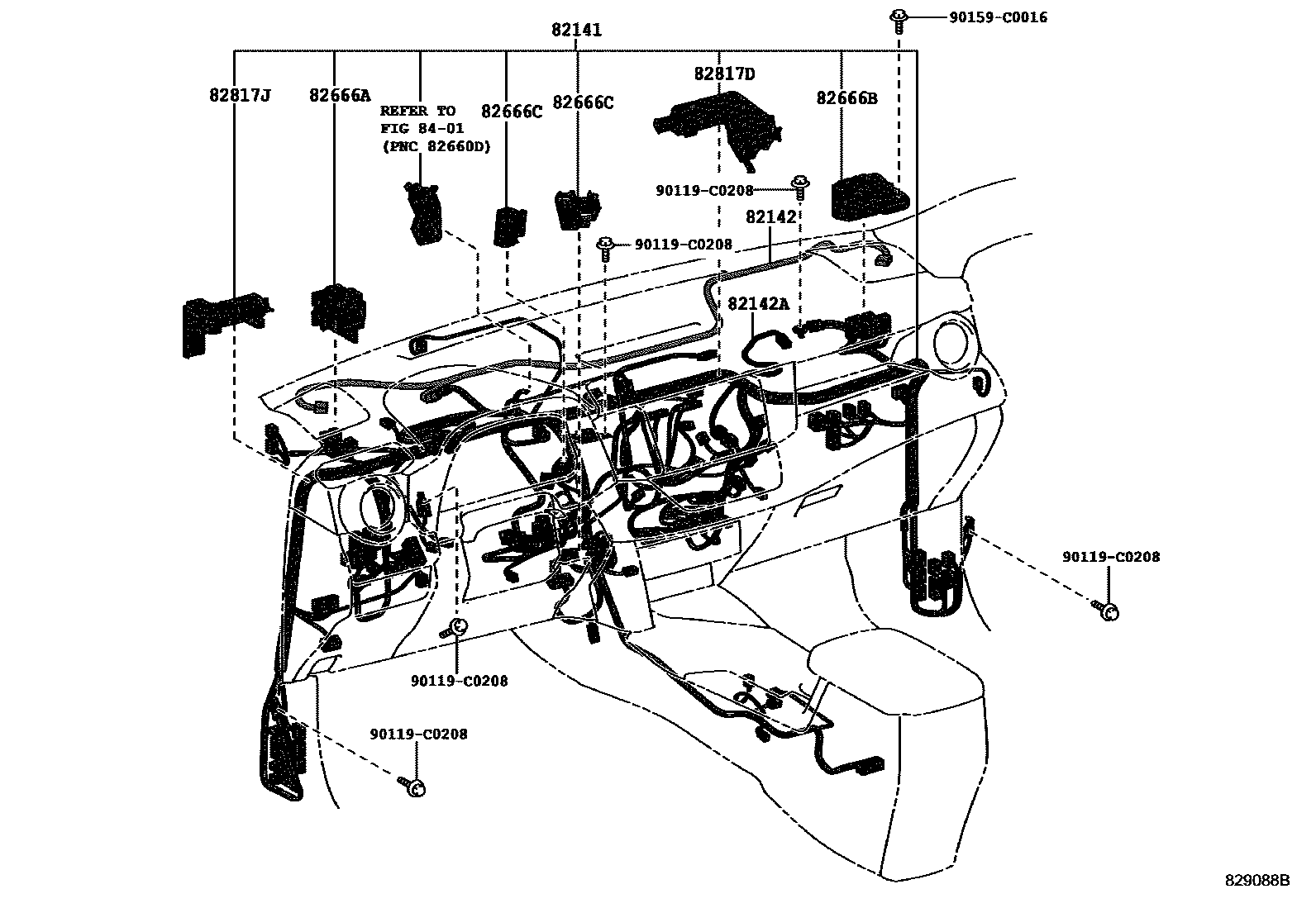

| 82141 | Dashboard wiring harness | 82141-0R800 · 82141-0R810 · 82141-0R820 · 82141-0R830 · 82141-0R840 · 82141-0R870 · 82141-0R871 · 82141-0R880 · 82141-0R881 · 82141-0RA80 · 82141-0RA90 · 82141-0RB00 · 82141-0RB01 · 82141-0RB10 · 82141-0RB11 · 82141-0RB30 · 82141-0RD90 · 82141-0RE00 · 82141-0RE10 · 82141-0RE20 · 82141-0RE50 · 82141-0RL00 · 82141-0RL10 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-0R080 · 82142-0R100 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-0R050 |

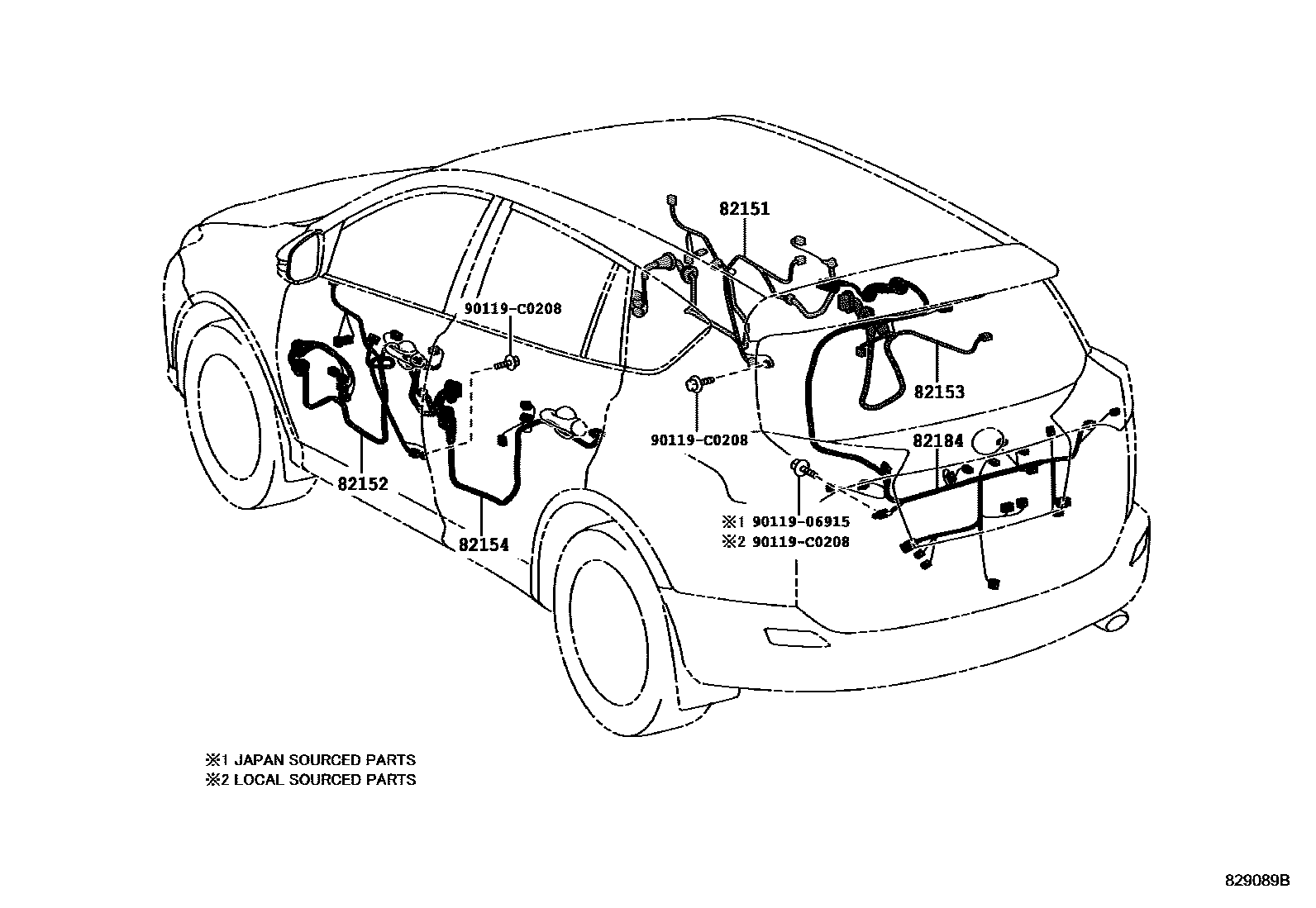

| 82151 | Right front door wiring harness | 82151-0R140 · 82151-0R150 · 82151-0R151 · 82151-0R190 · 82151-0R200 · 82151-0R240 |
| 82152 | Left front door wiring harness | 82152-0R160 · 82152-0R170 · 82152-0R171 · 82152-0R210 · 82152-0R220 · 82152-0R300 |
| 82153 | Rear door wiring harness No. 1 | 82153-0R050 · 82153-0R060 · 82153-0R080 |
| 82154 | Rear door wiring harness No. 2 | 82154-0R030 · 82154-0R040 · 82154-0R060 |
| 82161 | floor wiring harness | 82161-0R290 · 82161-0R300 · 82161-0R301 · 82161-0R310 · 82161-0R400 · 82161-0R420 · 82161-0R430 · 82161-0R460 |
| 82162 | Floor wiring harness No. 2 | 82162-0R340 · 82162-0R350 · 82162-0R351 · 82162-0R430 · 82162-0R450 · 82162-0R470 · 82162-0R530 · 82162-0R540 · 82162-0R550 |
| 82164 | Frame wiring harness set | 82164-0R040 · 82164-0R050 · 82164-0R080 · 82164-0R090 · 82164-0R100 |
| 82169 | No. 3 frame wiring harness | 82169-0R040 |

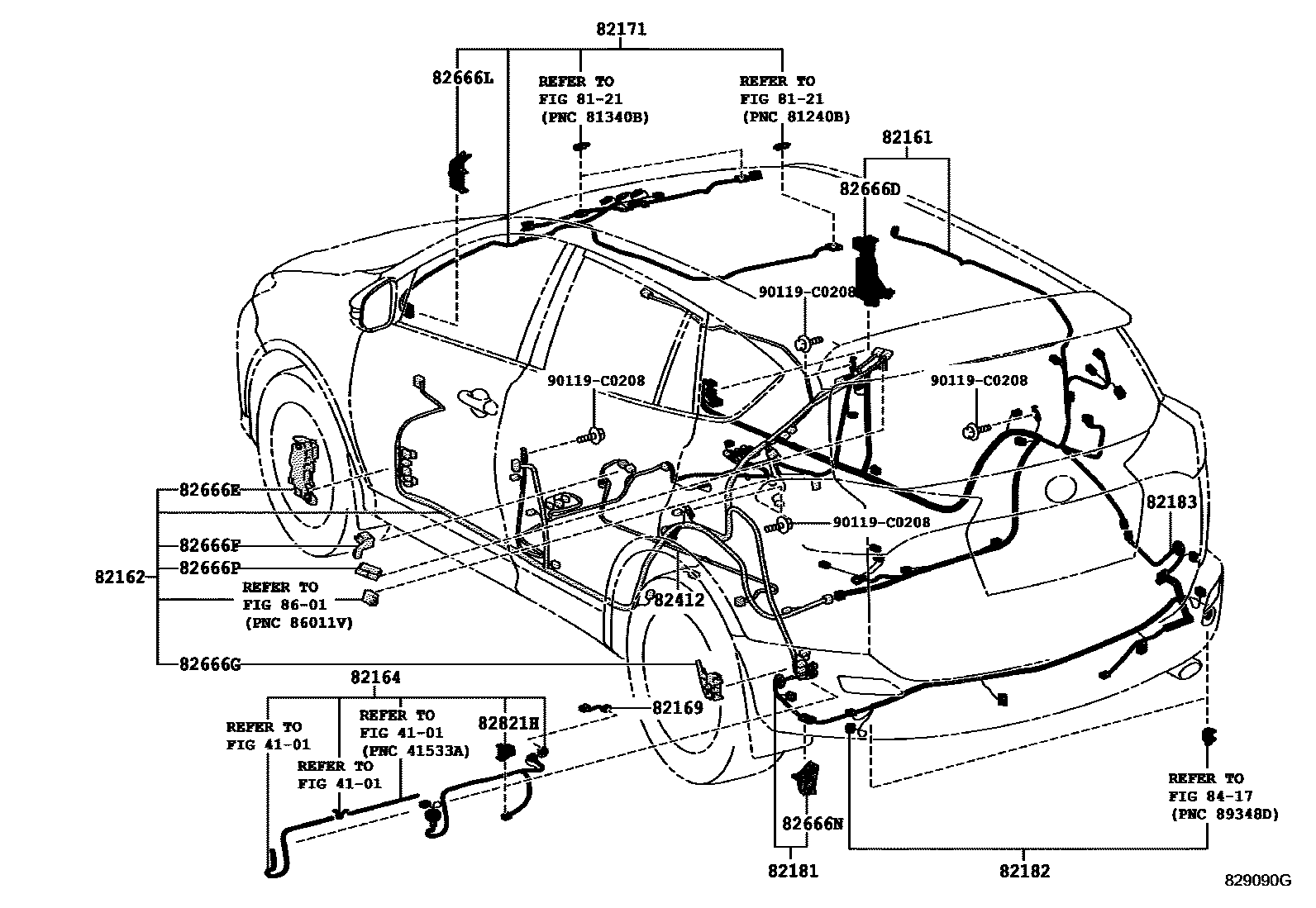

| 82171 | Roof No. 1 wiring harness | 82171-0R190 · 82171-0R200 · 82171-0R210 · 82171-0R211 · 82171-0R220 · 82171-0R221 · 82171-0R250 · 82171-0R260 · 82171-0R330 · 82171-0R340 · 82171-0R360 · 82171-0R370 · 82171-0R371 · 82171-0R380 |
| 82181 | Luggage No. 1 wiring harness | 82181-0R060 · 82181-0R070 · 82181-0R130 · 82181-0R140 |
| 82182 | Luggage No. 2 wiring harness | 82182-0R020 · 82182-0R030 · 82182-0R070 · 82182-0R080 |
| 82183 | Luggage No. 3 wiring harness | 82183-0R040 · 82183-0R050 · 82183-0R051 · 82183-0R130 · 82183-0R140 |
| 82184 | Rear door No. 1 wiring harness | 82184-0R160 · 82184-0R170 · 82184-0R180 · 82184-0R190 · 82184-0R230 · 82184-0R460 · 82184-0R470 · 82184-0R480 |

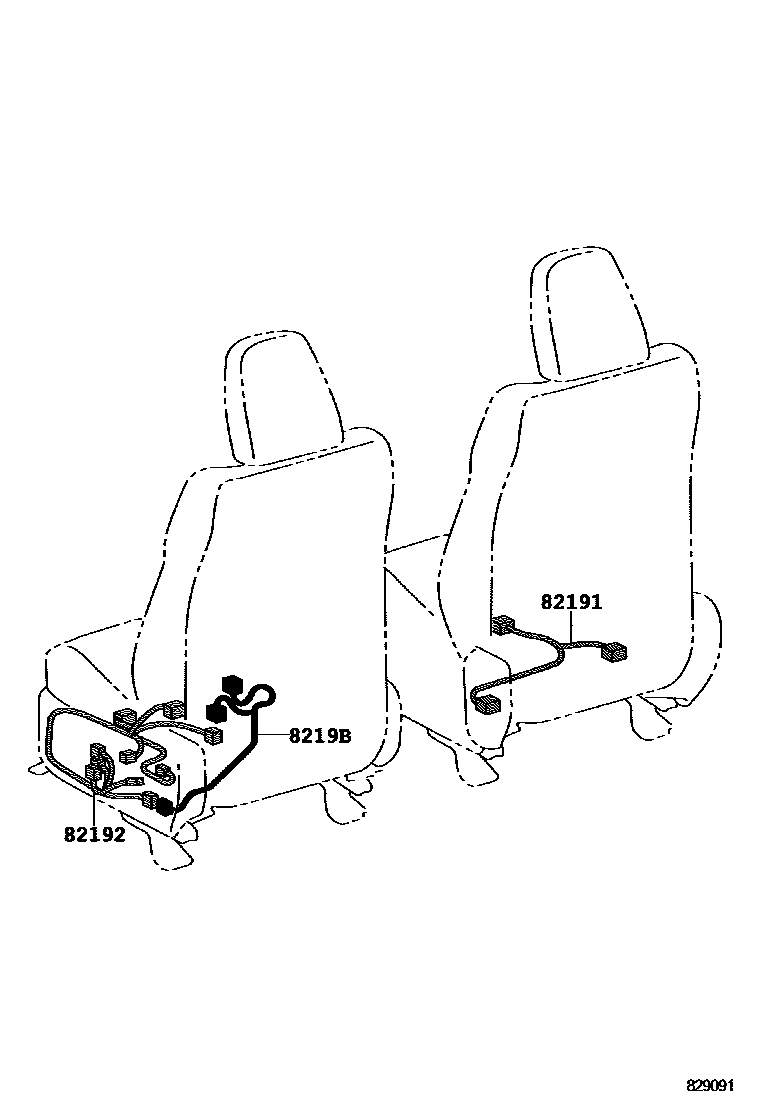

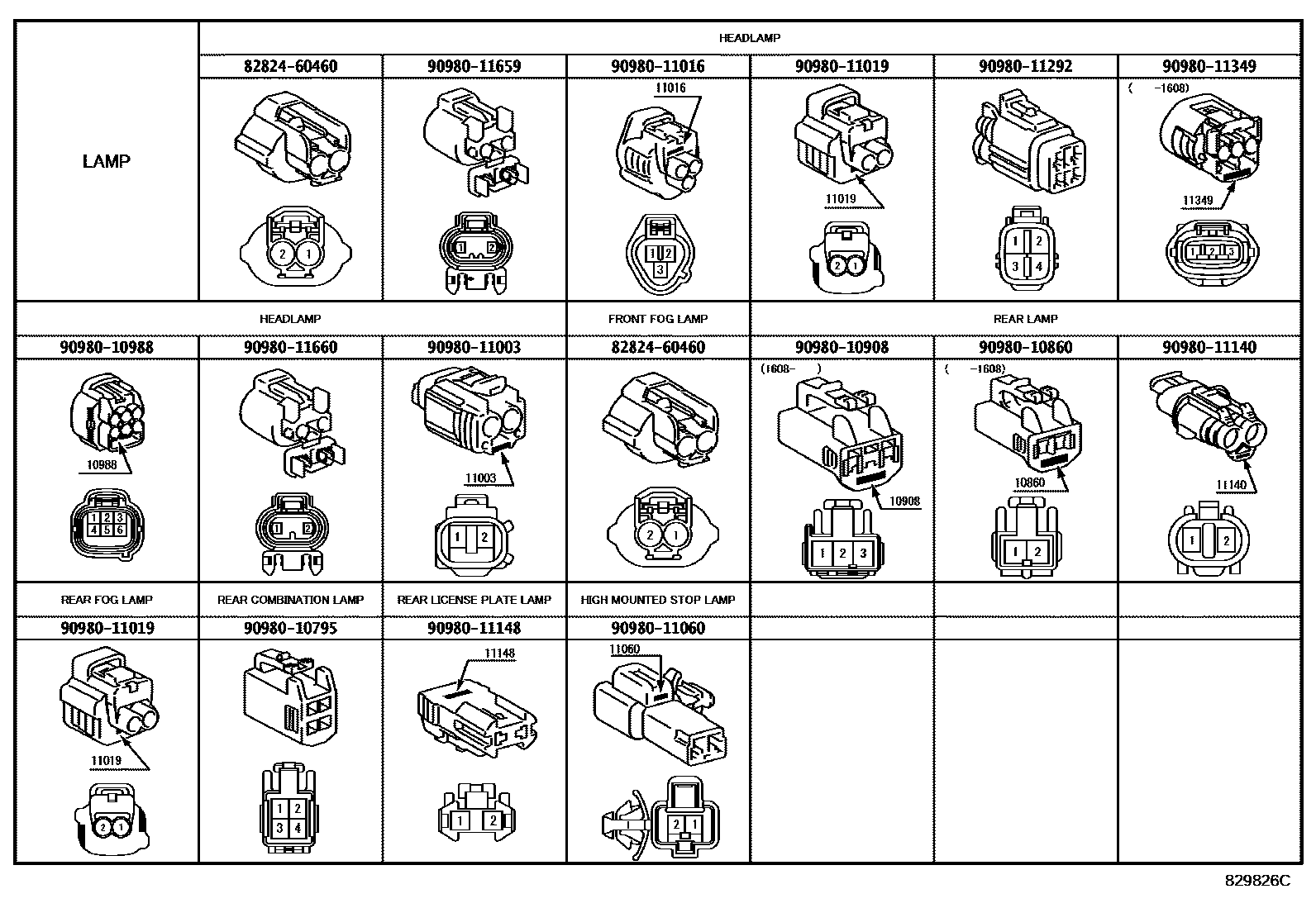

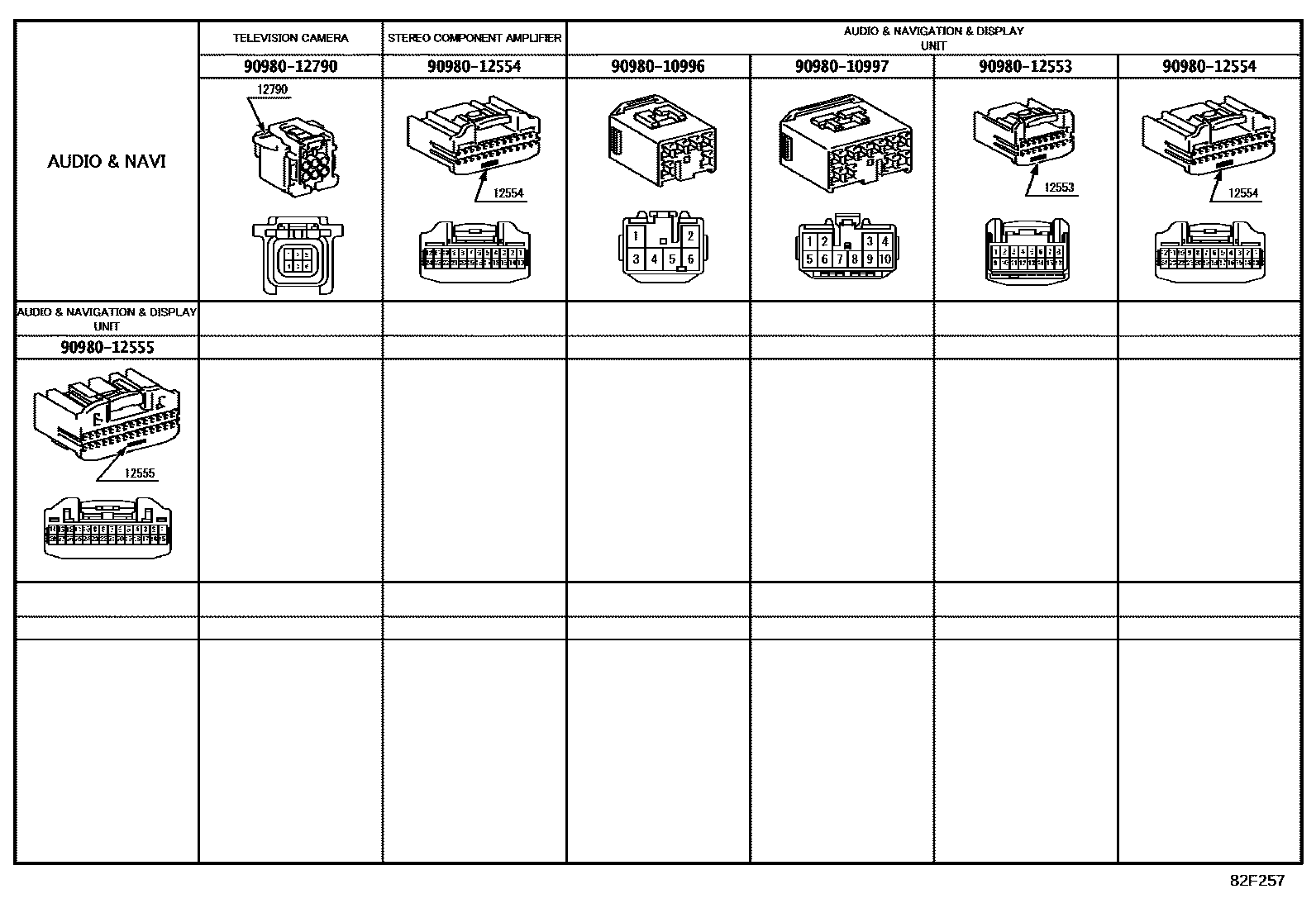

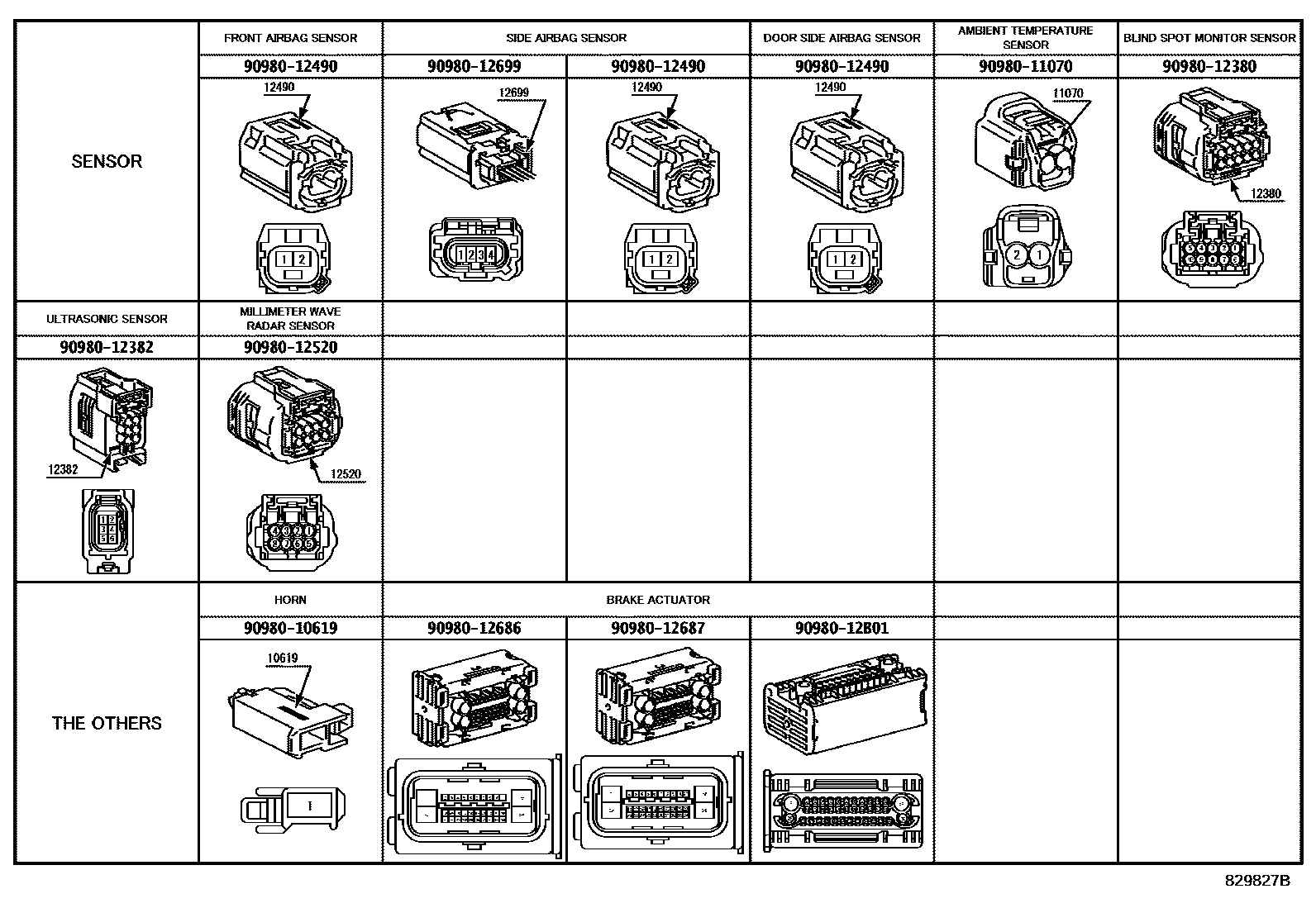

| 82191 | Front right seat wiring harness | 82191-0R020 |
| 82192 | Front left seat wiring harness | 82192-0R060 · 82192-0R070 |
| 8219B | Wire harness No. 2, left side of front seat | 8219B-0R030 |
| 82219A | sensor harness | 82219-06020 · 82219-06060 · 82219-73010 |
| 82284 | Ground wire | 82286-0R060 · 82286-0R070 |
| 82412 | Fuel gauge wiring harness | 82412-0R050 · 82412-0R070 · 82412-0R080 |
| 82666A | Connector holder No. 2 | 82666-0R160 |
| 82666B | No. 3 connector holder | 82666-0R170 |
| 82666C | No. 4 connector holder | 82666-0R180 |
| 82666D | No. 5 connector holder | 82666-0R110 |
| 82666E | No. 6 connector holder | 82666-0R120 |
| 82666F | No. 7 connector holder | 82666-0R130 · 82666-42300 |
| 82666G | No. 8 connector holder | 82666-0R140 |
| 82666L | No. 9 connector holder | 82666-42410 |
| 82666N | No. 10 connector holder | 82666-0R150 |
| 82666P | No. 11 Connector Block | 82666-60220 |
| 82815A | Wiring harness protector cover | 82815-42040 |
| 82815B | Wiring harness protector cover | 82815-42050 |
| 82815G | No. 5 wire harness protector cover | 82815-0R020 · 82815-12510 |
| 82815H | No. 6 wire harness protector cover | 82815-0R010 · 82815-12530 |
| 82817 | No. 1 wire harness protection device | 82817-42580 |
| 82817A | No. 2 wire harness protection device | 82817-42460 |
| 82817B | No. 3 wire harness protection device | 82817-0R260 |
| 82817C | No. 4 wire harness protection device | 82817-0R270 |
| 82817D | No. 5 wire harness protection device | 82817-0R290 |
| 82817E | No. 6 wire harness protection device | 82817-0R390 · 82817-12K80 |
| 82817F | No. 7 wire harness protection device | 82817-0R350 · 82817-12L00 |
| 82817G | No. 8 wire harness protection device | 82817-0R280 · 82817-0R360 |
| 82817J | No. 9 wire harness protection device | 82817-0R300 |
| 82817K | No. 10 wire harness protection device | 82817-0R380 |
| 82817L | No. 11 wire harness protection device | 82817-0R370 |
| 82817M | No. 12 wire harness protection device | 82817-42590 |
| 82817X | No. 17 wire harness protection device | 82817-42520 |
| 82821A | Connector cover | 82821-20370 |
| 82821E | Connector cover | 82821-20410 |
| 82821H | Connector cover | 82821-30600 |
| 82823S | starter terminal cover | 82823-12120 · 82823-30090 · 82823-30120 · 82823-42020 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-33360 |
| 82930 | No. 1 condenser wire harness assembly | 82930-42010 |
| 82991 | Fuse repair line | 82991-0R040 · 82991-0R050 |
