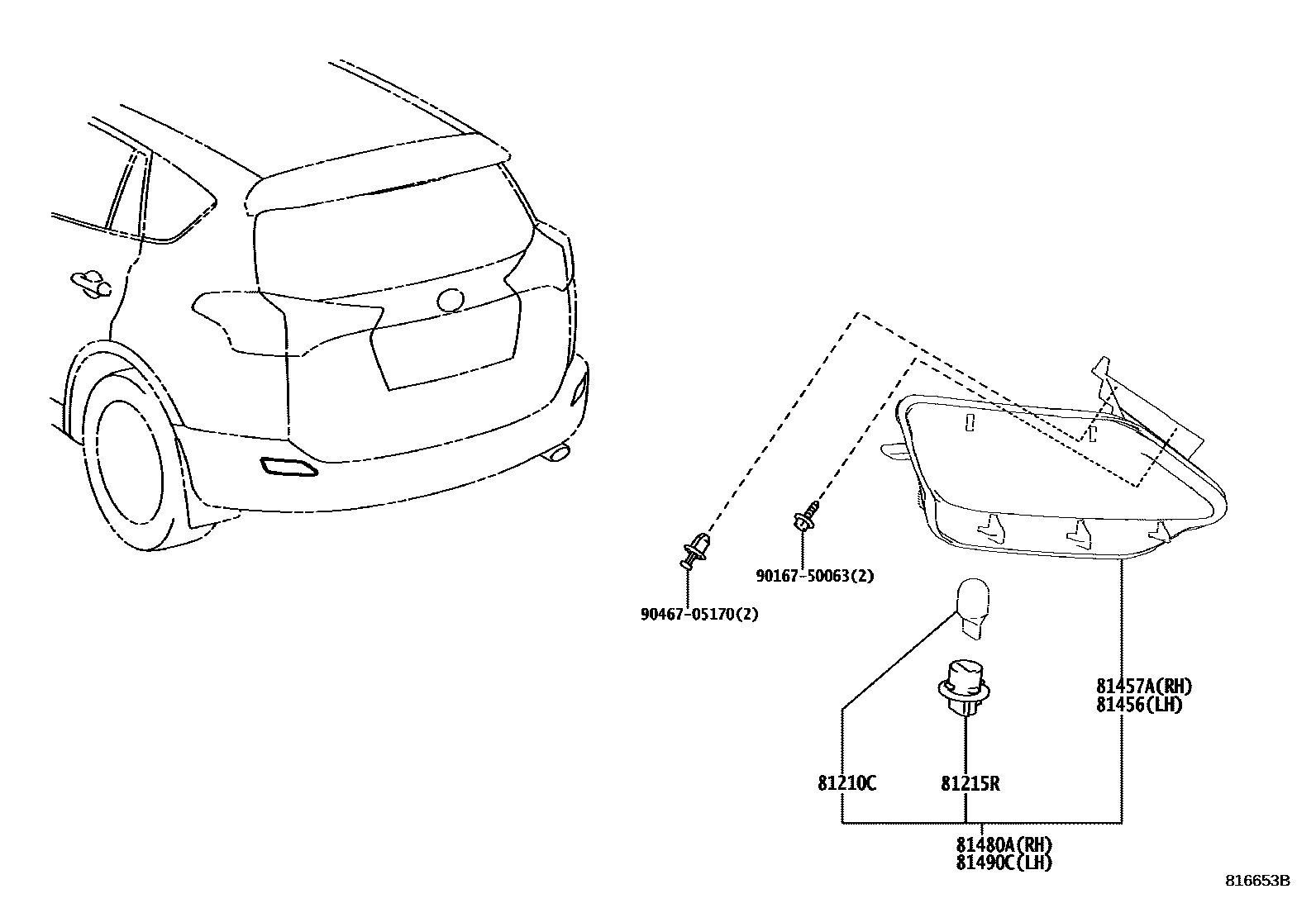

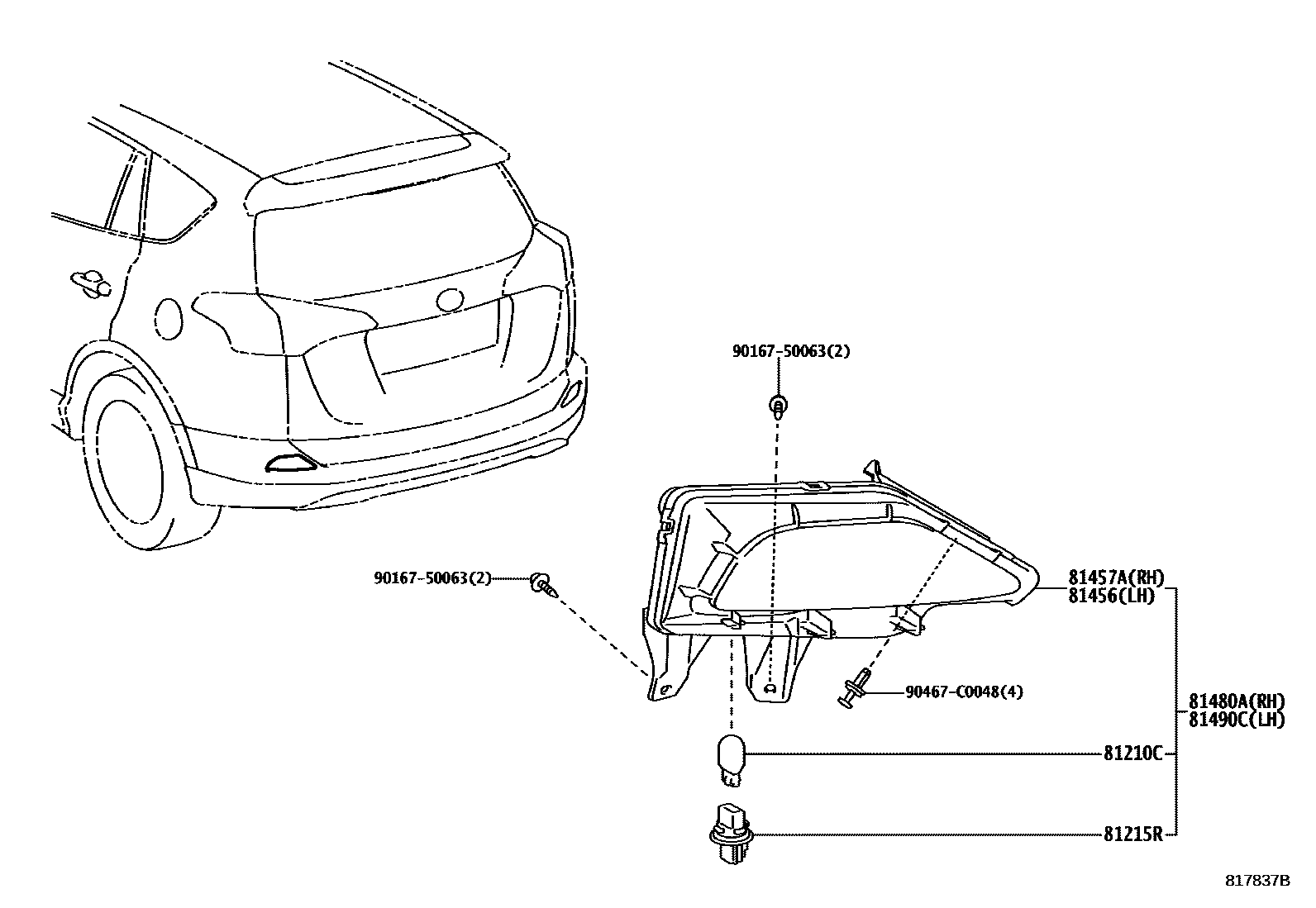

Toyota RAV4 后雾灯 — Figure 8116
Toyota RAV4 EPC diagram 8116, 后雾灯, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 90981-CD005 |
| 81215R | Rear fog light lamp holder and wiring harness | 81459-0R030 |
| 81456 | Left rear fog lamp cover and lamp body | 81456-0R030 · 81456-0R050 |
| 81457A | Right rear fog lamp cover and lamp body | 81457-0R030 · 81457-0R050 |
| 81480A | Right rear fog light assembly | 81480-0R030 · 81480-0R050 |
| 81490C | Left rear fog light assembly | 81490-0R030 · 81490-0R050 |
